DTC P0745 LINE PRESSURE SOLENOID VALVE

AT-131

D

E

F

G

H

I

J

K

L

M

A

B

AT

Diagnostic Procedure

NCS001M8

1.

CHECK INPUT SIGNAL

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.

3.

Start engine.

4.

Read out the value of “LINE PRES SOL” during driving.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-180, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

●

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-236, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

 .

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-130, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

Item name

Condition

Display value (Approx.)

LINE PRES SOL

During driving

0.2 - 0.6 A

SCIA4793E

AT-132

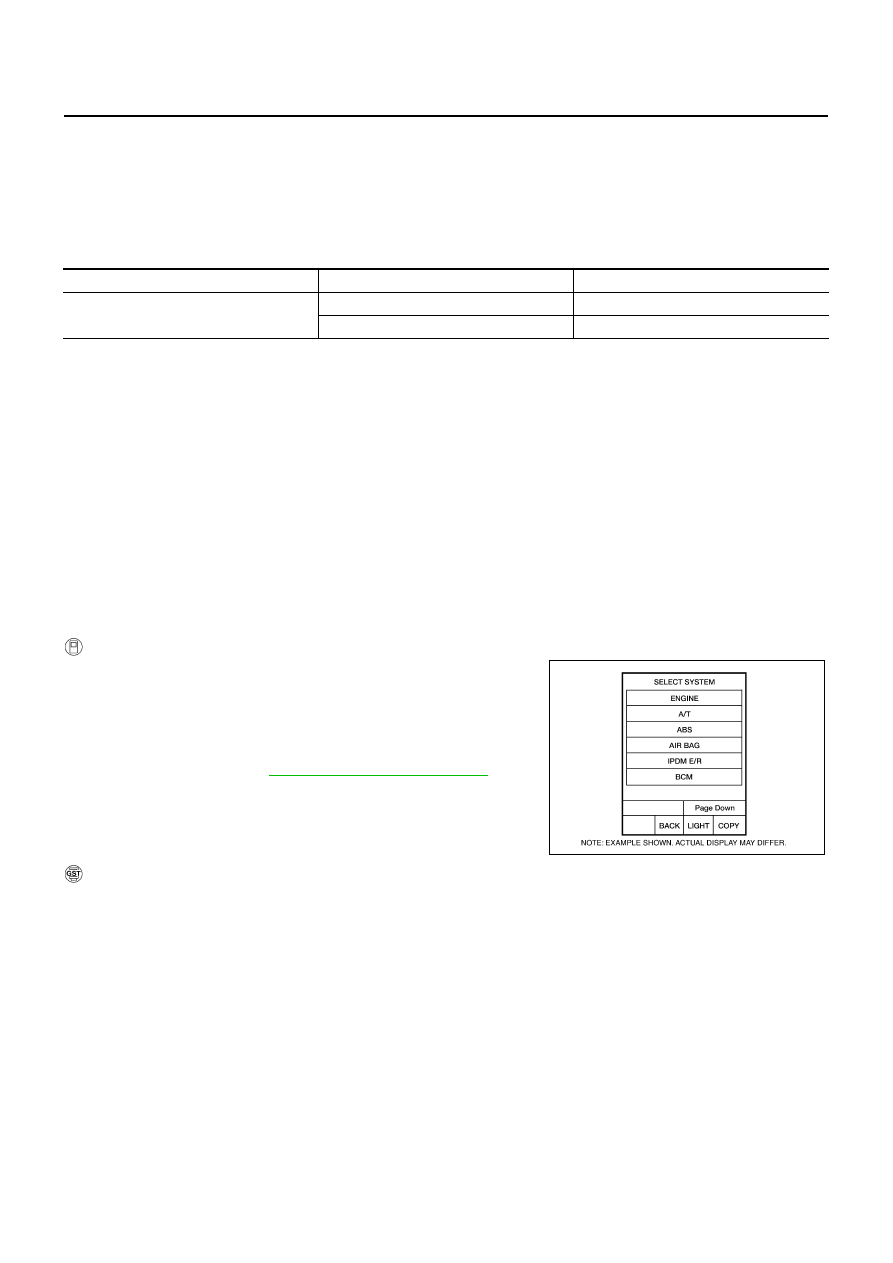

DTC P1705 THROTTLE POSITION SENSOR

DTC P1705 THROTTLE POSITION SENSOR

PFP:22620

Description

NCS001M9

Electric throttle control actuator consists of throttle control motor, accelerator pedal position sensor, throttle
position sensor, etc. The actuator sends a signal to the ECM, and ECM sends signals to TCM with CAN com-
munication.

CONSULT-II Reference Value

NCS001MA

On Board Diagnosis Logic

NCS001MB

●

This is an OBD-II self-diagnostic item. (For VQ35DE engine)

●

Diagnostic trouble code “P1705 TP SEN/CIRC A/T” with CONSULT-II or 15th judgement flicker without
CONSULT-II is detected when TCM does not receive the proper accelerator pedal position signals (input
by CAN communication) from ECM.

Possible Cause

NCS001MC

Harness or connectors
(Sensor circuit is open or shorted.)

DTC Confirmation Procedure

NCS001MD

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Touch “START”.

4.

Start engine and let it idle for 1 second.

5.

If DTC is detected, go to

AT-133, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II”.

Item name

Condition

Display value (Approx.)

ACCELE POSI

Released accelerator pedal.

0.0/8

Fully depressed accelerator pedal.

8.0/8

BCIA0030E

DTC P1705 THROTTLE POSITION SENSOR

AT-133

D

E

F

G

H

I

J

K

L

M

A

B

AT

Diagnostic Procedure

NCS001ME

1.

CHECK CAN COMMUNICATION LINE

Perform the self-diagnosis. Refer to

AT-92, "SELF-DIAGNOSTIC RESULT MODE"

 ,

AT-103, "Diagnostic Pro-

cedure without CONSULT-II"

 .

Is a malfunction in the CAN communication indicated in the results?

YES

>> Check CAN communication line. Refer to

AT-105, "DTC U1000 CAN COMMUNICATION LINE"

 .

NO

>> GO TO 2.

2.

CHECK DTC WITH TCM

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Depress accelerator pedal and read out the value of “ACCELE
POSI”.

4.

Select “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II. Refer to

AT-92, "SELF-DIAGNOSTIC RESULT MODE"



OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

CHECK DTC WITH ECM

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “SELF-DIAG RESULTS” mode for “ENGINE” with CON-
SULT-II. Refer to

EC-123, "CONSULT-II Function (ENGINE)"

(for VQ35DE engine),

EC-826, "CONSULT-II Function

(ENGINE)"

  (for VK45DE engine).

OK or NG

OK

>> GO TO 4.

NG

>> Check the DTC detected item. Refer to

EC-123, "CON-

SULT-II Function (ENGINE)"

  (for VQ35DE engine),

EC-

826, "CONSULT-II Function (ENGINE)"

  (for VK45DE

engine).

●

If CAN communication line is detected, go to

AT-105, "DTC U1000 CAN COMMUNICATION

LINE"

 .

4.

CHECK DTC

Perform “DTC Confirmation Procedure”. Refer to

AT-132, "DTC Confirmation Procedure"

 .

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

Item name

Condition

Display value
(Approx.)

ACCELE POSI

Released accelerator pedal.

0.0/8

Fully depressed accelerator pedal.

8.0/8

PCIA0070E

BCIA0030E

AT-134

DTC P1705 THROTTLE POSITION SENSOR

5.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-180, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace damaged parts.

6.

DETECT MALFUNCTIONING ITEM

Check the following.

●

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> Replace the control valve with TCM. Refer to

AT-236, "Control Valve With TCM and A/T Fluid

Temperature Sensor 2"

 .

NG

>> Repair or replace damaged parts.
