DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

AT-119

D

E

F

G

H

I

J

K

L

M

A

B

AT

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

PFP:32702

Description

NCS001LE

The revolution sensor detects the revolution of the parking pawl lock gear and emits a pulse signal. The pulse
signal is sent to the TCM which converts it into vehicle speed.

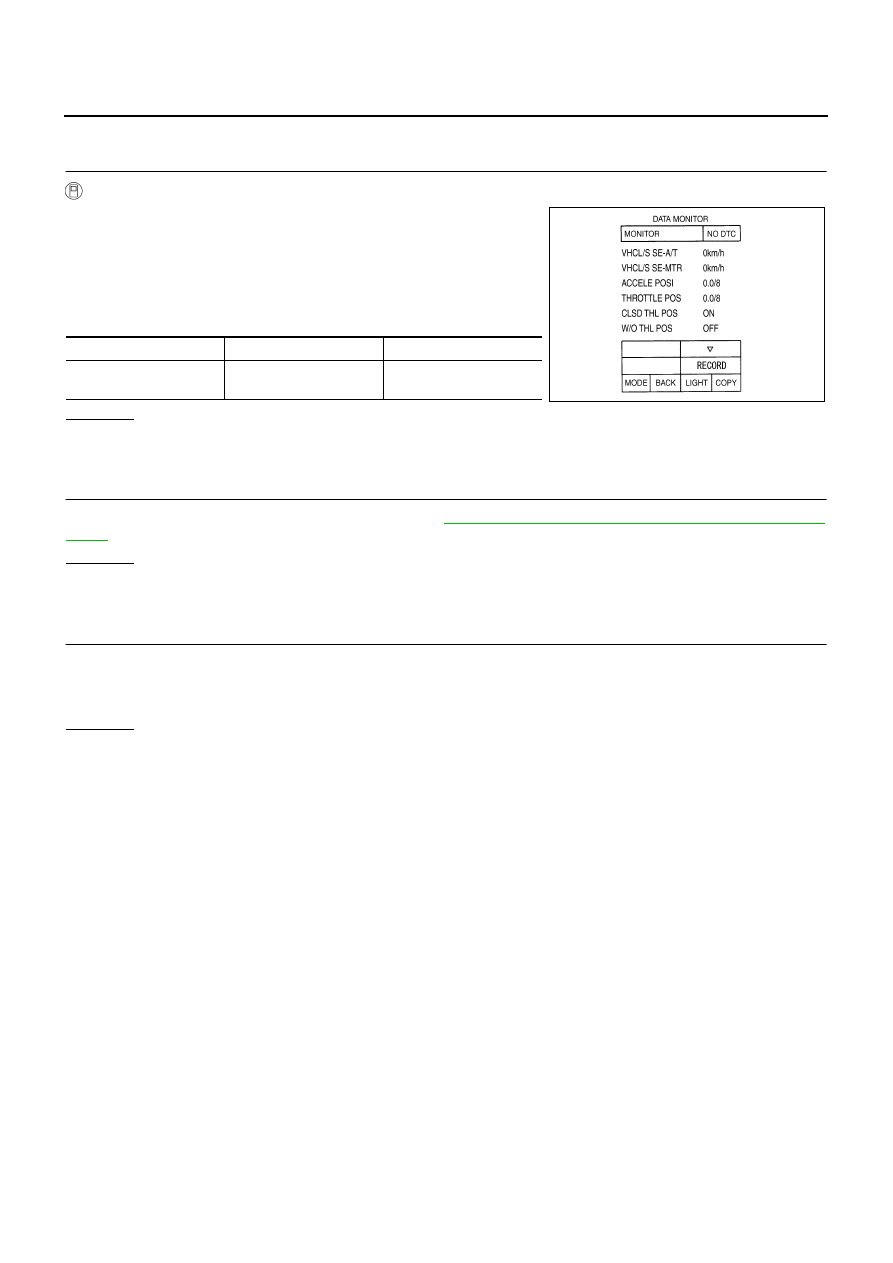

CONSULT-II Reference Value

NCS001LF

On Board Diagnosis Logic

NCS001LG

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0720 VEH SPD SEN/CIR AT” with CONSULT-II or 1st judgement flicker without
CONSULT-II is detected under the following conditions.

When TCM does not receive the proper voltage signal from the sensor.

After ignition switch is turned ON, irregular signal input from vehicle speed sensor MTR before the vehicle
starts moving.

Possible Cause

NCS001LH

Harness or connectors
(Sensor circuit is open or shorted.)

Revolution sensor

Vehicle speed sensor MTR

DTC Confirmation Procedure

NCS001LI

CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.

NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

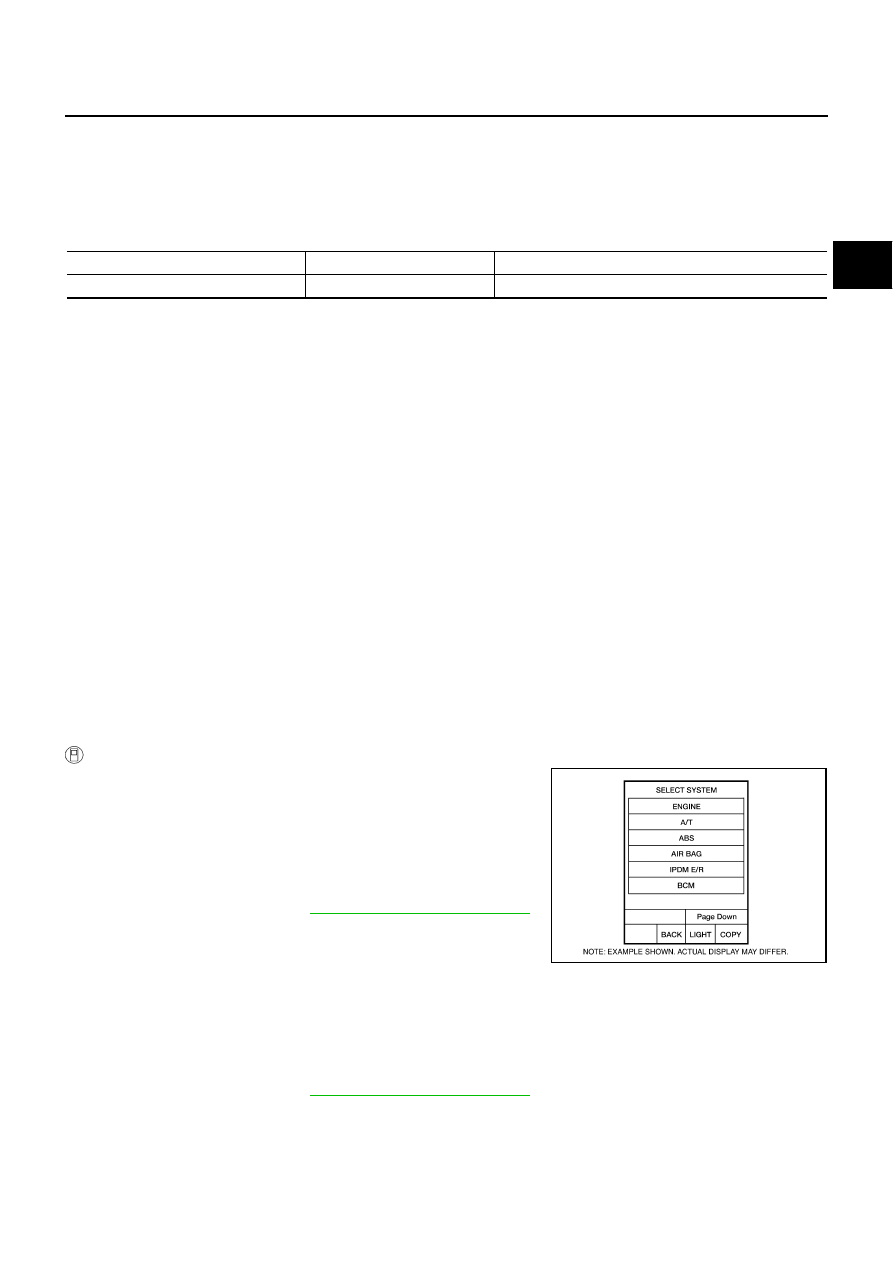

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II and check monitor “VHCL/S SE-A/T”,
“ENGINE SPEED”, “ACCELE POSI” and “SLCT LVR POSI ”. .

3.

Touch “START”.

4.

Drive vehicle and check for an increase of “VHCL/S SE-A/T”
value in response to “VHCL/S SE-MTR” value.
If the check result is NG, go to

AT-122, "Diagnostic Procedure"

 .

If the check result is OK, go to following step.

5.

Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II.

6.

Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL/S SE-A/T: 30 km/h (19 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to

AT-122, "Diagnostic Procedure"

 .

If the check result is OK, go to following step.

7.

Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
ACCELE POSI: More than 1.0/8

Item name

Condition

Display value

VHCL/S SE-A/T

During driving

Approximately matches the speedometer reading.

BCIA0030E

AT-120

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.

8.

If DTC is detected, go to

AT-122, "Diagnostic Procedure"

 .

 WITH GST

Follow the procedure “WITH CONSULT-II”.

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

AT-121

D

E

F

G

H

I

J

K

L

M

A

B

AT

Wiring Diagram — AT — VSSA/T

NCS001LJ

TCWT0345E

AT-122

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)

Diagnostic Procedure

NCS001LK

1.

CHECK INPUT SIGNAL

 With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Start engine.

4.

Read out the value of “VHCL/S SE-A/T” while driving.
Check the value changes according to driving speed.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

AT-180, "MAIN POWER SUPPLY AND GROUND CIR-

CUIT"

 .

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

Item name

Condition

Display value

VHCL/S SE·A/T

During driving

Approximately matches
the speedometer reading.

SCIA2148E
