ELECTRICAL COMPONENT INSPECTION

ACS-69

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

ELECTRICAL COMPONENT INSPECTION

PFP:00000

ICC Steering Switch

NKS004DS

1.

Disconnect ICC steering switch.

2.

Check resistance between terminals by pressing each switch.

ICC Brake Hold Relay

NKS004DT

Check continuity between ICC brake hold relay terminals.

ICC Brake Switch and Stop Lamp Switch

NKS004DU

Check continuity between ICC brake switch terminals.

Check continuity between stop lamp switch terminals.

Check each switch after adjusting brake pedal, refer to

BR-6,

"BRAKE PEDAL"

 .

Terminals

Switch

Condition

Resistance [k

]

18

21

MAIN

Pressed

Approx. 0

Released

Approx. 5.5

CANCEL

Pressed

Approx. 0.3

Released

Approx. 5.5

DISTANCE

Pressed

Approx. 0.7

Released

Approx. 5.5

SET/COAST

Pressed

Approx. 1.4

Released

Approx. 5.5

RESUME/ACCELERATE

Pressed

Approx. 2.6

Released

Approx. 5.5

PKIB9345E

terminals

condition

Continuity

3

5

Applying battery voltage to between ter-
minals 1 and 2

Yes

No battery voltage

No

PKIB9346E

terminals

Condition

Continuity

1

2

When brake pedal is depressed

No

When brake pedal is released

Yes

PKIC0597E

terminals

Condition

Continuity

1

2

When brake pedal is depressed

Yes

When brake pedal is released

No

3

4

When brake pedal is depressed

Yes

When brake pedal is released

No

PKIC0695E

ACS-70

[ICC]

REMOVAL AND INSTALLATION

REMOVAL AND INSTALLATION

PFP:00000

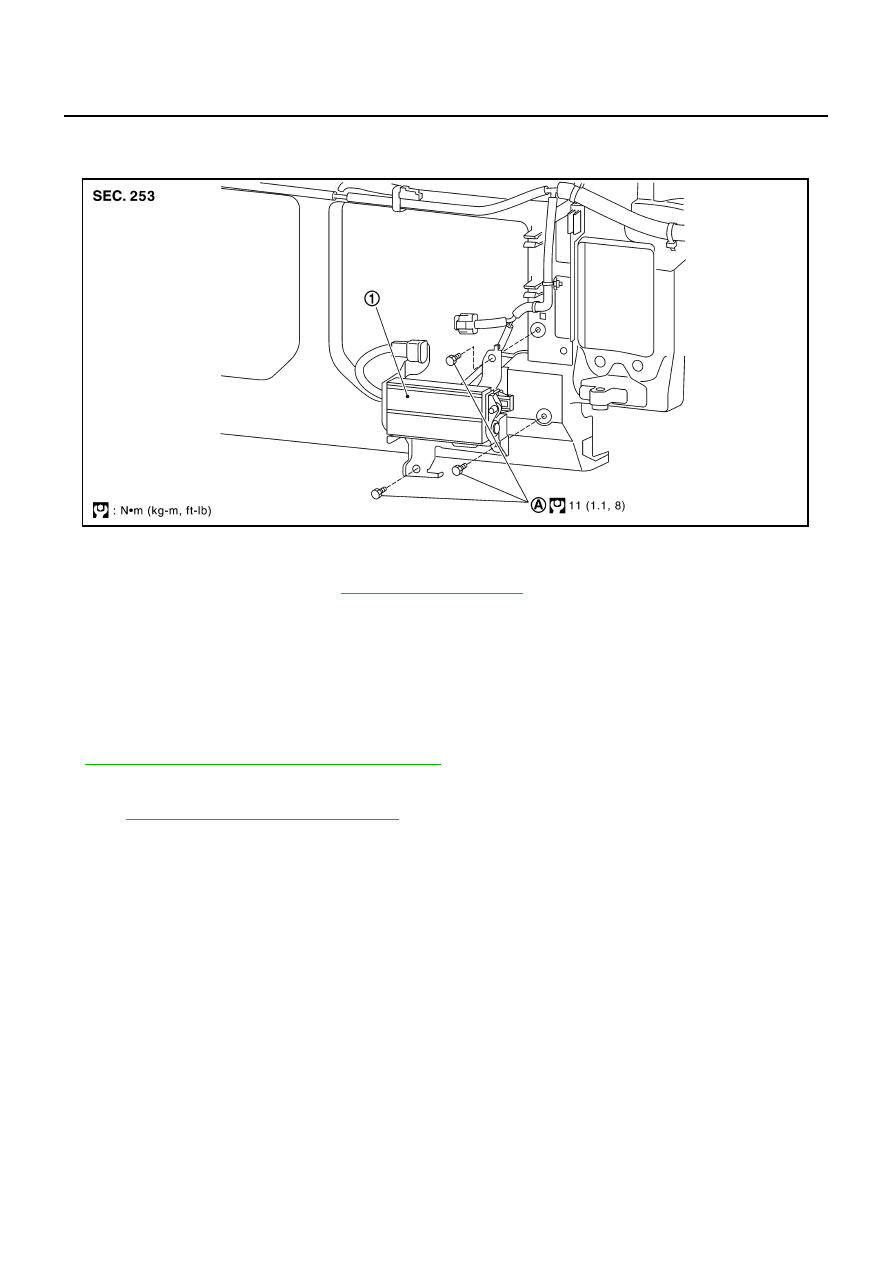

ICC Sensor Integrated Unit

NKS004DV

REMOVAL

1.

Remove the front bumper. Refer to

EI-11, "FRONT BUMPER"

 .

2.

Disconnect ICC sensor integrated unit connector.

3.

Remove mounting bolts (A) from ICC sensor integrated unit.

4.

Remove ICC sensor integrated unit (1).

INSTALLATION

Installation is the reverse order of removal.

CAUTION:

Adjust the laser beam aiming every time the ICC sensor integrated unit is removed or installed. Refer
to

ACS-15, "LASER BEAM AIMING ADJUSTMENT"

 .

ICC Steering Switch

NKS004DW

Refer to

SRS-42, "DRIVER AIR BAG MODULE"

 .

1.

ICC sensor integrated unit

PKIB4497J

AT-1

AUTOMATIC TRANSMISSION

C  TRANSMISSION/TRANSAXLE

CONTENTS

D

E

F

G

H

I

J

K

L

M

SECTION

AT

A

B

AT

AUTOMATIC TRANSMISSION

INDEX FOR DTC  ........................................................ 5

Alphabetical Index .................................................... 5
DTC No. Index  ......................................................... 6

PRECAUTIONS .......................................................... 7

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 7
Precautions for On Board Diagnostic (OBD) System
of A/T and Engine  .................................................... 7
Precautions .............................................................. 8
Service Notice or Precautions  .................................. 9

PREPARATION ......................................................... 10

Special Service Tools  ............................................. 10
Commercial Service Tools .......................................11

A/T FLUID  ................................................................. 12

Changing A/T Fluid  ................................................ 12
Checking A/T Fluid ................................................. 13
A/T Fluid Cooler Cleaning  ...................................... 14

A/T CONTROL SYSTEM  .......................................... 17

Cross-Sectional View (VQ35DE Models for 2WD)

... 17

Cross-Sectional View (VK45DE Models for 2WD)

... 18

Cross-Sectional View (AWD Models)  ..................... 19
Shift Mechanism ..................................................... 20
TCM Function ......................................................... 31
CAN Communication .............................................. 32
Input/Output Signal of TCM .................................... 32
Line Pressure Control  ............................................ 33
Shift Control  ........................................................... 34
Lock-up Control ...................................................... 37
Engine Brake Control  ............................................. 38
Control Valve  .......................................................... 38

ON BOARD DIAGNOSTIC (OBD) SYSTEM  ............ 40

Introduction ............................................................ 40
OBD-II Function for A/T System ............................. 40
One or Two Trip Detection Logic of OBD-II ............ 40
OBD-II Diagnostic Trouble Code (DTC)  ................. 40
Malfunction Indicator Lamp (MIL) ........................... 43

TROUBLE DIAGNOSIS ............................................ 44

DTC Inspection Priority Chart  ................................ 44
Fail-safe ................................................................. 44

How to Perform Trouble Diagnosis for Quick and
Accurate Repair ...................................................... 46
A/T Electrical Parts Location  .................................. 51
Circuit Diagram ....................................................... 52
Inspections before Trouble Diagnosis  .................... 53
Check before Engine Is Started .............................. 57
Check at Idle ........................................................... 57
Cruise Test - Part 1 ................................................. 59
Cruise Test - Part 2 ................................................. 61
Cruise Test - Part 3 ................................................. 61
Vehicle Speed at Which Gear Shifting Occurs  ....... 63
Vehicle Speed at Which Lock-Up Occurs/Releases ... 63
Symptom Chart ....................................................... 64
TCM Input/Output Signal Reference Values ........... 89
CONSULT-II Function (A/T) .................................... 90
Diagnostic Procedure without CONSULT-II  .......... 103

DTC U1000 CAN COMMUNICATION LINE ............ 105

Description ............................................................ 105
On Board Diagnosis Logic .................................... 105
Possible Cause ..................................................... 105
DTC Confirmation Procedure  ............................... 105
Wiring Diagram — AT — CAN .............................. 106
Diagnostic Procedure  ........................................... 107

DTC P0615 START SIGNAL CIRCUIT  ................... 108

Description ............................................................ 108
CONSULT-II Reference Value  .............................. 108
On Board Diagnosis Logic .................................... 108
Possible Cause ..................................................... 108
DTC Confirmation Procedure  ............................... 108
Wiring Diagram — AT — STSIG  .......................... 109
Diagnostic Procedure  ........................................... 110

DTC P0700 TCM  ..................................................... 112

Description ............................................................ 112
On Board Diagnosis Logic .................................... 112
Possible Cause ..................................................... 112
DTC Confirmation Procedure  ............................... 112
Diagnostic Procedure  ........................................... 112

DTC P0705 PARK/NEUTRAL POSITION SWITCH .113

Description ............................................................ 113
CONSULT-II Reference Value  .............................. 113

AT-2

On Board Diagnosis Logic  .................................... 113
Possible Cause ..................................................... 113
DTC Confirmation Procedure  ............................... 113
Wiring Diagram — AT — PNP/SW  ....................... 114
Diagnostic Procedure  ........................................... 115

DTC P0717 TURBINE REVOLUTION SENSOR  .... 117

Description ............................................................ 117
CONSULT-II Reference Value  .............................. 117
On Board Diagnosis Logic  .................................... 117
Possible Cause ..................................................... 117
DTC Confirmation Procedure  ............................... 117
Diagnostic Procedure  ........................................... 118

DTC P0720 VEHICLE SPEED SENSOR A/T (REV-
OLUTION SENSOR)  ............................................... 119

Description ............................................................ 119
CONSULT-II Reference Value  .............................. 119
On Board Diagnosis Logic  .................................... 119
Possible Cause ..................................................... 119
DTC Confirmation Procedure  ............................... 119
Wiring Diagram — AT — VSSA/T ......................... 121
Diagnostic Procedure  ........................................... 122

DTC P0725 ENGINE SPEED SIGNAL  ................... 124

Description ............................................................ 124
CONSULT-II Reference Value  .............................. 124
On Board Diagnosis Logic  .................................... 124
Possible Cause ..................................................... 124
DTC Confirmation Procedure  ............................... 124
Diagnostic Procedure  ........................................... 125

DTC P0740 TORQUE CONVERTER CLUTCH
SOLENOID VALVE  ................................................. 126

Description ............................................................ 126
CONSULT-II Reference Value  .............................. 126
On Board Diagnosis Logic  .................................... 126
Possible Cause ..................................................... 126
DTC Confirmation Procedure  ............................... 126
Diagnostic Procedure  ........................................... 127

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP) . 128

Description ............................................................ 128
CONSULT-II Reference Value  .............................. 128
On Board Diagnosis Logic  .................................... 128
Possible Cause ..................................................... 128
DTC Confirmation Procedure  ............................... 128
Diagnostic Procedure  ........................................... 129

DTC P0745 LINE PRESSURE SOLENOID VALVE .130

Description ............................................................ 130
CONSULT-II Reference Value  .............................. 130
On Board Diagnosis Logic  .................................... 130
Possible Cause ..................................................... 130
DTC Confirmation Procedure  ............................... 130
Diagnostic Procedure  ........................................... 131

DTC P1705 THROTTLE POSITION SENSOR  ....... 132

Description ............................................................ 132
CONSULT-II Reference Value  .............................. 132
On Board Diagnosis Logic  .................................... 132
Possible Cause ..................................................... 132
DTC Confirmation Procedure  ............................... 132
Diagnostic Procedure  ........................................... 133

DTC P1710 A/T FLUID TEMPERATURE SENSOR
CIRCUIT .................................................................. 135

Description ............................................................135
CONSULT-II Reference Value ...............................135
On Board Diagnosis Logic  ....................................135
Possible Cause  .....................................................135
DTC Confirmation Procedure ................................135
Wiring Diagram — AT — FTS  ...............................136
Diagnostic Procedure ............................................137
Component Inspection  ..........................................139

DTC P1721 VEHICLE SPEED SENSOR MTR  .......140

Description ............................................................140
CONSULT-II Reference Value ...............................140
On Board Diagnosis Logic  ....................................140
Possible Cause  .....................................................140
DTC Confirmation Procedure ................................140
Diagnostic Procedure ............................................141

DTC P1730 A/T INTERLOCK  .................................142

Description ............................................................142
On Board Diagnosis Logic  ....................................142
Possible Cause  .....................................................142
DTC Confirmation Procedure ................................142
Judgement of A/T Interlock  ...................................143
Diagnostic Procedure ............................................143

DTC P1731 A/T 1ST ENGINE BRAKING  ...............145

Description ............................................................145
CONSULT-II Reference Value ...............................145
On Board Diagnosis Logic  ....................................145
Possible Cause  .....................................................145
DTC Confirmation Procedure ................................145
Diagnostic Procedure ............................................146

DTC P1752 INPUT CLUTCH SOLENOID VALVE  ..147

Description ............................................................147
CONSULT-II Reference Value ...............................147
On Board Diagnosis Logic  ....................................147
Possible Cause  .....................................................147
DTC Confirmation Procedure ................................147
Diagnostic Procedure ............................................148

DTC P1754 INPUT CLUTCH SOLENOID VALVE
FUNCTION ..............................................................149

Description ............................................................149
CONSULT-II Reference Value ...............................149
On Board Diagnosis Logic  ....................................149
Possible Cause  .....................................................149
DTC Confirmation Procedure ................................149
Diagnostic Procedure ............................................150

DTC P1757 FRONT BRAKE SOLENOID VALVE  ...151

Description ............................................................151
CONSULT-II Reference Value ...............................151
On Board Diagnosis Logic  ....................................151
Possible Cause  .....................................................151
DTC Confirmation Procedure ................................151
Diagnostic Procedure ............................................152

DTC P1759 FRONT BRAKE SOLENOID VALVE
FUNCTION ..............................................................153

Description ............................................................153
CONSULT-II Reference Value ...............................153
On Board Diagnosis Logic  ....................................153
Possible Cause  .....................................................153
DTC Confirmation Procedure ................................153
Diagnostic Procedure ............................................154















Content   ..  17  18  19  20   ..
