PREPARATION

ACS-5

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

PREPARATION

PFP:00002

Special Service Tools

NKS004CE

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent - Moore No.)
Tool name

Description

KV99110100
(J-45718)
ICC target board

Uses for laser beam aiming adjustment

PKIA0358J

ACS-6

[ICC]

DESCRIPTION

DESCRIPTION

PFP:00000

Outline

NKS004CF

The Intelligent Cruise Control (ICC) system automatically maintains a selected distance from the vehicle
ahead according to that vehicle's speed, or at the set speed, if the road ahead is clear.
The ICC function has two cruise control modes and brake assist (with preview function).

VEHICLE-TO-VEHICLE DISTANCE CONTROL MODE

Vehicle-to-vehicle distance control mode, the driver can maintain the same speed as other vehicles without
the constant need to adjust the set speed as the driver would with a normal cruise control system.
The system is intended to enhance the operation of the vehicle when following the vehicle traveling in the
same lane and direction.
If the ICC sensor integrated unit detects a slower moving vehicle ahead, the system will reduce speed so that
the vehicle ahead can be followed at the selected distance.
The system automatically controls the throttle and applies the brakes (up to 25% of vehicle braking power) if
necessary.
The detection range of the sensor is approximately 390 ft (120 m) ahead.
Refer to Owner's Manual for Intelligent Cruise Control System operating instructions.

CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE

Conventional (fixed speed) cruise control mode is cruising at preset speeds.
Refer to Owner's Manual for Intelligent Cruise Control System operating instructions.

BRAKE ASSIST (WITH PREVIEW FUNCTION)

When the force applied to brake pedal exceeds a certain level, the Brake Assist is activated and generates a
greater braking force than that of a conventional brake booster even with light pedal force.
When the Preview Function identifies the need to apply the sudden brake by sensing the vehicle ahead in the
same lane and the distance and relative speed from it, it applies the brake pre-pressure before driver
depresses the brake pedal and improves brake response by reducing its free play.
Refer to Owner's Manual for BRAKE ASSIST (WITH PREVIEW FUNCTION) operating instructions.

DESCRIPTION

ACS-7

[ICC]

C

D

E

F

G

H

I

J

L

M

A

B

ACS

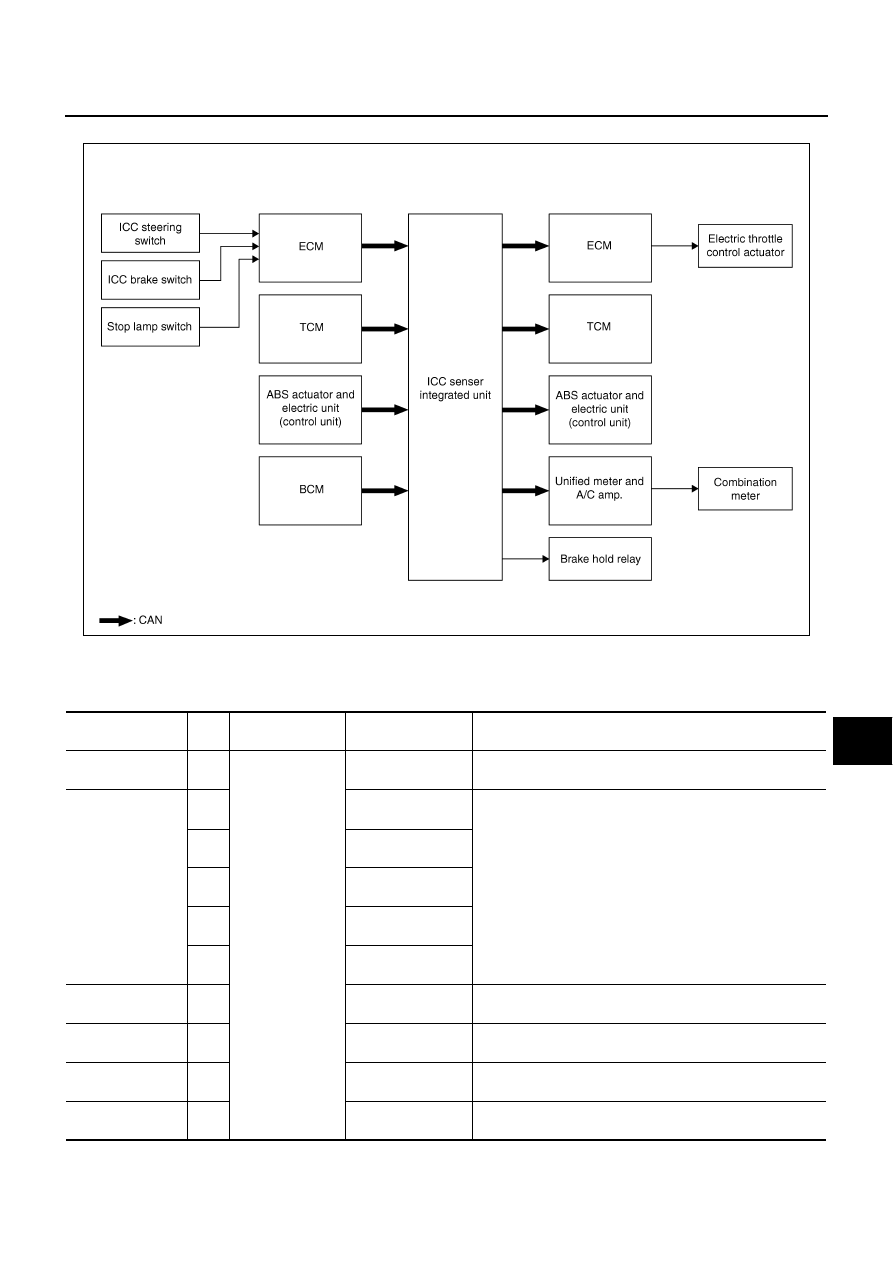

Functional Diagram

NKS004F8

Items of input/output signal to be checked with CONSULT-II

Items of input signal to be checked with “DATA MONITOR”.

SKIB9221E

Signal name

CAN

Transmission unit

Monitored Item

[unit]

Description

Accelerator pedal
position signal

×

ECM

THRTL OPENING
[%]

ICC sensor integrated unit receives accelerator pedal posi-
tion signal from ECM with CAN communication.

ICC steering switch
signal

×

MAIN SW
[ON/OFF]

ICC sensor integrated unit receives ICC steering switch sig-
nal from ECM with CAN communication.

×

SET/COAST SW
[ON/OFF]

×

CANCEL SW
[ON/OFF]

×

RESUME/ACC SW
[ON/OFF]

×

DISTANCE SW
[ON/OFF]

ICC brake switch
signal

×

BRAKE SW
[ON/OFF]

ICC sensor integrated unit receives ICC brake switch signal
from ECM with CAN communication.

Stop lamp switch
signal

×

STOP LAMP SW
[ON/OFF]

ICC sensor integrated unit receives stop lamp switch signal
from ECM with CAN communication.

Closed throttle
position signal

×

IDLE SW
[ON/OFF]

ICC sensor integrated unit receives closed throttle position
signal from ECM with CAN communication.

Engine speed sig-
nal

×

ENGINE RPM
[rpm]

ICC sensor integrated unit receives engine speed signal from
ECM with CAN communication.

ACS-8

[ICC]

DESCRIPTION

Items of output signal to be checked with “DATA MONITOR”.

Items of output signal to be checked with “ACTIVE TEST”.

Shift position signal

×

TCM

D RANGE SW
[ON/OFF]

ICC sensor integrated unit receives shift position signal from
TCM with CAN communication.

×

NP RANGE SW
[ON/OFF]

ICC sensor integrated unit receives shift position signal from
TCM with CAN communication.

Output shaft revo-
lution signal

×

VHCL SPD AT
[km/h] or [mph]

ICC sensor integrated unit receives A/T vehicle speed sen-
sor signal (output shaft revolution signal) from TCM with
CAN communication.

Current gear posi-
tion signal

×

GEAR
[1, 2, 3, 4, 5]

ICC sensor integrated unit receives current gear position sig-
nal from TCM with CAN communication.

Vehicle speed sig-
nal

×

ABS actuator and
electric unit (con-
trol unit)

VHCL SPEED SE
[km/h] or [mph]

ICC sensor integrated unit receives vehicle speed signal
(wheel speed) from ABS actuator and electric unit (control
unit) with CAN communication.

Front wiper request
signal

×

BCM

WIPER SW
[OFF/LOW/HIGH]

ICC sensor integrated unit receives front wiper request signal
from BCM with CAN communication.

Signal name

CAN

Transmission unit

Monitored Item

[unit]

Description

Signal name

CAN

Reception unit

Monitored Item

[unit]

Description

Meter display signal

×

Combination
meter
(through unified
meter and A/C
amp.)

CRUISE LAMP
[ON/OFF]

ICC sensor integrated unit transmits meter display signal to
combination meter (through unified meter and A/C amp.)
with CAN communication.

×

OWN VHCL
[ON/OFF]

×

VHCL AHEAD
[ON/OFF]

×

SET DISP IND
[ON/OFF]

ICC system warning
lamp signal

×

ICC WARNING
[ON/OFF]

ICC sensor integrated unit transmits ICC system warning
lamp signal to combination meter (through unified meter and
A/C amp.) with CAN communication.

Buzzer output signal

×

BUZZER O/P
[ON/OFF]

ICC sensor integrated unit transmits buzzer output signal to
combination meter (through unified meter and A/C amp.)
with CAN communication.

ICC brake hold relay
drive signal

ICC brake hold
relay

STP LMP DRIVE
[ON/OFF]

ICC sensor integrated unit outputs stop lamp drive output
signal to ICC brake hold relay.

Signal name

CAN

Reception unit

Test Item

Description

Buzzer output signal

×

Combination
meter
(through unified
meter and A/C
amp.)

ICC BUZZER

Able to beep the ICC warning chime with a driving signal
from ICC sensor integrated unit.

Meter display signal

ICC system warn-
ing lamp signal

×

METER LAMP

Able to illuminate the ICC system warning lamp and the
MAIN switch indicator lamp with a driving signal from the
ICC sensor integrated unit.

ICC brake hold relay
drive signal

ICC brake hold
relay

STOP LAMP

Able to turn ON the ICC brake hold relay with a driving sig-
nal from the ICC sensor integrated unit.
