POWER SOCKET

WW-27

C

D

E

F

G

H

I

J

L

M

A

B

WW

POWER SOCKET

PFP:253A2

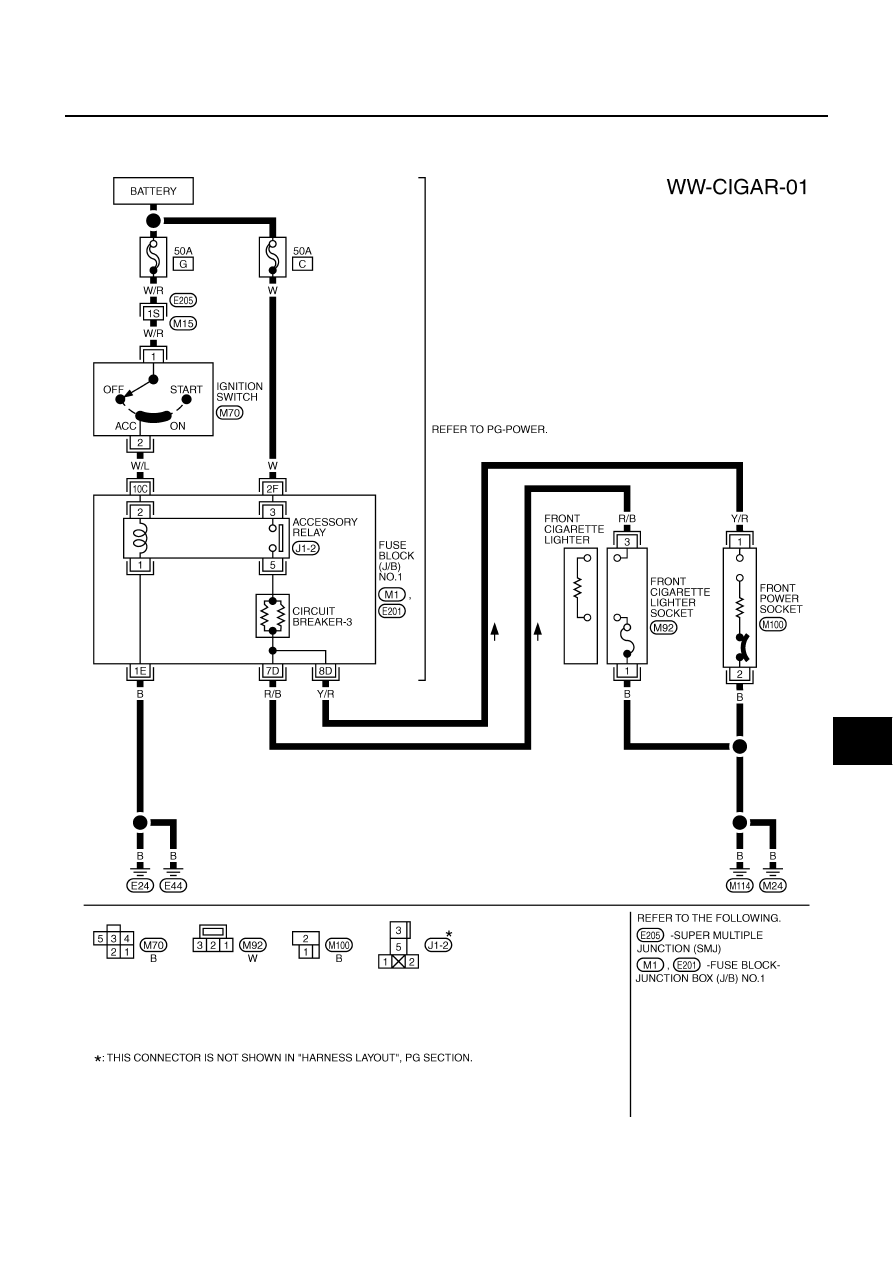

Wiring Diagram — CIGAR —

EKS001JI

TKWM0433E

WW-28

POWER SOCKET

Removal and Installation

EKS00145

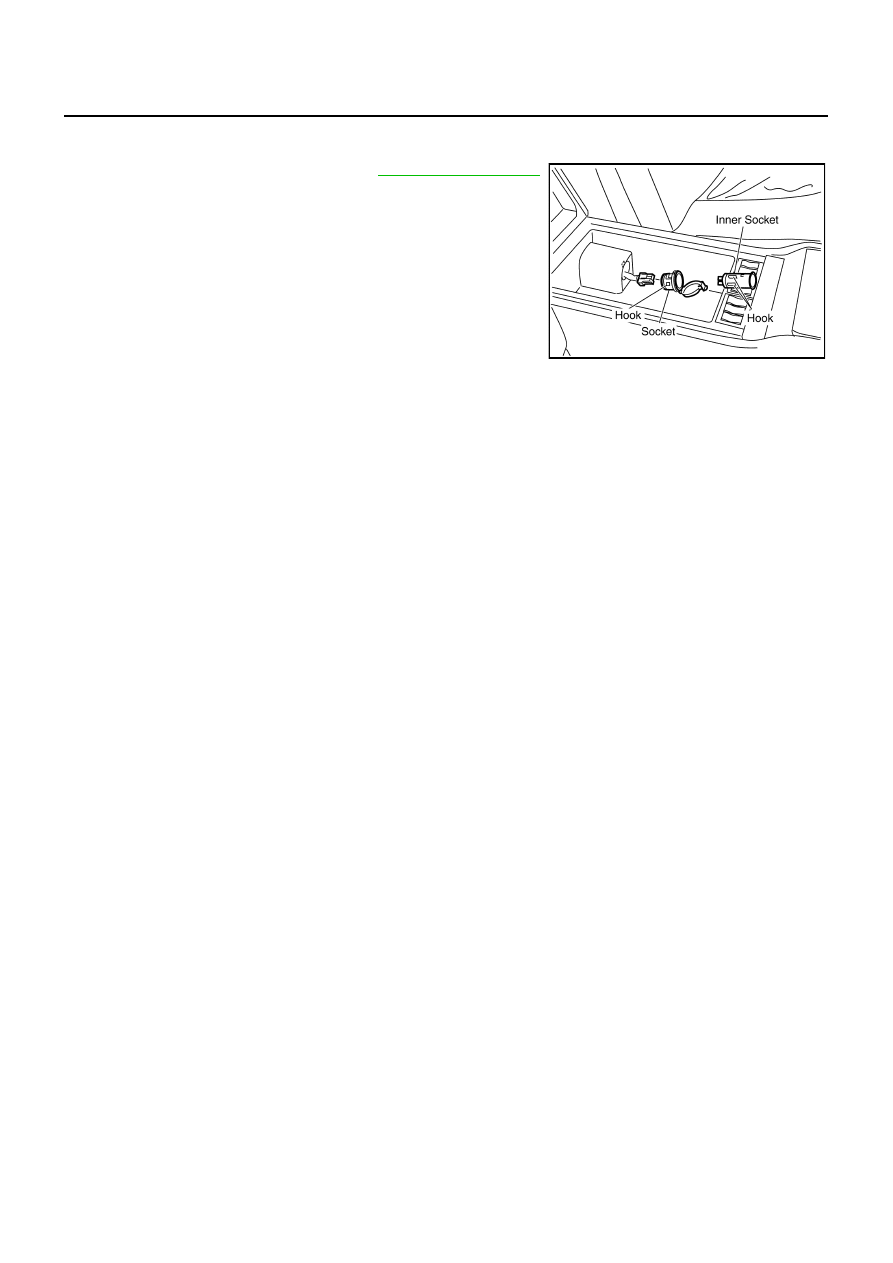

REMOVAL

1.

Remove console box assembly, refer to

IP-11, "WORK STEPS"

in IP section.

2.

Disconnect power socket connector.

3.

Remove inner socket and socket from the console finisher while
pressing hook on inner socket.

4.

Remove socket from inner socket while pressing hook.

INSTALLATION

Installation is in the reverse order of removal.

PKIA0331E

HORN

WW-29

C

D

E

F

G

H

I

J

L

M

A

B

WW

HORN

PFP:25610

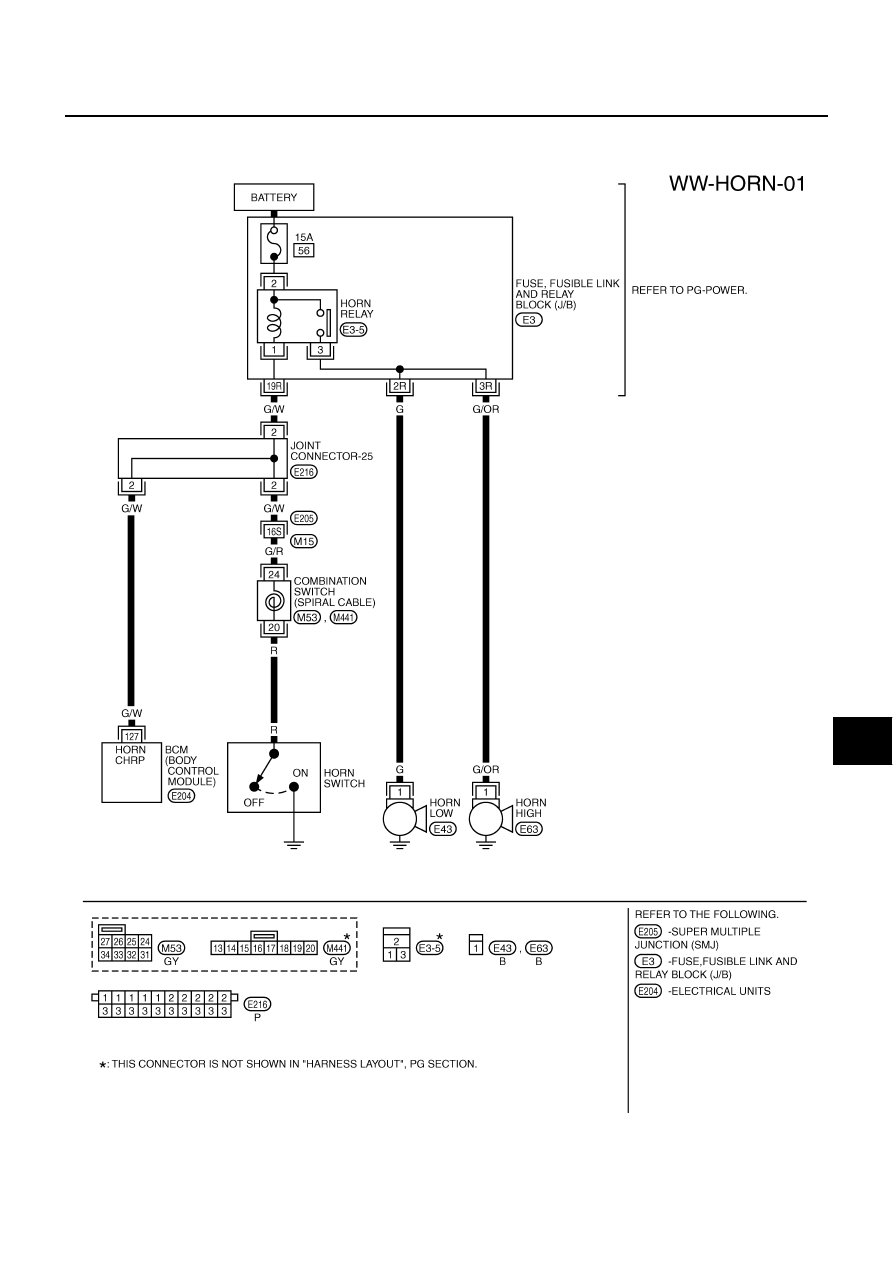

Wiring Diagram — HORN —

EKS001JK

TKWM0109E

WW-30

HORN

Removal and installation

EKS001JL

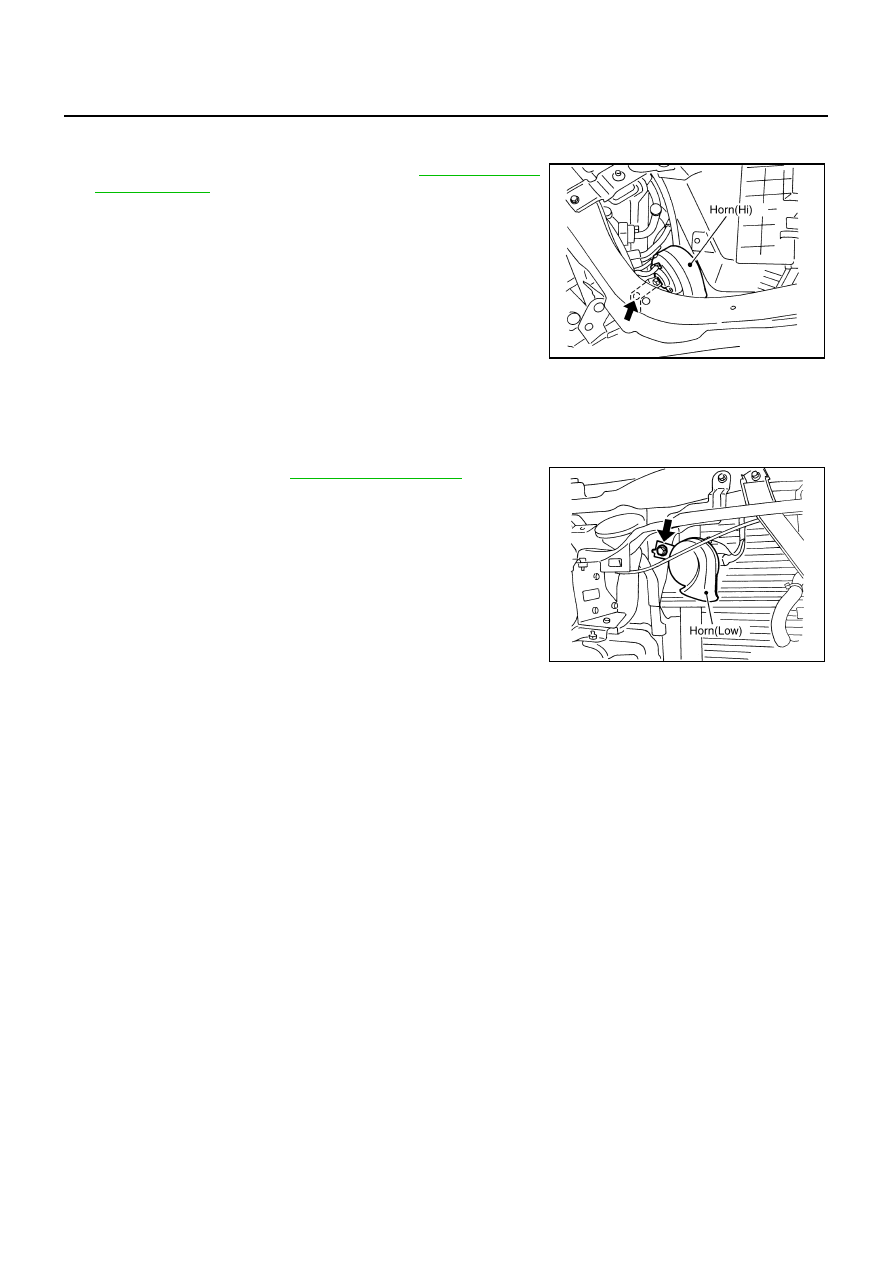

REMOVAL (HORN HI)

1.

Remove mass air flow sensor cover, refer to

EM-11, "ENGINE

ROOM COVER"

 .

2.

Disconnect horn connector.

3.

Remove horn.

INSTALLATION (HORN HI)

Tighten horn bolt to specified torque.

REMOVAL (HORN LOW)

1.

Remove front grille, refer to

EI-19, "FRONT GRILLE"

 .

2.

Disconnect horn connector.

3.

Remove horn.

INSTALLATION (HORN LOW)

Tighten horn bolt to specified torque.

PKIA0334E

Horn bolt

: 16 - 18 N·m (1.6 - 1.8 kg-m, 12 - 13 ft-lb)

PKIA0333E

Horn bolt

: 16 - 18 N·m (1.6 - 1.8 kg-m, 12 - 13 ft-lb)
