WASHER SYSTEM

WW-23

C

D

E

F

G

H

I

J

L

M

A

B

WW

Removal and Installation for Front Wiper and Washer Switch

EKS001JD

REMOVAL

1.

Remove steering column cover. Refer to

IP-11, "WORK STEPS"

  in IP section.

2.

Remove front wiper and washer switch connector.

3.

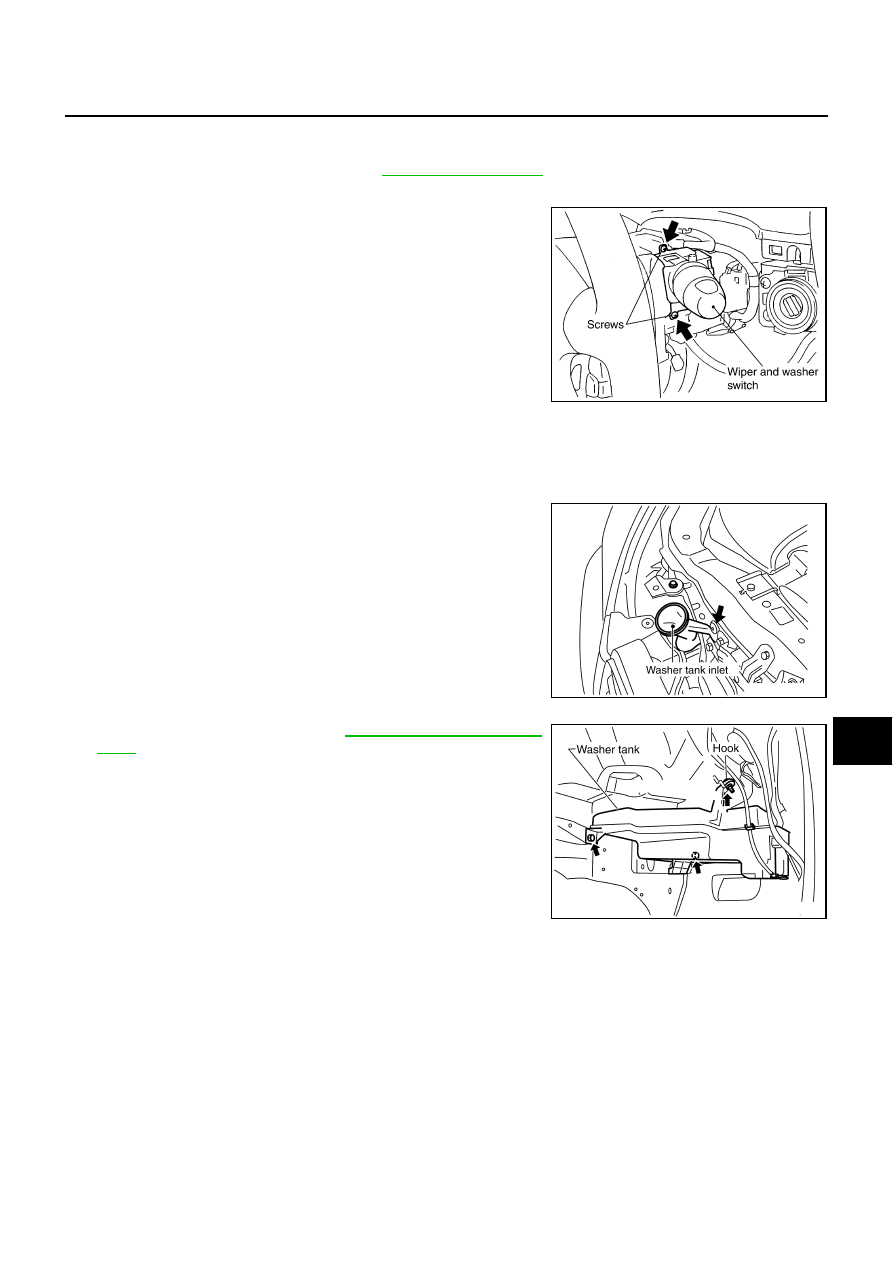

Remove two screws then remove wiper washer switch from the
base.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation for Washer Tank

EKS001JE

REMOVAL

1.

Pull out washer tank inlet.

2.

Remove fender protector, refer to

EI-21, "FENDER PROTEC-

TOR"

 .

3.

Remove washer motor connector.

4.

Remove washer tank installation screw and pawl.

5.

Remove washer hose, and remove the washer tank from the
vehicle.

INSTALLATION

Tighten washer tank screw to specified torque.

CAUTION:

After installation, add water up to the upper level of the washer tank inlet, and check for water leaks.

PKIA2281E

PKIA0327E

PKIA0328E

Washer tank screw

: 3.9 - 5.0 N-m (0.39 - 0.52 kg-m)

WW-24

WASHER SYSTEM

Removal and Installation for Washer Motor

EKS001JF

REMOVAL

1.

Remove fender protector, refer to

EI-21, "FENDER PROTECTOR"

 .

2.

Remove washer motor connector and hose.

3.

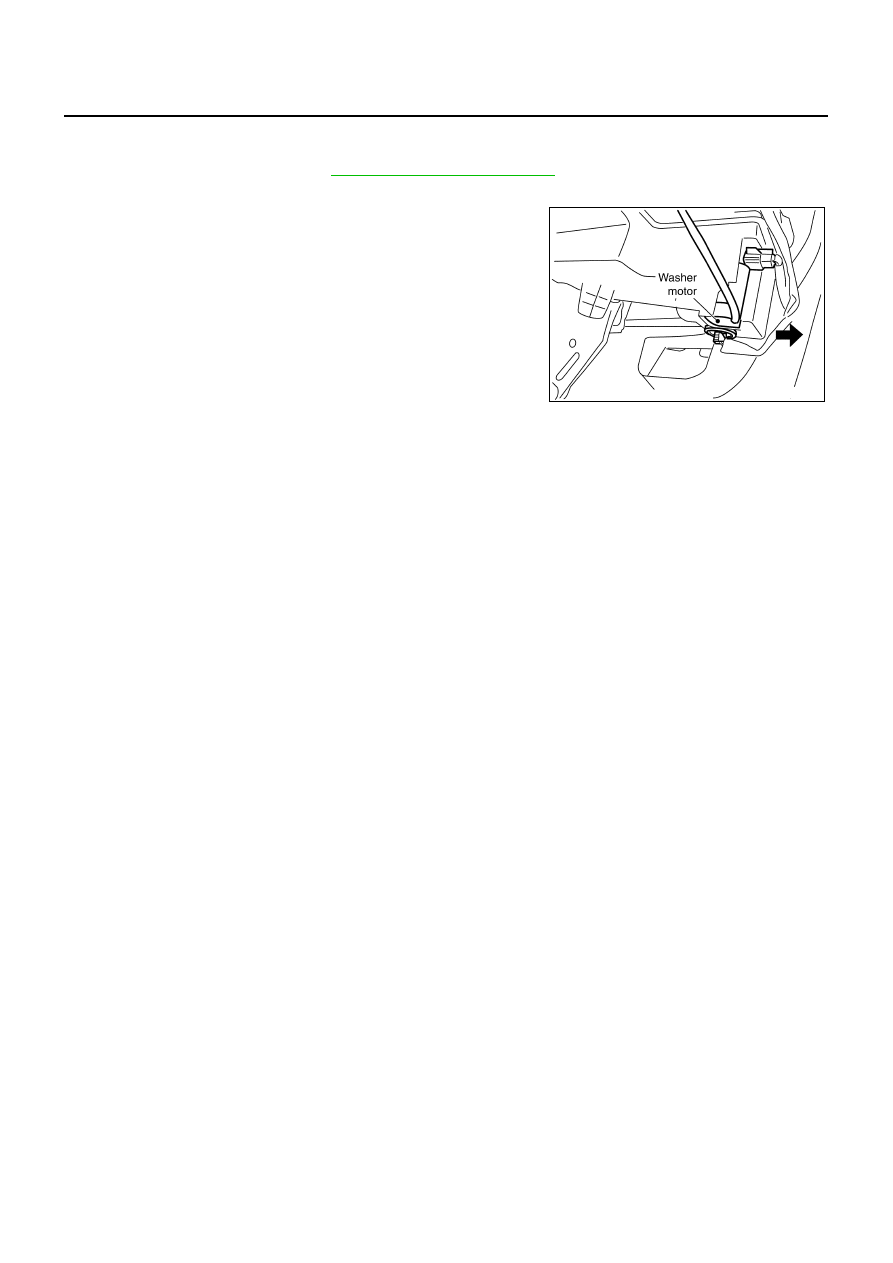

Pull out washer motor in the direction of the arrow in the figure,
and remove the washer motor from the washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing washer motor, there should be no packing twists, etc.

PKIA0329E

CIGARETTE LIGHTER

WW-25

C

D

E

F

G

H

I

J

L

M

A

B

WW

CIGARETTE LIGHTER

PFP:35330

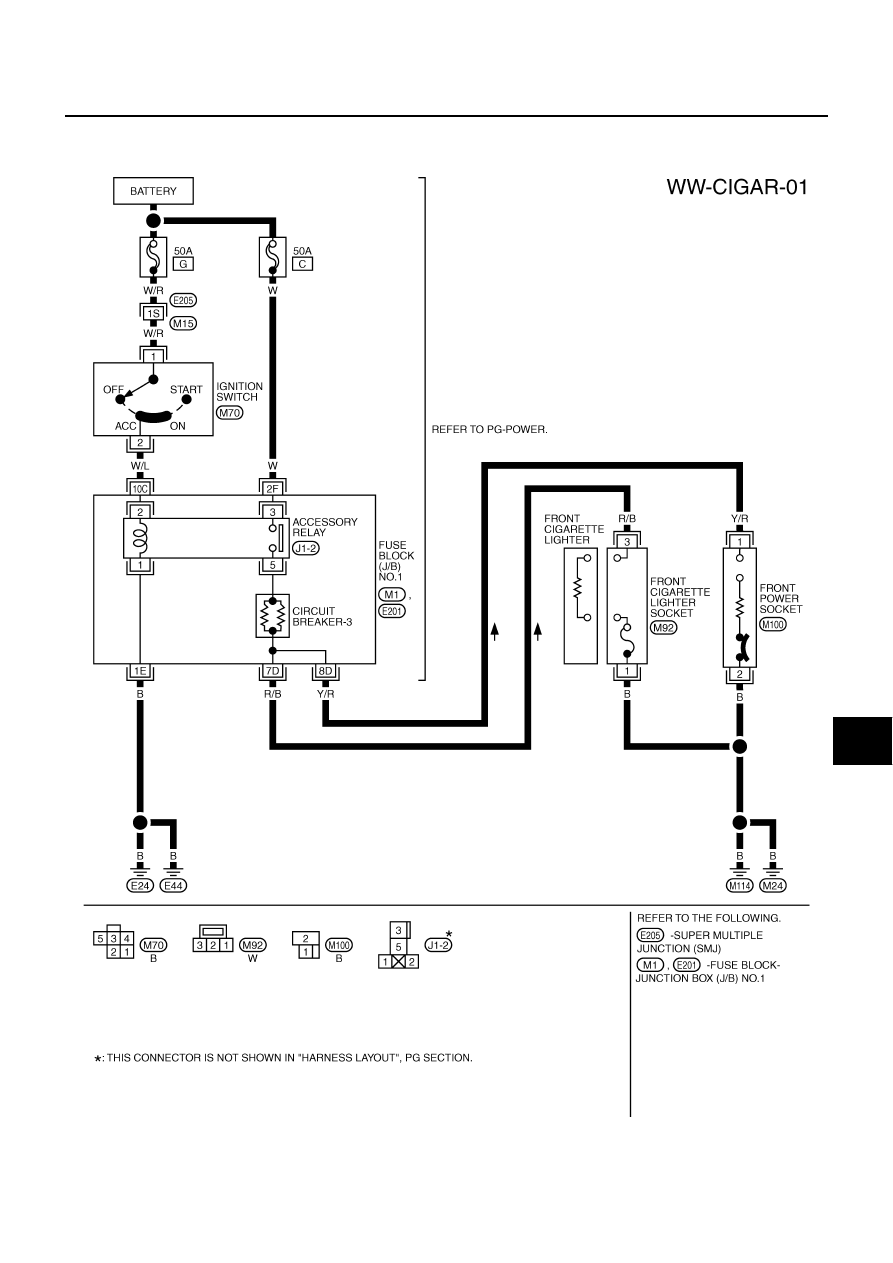

Wiring Diagram — CIGAR —

EKS001JG

TKWM0433E

WW-26

CIGARETTE LIGHTER

Removal and Installation

EKS001JH

REMOVAL

1.

Remove A/T console finisher, refer to

IP-11, "WORK STEPS"

  in

IP section.

2.

Pull out the cigarette lighter.

3.

Remove socket.

4.

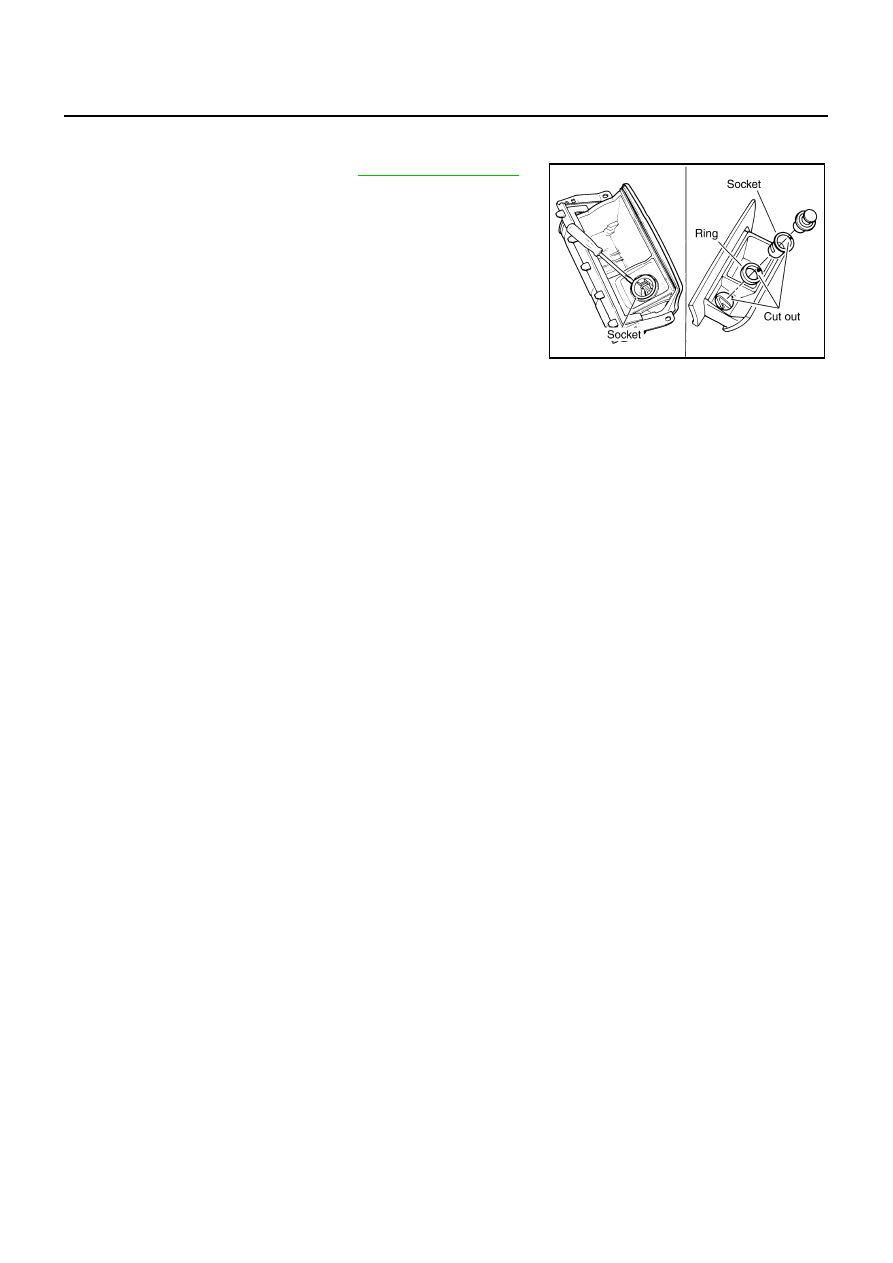

Press out ring from the back of ashtray.

INSTALLATION

Installation is in the reverse order of removal.

PKIA0330E
