ID Registration Procedure

EES000EO

ID REGISTRATION WITH TRANSMITTER ACTIVATION TOOL

1.

Turn ignition switch “OFF”.

2.

Connect CONSULT-II to data link connector.

3.

Touch “START”, “AIR PRESSURE MONITOR”, “WORK SUPPORT” and “ID REGIST”.

4.

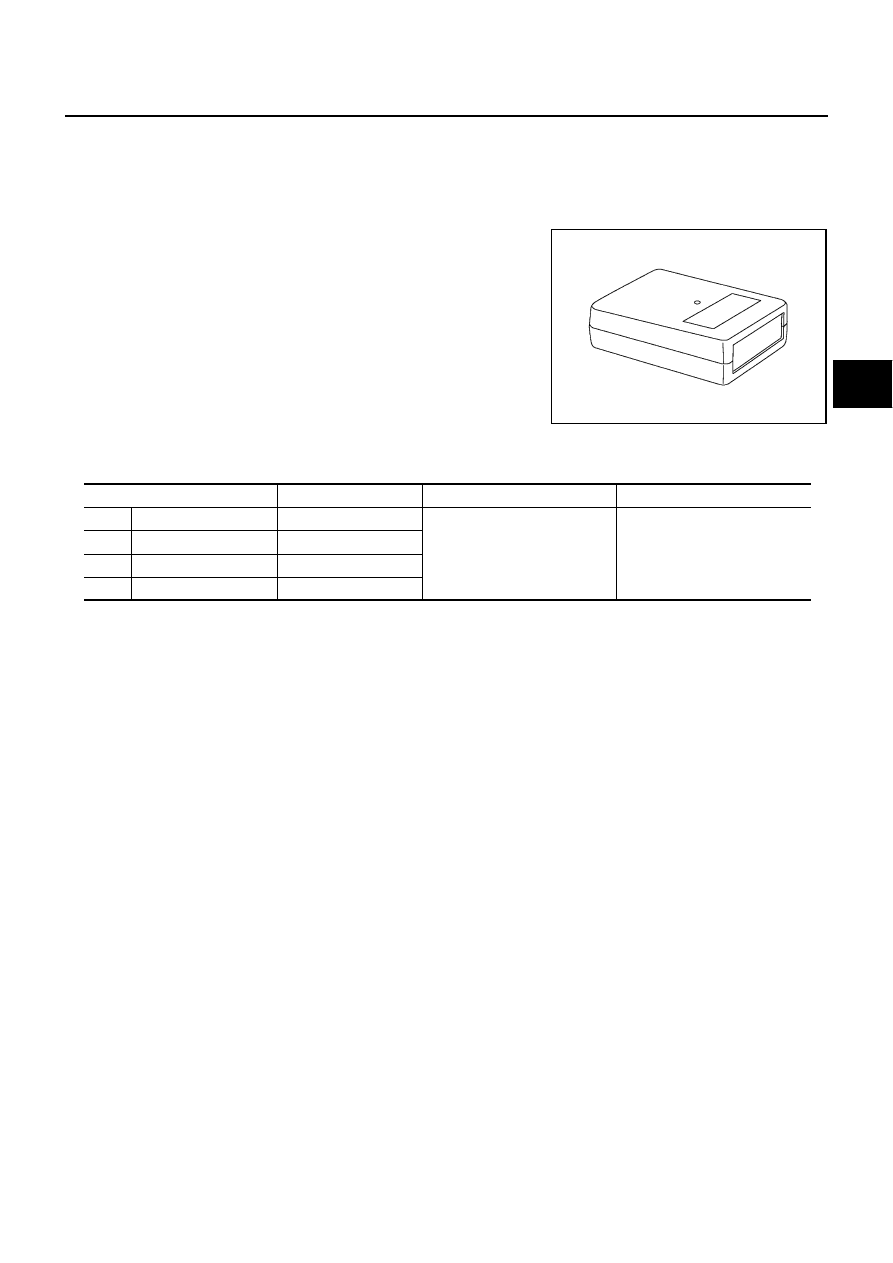

With the transmitter activation tool (J-45295) pushed against the
front-left transmitter, press the button then keep 5 seconds.

5.

Register the IDs in order from FR LH, FR RH, RR RH, to RR LH. When ID registration of each wheel has
been completed, a buzzer sounds and hazard warning lamp blinks.

6.

After completing all ID registrations, press “END” to complete the procedure.

NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results dis-
play will not function properly.

SEIA0101E

Activation tire position

Buzzer

Hazard warning lamp

CONSULT-II

1

FR  LH

Once

2 times flashing

“YET”

↓

“DONE”

2

FR RH

2 times

3

RR RH

3 times

4

RR LH

4 times

WT-14

TROUBLE DIAGNOSES

ID REGISTRATION WITHOUT TRANSMITTER ACTIVATION TOOL

1.

Turn ignition switch “OFF”.

2.

Connect CONSULT-II to data link connector.

3.

Touch “START”, “AIR PRESSURE MONITOR”, “WORK” SUPPORT” and “ID REGIST”.

4.

Adjust the tire pressure to the values shown in the table below for ID registration, and drive the vehicle at
15 km/h (9.4 MPH) or more for a few minutes.

5.

After completing all ID registrations, press “END” to complete the procedure.

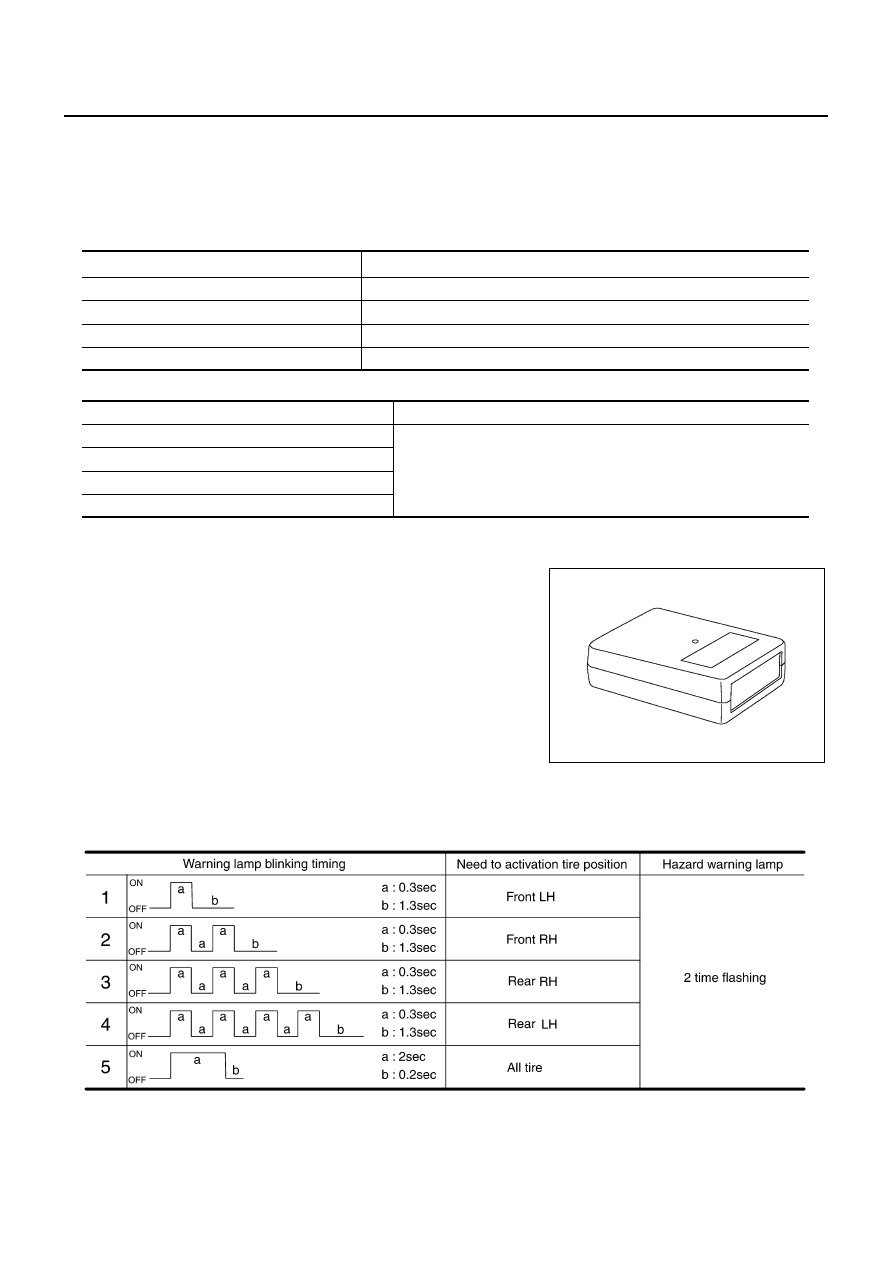

Transmitter Wake Up Operation

EES000W2

WITH TRANSMITTER ACTIVATION TOOL

1.

With the transmitter activation tool (J-45295) pushed against the
front-left transmitter, press the button then keep 5 seconds.

●

When ignition switch ON, then warning lamp is blinks as fol-
low diagram transmitter must be waken up.

2.

Register the IDs in order from FR LH, FR RH, RR RH or RR LH. When ID registration of each wheel has
been completed, a hazard warning lamp blinks.

3.

After completing wake up of all transmitters, make sure tire pressure warning lamp go out.

Tire position

Tire pressure kPa (kg/cm

2

 , psi)

Front-Left

250 (2.5, 36)

Front-Right

230 (2.3, 33)

Rear-Right

210 (2.1, 30)

Rear-Left

190 (1.9, 27)

Activation tire position

CONSULT-II

FR LH

“YET”

↓

“DONE”

FR RH

RR RH

RR LH

SEIA0101E

SEIA0351E
