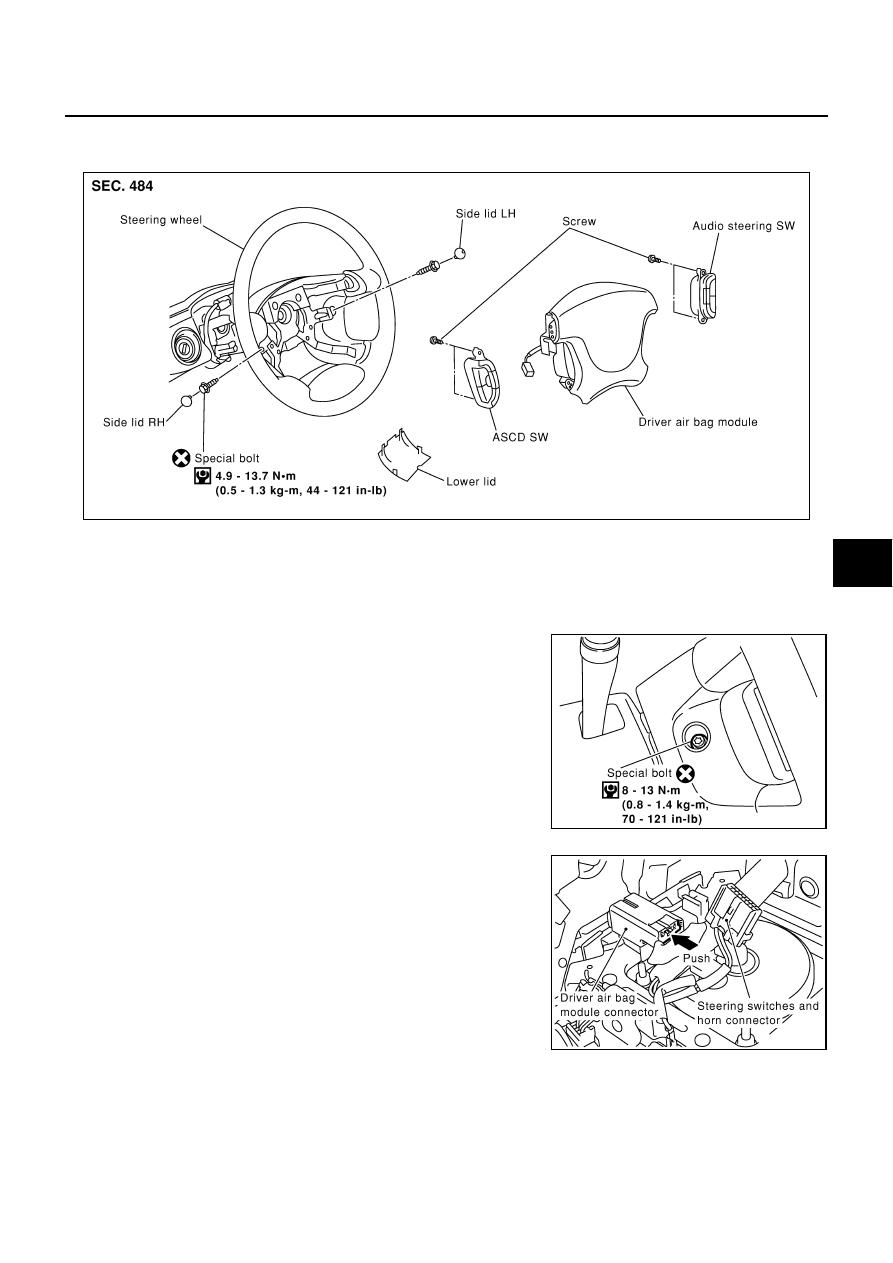

DRIVER AIR BAG MODULE

SRS-39

C

D

E

F

G

I

J

K

L

M

A

B

SRS

DRIVER AIR BAG MODULE

PFP:K8510

Removal and Installation

EHS0008N

REMOVAL

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

Always work from the side of driver air bag module.

1.

Remove the side lids. Using Tamper resistant TORX socket
(T30), remove the special bolts at right and left.

2.

Disconnect the air bag harness connector and steering switches
and horn connector, and then remove the air bag module.

SHIA0186E

SRS908

PHIA0239E

SRS-40

DRIVER AIR BAG MODULE

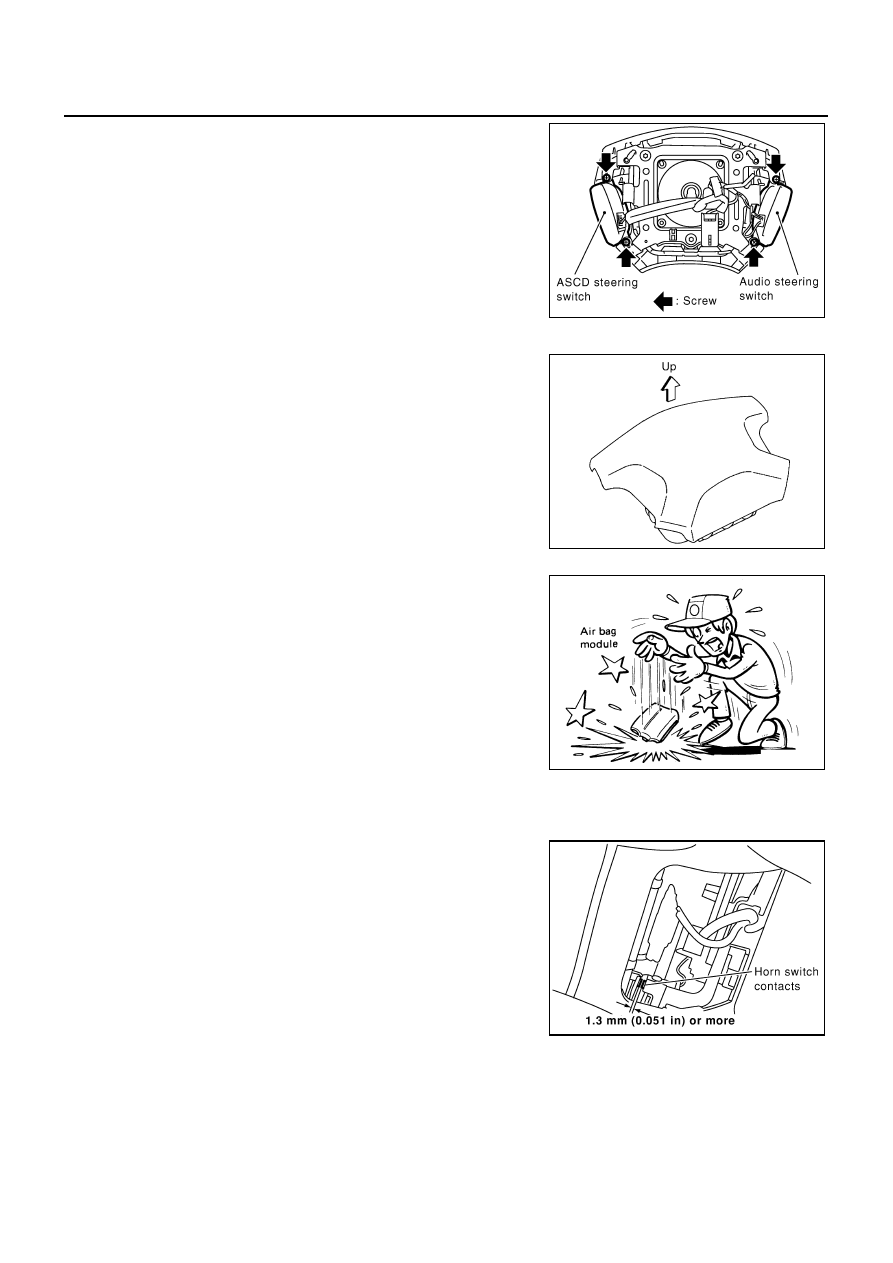

3.

Remove the ASCD and audio steering switch from the air bag
module.

CAUTION:

Always work from the side of driver air bag module.

Always place driver air bag module with pad side facing
upward.

Do not insert any foreign objects (screwdriver, etc.) into
driver air bag module.

Do not attempt to disassemble driver air bag module.

Do not use old bolts after removal; replace with new bolts.

Do not expose the driver air bag module to temperatures
exceeding 90

°

C (194

°

F).

Replace driver air bag module if it has been dropped or sus-
tained an impact.

Do not allow oil, grease or water to come in contact with the
front passenger air bag module.

INSTALLATION

To install, reverse the removal procedure sequence.

After installing the air bag module, check that the contact clear-
ance of the horn switch is in the specified range in the right.

PHIA0240E

SRS443

SBF814E

SHIA0185E

DRIVER AIR BAG MODULE

SRS-41

C

D

E

F

G

I

J

K

L

M

A

B

SRS

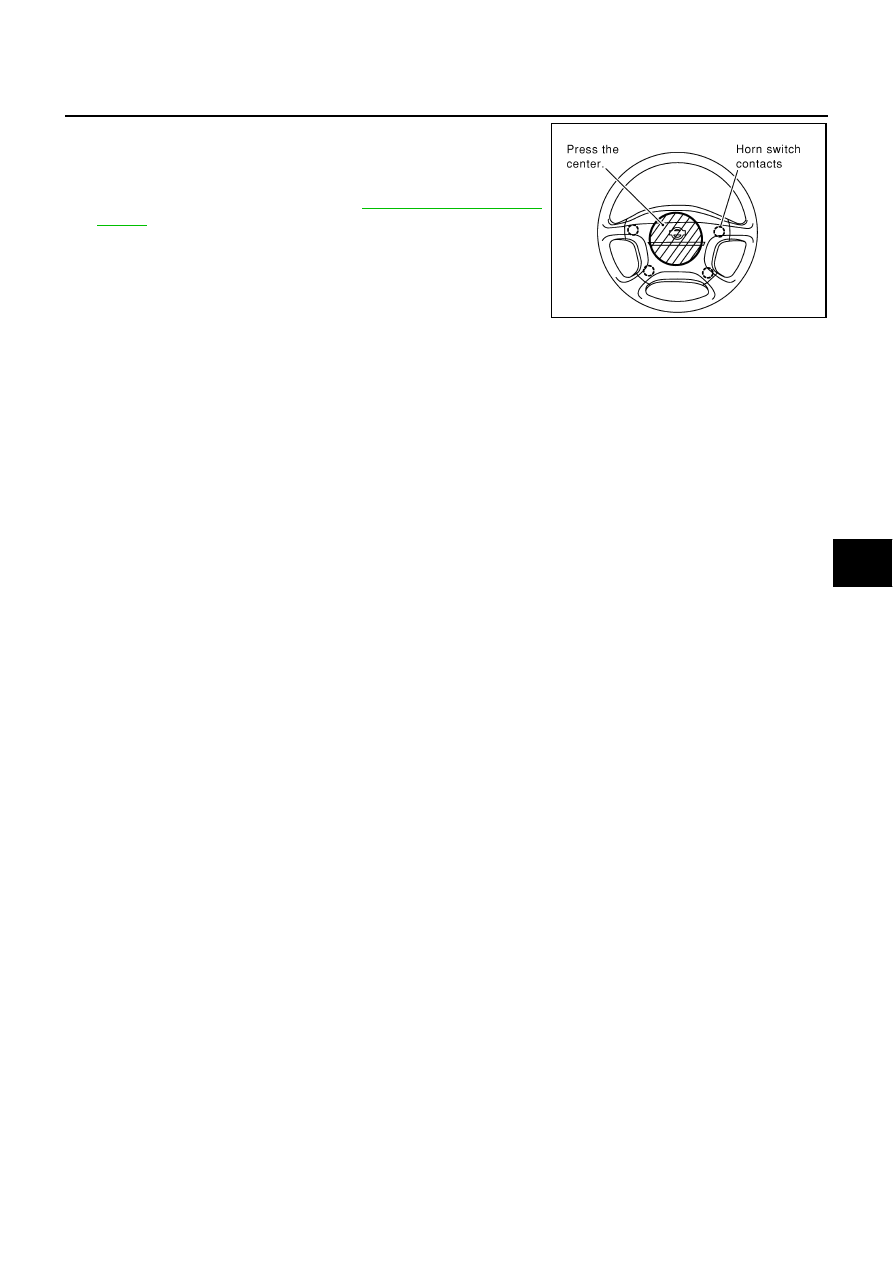

For installing the air bag module, tighten the special bolts with
the center of the horn pad pressed to make the contacts (RH/
LH) ON.

After the work is completed, perform self-diagnosis to check that
no malfunction is detected. Refer to

SRS-20, "SRS Operation

Check"

 .

SHIA0184E

SRS-42

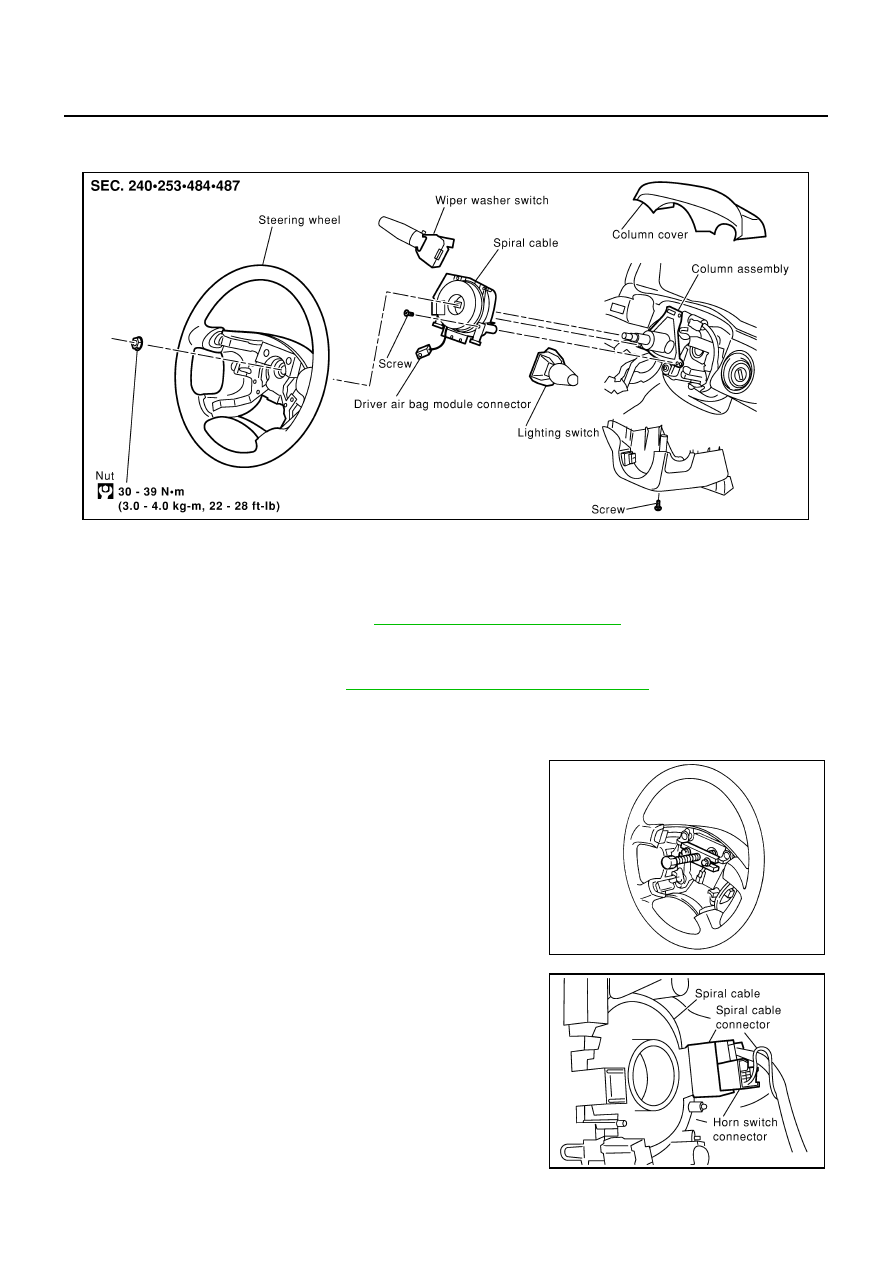

SPIRAL CABLE

SPIRAL CABLE

PFP:25554

Removal and Installation

EHS0008O

REMOVAL

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

1.

Remove driver air bag module. Refer to

SRS-39, "Removal and Installation"

 .

2.

Set the steering wheel in the neutral position.

3.

Disconnect the horn connector.

4.

Remove the column cover. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

5.

Disconnect the horn switch connector, then the spiral cable connector.

CAUTION:

Do not tap or bump the steering wheel.

6.

Remove steering wheel with steering wheel puller. Be careful
not to over-tighten puller on steering wheel.

7.

Remove the spiral cable fixing screws, and while pushing the
upper plastic tab, remove the spiral cable.

CAUTION:

Do not attempt to disassemble spiral cable.

Do not apply lubricant to the spiral cable.

8.

Remove the wiper washer switch and lighting switch from the
spiral cable.

SHIA0192E

SRS676

SHIA0193E
