Infiniti F50. Manual - part 811





TROUBLE DIAGNOSIS

SRS-31

C

D

E

F

G

I

J

K

L

M

A

B

SRS

SIDE MODULE RH
[OPEN]

Front RH side air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check result is OK,

replace the diagnosis sensor unit
and front RH side air bag module
(Before disposal, it must be
deployed.)

SIDE MODULE RH
[VB-SHORT]

Front RH side air bag module circuit is shorted to a power sup-
ply circuit.

SIDE MODULE RH
[GND-SHORT]

Front RH side air bag module circuit is shorted to ground.

SIDE MODULE RH
[SHORT]

Front RH side air bag module circuit is shorted between lines.

SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]

LH side air bag (Satellite) sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check result is OK,

replace the diagnosis sensor unit
and LH side air bag (Satellite) sen-
sor.

SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]

RH side air bag (Satellite) sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check result is OK,

replace the diagnosis sensor unit
and RH side air bag (Satellite) sen-
sor.

PRE-TEN FRONT LH
[OPEN]

Front LH pre-tensioner circuit is open.

1. Visually check the wiring harness

connections.

2. Replace the harness if it has visible

damage.

3. If the harness check result is OK,

replace the diagnosis sensor unit
and front LH seat belt
(Before disposal, it must be acti-
vated.)

PRE-TEN FRONT LH
[VB-SHORT]

Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.

PRE-TEN FRONT LH
[GND-SHORT]

Front LH pre-tensioner circuit is shorted to ground.

PRE-TEN FRONT LH
[SHORT]

Front LH pre-tensioner circuit is shorted between lines.

PRE-TEN FRONT RH
[OPEN]

Front RH pre-tensioner circuit is open.

1. Visually check the wiring harness

connections.

2. Replace the harness if it has visible

damage.

3. If the harness check result is OK,

replace the diagnosis sensor unit
and front RH seat belt
(Before disposal, it must be acti-
vated.)

PRE-TEN FRONT RH
[VB-SHORT]

Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.

PRE-TEN FRONT RH
[GND-SHORT]

Front RH pre-tensioner circuit is shorted to ground.

PRE-TEN FRONT RH
[SHORT]

Front RH pre-tensioner circuit is shorted between limes.

CURTAIN MODULE LH
[OPEN]

LH side curtain air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check result is OK,

replace the diagnosis sensor unit
and LH side curtain air bag module.
(Before disposal, it must be
deployed.)

CURTAIN MODULE LH
[VB-SHORT]

LH side curtain air bag module circuit is shorted to a power sup-
ply circuits.

CURTAIN MODULE LH
[GND-SHORT]

LH side curtain air bag module circuit is shorted to ground.

CURTAIN MODULE LH
[SHORT]

LH side curtain air bag module circuit is shorted between lines.

Diagnostic item

Explanation

Repair order

“Recheck SRS at each replacement”

SRS-32

TROUBLE DIAGNOSIS

Trouble diagnoses without CONSULT-II.

EHS000MI

DIAGNOSTIC PROCEDURE 6
Inspecting SRS malfunctioning parts by using "AIR BAG" warning lamp—Diagnosis mode

NOTE:
SRS will not enter Diagnosis mode if no malfunction is detected in User mode.

1.

Turn ignition switch ON.

2.

After “AIR BAG” warning lamp lights for 7 seconds, turn ignition switch OFF within 1 second.

3.

Wait more than 3 seconds.

4.

Repeat the steps 1 to 3 two times.

5.

Turn ignition switch ON.

SRS is now in Diagnosis mode.
“AIR BAG” warning lamp operates in Diagnosis mode as follows:

CURTAIN MODULE RH
[OPEN]

RH side curtain air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check result is OK,

replace the diagnosis sensor unit
and RH side curtain air bag module.
(Before disposal, it must be
deployed.)

CURTAIN MODULE RH
[VB-SHORT]

RH side curtain air bag module circuit is shorted to a power sup-
ply circuit.

CURTAIN MODULE RH
[GND-SHORT]

RH side curtain air bag module circuit is shorted to ground.

CURTAIN MODULE RH
[SHORT]

RH side curtain air bag module circuit is shorted between lines.

CONTROL UNIT

Diagnosis sensor unit is malfunctioning.

1. Visually check the wiring harness

connection.

2. Replace the diagnosis sensor unit.

Diagnostic item

Explanation

Repair order

“Recheck SRS at each replacement”

TROUBLE DIAGNOSIS

SRS-33

C

D

E

F

G

I

J

K

L

M

A

B

SRS

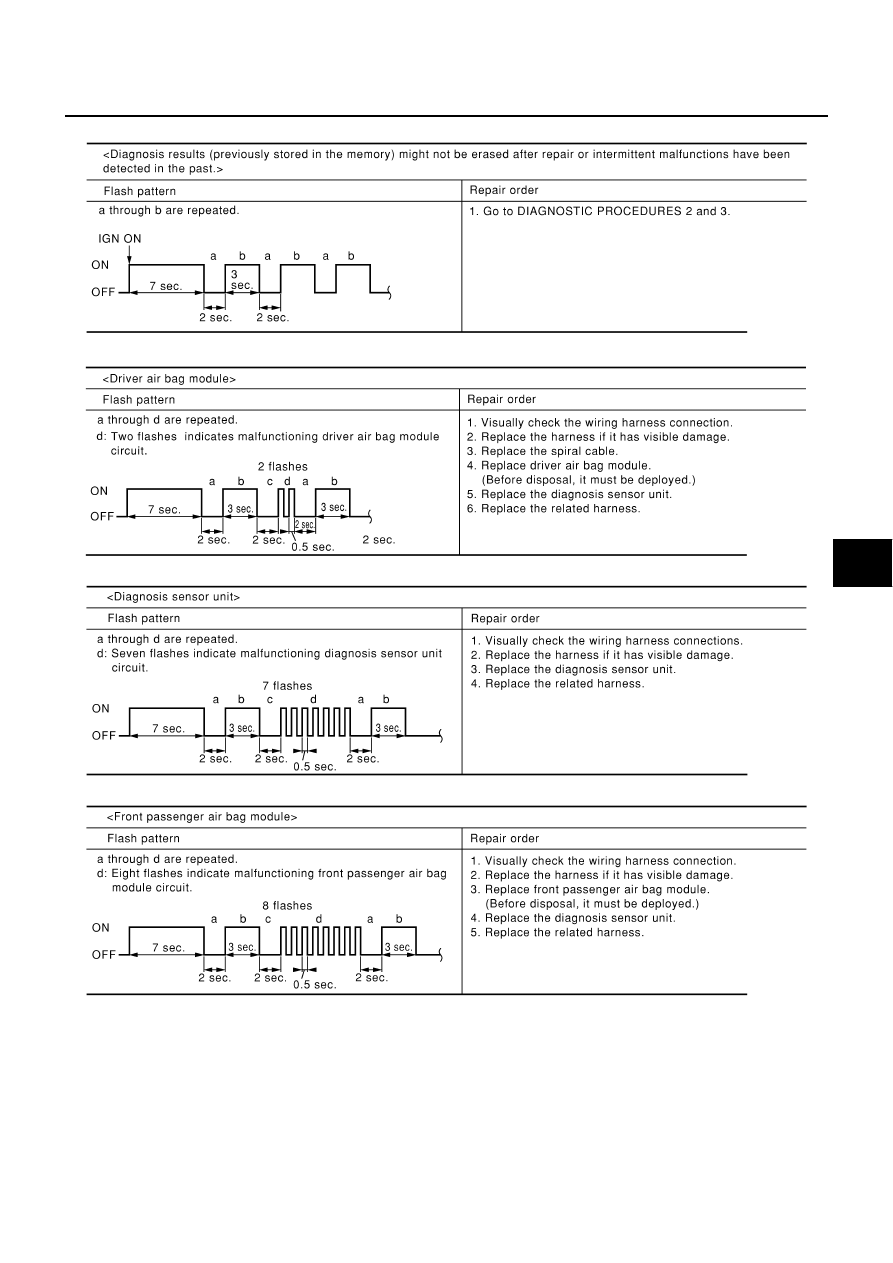

WARNING LAMP FLASH CODE CHART

SHIA0026E

PHIA0185E

SHIA0028E

SHIA0029E

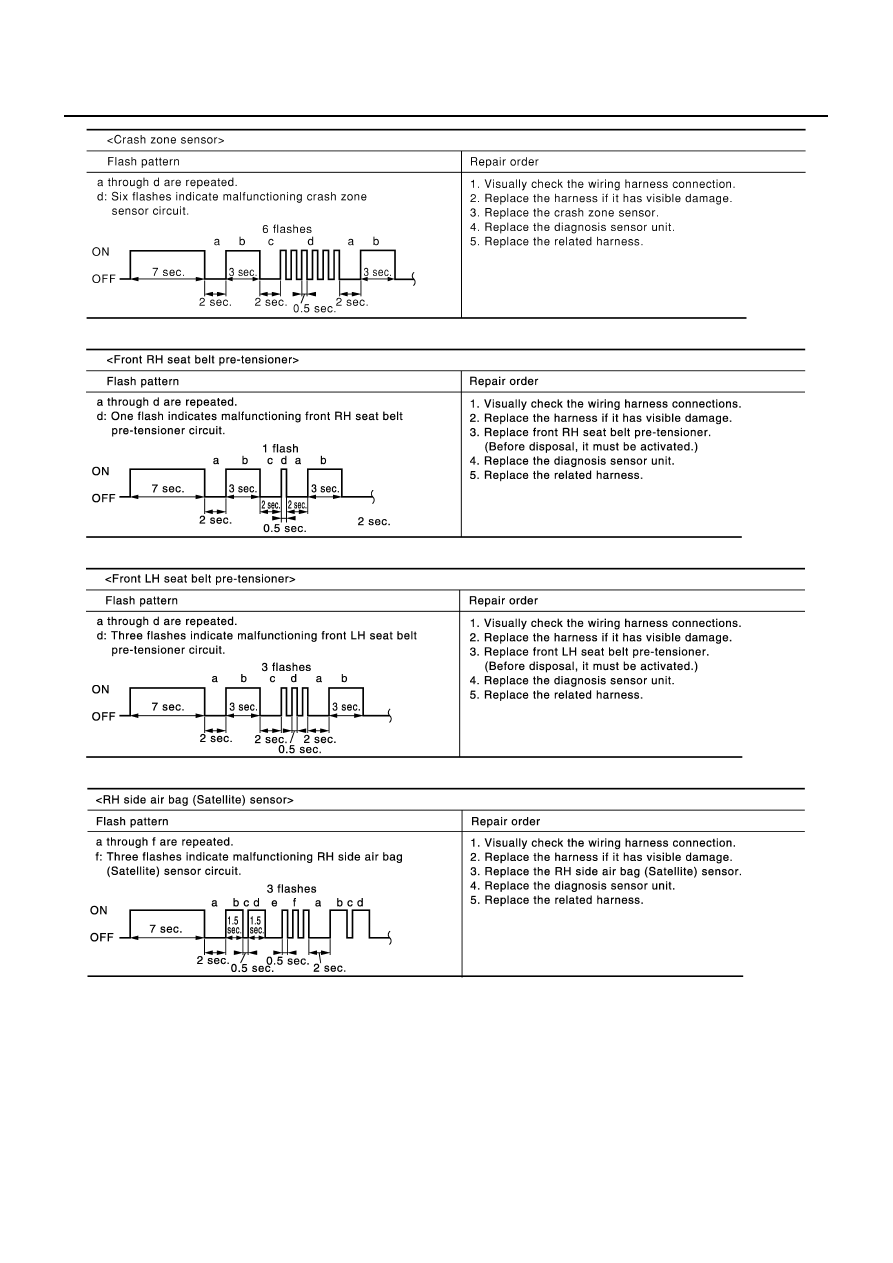

SRS-34

TROUBLE DIAGNOSIS

SHIA0083E

SHIA0030E

SHIA0031E

SHIA0032E
