Infiniti F50. Manual - part 802





REAR SEAT

SE-199

C

D

E

F

G

H

J

K

L

M

A

B

SE

CENTER SEATBACK ASSEMBLY

1.

Rear seatback frame (RH)

2.

Headrest (center)

3.

Rear seatback board

4.

Headrest holder

5.

Rear center seatback assembly

6.

Rear seatback frame (LH)

7.

Rear seat hook

8.

Headrest (RH)

9.

Rear seat cushion frame (RH)

10. Headrest (LH)

11.

Rear seat cushion frame (LH)

12. Rear power seat harness A

13. Ground harness

14. Headrest holder (free)

15. Headrest holder (locked)

16. Seat belt guide (RH)

17. Seat belt guide (center)

18. Headrest holder (power RH)

19. Headrest holder (power LH)

20. Seat belt guide (LH)

21. Seatback trim and pad (RH)

22. Seatback trim (LH)

23. Seatback pad (LH)

24. Seatback heater unit

25. Seat cushion trim and pad (RH)

26. Seat cushion trim and pad (center)

27. Seat cushion trim (LH)

28. Seat cushion pad (LH)

29. Seat cushion heater unit

30. Rear power seat harness B

31. Rear seat slide, outer (RH)

32. Power seat control unit (RH)

33. Sliding motor unit (RH)

34. Rear seat slide, inner (RH)

35. Rear seat slide, inner (LH)

36. Seat control unit (LH)

37. Sliding motor unit (LH)

38. Rear seat slide, outer (LH)

SIIA0403E

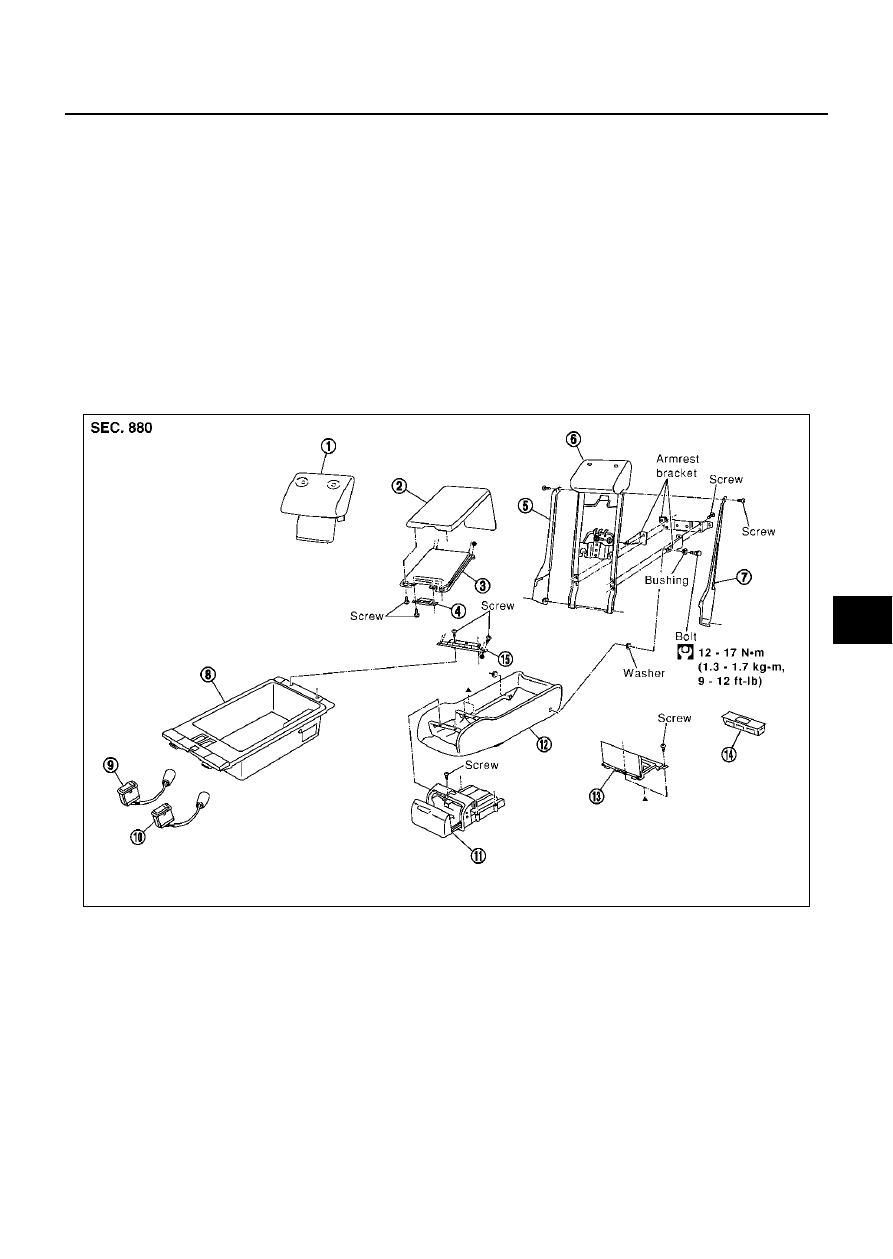

1.

Rear seatback trim (center)

2.

Armrest lid assembly

3.

Armrest lid finisher

4.

Armrest lid lock

5.

Seatback side screen (RH)

6.

Rear seat center back frame and pad

7.

Seatback side screen (LH)

8.

Armrest tray box

9.

TV and sunshade switch

10. Seat switch

11.

Cup holder

12. Armrest frame and pad

13. Switch lid

14. Rear control switch assembly

15. Lid hinge

SE-200

REAR SEAT

REMOVAL OF MANUAL SEAT (BENCH SEAT)

1.

Pull the lock at the front bottom of the seat cushion forward and
pull the seat cushion upward to release the wire from the plastic
hook, then pull the seat cushion forward to remove.

2.

Partially remove the seatback board to disconnect the harness connector and remove the nuts on the
sunshade switch.

3.

Remove the RH and LH screws on the seatback.

4.

Slide the seatback upward to pull off the wire from the vehicle-side hook, and remove the seatback.

5.

After removing, remove the hog ring to separate the trim and pad.

INSTALLATION OF MANUAL SEAT (BENCH SEAT)

Install in the reverse order of removal.

REMOVAL OF POWER SEAT (SPLIT SEAT)

NOTE:
Remove the LH and RH seat before removing the center seat.

Center Seat

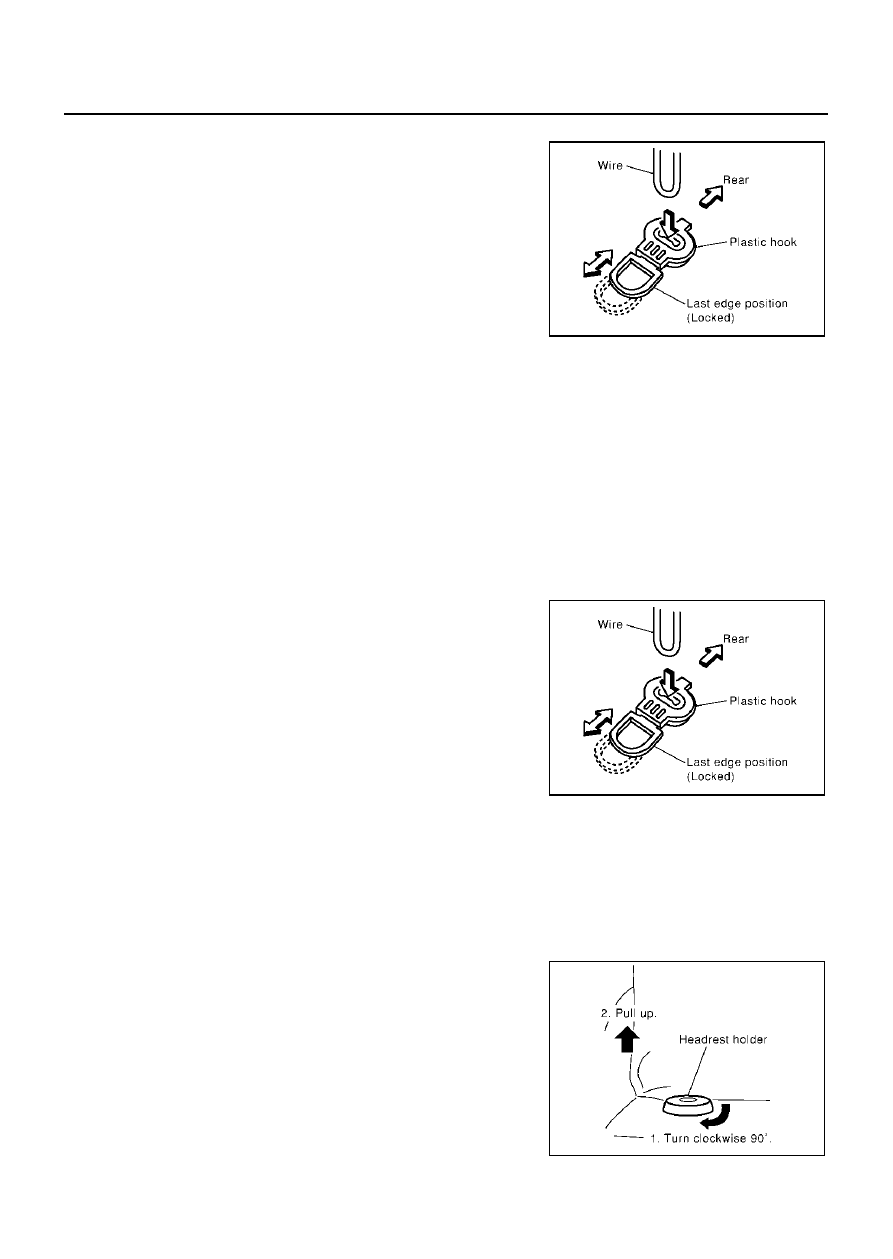

1.

Pull the lock at the front bottom of the seat cushion forward, and
pull the seat cushion upward to release the wire from the plastic
hook.

2.

Remove the Velcro fastener at the rear of the seat cushion trim, and pull the seat cushion trim forward to
remove.

3.

Partially remove the seatback board to disconnect the harness connectors for rear control switch and rear
seat control unit.

4.

Remove the nuts and slide the center seatback assembly upward to remove.

5.

After removing, remove the hog ring to separate the trim and pad.

RH/LH Seat

1.

Remove the headrest holders at the right and left.

For the RH seat, remove the headrest, and turn the headrest
holder toward the front of the vehicle by 90

°

to remove.

For the LH seat, move the headrest to the lower limit to
remove it. Then insert a slotted screwdriver into the hole on
the headrest holder to pull up. Release the tab on the head-
rest holder to remove the headrest holder.

SIIA0511E

SIIA0511E

SIIA0661E

REAR SEAT

SE-201

C

D

E

F

G

H

J

K

L

M

A

B

SE

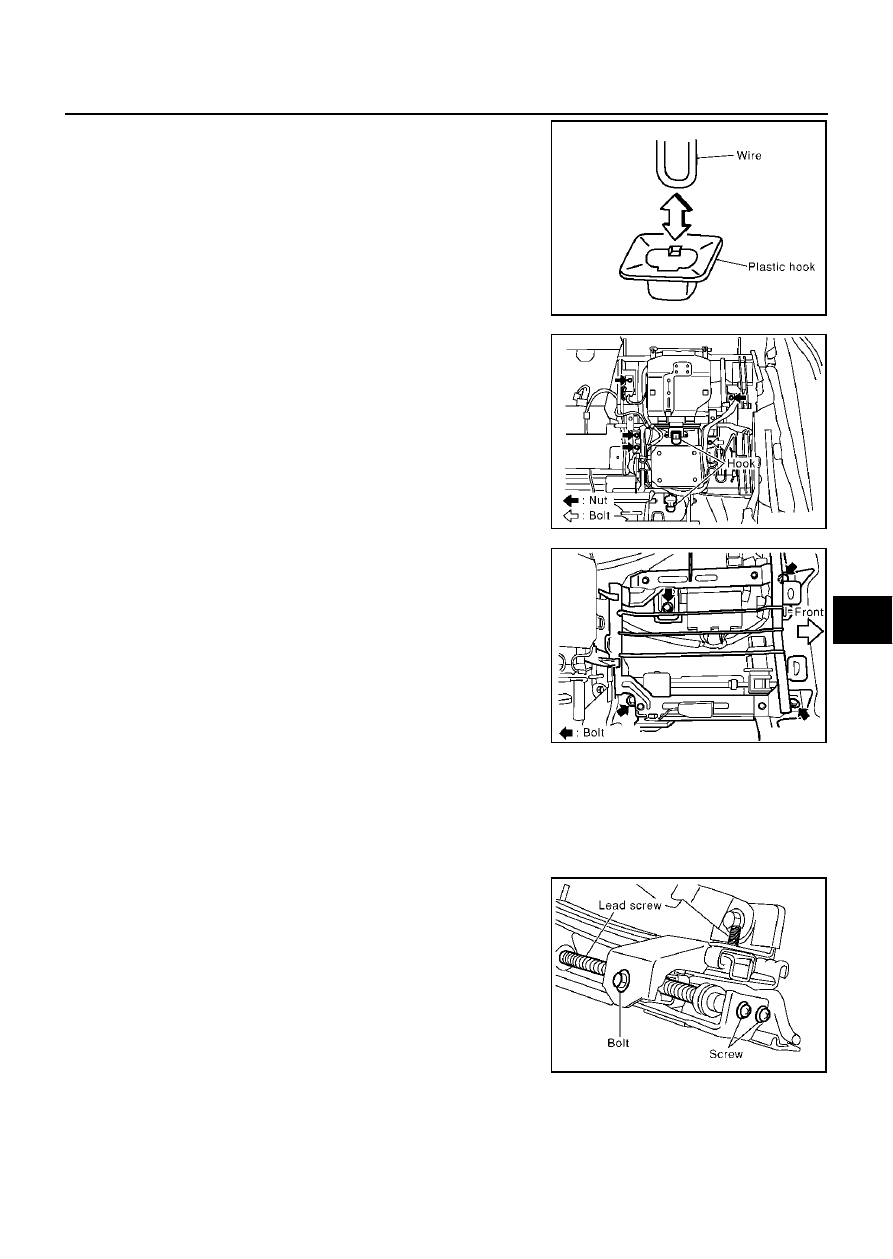

2.

Raise the bottom of the seat cushion to release the wire from the
plastic hook then pull the seat cushion forward to remove. (For
the LH seat, disconnect the harness connector for the seat
heater).

3.

Access the hooks from between the seatback pad and rear seat-
back frame, and pull them downward to remove the wire. Then,
slide the seatback upward to remove.

4.

Remove nuts and bolts to remove the power unit frame assem-
bly.

5.

Remove the mounting bolts and disconnect the vehicle-side har-
ness connector on the seat cushion frame.

6.

After removing, remove the hog ring to separate the trim and pad, and rear seat heater unit (only LH-side).

INSTALLATION OF POWER SEAT (SPLIT SEAT)

Install in the reverse order of removal.

Disassembly and Assembly

EIS000FO

SLIDING MOTOR & UNIT

1.

Remove mounting bolts and screws on the lead screw unit.

SIIA0517E

SIIA0515E

SIIA0519E

SIIA0522E

SE-202

REAR SEAT

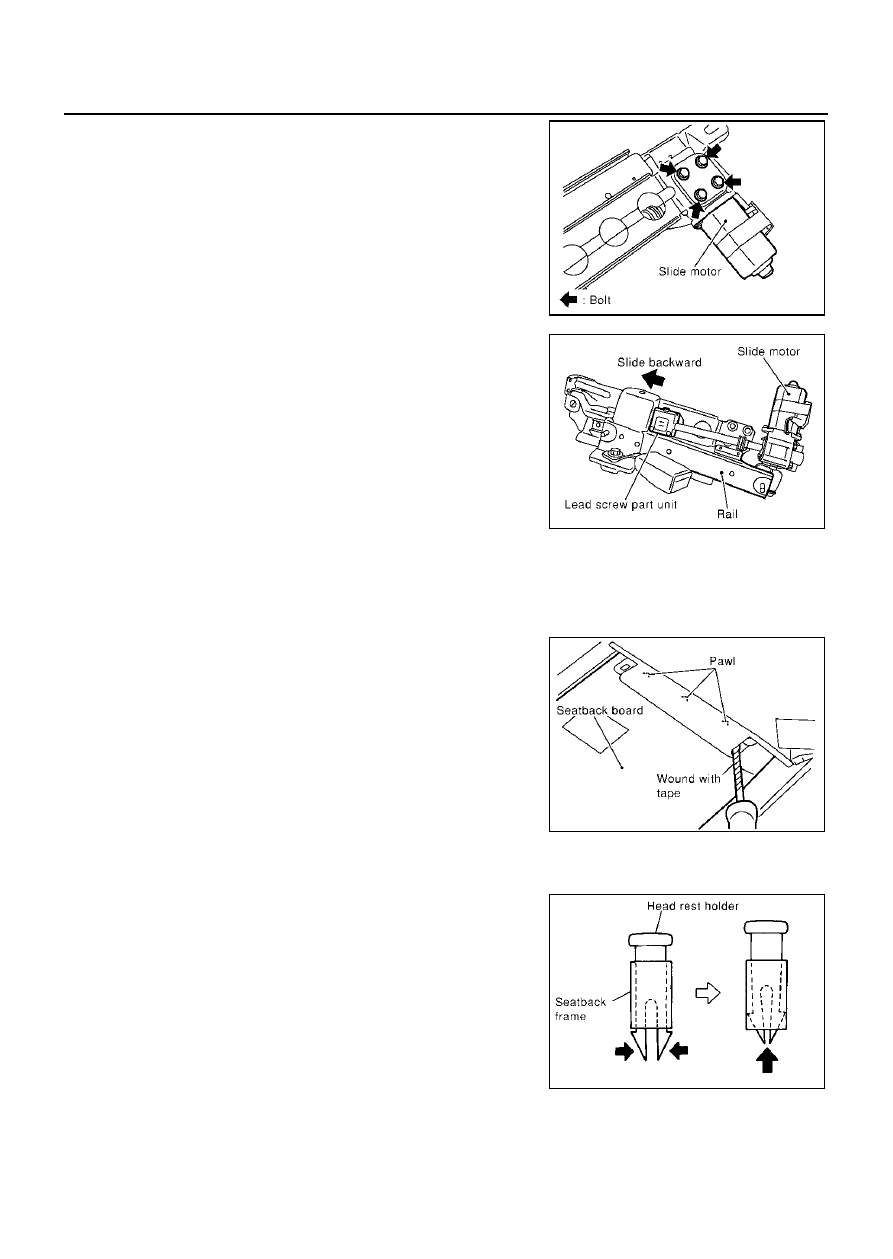

2.

Remove the sliding motor mounting bolt.

3.

Slide the unit mounting bracket backward (on seat belt buckle
side) to make space to take the unit out.

4.

Pull the sliding motor and unit out of the unit mounting bracket.

NOTE:
When installing the sliding rail to the seat cushion frame, slide the outer rail until it aligns to the inner rail,
then install it.

CENTER SEATBACK ASSEMBLY

1.

Remove the seatback board.

2.

Remove the seatback side screen at the right and left.

3.

Remove the armrest bracket.

4.

Remove the hog ring on the rear seatback trim (center) and
headrest holder.

5.

Remove the armrest lid hinge and armrest lid lock.

SIIA0523E

SIIA0524E

SIIA0525E

PIIA0167E
