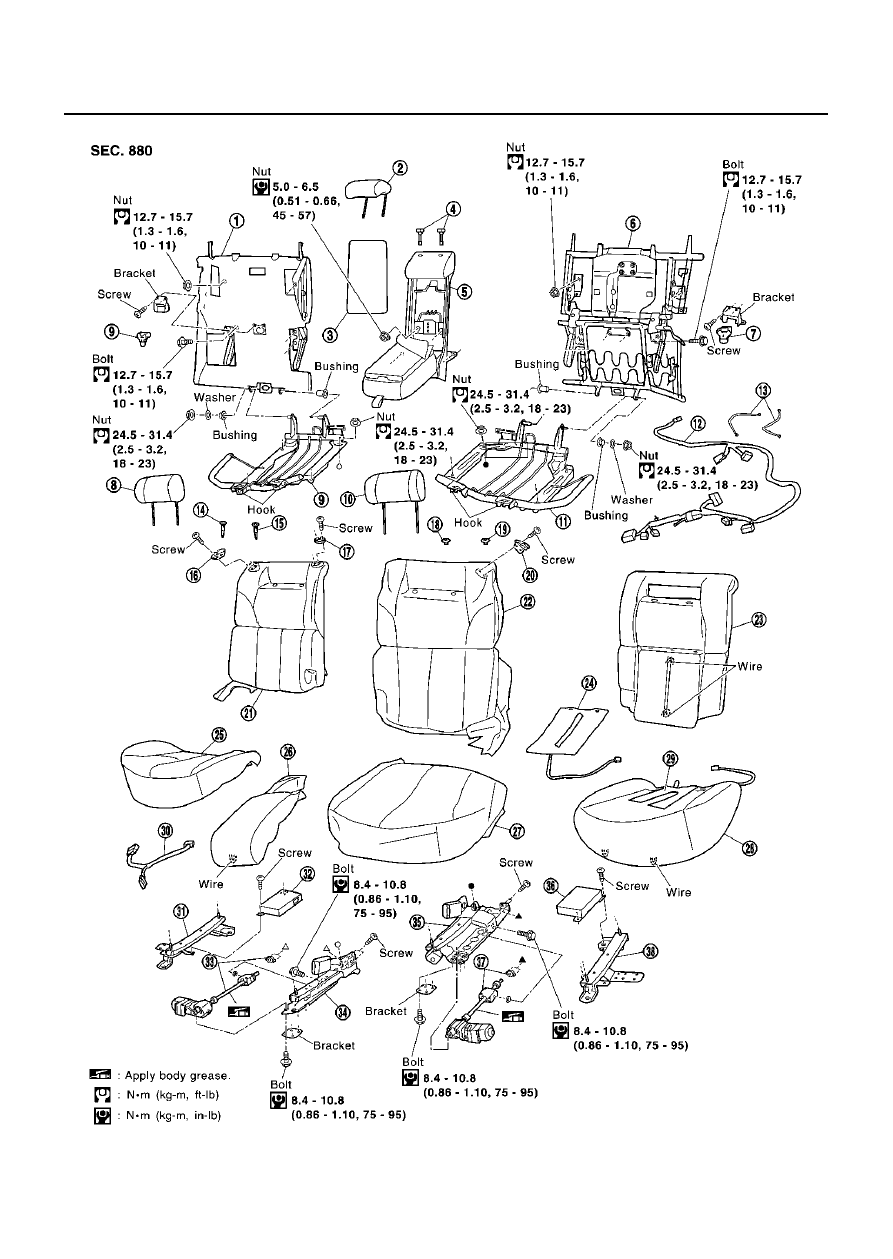

FRONT SEAT
SE-195
C
D
E
F
G
H
J
K
L
M
A
B
SE
5.

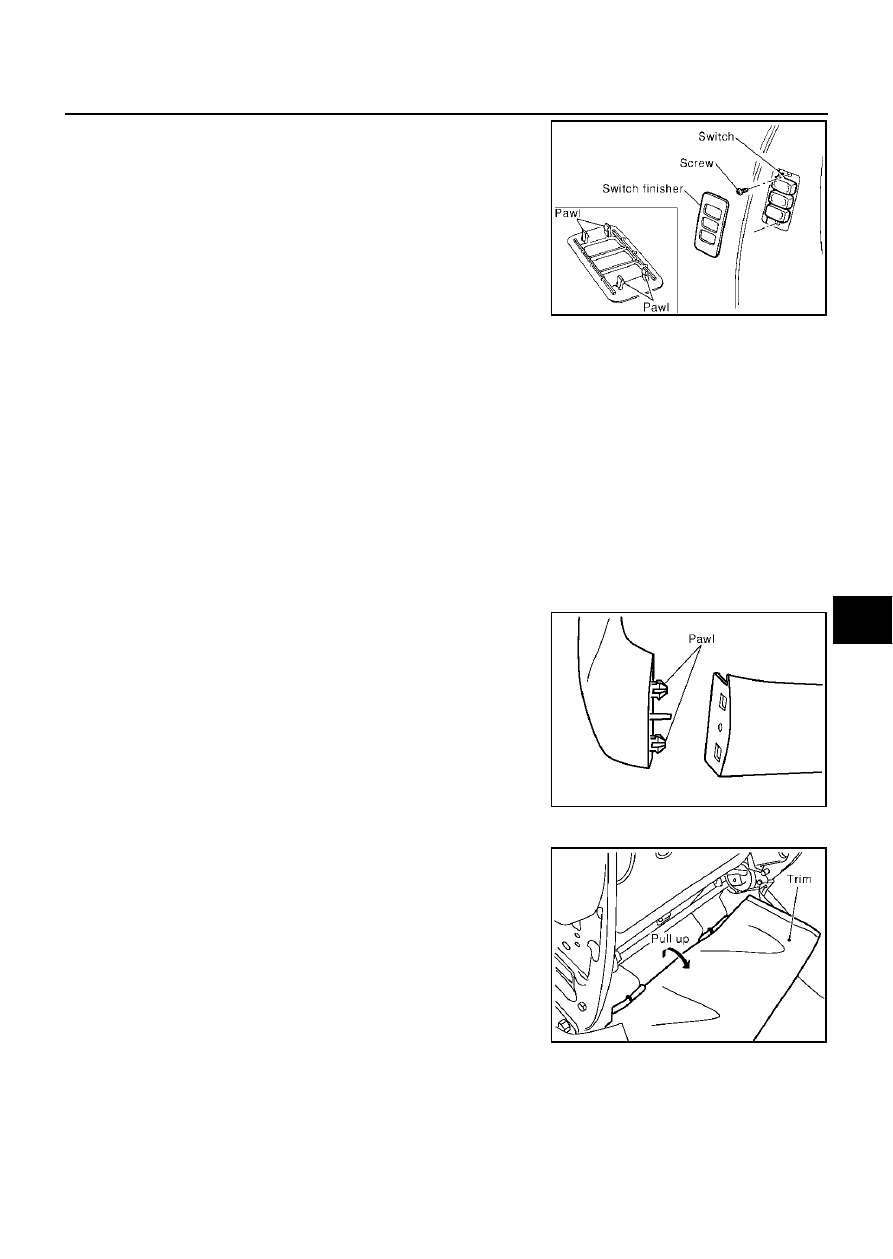

Remove the switch finisher at the side of the seatback. (passen-
ger side seat only)
6.
Remove the seat heater harness connector. After removing the seatback trim and pad, remove the hog
ring to separate the trim, pad, and seatback heater unit.
REMOVAL OF SEATBACK ASSEMBLY
1.
After completing the steps 1 and 2 of "SEATBACK TRIM AND PAD", remove the harness connectors for
the reclining motor and lumbar support motor (driver seat only).
2.
Pull out the harness connector for the side air bag from the seat cushion.
3.
Remove the reclining device mounting bolts on the seatback frame, and remove the seatback assembly.
NOTE:
When assembling the seatback frame, make sure that the reclining device are locked on both sides, and
be sure to temporarily tighten the bolts, then tighten them finally.
INSTALLATION OF SEATBACK ASSEMBLY
Install in the reverse order of removal.
SEAT CUSHION TRIM AND PAD
1.
Remove the front seat cushion finisher (front and rear).
2.
Remove the power seat switch knob.
3.
Remove the front seat cushion finisher (outer).
4.
Remove the power seat switch assembly.
5.
Partially pull off the trim at the rear of the seat cushion forward,
and remove the hog rings on the seat cushion pad.
6.
Remove the retainer on the seat cushion frame, then remove the harness connector for the seat heater.
7.
After removing the seat cushion trim and pad, remove the hog rings to separate the trim and pad and the
seat cushion heater unit.
