FRONT SEAT

SE-191

C

D

E

F

G

H

J

K

L

M

A

B

SE

1.

Seatback frame

2.

Seatback outer bracket

3.

Seatback inner bracket

4.

Seatback thermal electric device

5.

Seaback duct

6.

Seatback duct upper bracket

7.

Seat cushion inner bracket

8.

Seatback duct lower bracket

9.

Seat cushion frame

10. Climate controlled seat switch

11.

Climate controlled seat switch
bracket

12. Seat cushion outer bracket

13.

Seat cushion mounting upper
bracket

14. Seat cushion thermal electric device 15. Seat cushion front duct

16.

Climate controlled seat blower
motor

17. Seat cushion rear duct

18. Seat cushion duct lower bracket

19.

Seat cushion mounting lower
bracket

20. Climate controlled seat control box

21. Climate controlled seat filter

22. Seat cushion rear duct cover

SE-192

FRONT SEAT

PASSENGER SIDE POWER SEAT

SIIA0574E

FRONT SEAT

SE-193

C

D

E

F

G

H

J

K

L

M

A

B

SE

REMOVAL

When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

CAUTION:

Before removing the front seat, turn the ignition switch off, disconnect both battery cables and
wait and least 3 minutes.

When checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.

Do not drop, tilt, or bump the side air bag module installing in the seat. Always handle it with care.

1.

Remove the front leg cover and rear leg cover. (LH/RH)

NOTE:

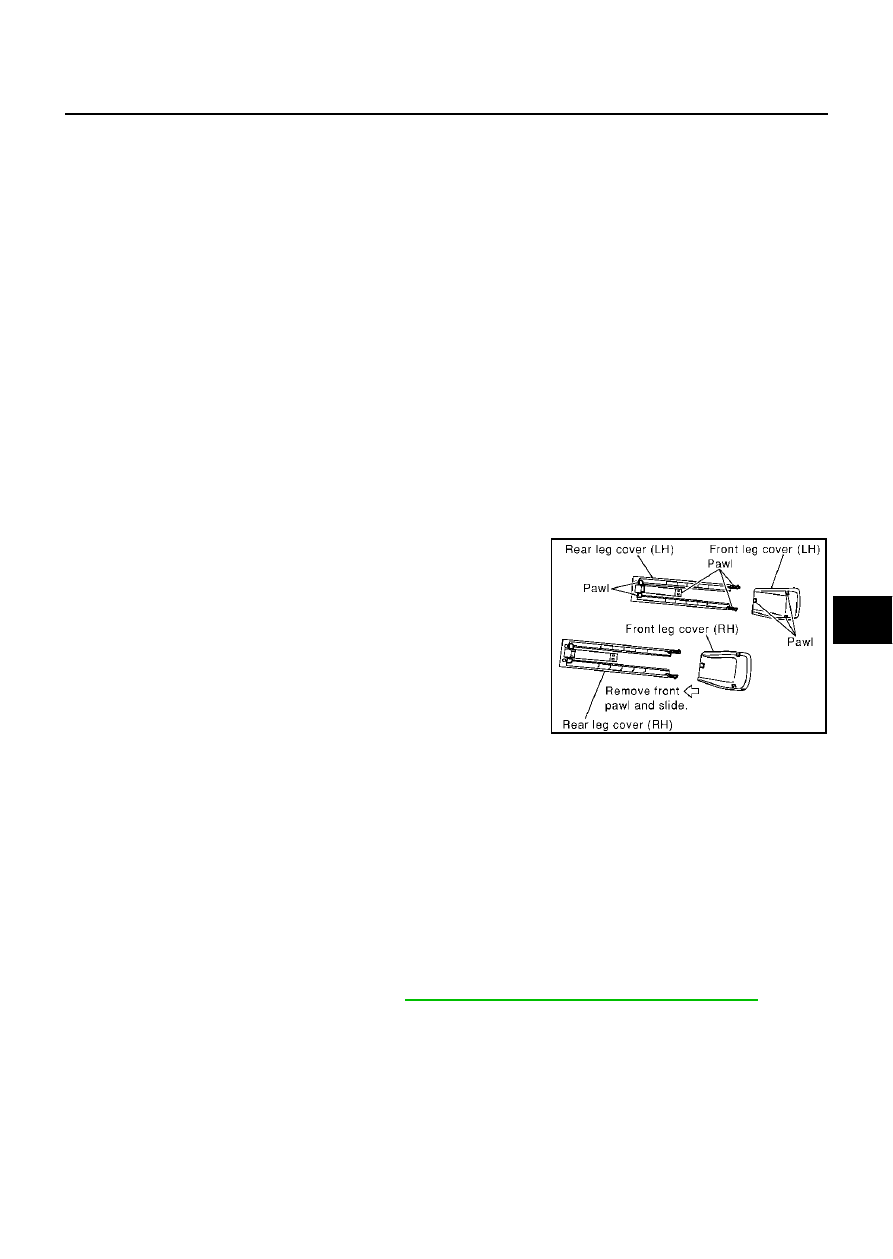

1. Slide the seat backward, and disconnect the front tabs on the front leg cover. Then move the cover

toward the rear of the vehicle, and pull up to remove.

2. Slide the seat forward, then disengage the tabs on the front LH/RH of the rear leg cover and tabs

engaged into the rail. Then pull the cover toward the rear of the vehicle.

2.

Slide the seat until the body mounting bolts are visible and a tool can be inserted.

NOTE:
When disassembling the driver seat after removal, set the front/rear cushion lifter to the top position.

3.

Disconnect both battery cables.

4.

Remove the harness connector for the side air bag module.

5.

Remove the body mounting bolts and seat belt anchor bolt.
To remove the seat belt anchor bolt, refer to

SB-3, "Removal and Installation of Front Seat Belt"

 .

6.

Remove the power seat harness connector and vehicle harness fixing clip out of the vehicle.

NOTE:
When removing and installing, using shop clothes, protect the parts from damage where it may interfere
with others.

1.

Side air bag module

2.

Seatback frame

3.

Power seat switch (seatback)

4.

Seatback pad

5.

Seatback heater unit

6.

Headrest

7.

Seatback grip belt

8.

Seatback board

9.

Seat cushion heater unit

10. Seat cushion pad

11.

Headrest holder (free)

12. Headrest holder (locked)

13. Seatback trim

14. Seat cushion rear finisher

15. Reclining device (RH)

16. Reclining device rod

17. Reclining device (LH)

18. Seat cushion frame

19. Power seat switch (seat cushion)

20. Seat cushion trim

21. Seat cushion outer finisher

22. Reclining switch knob

23. Slide & lifter switch knob

24. Seat cushion rod (RH)

25. Lifter motor assembly

26. Seat lifter link bracket (rear)

27. Seat lifter link bracket (front)

28. Seat cushion rod (LH)

29. Inner sliding assembly

30. Seat control unit bracket

31. Flexible wire

32. Outer sliding assembly

33. Seat cushion front finisher

34. Power seat harness

35. Front leg cover (LH/RH)

36. Rear leg cover (LH/RH)

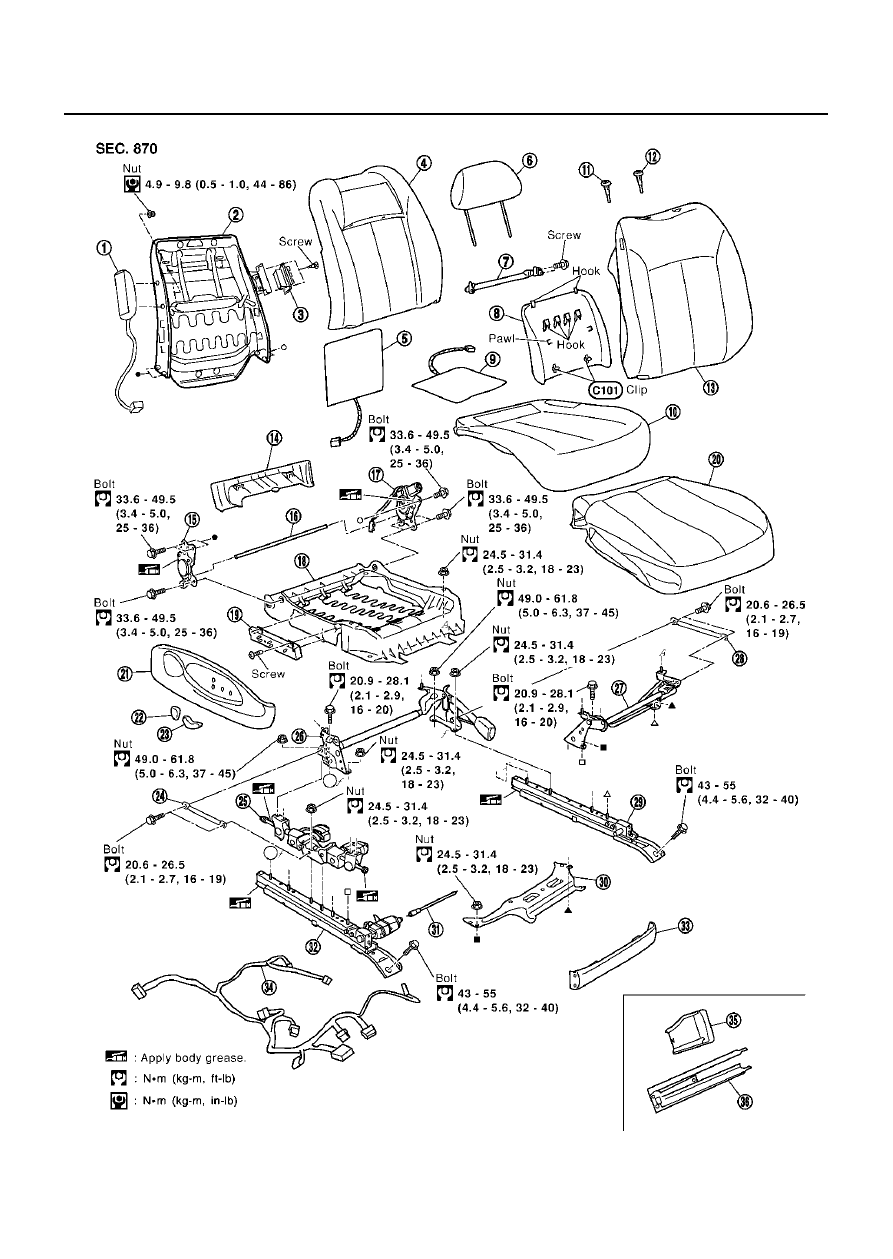

SIIA0490E

SE-194

FRONT SEAT

INSTALLATION

Install in the reverse order of removal.

NOTE:
Be sure to insert the rear end tab of the rear leg cover under the rail.

Disassembly and Assembly

EIS003R2

SEATBACK TRIM AND PAD

NOTE:
Be sure to set the front/rear cushion lifter to the top position.

1.

Remove the seatback board from the back of the seatback.

2.

Remove the retainer.

3.

From the back of the seatback, press the headrest holder tab of
the stay pipe hole to disengage. Then pull the headrest holder
up to remove.
NOTE:
Before installing the headrest holder, check its orientation (front/
rear and left/right).

4.

Remove the stay securing the inner cloth.

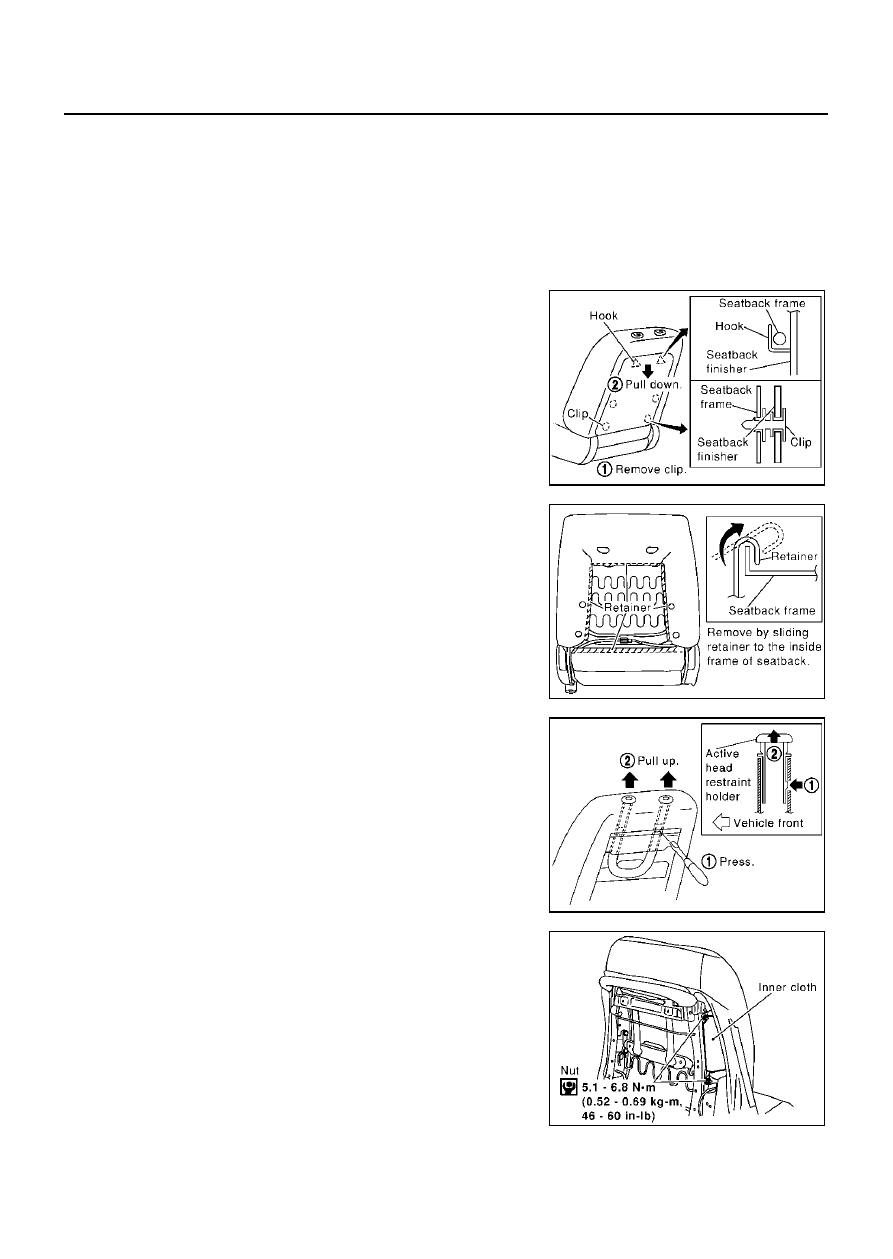

PIIA0163E

SIIA0113E

PIIA0164E

SIIA0579E
