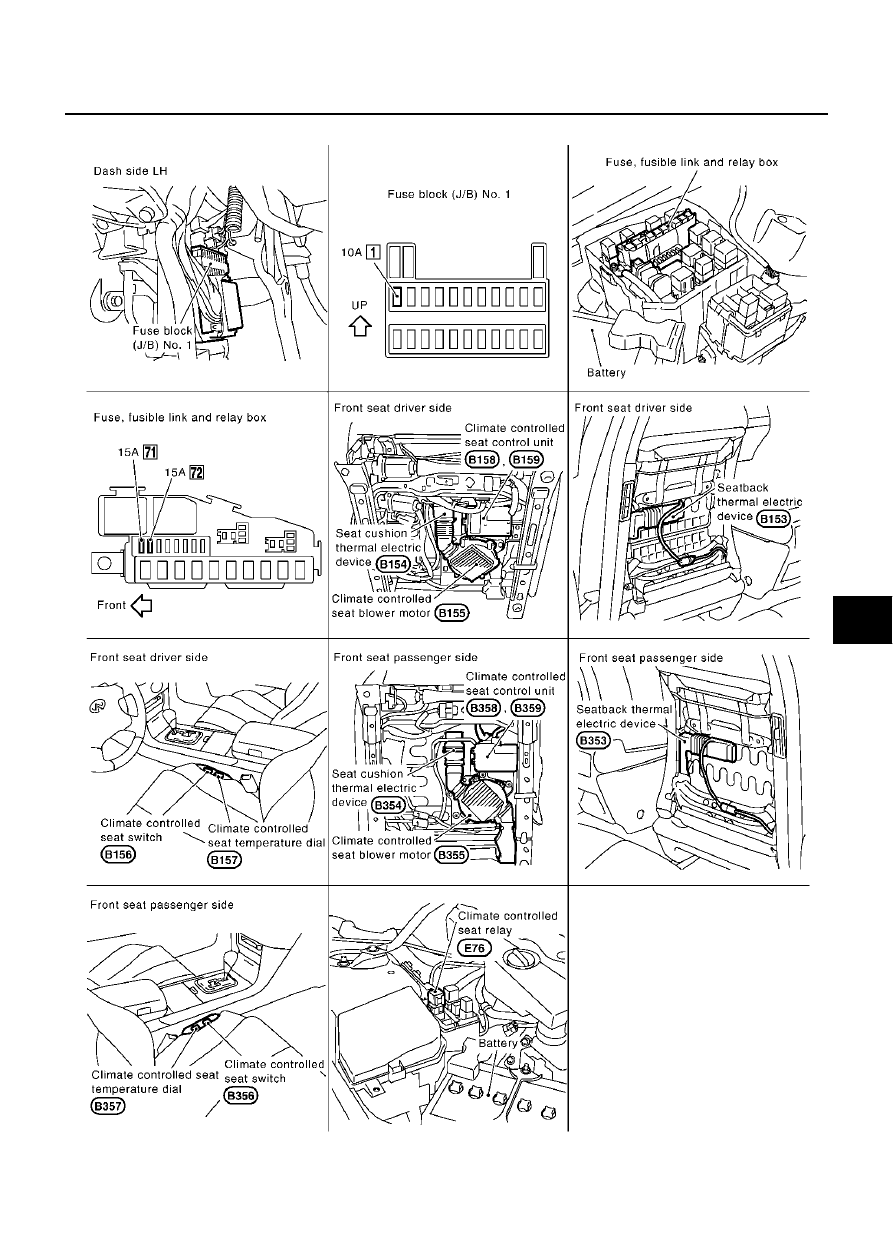

CLIMATE CONTROLLED SEAT SE-159 C D E F G H J K L M A B SE ● through climate controlled seat control unit terminal J7, And then ground is supplied ● through climate controlled seat control unit terminal J15, ● to climate controlled seat temperature dial terminal J15, Then, the climate controlled seat control unit receives climate controlled seat temperature dial signal. ● to climate controlled seat control unit terminal J14, ● through climate controlled seat blower motor terminal J14. This is climate controlled seat blower motor tachometer signal. ● to climate controlled seat blower motor terminal J13, ● through climate controlled seat control unit terminal J13, This is blower motor revolution control signal. ● through climate controlled seat control unit terminal J10, ● to climate controlled seat blower motor terminal J10. When number of rotations correspond signal, ● to climate controlled seat blower motor terminal J3, ● through climate controlled seat control unit terminal J3, ● through climate controlled seat control unit terminal JC, ● through body grounds B217 and B256. Then motor revolution is controlled. ● to climate controlled seat cushion thermal electric device terminal J18, ● through climate controlled seat control unit terminal J18. Then ground is supplied ● to climate controlled seat control unit terminal J17, ● through climate controlled seat cushion thermal electric device terminal J17, Then the climate controlled seat control unit recognizes seat cushion thermal electric device sensor signal. ● to climate controlled seat cushion thermal electric device terminal J1, ● through climate controlled seat control unit terminal J1, Then ground is supplied ● through climate controlled seat cushion thermal electric device terminal J2, ● to climate controlled seat control unit terminal J2. ● through climate controlled seat control unit terminal JC, ● through body grounds B217 and B256. When climate controlled control unit recognizes climate controlled switch “COOL” signal and, climate con- ● to climate controlled seat cushion thermal electric device terminal J2, ● through climate controlled seat control unit terminal J2, Then ground is supplied ● through climate controlled seat cushion thermal electric device terminal J1, ● to climate controlled seat control unit terminal J1. |
