Infiniti F50. Manual - part 785

HEATED SEAT

SE-131

C

D

E

F

G

H

J

K

L

M

A

B

SE

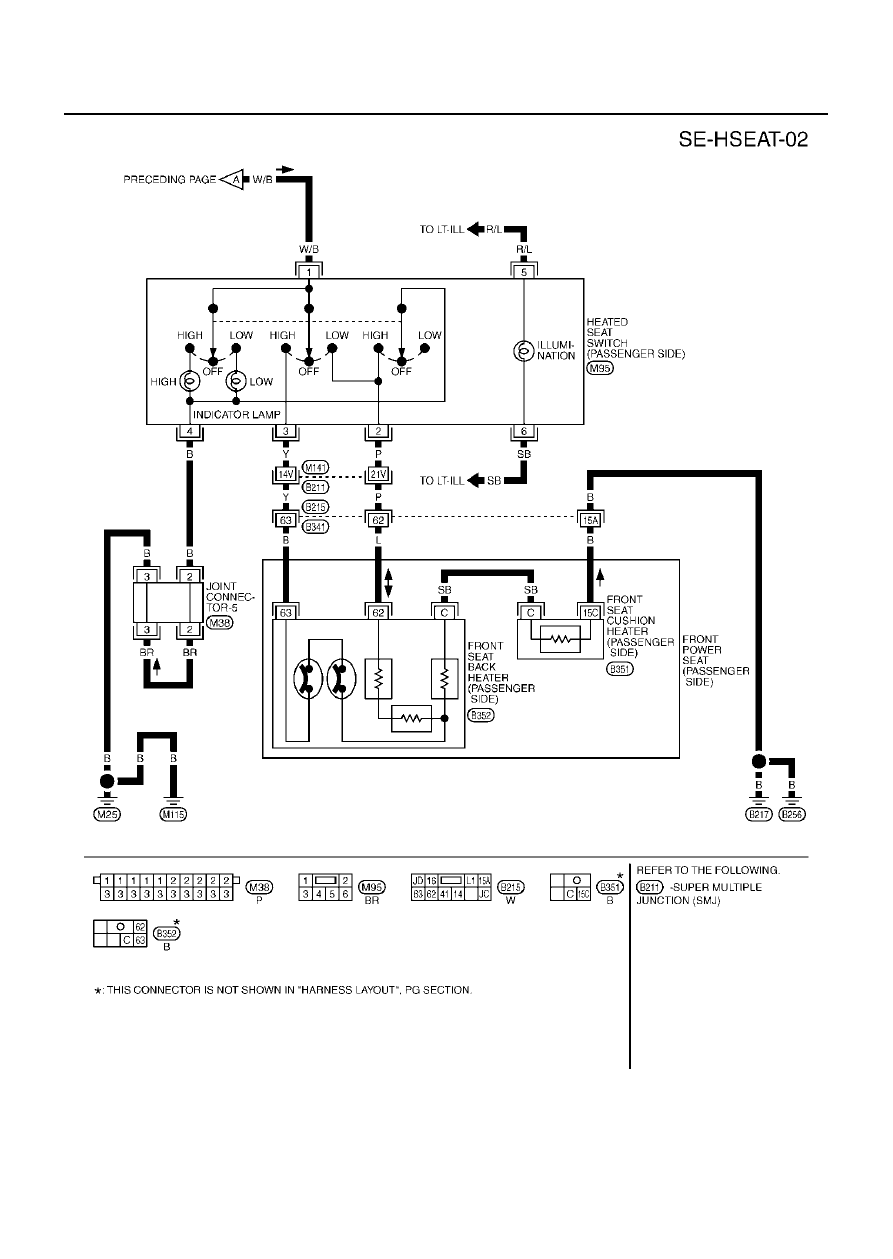

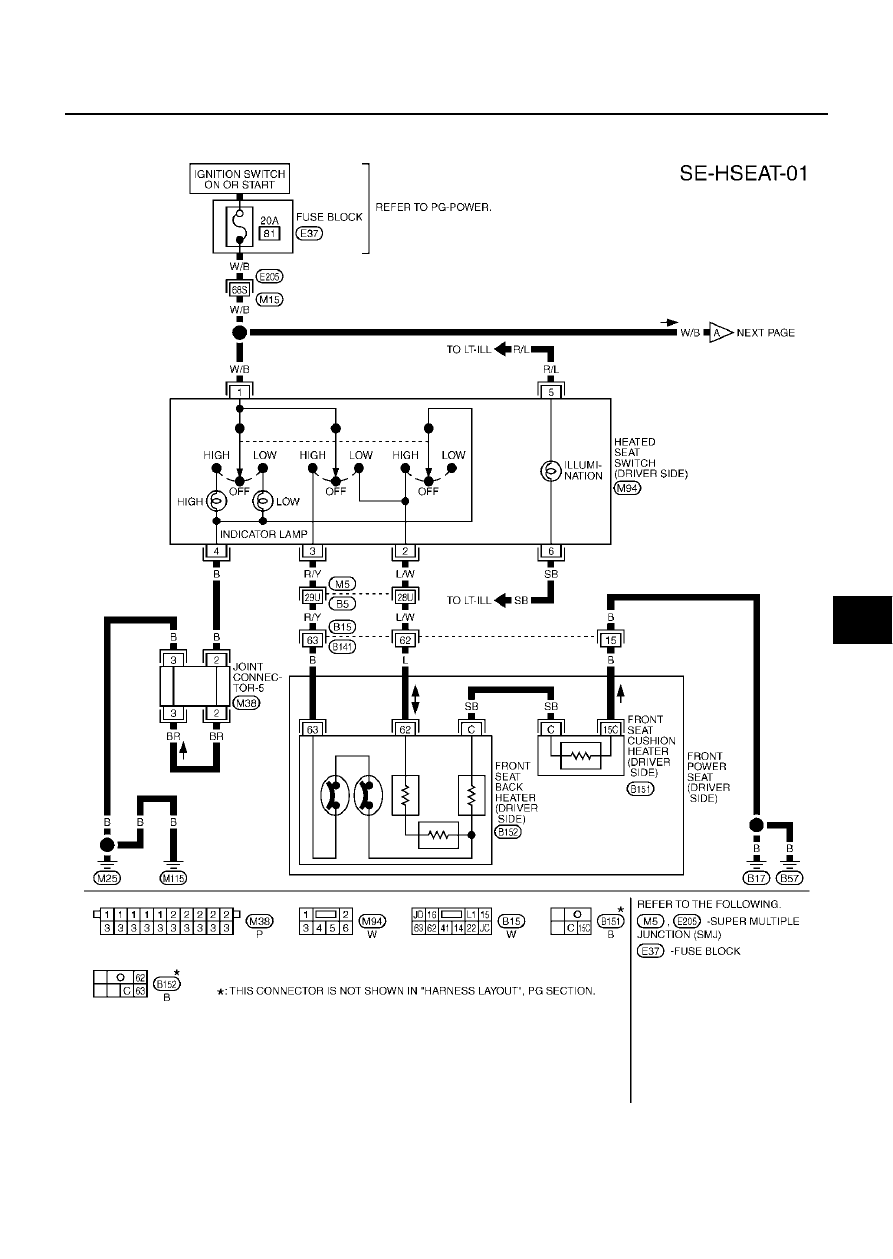

Wiring Diagram – HSEAT –

EIS0042D

FRONT HEATED SEAT

TIWM0131E

SE-132

HEATED SEAT

TIWM0178E

HEATED SEAT

SE-133

C

D

E

F

G

H

J

K

L

M

A

B

SE

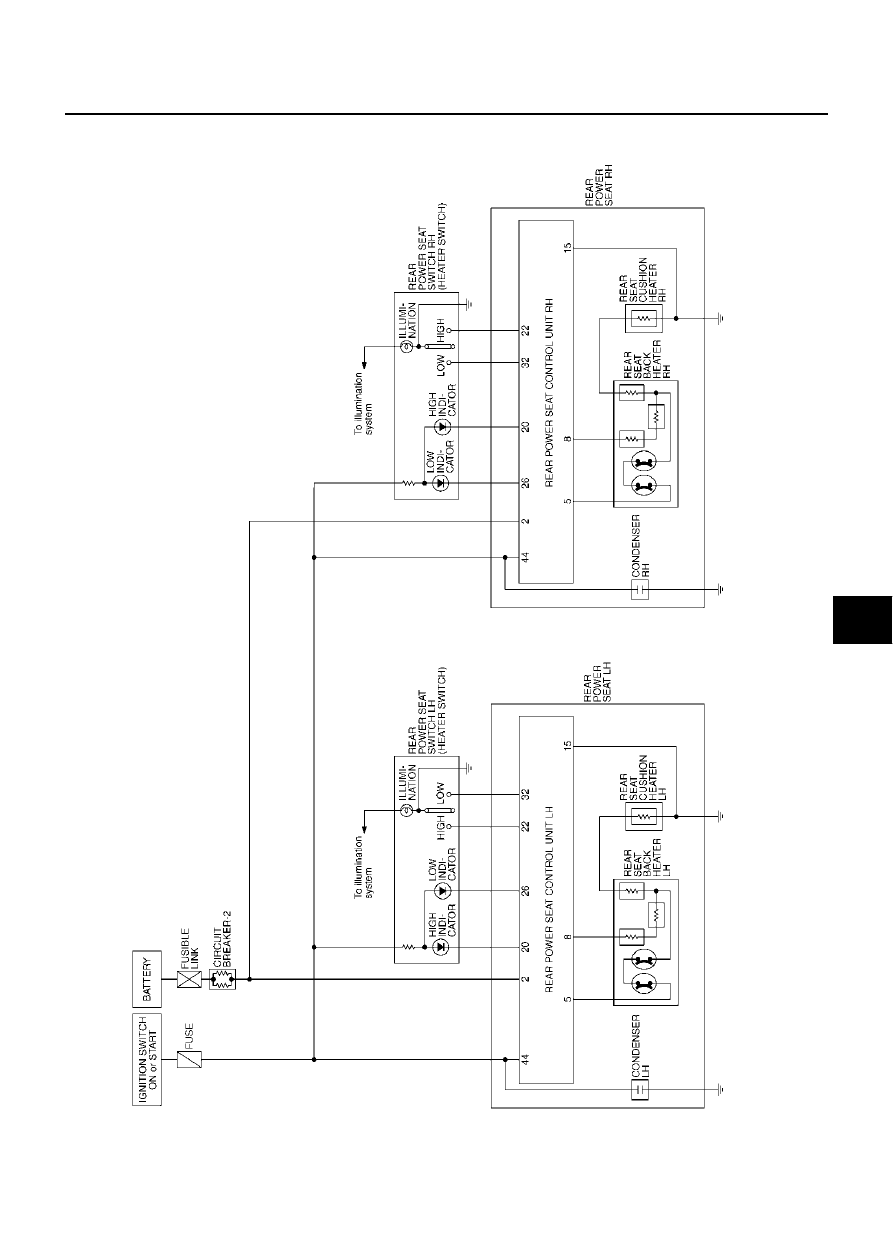

Schematic

EIS000ZO

REAR HEATED SEAT

TIWM0130E

SE-134

HEATED SEAT

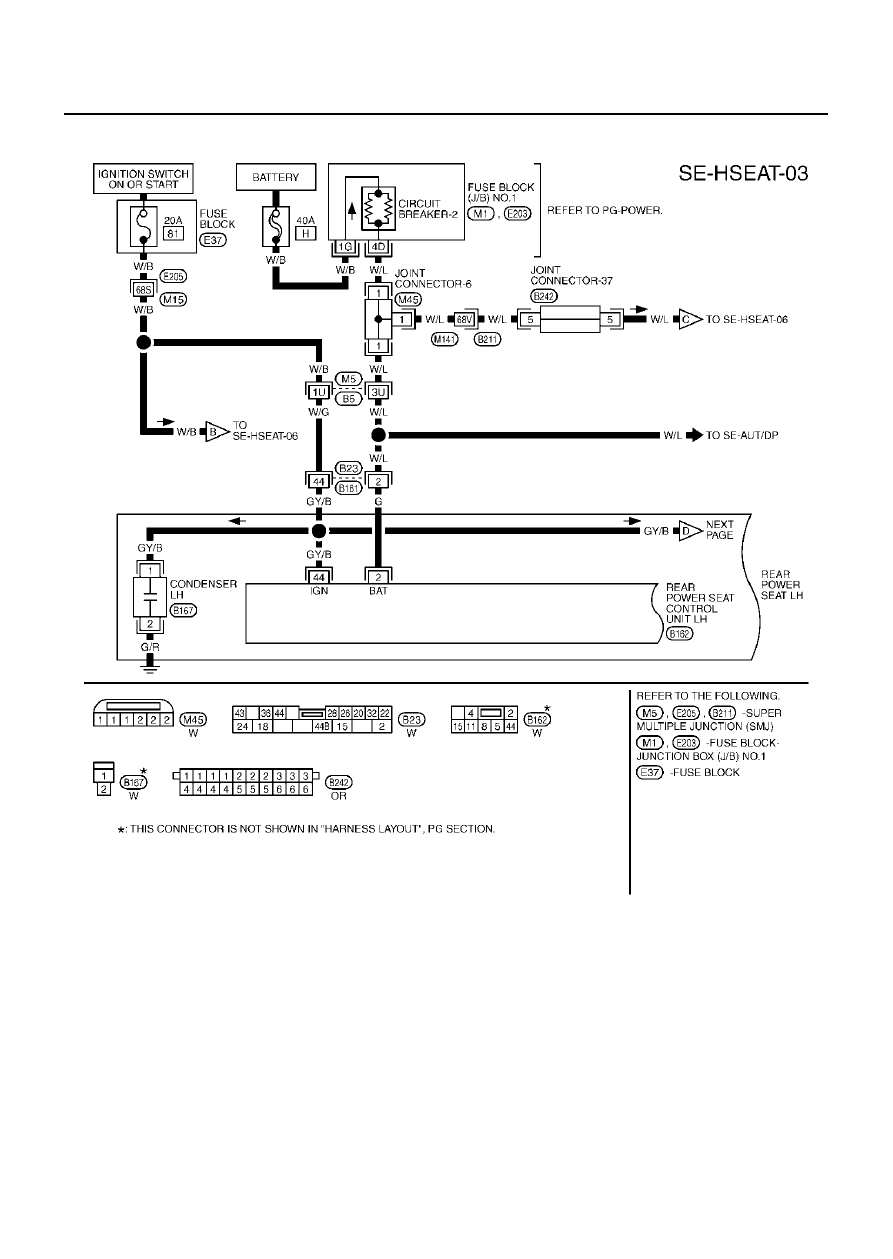

Wiring Diagram – HSEAT –

EIS000ZP

REAR HEATED SEAT

TIWM0132E
