Infiniti F50. Manual - part 776





POWER SEAT

SE-95

C

D

E

F

G

H

J

K

L

M

A

B

SE

through power seat switch terminal 11.

to front lifting motor terminal 11,

Then ground is supplied

to front lifting motor terminal 10,

through power seat switch terminal 10,

through power seat switch terminal 15A,

through body grounds B217 and B256.

When power and ground are supplied, front passenger seat front lifting moves upward.
This seat does front lifting upward.
When front lifting switch is downward, power is supplied

through power seat switch terminal 10.

to front lifting motor terminal 10,

Then ground is supplied

to front lifting motor terminal 11,

through power seat switch terminal 11,

through power seat switch terminal 15A,

through body grounds B217 and B256.

When power and ground are supplied, front passenger seat front lifting moves downward.
This seat does front lifting downward.
When rear lifting switch is upward, power is supplied

through power seat switch terminal 6.

to rear lifting motor terminal 6,

Then ground is supplied

to rear lifting motor terminal 4,

through power seat switch terminal 4,

through power seat switch terminal 15A,

through body grounds B217 and B256.

When power and ground are supplied, front passenger seat rear lifting moves upward.
When rear lifting switch is downward, power is supplied

through power seat switch terminal 4,

to rear lifting motor terminal 4,

Then ground is supplied

to rear lifting motor terminal 6,

through power seat switch terminal 6,

through power seat switch terminal 15A,

through body grounds B217 and B256.

When power and ground are supplied, front passenger seat rear lifting moves downward.

REAR POWER SEAT LH AND REAR POWER SEAT RH OPERATION

When rear power seat sliding switch is forward, ground is supplied

to rear power seat control unit terminal 24,

through power seat switch terminal 7 (RH), 8 (LH),

through power seat switch terminal 2,

through body grounds B17, B57 (LH) and B217, B256 (RH).

When rear power seat control unit receives sliding switch forward signal, power is supplied

through rear power seat control unit terminal 4.

to rear power seat sliding motor terminal 4,

Then ground is supplied

to rear power seat sliding motor terminal 11,

through rear power seat control unit terminal 11,

SE-96

POWER SEAT

through rear power seat control unit terminals 15,

through body grounds B17, B57 (LH) B217, B256 (RH).

When power and ground are supplied, rear power seat slide moves forward.
This seat does slide forward.
When rear power seat sliding switch is backward, ground is supplied

to rear power seat control unit terminal 18,

through power seat switch terminal 7 (LH), 8 (RH),

through power seat switch terminal 2,

through body grounds B17, B57 (LH) and B217, B256 (RH).

When rear power seat control unit receives sliding switch backward signal, power is supplied

to rear power seat sliding motor terminal 11,

through rear power seat control unit terminal 11.

Then ground is supplied

to rear power seat sliding motor terminal 4,

through rear power seat control unit terminal 4,

through rear power seat control unit terminals 15,

through body grounds B17, B57 (LH) and B217, B256 (RH).

When power and ground are supplied, rear power seat slide moves backward.

REAR SEAT TURNOUT/RETURN FUNCTION

When auto return cancel switch ON and rear door open, ground is supplied

to rear power seat control unit terminal 43,

through door lock assembly rear (Door switch) terminal 1,

through door lock assembly rear (Door switch) terminal 2,

through body grounds B17, B57 (LH) and B217, B256 (RH).

When rear power seat control unit receives rear door switch open signal, power is supplied

through rear power seat control unit terminal 11.

to rear power seat sliding motor terminal 11,

Then ground is supplied

to rear power seat sliding motor terminal 4,

through rear power seat control unit terminal 4,

through rear power seat control unit terminals 15,

through body grounds B17, B57 (LH) and B217, B256 (RH).

When power and ground are supplied, rear power seat slide moves backward.
When rear power seat sliding motor is operated, ground is supplied

to rear power seat control unit terminal 21,

through rear power seat sliding motor terminal 21,

through rear power seat sliding motor terminal 74,

through rear power seat control unit terminal 74

through rear power seat control unit terminals 28,

through body grounds B17, B57 (LH) and B217, B256 (RH).

Then power seat control unit receives rear power seat sliding sensor signal.
The rear power seat control unit controls the seat position of the system operation with the signal.

POWER SEAT

SE-97

C

D

E

F

G

H

J

K

L

M

A

B

SE

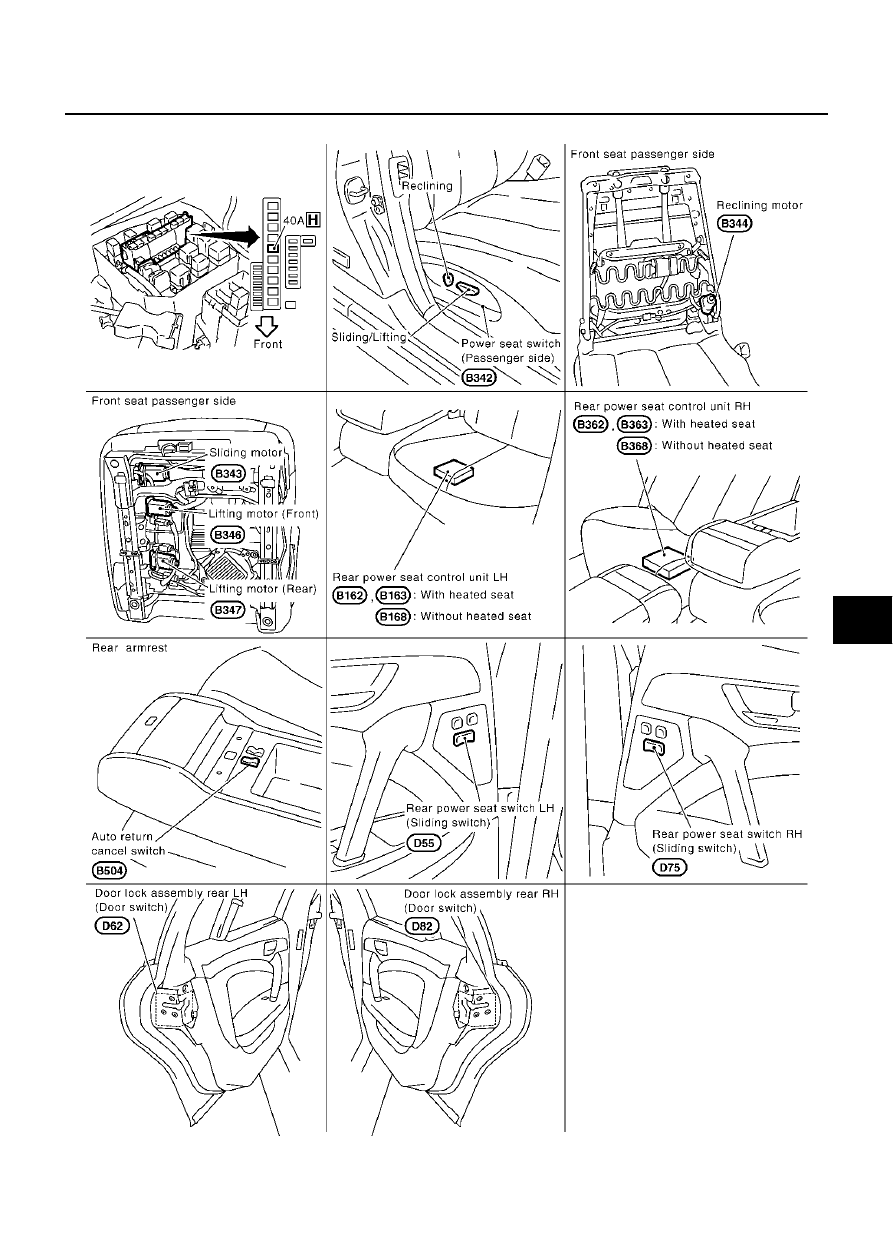

Component Parts and Harness Connector Location

EIS000ZL

PIIA3389E

SE-98

POWER SEAT

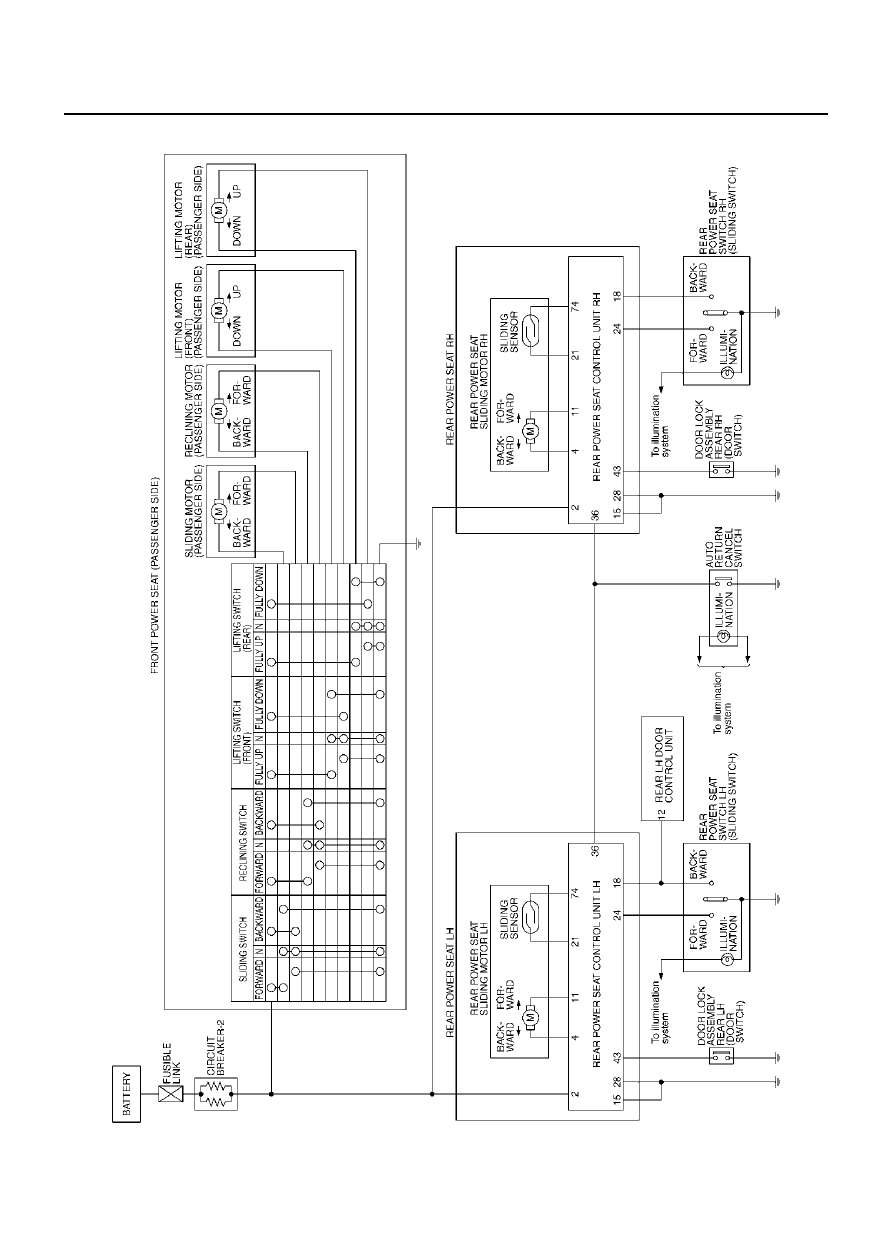

Schematic

EIS0014T

TIWM0060E
