Infiniti F50. Manual - part 755





SQUEAK AND RATTLE TROUBLE DIAGNOSES

SE-11

C

D

E

F

G

H

J

K

L

M

A

B

SE

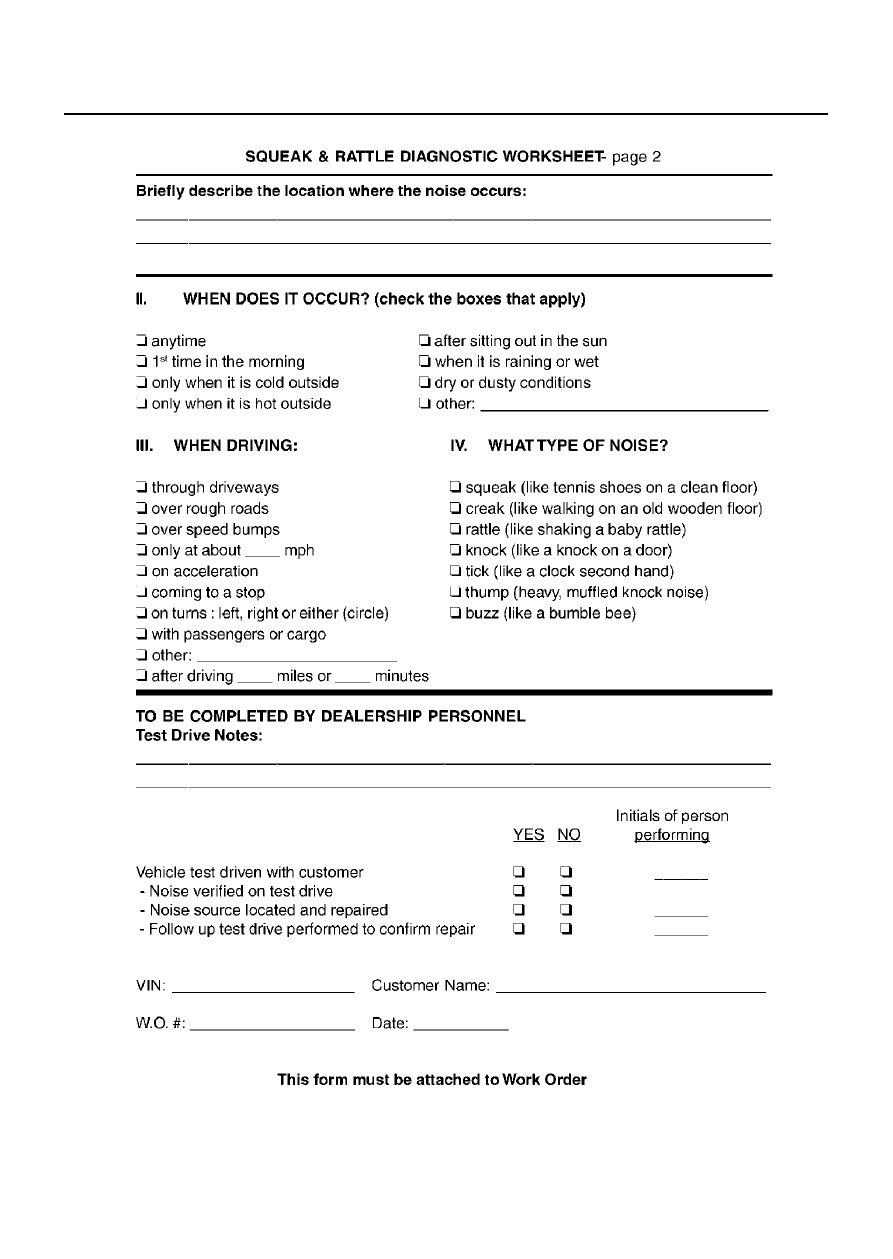

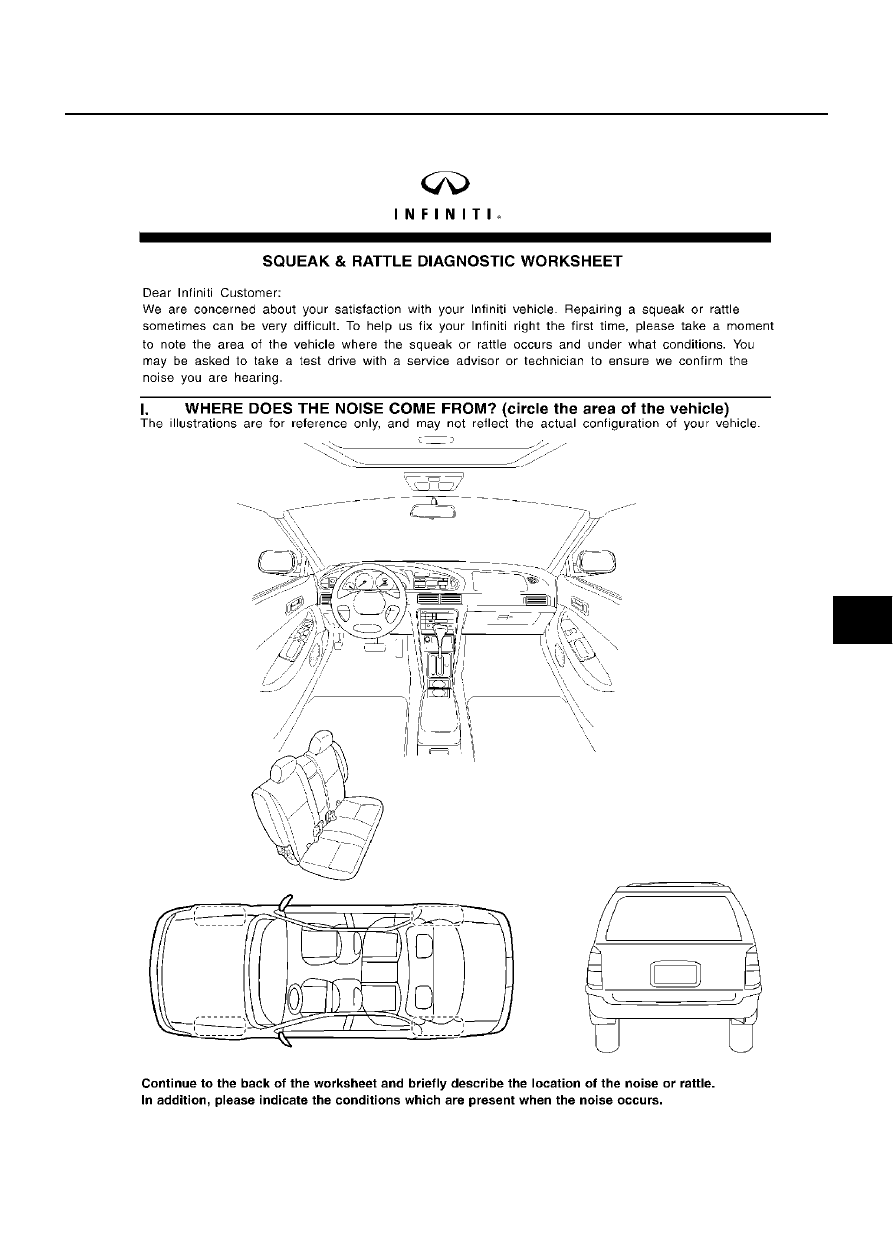

Diagnostic Worksheet

EIS000ZU

SBT860

SE-12

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SBT844

AUTOMATIC DRIVE POSITIONER

SE-13

C

D

E

F

G

H

J

K

L

M

A

B

SE

AUTOMATIC DRIVE POSITIONER

PFP:28491

System Description

EIS0043F

The system automatically moves the driver seat and steering wheel to facilitate entry/exit to/from the vehi-
cle by connecting the BCM (Body Control Module) to the driver seat control unit the multiple communica-
tion line. The BCM can also store the optimum driving positions (driver seat, steering wheel and door
mirror position) for 2 people. If the driver is changes, one-touch operation allows changing to the other
driving position.

The settings (ON/OFF) of the automatic tilt steering wheel and sliding seat (Entry/exiting function) at
entry/exit can be changed as desired, using the display unit in the center of the instrument panel.

MANUAL OPERATION

The driving position (seat position, steering wheel position, door mirror position) can be adjusted with the
power seat switch or ADP (Automatic Drive Positioner) steering switch.

NOTE:

The seat and steering wheel position can be manually operated with the ignition switch OFF.

The door mirrors can be manually operated with the ignition switch in either ACC or ON.

AUTOMATIC OPERATION

NOTE:

Disconnecting the battery erases the stored memory.

After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open)

OFF (close)

ON

(open), the Entry / exiting function becomes possible.

NOTE:
During automatic operation, if the ignition switch is turned ON

START, the automatic operation is suspended. When the ignition switch

returns to ON, it resumes.

FAIL–SAFE MODE

When the ignition switch is in the ON position, if any of the parts (indicated in the following chart) move more
than the specified amount within a period “T” when no “ON” input is sent from any of the switches (indicated in
the following chart), or an output from the automatic drive positioned is not produced, an output malfunction is
sensed. Motor operation will be suspended automatically, and all automatic operations will be ineffective. (In
this case, the motor will not operate manually).

Function Description

Memory switch operation

The seat, steering wheel and door mirror move to the stored driving position
by pushing memory switch.

Entry / Exiting
function

Return operation

At entry, the seat and steering wheel return from the exiting position to the
previous driving position.

Turnout operation

At exit, the seat moves backward, and the steering wheel moves forward and
upward.

Auto operation stop conditions.

When the vehicle speed becomes 7 km/h (4 MPH) or higher.

When the manual switch is operated.

When any two or more switches among the setting switch, memory switch 1, or 2 are
pressed simultaneously.

When the tilt sensor or telescoping sensor malfunction is detected.

When the A/T selector lever is shifted to a position other than P-position.

OPERATED PORTION

T

Allowable measurement

Seat sliding

Approx. 2.5 sec.

Within 6 mm (0.24 in).

Seat reclining

Same as above

Change angel within 2.22

°

Steering wheel

Same as above

Change angel within 1

°

SE-14

AUTOMATIC DRIVE POSITIONER

CANCEL OF FAIL-SAFE MODE

The mode is cancelled when the selector lever is shifted to P-position from any other position.

The mode can be cancelled with CONSULT–II.

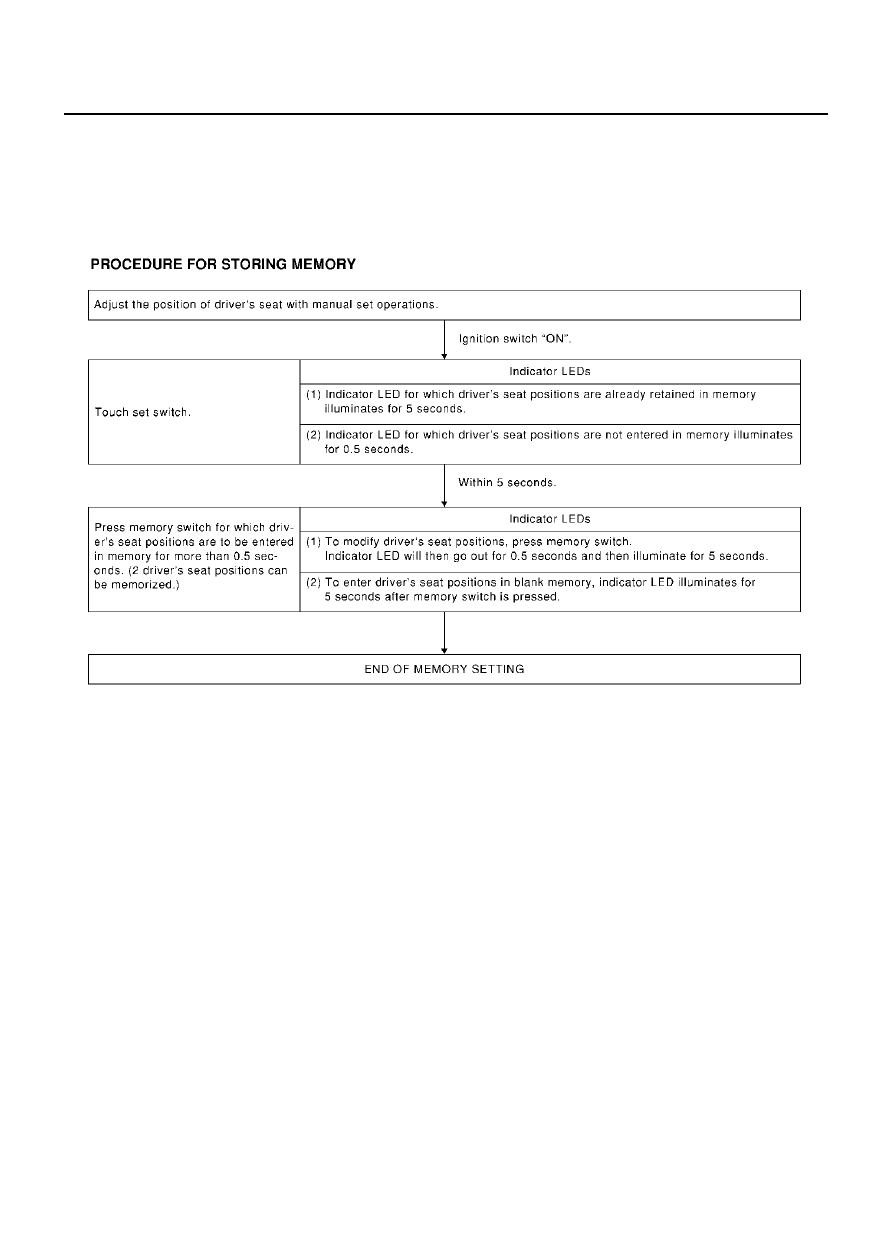

MEMORY STORING

Store the 2 driving positions and shifts to the stored driving position with the memory switch.

SEL592W
