SE-3

C

D

E

F

G

H

J

K

L

M

A

B

SE

Climate Controlled Relay Power Supply Circuit
Check ................................................................... 171
Driver Side Climate Controlled Seat Control Unit
Power Supply and Ground Circuit Inspection  ...... 172
Passenger Side Climate Controlled Seat Control
Unit Power Supply Circuit Inspection  ................... 174
Climate Controlled Seat “HEAT” Switch Circuit
Inspection ............................................................. 176
Climate Controlled Seat “COOL” Switch Circuit
Inspection ............................................................. 177
Climate Controlled Seat Temperature Dial Inspec-
tion ....................................................................... 178
Climate Controlled Seat Temperature Dial Circuit
Inspection ............................................................. 178
Climate Controlled Seat Switch Ground Circuit
Inspection ............................................................. 180
Seat Cushion Thermal Electric Device Circuit
Inspection ............................................................. 181
Seat Cushion Thermal Electric Device Sensor Cir-
cuit Inspection  ...................................................... 182
Seat Back Thermal Electric Device Circuit Inspec-
tion ....................................................................... 183
Seatback Thermal Electric Device Sensor Circuit
Inspection ............................................................. 184
Blower Motor Power Supply Circuit Inspection  .... 185
Blower Motor Speed Control Circuit Inspection  ... 186
Blower Motor Tachometer Signal Circuit Inspection

. 187

Climate Controlled Seat Control Unit Inspection  .. 187

FRONT SEAT  .......................................................... 188

Removal and Installation  ...................................... 188

DRIVER SIDE POWER SEAT ........................... 188
CLIMATE CONTROLLED SEAT  ....................... 190
PASSENGER SIDE POWER SEAT  .................. 192
REMOVAL ......................................................... 193
INSTALLATION ................................................. 194

Disassembly and Assembly .................................. 194

SEATBACK TRIM AND PAD  ............................. 194
REMOVAL OF SEATBACK ASSEMBLY  ........... 195
INSTALLATION OF SEATBACK ASSEMBLY  ... 195
SEAT CUSHION TRIM AND PAD  ..................... 195
CLIMATE CONTROLLED SEAT  ....................... 196

REAR SEAT  ............................................................ 197

Removal and Installation  ...................................... 197

MANUAL SEAT (BENCH SEAT)  ....................... 197
POWER SEAT (SPLIT CUSHION) .................... 198
CENTER SEATBACK ASSEMBLY .................... 199
REMOVAL OF MANUAL SEAT (BENCH SEAT)

. 200

INSTALLATION OF MANUAL SEAT (BENCH
SEAT) ................................................................ 200
REMOVAL OF POWER SEAT (SPLIT SEAT) ... 200
INSTALLATION OF POWER SEAT (SPLIT
SEAT) ................................................................ 201

Disassembly and Assembly .................................. 201

SLIDING MOTOR & UNIT  ................................. 201
CENTER SEATBACK ASSEMBLY .................... 202

SE-4

PRECAUTIONS

PRECAUTIONS

PFP:00001

Service Notice

EIS000OM

When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.

Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil or
damage them.

Apply sealing compound where necessary when installing parts.

When applying sealing compound, be careful that the sealing compound does not protrude from parts.

When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EIS0041B

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for work

EIS000E4

When removing or disassembling each component, be careful not to damage or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.

When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the compo-
nent with a shop cloth or vinyl tape to protect it.

Protect the removed parts with a shop cloth and keep them.

Replace a deformed or damaged clip.

If a part is specified as a non-reusable part, always replace it with new one.

Be sure to tighten bolts and nuts securely to the specified torque.

After re-installation is completed, be sure to check that each part works normally.

Follow the steps below to clean components.

Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the
fouled area.
Then rub with a soft and dry cloth.

Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe
the fouled area.
Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub
with a soft and dry cloth.

Do not use organic solvent such as thinner, benzene, alcohol, and gasoline.

For genuine leather seats, use a genuine leather seat cleaner.

PRECAUTIONS

SE-5

C

D

E

F

G

H

J

K

L

M

A

B

SE

Trouble diagnosis precaution

EIS000E5

When carrying out the IVMS control unit input/output signal inspection, be sure to connect the checking
adapter III (special service tool) to prevent incorrect diagnosis.

With the battery connected, if each local control unit (LCU) connector is left disconnected for at least 1
minute, the IVMS control unit stores a communication inactive failure. After reconnecting the connector,
any of the following steps shall be done. "Disconnect the IVMS control unit battery power supply" or
"Using CONSULT-II, execute Erase memory".

SE-6

PREPARATION

PREPARATION

PFP:00002

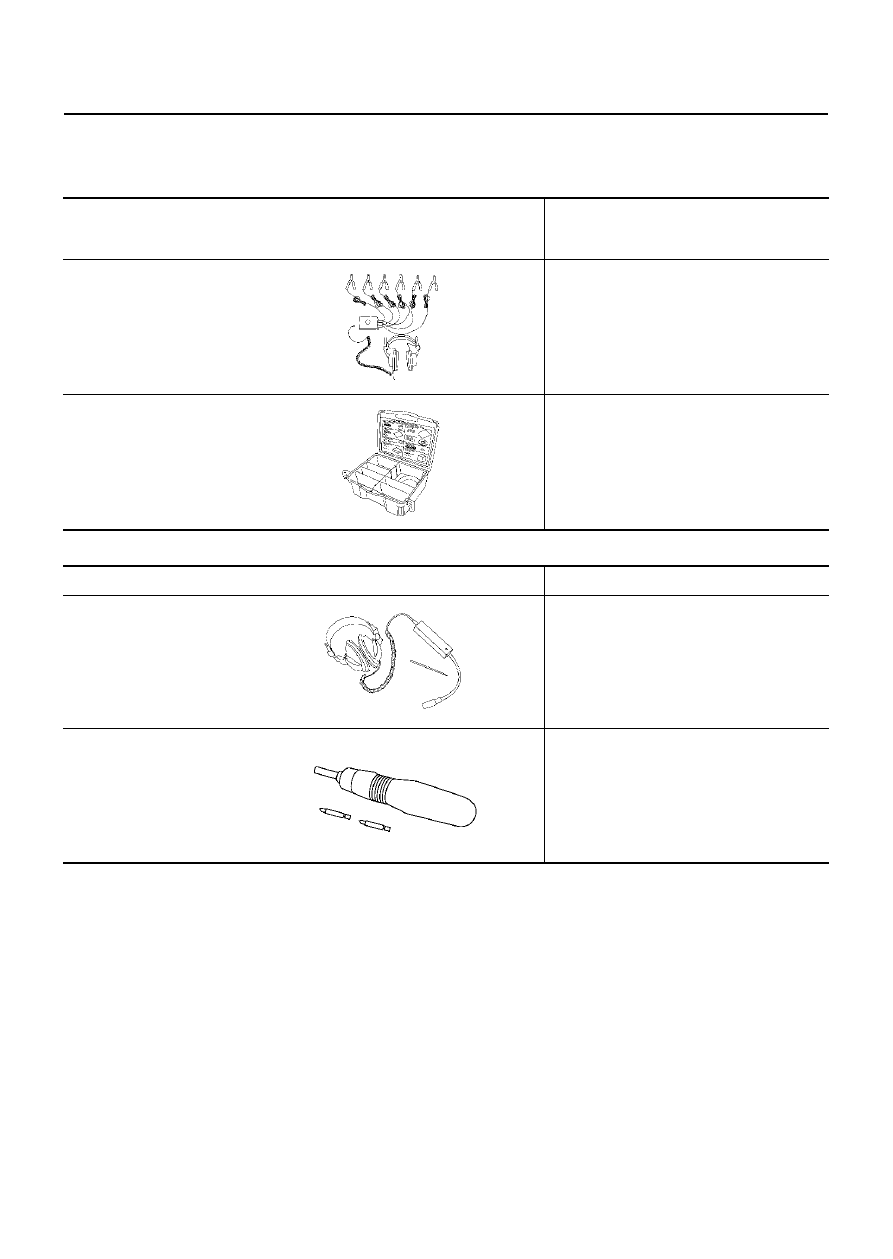

Special Service Tools

EIS000ZQ

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

EIS000ZR

Tool number
(Kent-Moore No.)
Tool name

Description

(J39570)
Chassis ear

Locating the noise

(J43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Locating the noise

Power tool

SIIA0995E

PBIC0191E
