SUNROOF

RF-21

C

D

E

F

G

H

J

K

L

M

A

B

RF

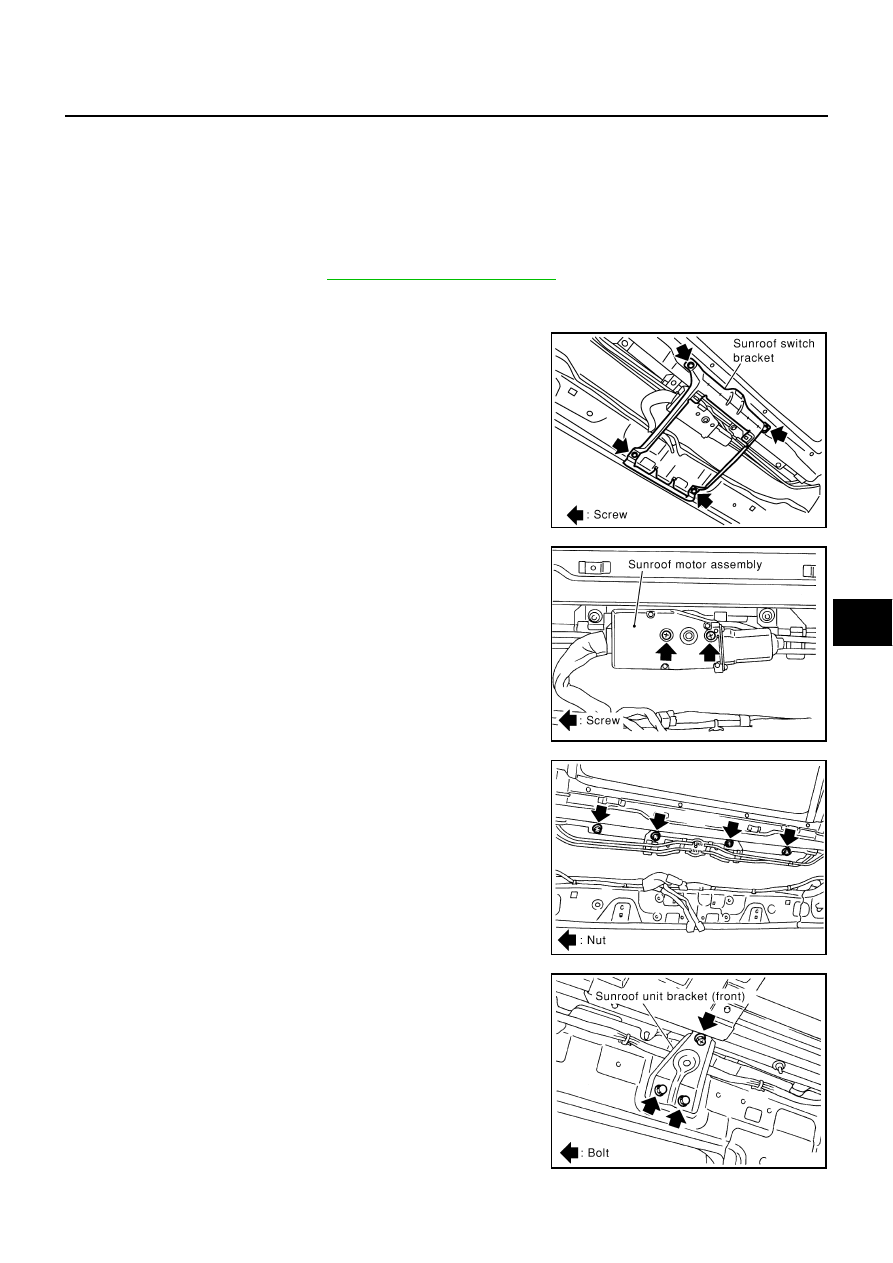

SUNROOF UNIT
Removal

CAUTION:

●

Always work with a helper.

●

When taking sunroof unit out, use clothes to protect the seats and trim from damage.

●

After installing the sunroof unit and glass lid, be sure to carry out the leak test and check that
there is no malfunction.

1.

Remove the headlining. Refer to

EI-49, "Removal and Installation"

 .

2.

Disconnect drain hoses.

3.

Remove glass lid.

4.

Remove screws, then remove the sunroof switch bracket.

5.

Remove motor mounting screws. Disconnect connector from
sunroof motor and then remove sunroof motor.

CAUTION:

●

Before removing sunroof motor, make sure that sunroof
lid is fully closed.

●

After removing sunroof motor, do not attempt to rotate
sunroof motor as a single unit.

6.

Remove nuts from the front end and side rail.

7.

Remove front sunroof bracket bolts.

8.

Remove rear sunroof bracket bolts, then remove sunroof unit
from roof panel.

SIIA0275E

SIIA0274E

SIIA0273E

SIIA0272E

RF-22

SUNROOF

9.

Remove sunroof unit through the passenger compartment while being careful not to damage the seats
and trim.

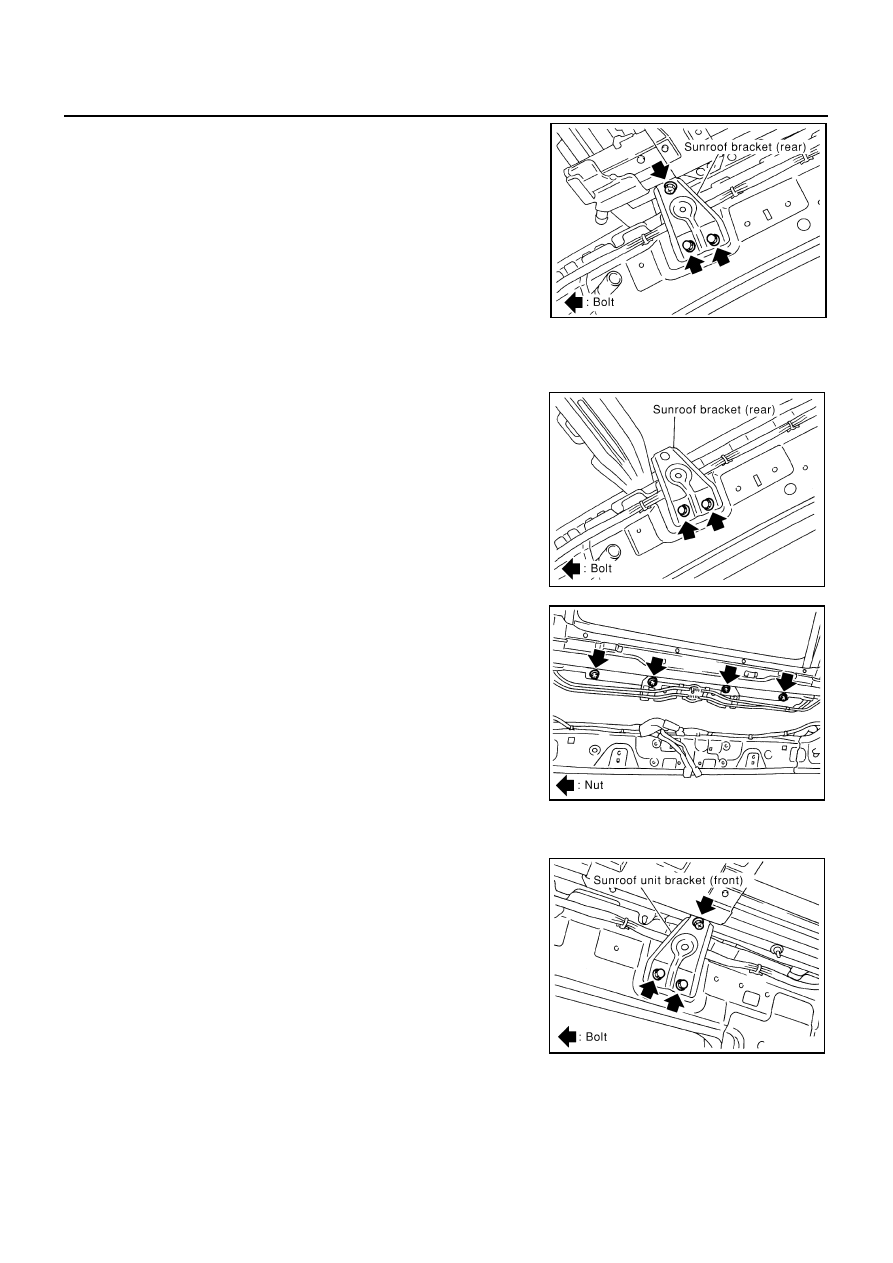

Installation

1.

Temporarily tighten the mounting bolts to the rear sunroof brack-
ets (RH/LH).

2.

Bring sunroof unit into passenger compartment and then place
the rear end of the rail onto the rear sunroof brackets.

3.

Temporarily tighten the mounting nuts to the front end of sunroof
unit.

4.

Tighten the installation points diagonally excluding the installation point of the sunroof bracket around the
roof opening.

5.

Tighten the front sunroof bracket bolts of the vehicle side, and
then tighten the bolt of the rail side.

6.

Tighten the rear sunroof bracket bolts of the vehicle side, and
then tighten the bolt of the rail side.

SIIA0271E

SIIA0270E

SIIA0269E

SIIA0272E

SUNROOF

RF-23

C

D

E

F

G

H

J

K

L

M

A

B

RF

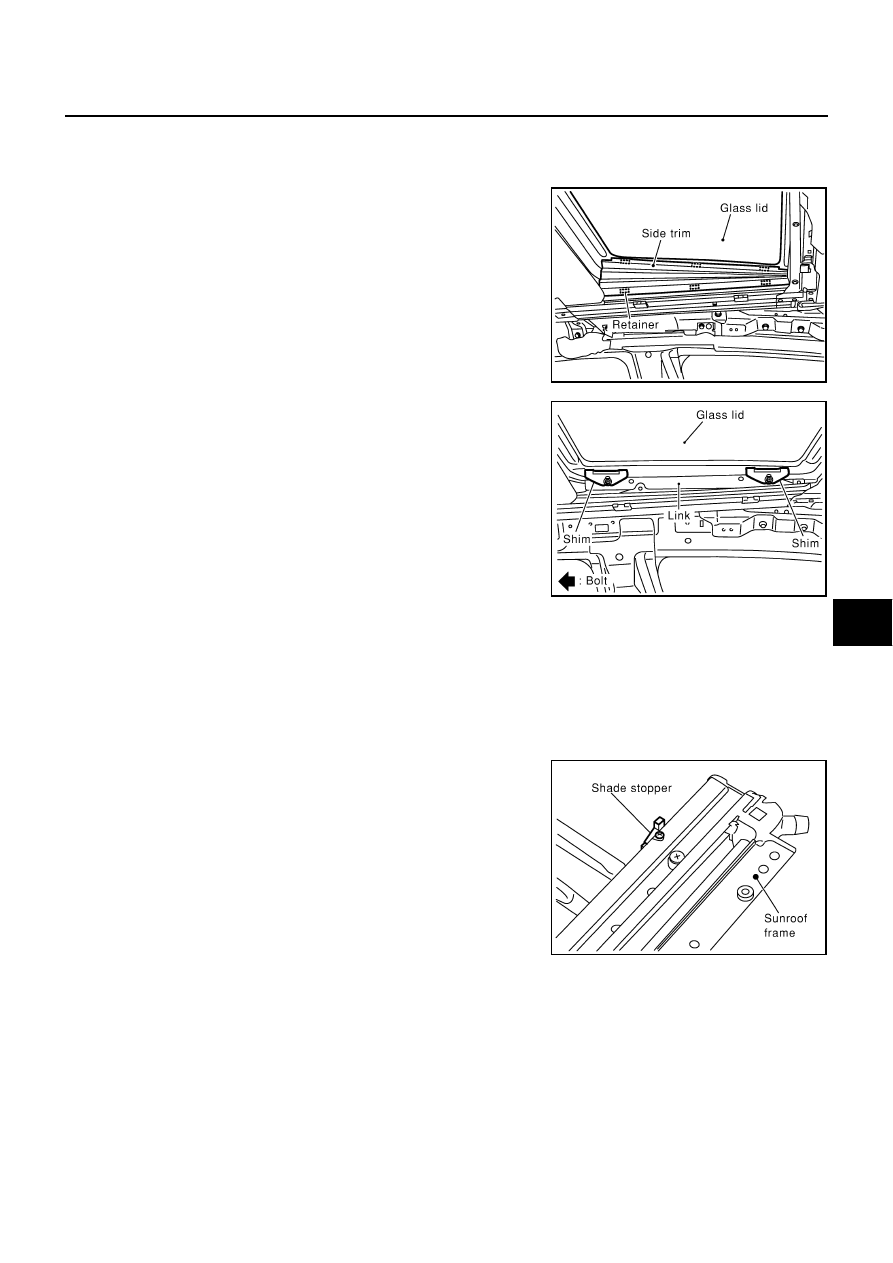

GLASS LID
Removal

1.

Tilt up glass lid.

2.

Pull the side trim inside of the retainer and then remove side
trim.

3.

Check the number of shims between glass lid and link.

4.

Remove mounting bolt and then remove glass lid.

Installation

1.

Tighten bolts diagonally on the glass lid.

2.

After installation, carry out fitting adjustment.

SUNSHADE
Removal and Installation

CAUTION:

Before removing or installing the sunshade, be sure to remove the sunroof unit from the vehicle.

1.

Remove sunshade stopper mounting screws from the rear end
of the sunroof frame and then remove sunshade stopper.

2.

Remove sunshade from the rear end of the sunroof frame.

3.

Install in the reverse order of removal.

WIND DEFLECTOR
Removal and Installation

1.

Remove deflector arm mounting screws.

SIIA0267E

SIIA0281E

SIIA0282E

RF-24

SUNROOF

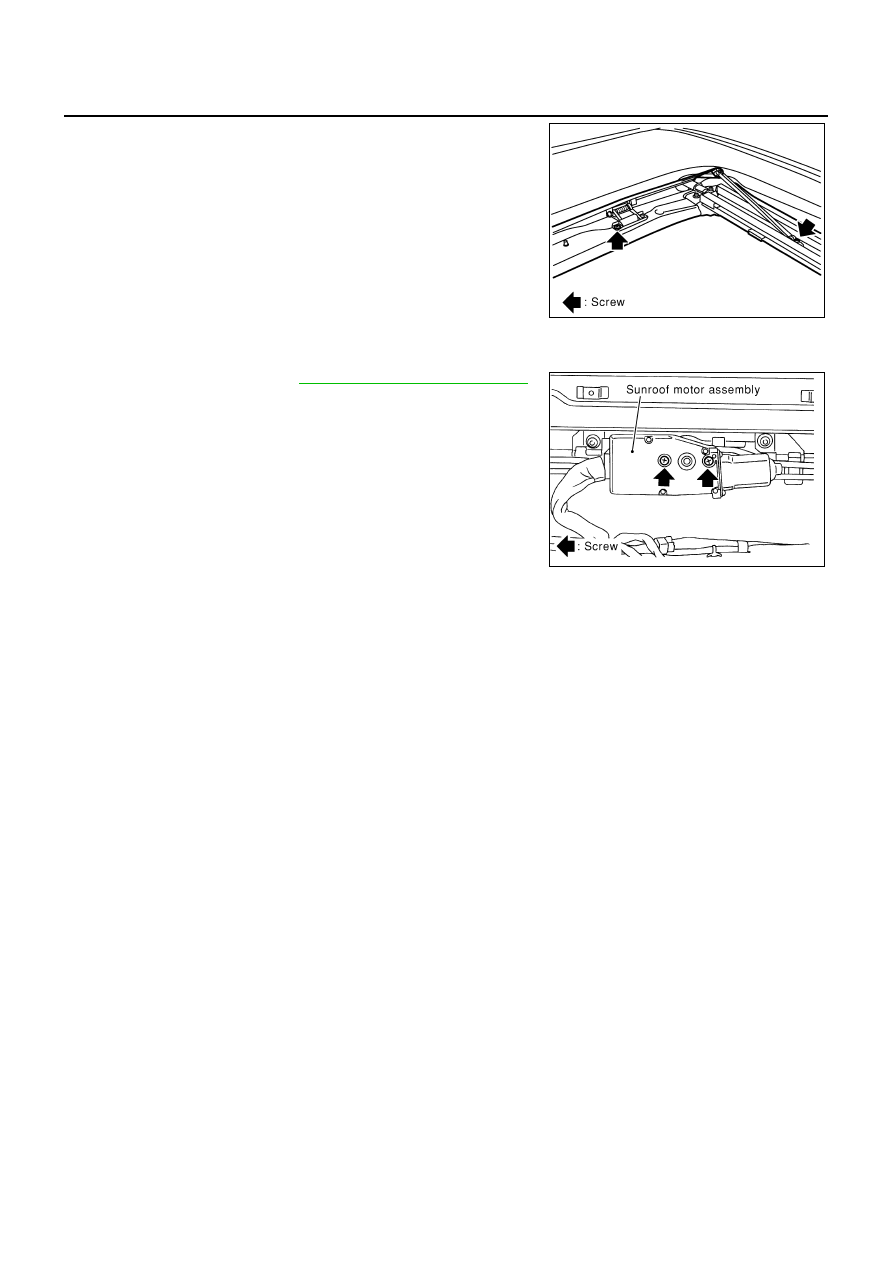

2.

Remove spring hinge screws and then remove hinge from the
sunroof frame.

3.

Install in the reverse order of removal.

SUNROOF MOTOR
Removal

1.

Remove headlining. Refer to

EI-49, "Removal and Installation"

2.

Remove sunroof motor mounting screw.

3.

Disconnect harness connector from sunroof motor and then
remove sunroof motor.

CAUTION:

●

When removing the sunroof motor, be sure that the sun-
roof is in the fully open position.

●

Do not run the removed sunroof motor as a single unit.

Installation

Move the sunroof motor laterally little by little so that the gear is completely engaged into the wire on the sun-
roof unit and the mounting surface becomes parallel. Then secure the sunroof motor with screws.

CAUTION:

Before installing the sunroof motor, be sure to place the link and wire assembly in the symmetrical
and fully closed position.

SIIA0283E

SIIA0274E
