POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

POWER SUPPLY ROUTING  ...................................... 2

Schematic ................................................................ 2
Wiring Diagram — POWER — ................................. 3

BATTERY POWER SUPPLY— IGNITION SW. IN
ANY POSITION ..................................................... 3
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” ......................................... 7
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START”  .................................... 9

GROUND .................................................................. 13

Ground Distribution  ................................................ 13

MAIN HARNESS ................................................. 13
ENGINE ROOM HARNESS ................................ 16
ENGINE HARNESS  ............................................ 19
ENGINE CONTROL HARNESS  ......................... 20
BODY HARNESS ................................................ 22
BODY NO.2 HARNESS  ...................................... 24

HARNESS ................................................................. 27

Harness Layout  ...................................................... 27

HOW TO READ HARNESS LAYOUT  ................. 27
OUTLINE ............................................................. 28
MAIN HARNESS ................................................. 29
ENGINE ROOM HARNESS ................................ 32
ENGINE HARNESS  ............................................ 35
ENGINE CONTROL HARNESS  ......................... 36
BODY HARNESS AND REAR CONTROL HAR-
NESS .................................................................. 38
BODY NO. 2 HARNESS  ..................................... 40
ROOM LAMP HARNESS .................................... 42
FRONT DOOR HARNESS .................................. 43
REAR DOOR HARNESS  .................................... 44

Wiring Diagram Codes (Cell Codes)  ...................... 45

ELECTRICAL UNITS LOCATION  ............................ 49

Electrical Units Location  ......................................... 49

ENGINE COMPARTMENT  .................................. 50
PASSENGER COMPARTMENT  ......................... 51
LUGGAGE COMPARTMENT  .............................. 54

Fuse ........................................................................ 55
Fusible Link  ............................................................ 55
Circuit Breaker ........................................................ 55

HARNESS CONNECTOR  ......................................... 56

Description .............................................................. 56

HARNESS CONNECTOR (TAB-LOCKING
TYPE) .................................................................. 56
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 57

JOINT CONNECTOR (J/C)  ....................................... 58

Terminal Arrangement  ............................................ 58

ELECTRICAL UNITS  ................................................ 59

Terminal Arrangement  ............................................ 59

SMJ (SUPER MULTIPLE JUNCTION)  ..................... 61

Terminal Arrangement  ............................................ 61

STANDARDIZED RELAY .......................................... 64

Description .............................................................. 64

NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ........................................ 64
TYPE OF STANDARDIZED RELAYS  ................. 64

FUSE BLOCK - JUNCTION BOX (J/B) NO.1  .......... 66

Terminal Arrangement  ............................................ 66

FUSE BLOCK - JUNCTION BOX (J/B) NO.2  .......... 67

Terminal Arrangement  ............................................ 67

FUSE, FUSIBLE LINK AND RELAY BLOCK (J/B) ... 68

Terminal Arrangement  ............................................ 68

FUSE, FUSIBLE LINK AND RELAY BOX ................ 69

Terminal Arrangement  ............................................ 69

PG-2

POWER SUPPLY ROUTING

POWER SUPPLY ROUTING

PFP:00011

Schematic

EKS000DP

TKWM0741E

POWER SUPPLY ROUTING

PG-3

C

D

E

F

G

H

I

J

L

M

A

B

PG

Wiring Diagram — POWER —

EKS000DQ

BATTERY POWER SUPPLY— IGNITION SW. IN ANY POSITION

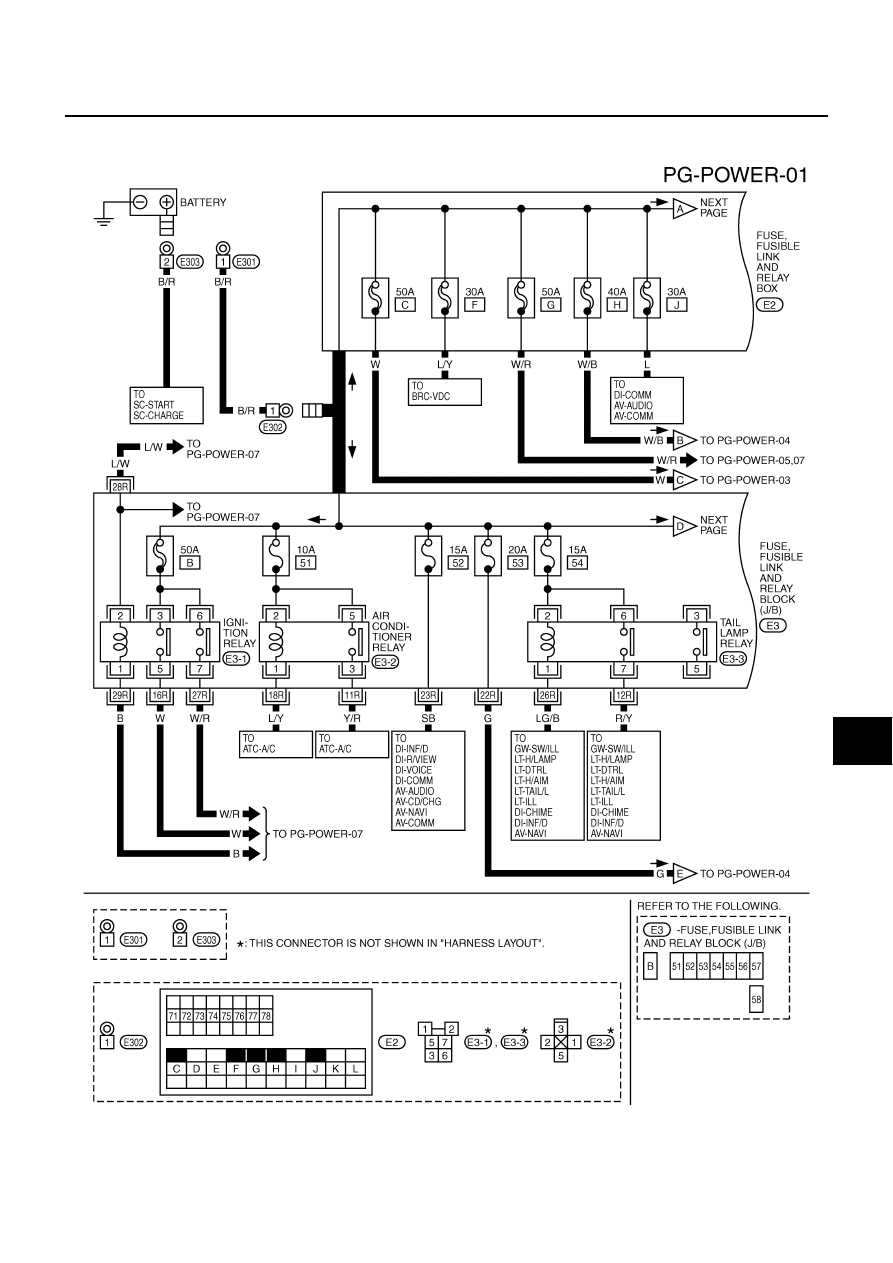

TKWM0355E

PG-4

POWER SUPPLY ROUTING

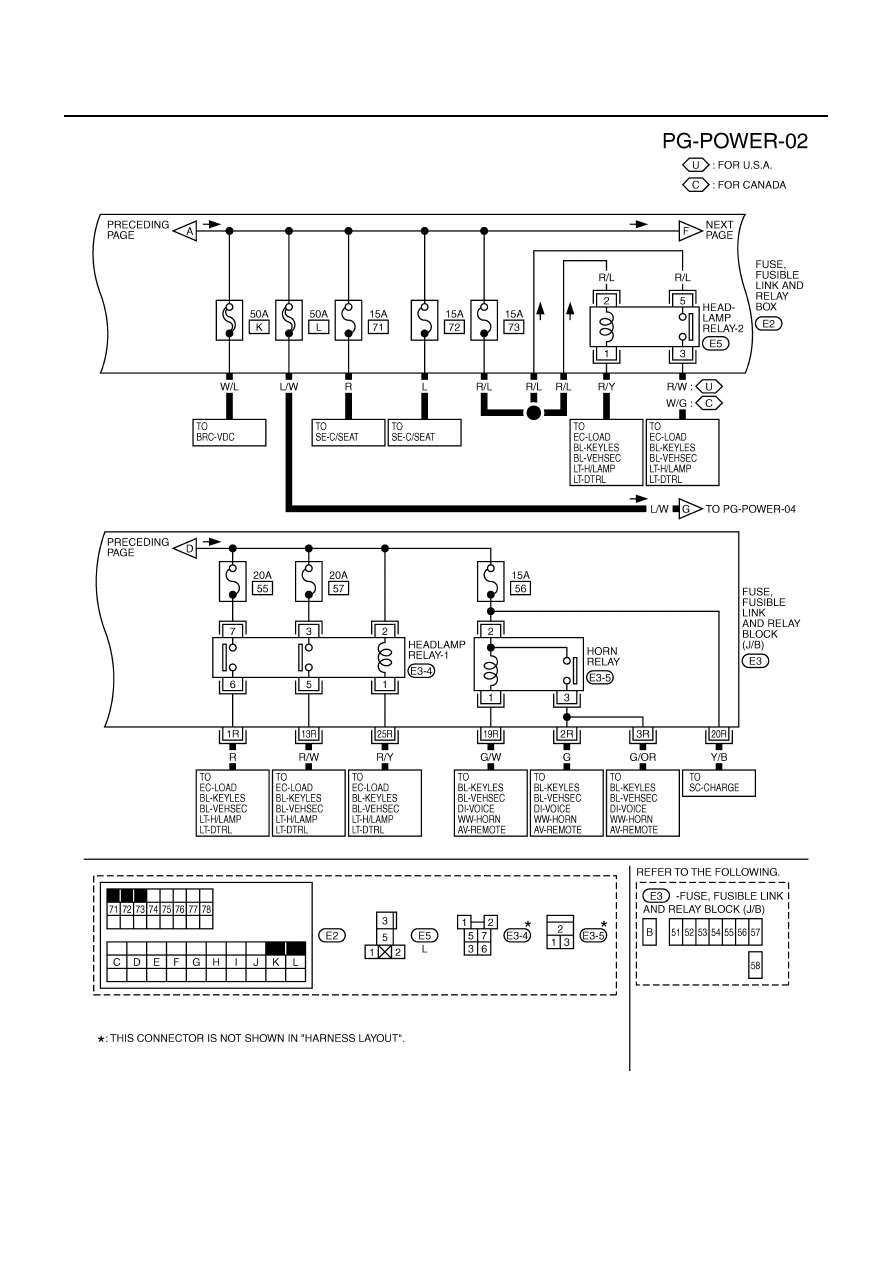

TKWM0356E
