VANITY MIRROR AND TRUNK ROOM LAMPS

LT-147

C

D

E

F

G

H

I

J

L

M

A

B

LT

VANITY MIRROR AND TRUNK ROOM LAMPS

PFP:26470

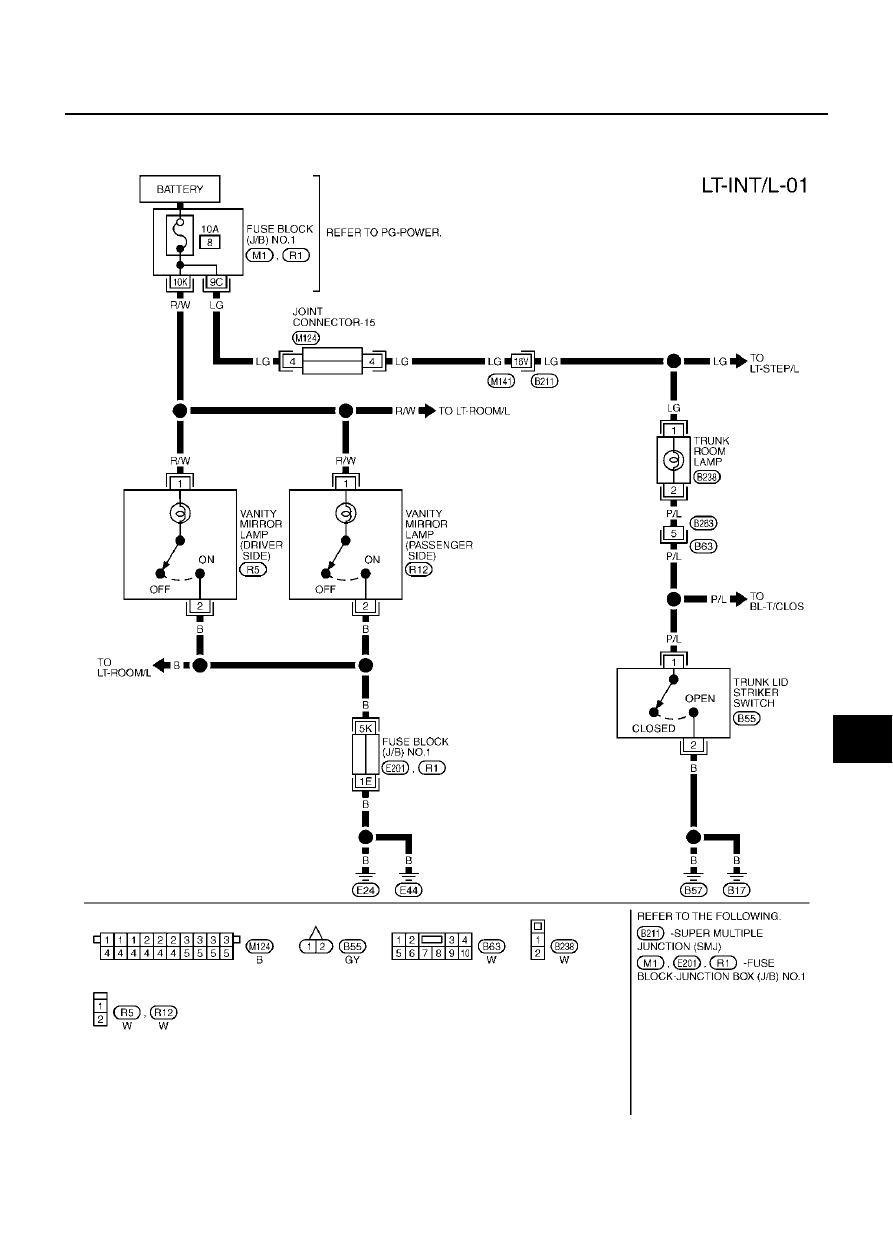

Wiring Diagram — INT/L —

EKS000UC

TKWM0347E

LT-148

VANITY MIRROR AND TRUNK ROOM LAMPS

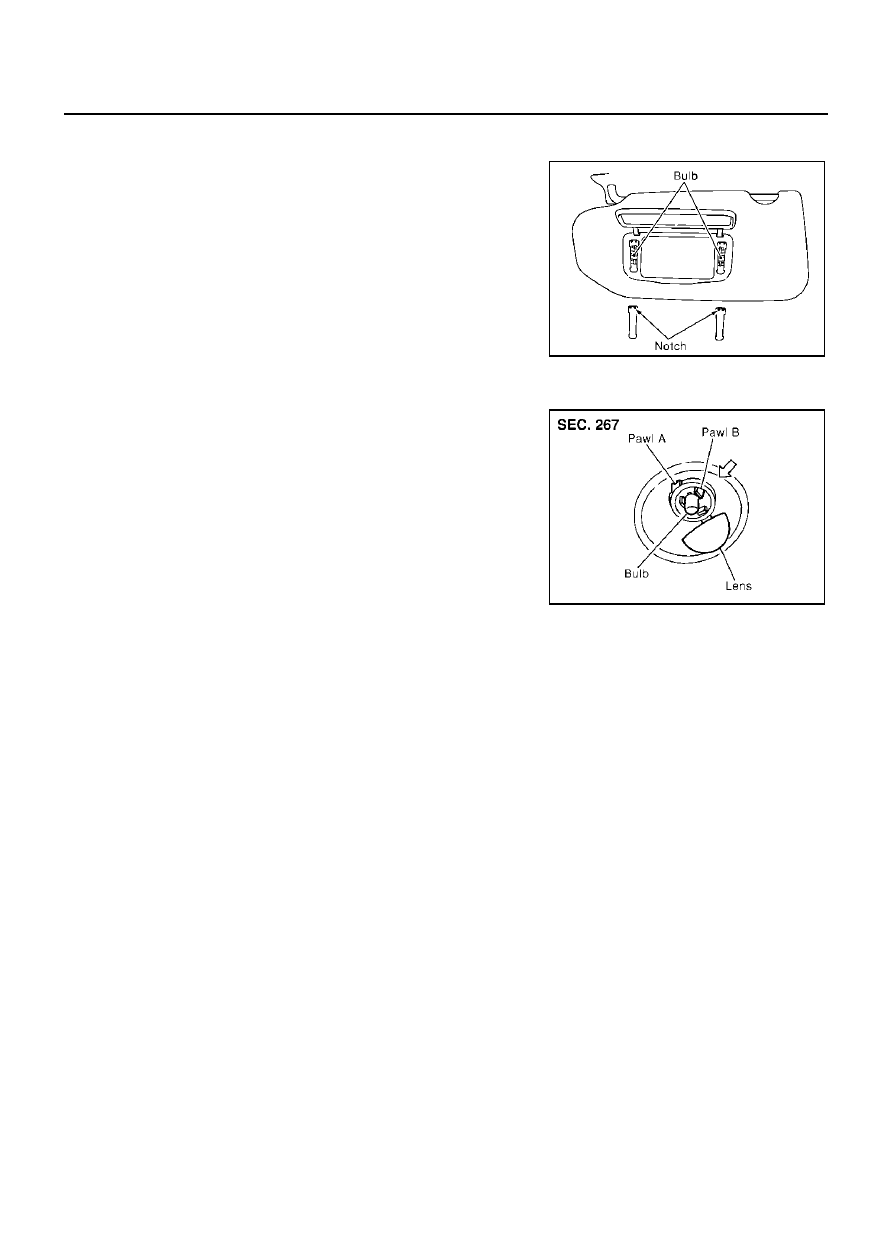

Bulb Replacement

EKS000UD

VANITY MIRROR LAMP

1.

Insert a thin screwdriver in the notch and remove the lens.

2.

Remove the bulb.

TRUNK ROOM LAMP

1.

Unfold pawl A and remove the lens.

2.

Remove the bulb.

3.

Remove the trunk room lamp while pressing pawl B in the direc-
tion of the arrow.

4.

Disconnect the trunk room lamp connector.

Vanity mirror lamp

: 12V 1.4W

PKIA0188E

Trunk room lamp

: 12V 3.4W

PKIA0182E

BULB SPECIFICATIONS

LT-149

C

D

E

F

G

H

I

J

L

M

A

B

LT

BULB SPECIFICATIONS

PFP:26297

Headlamp

EKS0018Q

Exterior Lamp

EKS0018R

Interior Lamp/Illumination

EKS0018S

Item

Wattage (W)

Low

35 (D2S)

High

55W (H1)

Item

Wattage (W)

Front combination lamp

Turn signal lamp

27(amber)

Parking lamp (Clearance lamp)

5

Side marker lamp

5

Rear combination lamp

Stop/Tail lamp

21/5

Turn signal lamp

21

Back-up lamp

18

Door mirror lamp

8

License plate lamp

5

High-mounted stop lamp

18

Item

Wattage (W)

Map lamp (Front personal light)

8

Console lamp (Console light)

1.4

Personal lamp (Rear personal light)

8

Step lamp

2.7

Vanity mirror lamp

1.4

Trunk room lamp

3.4

LT-150

BULB SPECIFICATIONS
