Infiniti F50. Manual - part 642





HEADLAMP (FOR USA)

LT-35

C

D

E

F

G

H

I

J

L

M

A

B

LT

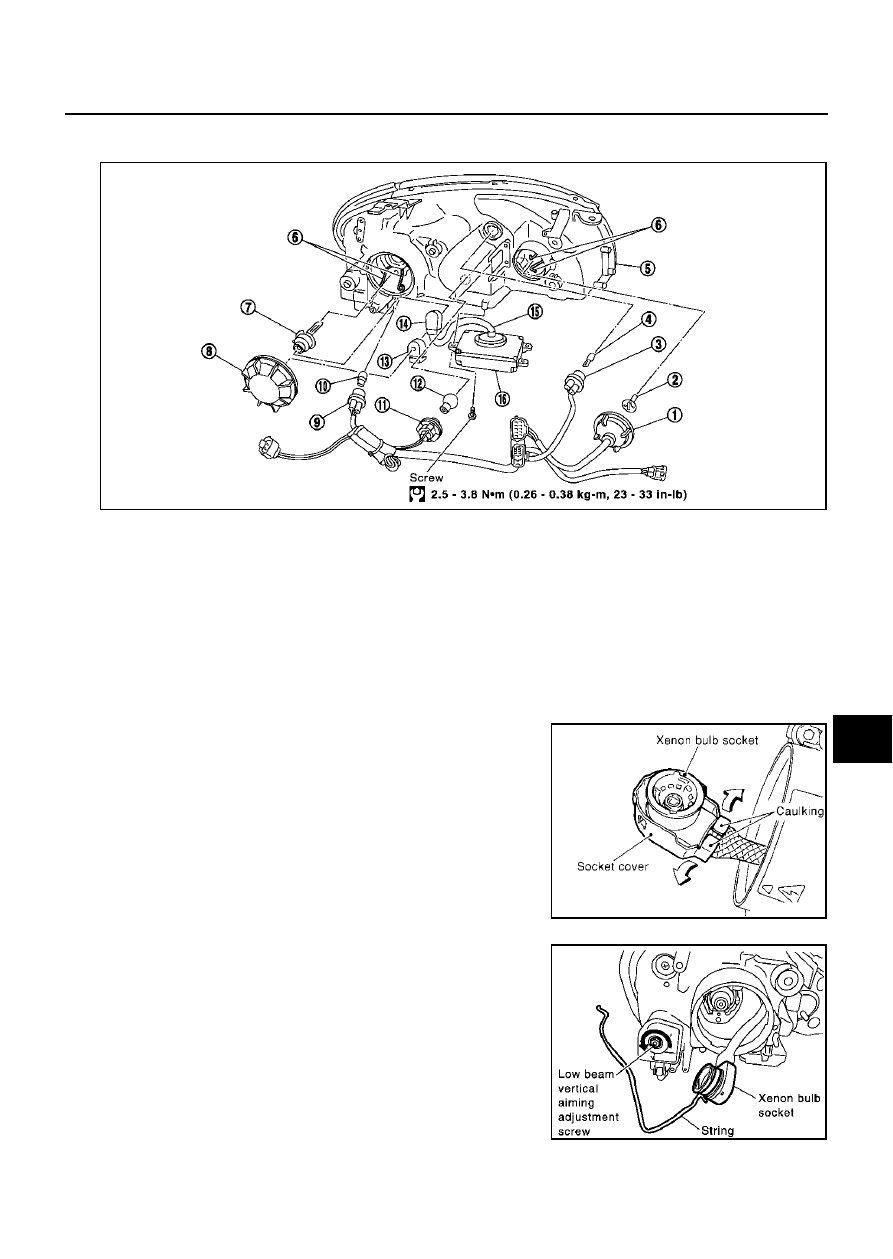

Disassembly and Assembly

EKS001HL

DISASSEMBLY

1.

Turn the plastic cap (low) counterclockwise and unlock it.

2.

Turn the xenon bulb socket counterclockwise and unlock it.

3.

Unlock the retaining spring and remove the xenon bulb (low).

4.

Expand calking of socket cover, and then remove socket cover
from the xenon valve socket.

5.

Disconnect the H.I.D control unit connector and remove the
H.I.D control unit mounting screws.

6.

Turn the dipped beam vertical aiming adjustment screw counter-
clockwise to secure space in the headlamp for the xenon bulb
socket to pass through. Tie a cord to the bulb socket to facilitate
removal and insertion.

1.

Plastic cap (high)

2.

Halogen bulb

3.

Parking lamp (Clearance lamp) bulb
socket

4.

Parking lamp (Clearance lamp) bulb

5.

Xenon headlamp assembly

6.

Retaining springs

7.

Xenon bulb

8.

Plastic cap (low)

9.

Front side marker lamp bulb socket

10. Front side marker lamp bulb

11. Front turn signal lamp bulb socket

12. Front turn signal lamp bulb

13. Socket cover

14. Xenon bulb socket

15. Mesh cord

16. H.I.D control unit

PKIA0174E

PKIA0088E

PKIA0085E

LT-36

HEADLAMP (FOR USA)

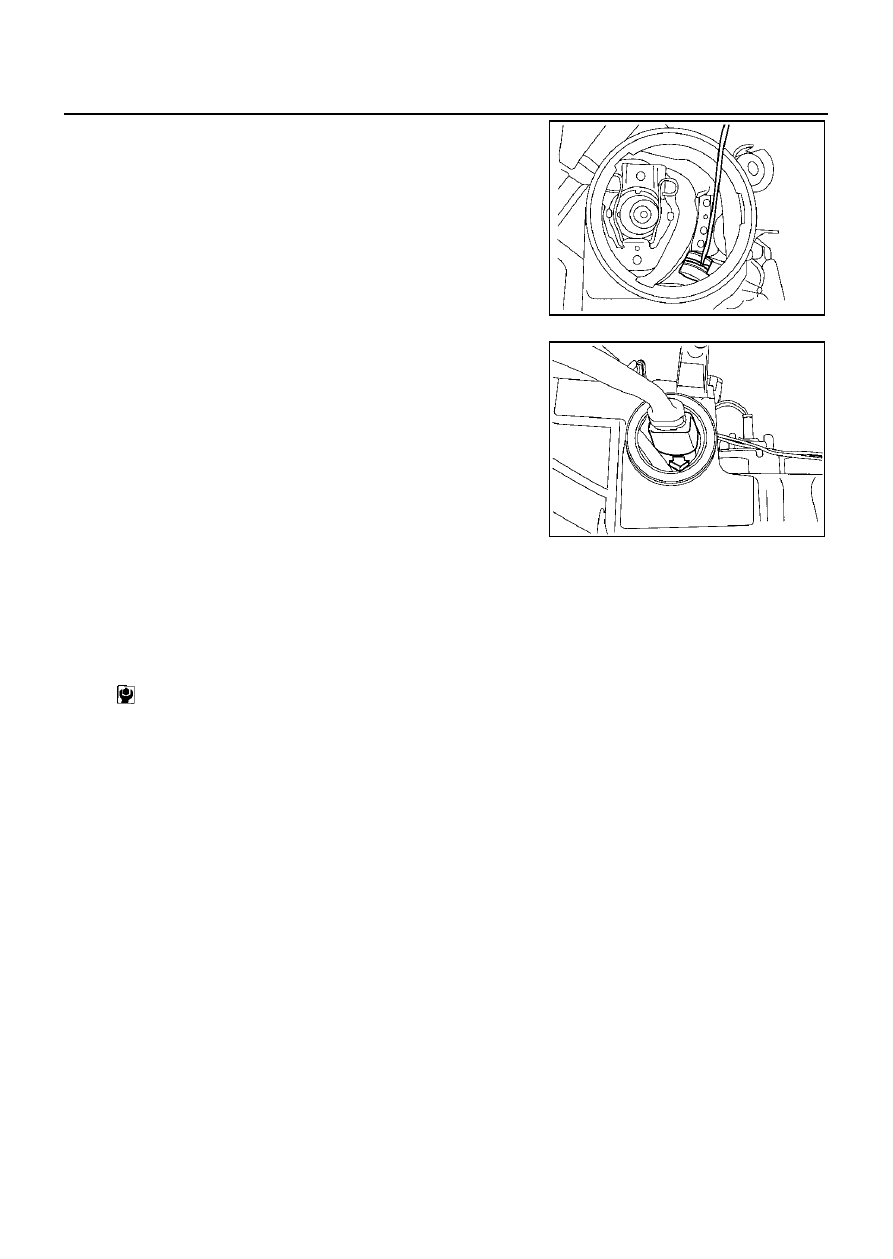

7.

Face the xenon bulb socket as shown in the figure, and pull it
while maintaining its direction by turning the mesh cord from the
H.I.D control unit side.

8.

Face the xenon bulb socket as shown in the figure, and pull it up
in the direction of arrow using the mesh cord.

9.

Turn the plastic cap (high) counterclockwise and unlock it.

10. Disconnect the terminal connected to the halogen bulb.

11. Unlock the retaining spring and remove the halogen bulb (high).

12. Turn the parking lamp (clearance lamp) bulb socket counter-

clockwise and unlock it.

13. Remove the parking lamp (clearance lamp) bulb from its socket.

14. Turn the front side marker lamp bulb socket counterclockwise

and unlock it.

15. Remove the front side marker lamp bulb from its socket.

16. Turn the front turn signal lamp bulb socket counterclockwise and unlock it.

17. Remove the front turn signal lamp bulb from its socket.

ASSEMBLY

Assemble in the reverse order of disassembly, taking care of the following points.

CAUTION:

When the H.I.D control unit is removed, reinstall it securely and avoid any looseness.

After installing the bulb, be sure to install the plastic cap and the bulb socket securely to ensure
watertightness.

PKIA0086J

PKIA0087J

H.I.D control unit:

: 2.5 - 3.8 N·m (0.26 - 0.38 kg-m, 23 - 33 in-lb)

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -

LT-37

C

D

E

F

G

H

I

J

L

M

A

B

LT

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -

PFP:26010

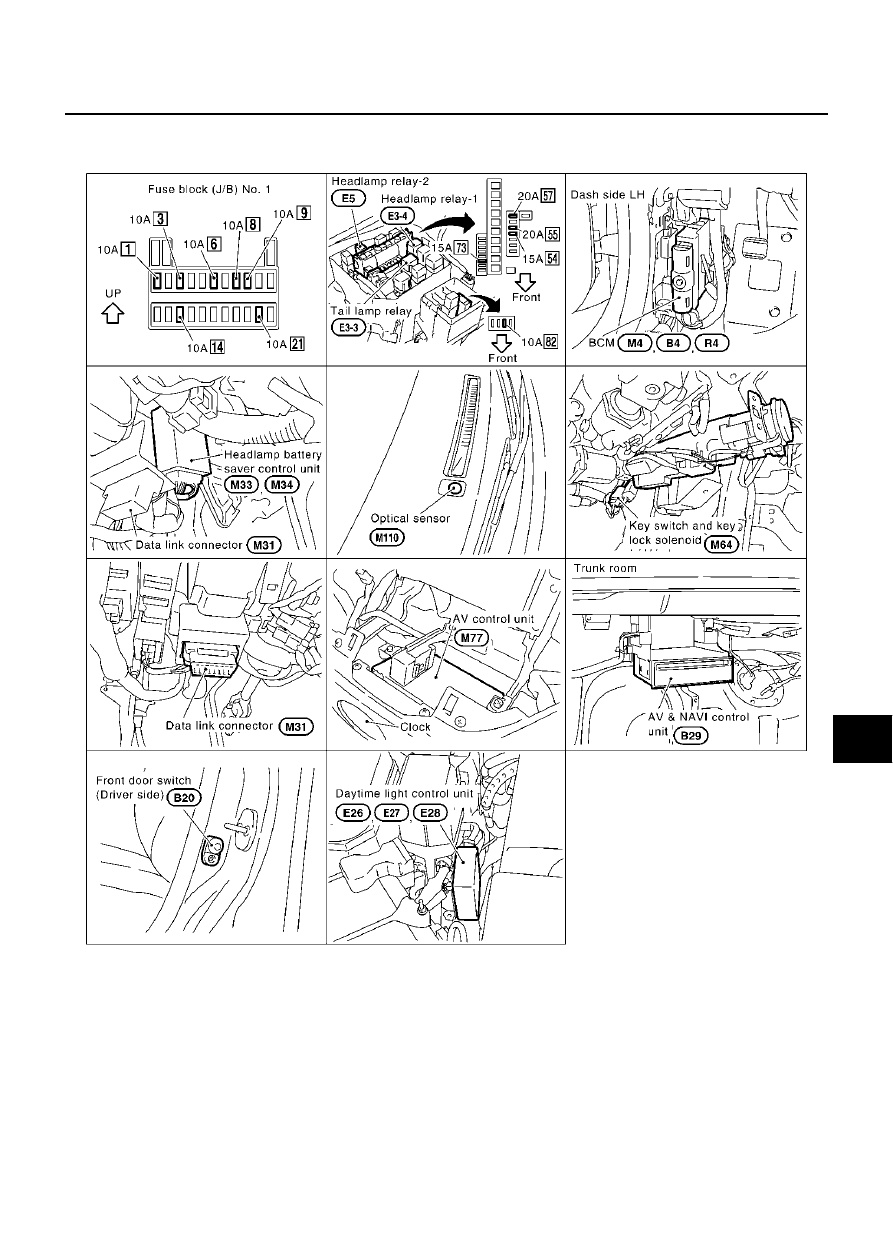

Component Parts and Harness Connector Location

EKS000SK

System Description

EKS000SL

The headlamp system for Canada vehicles is equipped with a daytime light control unit that activates the high
beam headlamps at approximately half illumination whenever the engine is running. If the parking brake is
applied before the engine is started the daytime lights will not be illuminated. The daytime lights will illuminate
once the parking brake is released. Thereafter, the daytime lights will continue to operate when the parking
brake is applied.
And battery saver system is controlled by the headlamp battery saver control unit and BCM.
Power is supplied at all times

to headlamp relay-1 terminal 3

through 20A fuse [No. 57, located in the fuse, fusible link and relay block (J/B)],

to headlamp relay-1 terminal 7

SKIA3835E

LT-38

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -

through 20A fuse [No. 55, located in the fuse, fusible link and relay block (J/B)],

to headlamp relay-2 terminals 2 and 5

through 15A fuse (No. 73, located in the fuse, fusible link and relay box), and

to tail lamp relay terminals 2 and 6

through 15A fuse [No. 54, located in the fuse, fusible link and relay block (J/B)]

to headlamp battery saver control unit terminal 7

through 10A fuse [No. 6, located in the fuse block (J/B) No. 1]

to BCM terminal 105

through 10A fuse [No. 3, located in the fuse block (J/B) No. 1]

Ground is supplied

to daytime light control unit terminal 16

through body grounds E62 and E42, and

to headlamp battery saver control unit terminals 4 and 11

through body grounds M25 and M115.

When the ignition switch is in the ON or START position, power is also supplied

to daytime light control unit terminal 3

through 10A fuse (No. 82, located in the fuse, fusible link and relay box),

to headlamp battery saver control unit terminal 1, and

to BCM terminal 68

through 10A fuse [No. 1, located in the fuse block (J/B) No. 1].

When the ignition switch is in the ACC or ON position, power is supplied

to BCM terminal 60

through 10A fuse [No. 21, located in the fuse block (J/B) No. 1].

When the ignition switch is in the START position, power is supplied

to daytime light control unit terminal 2

through 10A fuse [No. 14, located in the fuse block (J/B) No. 1].

HEADLAMP OPERATION
Power Supply to Low Beam and High Beam

When lighting switch is in 2ND or PASS position, ground is supplied

to headlamp relay-1 and 2 terminals 1

from headlamp battery saver control unit terminals 2 and 8

through headlamp battery saver control unit terminals 3 and 9

through lighting switch terminals 12 and 8

through body grounds M25 and M115.

Headlamp relays are energized and then power is supplied to headlamps.

Low Beam Operation

When the lighting switch is turned to 2ND position and placed in LOW positions, power is supplied

from terminals 5 and 6 of headlamp relay-1

to terminal 7 of each headlamp

Ground is supplied

to terminal 8 of each headlamp

through body grounds E42 (RH) and E62 (LH).

With power and ground supplied, the low beam headlamps illuminate.

High Beam Operation/Flash-to-pass Operation

When the lighting switch is turned to 2ND position and placed in HIGH position or PASS position, power is
supplied

through terminal 3 of headlamp relay-2

to terminals 4 and 5 of daytime light control unit and
