HEADLAMP (FOR USA)

LT-31

C

D

E

F

G

H

I

J

L

M

A

B

LT

Aiming Adjustment

EKS001HI

For details, refer to the regulations in your own country.
Before performing aiming adjustment, check the following.
1.

Keep all tires inflated to correct pressures.

2.

Place vehicle on flat surface.

3.

See that there is no-load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant, engine oil filled up to correct level and full fuel tank.

LOW BEAM AND HIGH BEAM

1.

Turn headlamp low beam on.

2.

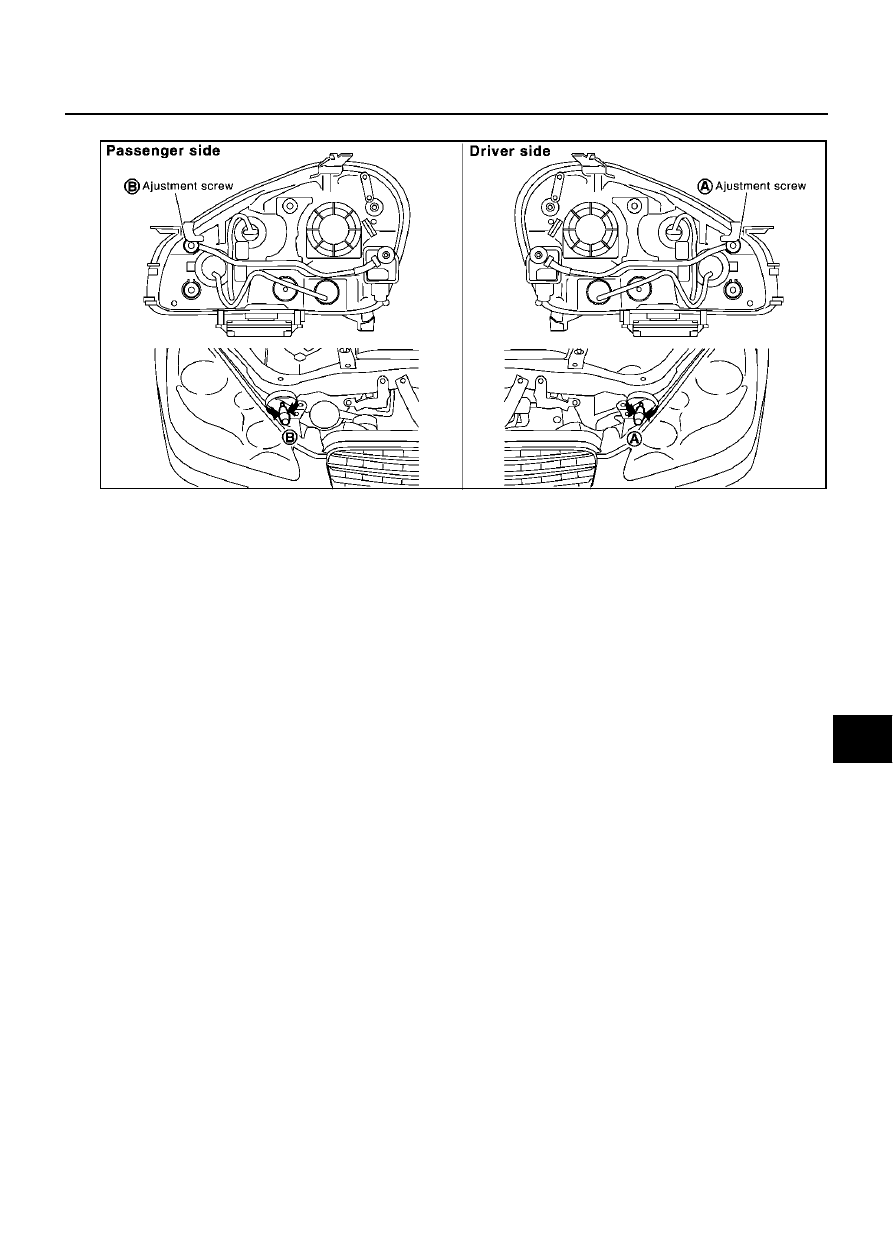

Use adjusting screws to perform aiming adjustment.

PKIA0051E

LT-32

HEADLAMP (FOR USA)

First tighten the adjusting screw all the way and then make adjustment by loosening the screw.

If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming.

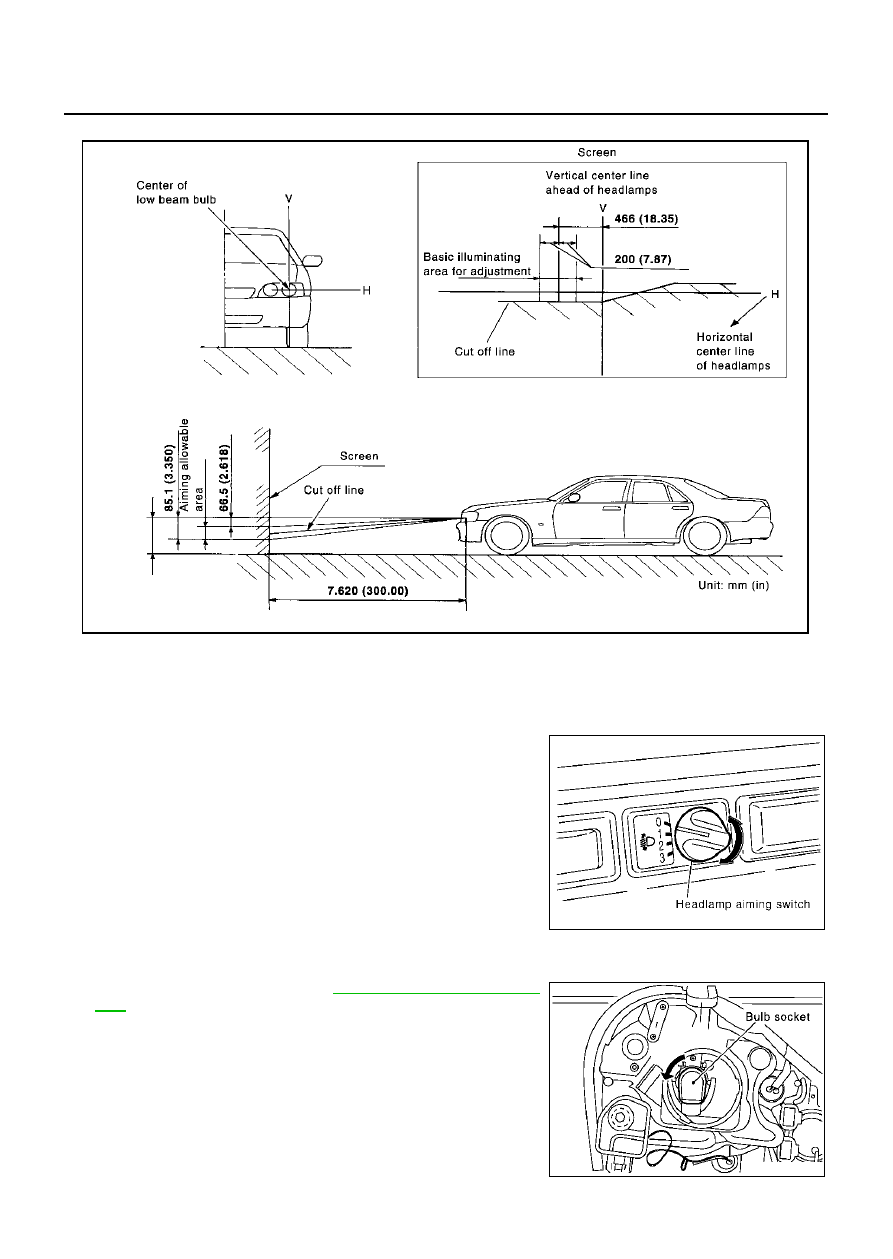

Use the aiming chart shown in the figure.

Basic illuminating area for adjustment should be within the range shown on the aiming chart.
Adjust headlamps accordingly.

CAUTION:

Be sure aiming switch is set to “0” when performing aiming
adjustment.

Bulb Replacement

EKS001HJ

HEADLAMP (OUTER SIDE), FOR LOW BEAM

1.

Remove the headlamps. Refer to

LT-34, "Removal and Installa-

tion"

 .

2.

Turn the plastic cap counterclockwise and unlock it.

3.

Disconnect the headlamp connector.

4.

Turn the bulb socket counterclockwise and unlock it.

5.

Unlock the retaining spring and remove the bulb from the head-
lamp.

SKIA0520E

SKIA0450E

PKIA0052E

HEADLAMP (FOR USA)

LT-33

C

D

E

F

G

H

I

J

L

M

A

B

LT

HEADLAMP (INNER SIDE), FOR HIGH BEAM

1.

Turn the lighting switch OFF.

2.

Disconnect the negative battery cable or remove the power fuse.

3.

Disconnect the headlamp connector.

4.

Remove the mass airflow sensor cover and the air cleaner (when replacing LH bulb). Refer to

EM-15,

"Removal and Installation"

  in “ENGINE MECHANICAL (EM)” section.

5.

Remove the battery cover and the battery (when replacing RH bulb). Refer to

SC-8, "Removal and Instal-

lation"

  in “STARTING AND CHARGING SYSTEM (SC)” section.

6.

Turn the plastic cap counterclockwise and unlock it.

7.

Disconnect the terminal connected to the bulb.

8.

Unlock the retaining spring and remove the bulb from the headlamp.

PARKING LAMP (CLEARANCE LAMP)

1.

Turn the lighting switch OFF.

2.

Disconnect the negative battery cable or remove the power fuse.

3.

Disconnect the headlamp connector.

4.

Remove the mass airflow sensor cover and the air cleaner (when replacing LH bulb). Refer to

EM-15,

"Removal and Installation"

  in “ENGINE MECHANICAL (EM)” section.

5.

Remove the battery cover and the battery (when replacing RH bulb). Refer to

SC-8, "Removal and Instal-

lation"

  in “STARTING AND CHARGING SYSTEM (SC)” section.

6.

Turn the bulb socket counterclockwise and unlock it.

7.

Remove the bulb from its socket.

FRONT TURN SIGNAL LAMP

1.

Turn the lighting switch OFF.

2.

Disconnect the negative battery cable or remove the power fuse.

3.

Disconnect the headlamp connector.

4.

Remove the mass airflow sensor cover and the air cleaner assembly (when replacing LH bulb). Refer to

EM-15, "Removal and Installation"

  in “ENGINE MECHANICAL (EM)” section.

5.

Remove the battery cover and the battery (when replacing RH bulb). Refer to

SC-8, "Removal and Instal-

lation"

  in “STARTING AND CHARGING SYSTEM (SC)” section.

6.

Turn the bulb socket counterclockwise and unlock it.

7.

Remove the bulb from its socket.

FRONT SIDE MARKER LAMP

1.

Turn the lighting switch OFF.

2.

Disconnect the negative battery cable or remove the power fuse.

3.

Disconnect the headlamp connector.

4.

Remove the engine undercover and fender protector.

5.

Remove the washer tank (when replacing LH bulb).

6.

Turn the bulb socket counterclockwise and unlock it.

7.

Remove the bulb from its socket.

CAUTION:

After installing the bulb, be sure to install the plastic cap and the bulb socket securely to ensure water-
tightness.

Headlamp (outer side), for low
beam

: 12V 35W (D2S)

Headlamp (inner side), for high
beam

: 12V 55W (H1)

Parking lamp (clearance lamp)

: 12V 5W

Front turn signal lamp

: 12V 27W (amber)

Front side marker lamp

: 12V 5W

LT-34

HEADLAMP (FOR USA)

Removal and Installation

EKS001HK

REMOVAL

1.

Remove the front grille. Refer to

EI-19, "FRONT GRILLE"

    in

“EXTERIOR & INTERIOR (EI)” section.

2.

Remove the filler cap on the washer tank and the front air guide.

3.

Remove the front undercover and the fender protector. Refer to

EI-21, "FENDER PROTECTOR"

  in “EXTERIOR & INTERIOR

(EI)” section.

4.

Remove mounting clip on top of the front bumper and mounting
bolts on the side of the front bumper. Refer to

EI-15, "FRONT

BUMPER"

  in “EXTERIOR & INTERIOR (EI)” section.

5.

Pull the side of the front bumper toward the front of the vehicle
and disengage it from clips on the body.

6.

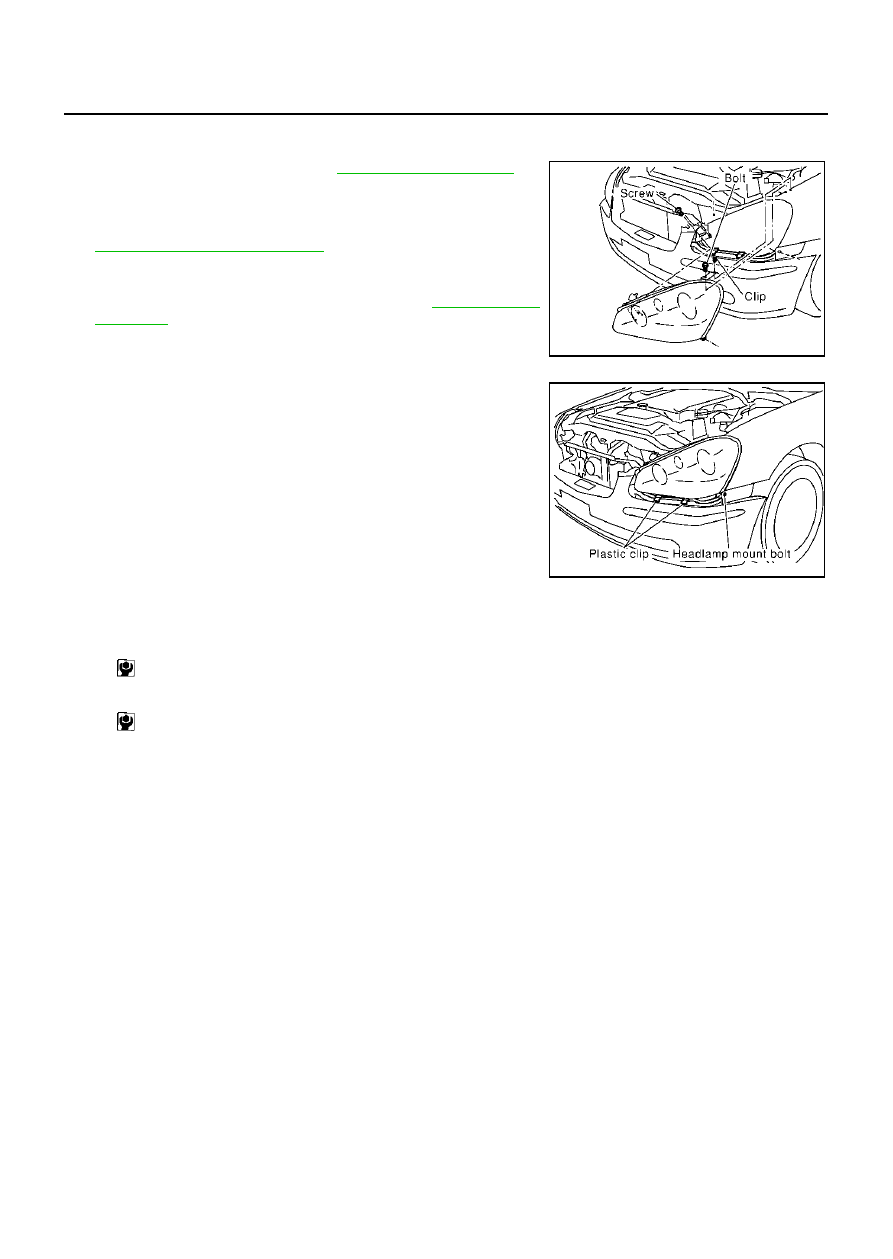

Remove the headlamp mounting bolts and clip.

7.

Remove the headlamp mounting screws inside the headlamp.

8.

Pull the headlamp toward the front of the vehicle, disconnect the
connector, and remove from the vehicle.

CAUTION:

 When removing the headlamp, place a rag between the head-
lamp and the bumper to protect the bumper.

INSTALLATION

Install in the reverse order of removal, taking care of the following points.

PKIA0053E

PKIA0054E

Headlamp mounting bolt:

: 4.4 - 6.5 N·m (0.45 - 0.66 kg-m, 39 - 57 in-lb)

Headlamp mounting screw:

: 4.4 - 6.5 N·m (0.45 - 0.66 kg-m, 39 - 57 in-lb)
