CAN SYSTEM (FOR ICC MODELS)
LAN-45
[CAN]
C
D
E
F
G
H
I
J
L
M
A
B
LAN
Work Flow
EKS003M0
1.
Print all the data of “SELF-DIAG RESULTS” and “DATA MONITOR” for “ENGINE”, “VDC”, “ICC” and “A/T”
displayed on CONSULT-II. Refer to the following:
●
EC-141, "DTC U1000, U1001 CAN COMMUNICATION LINE"
for “ENGINE”
●
for “VDC”
●
ACS-70, "DTC 20 CAN COMM CIRCUIT"
for “ICC”
●
AT-99, "DTC U1000 CAN COMMUNICATION LINE"
for “A/T”
2.

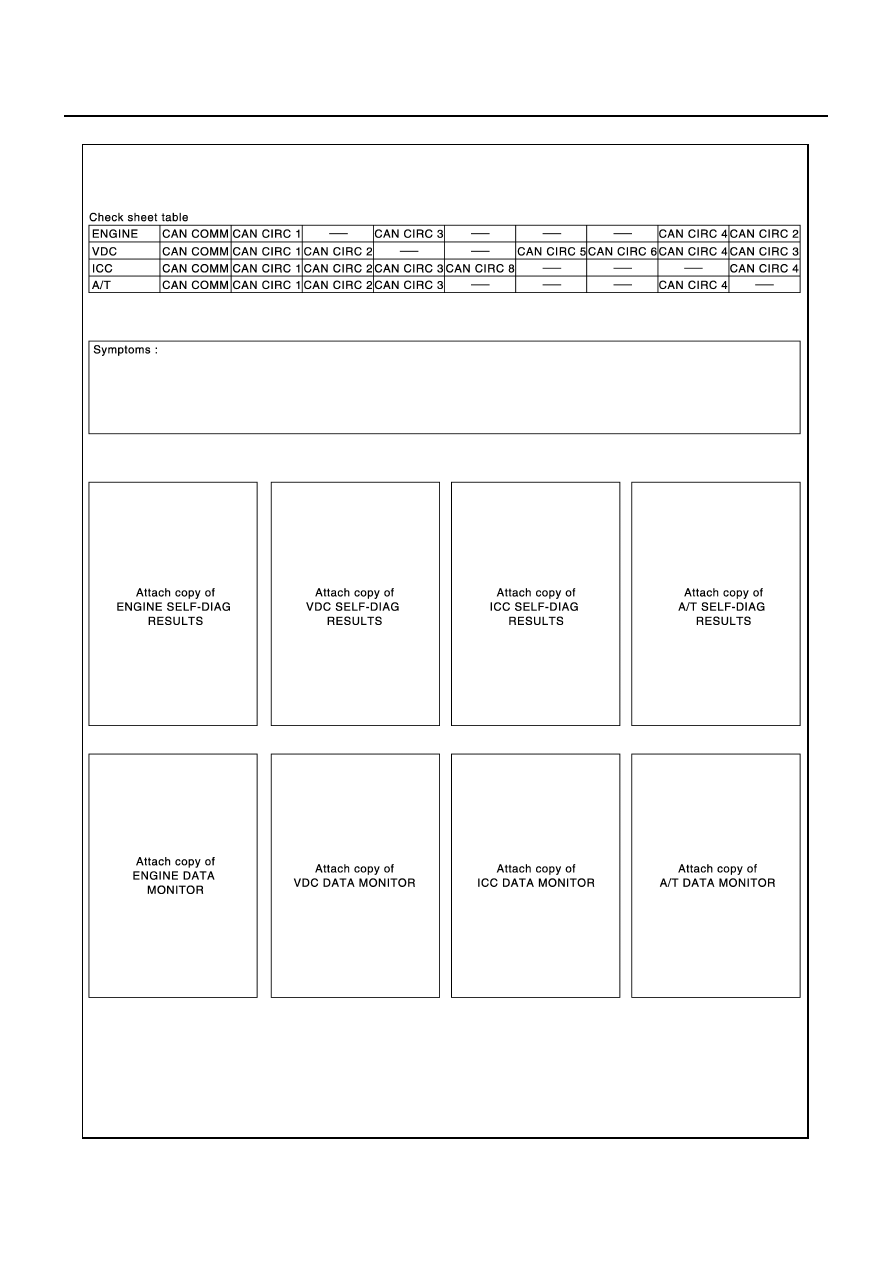

Attach the printed sheet of “SELF-DIAG RESULTS” and “DATA MONITOR” onto the check sheet. Refer to
3.
Based on the data monitor results, put “v” marks onto the items with “UNKWN” or “NG” in the check sheet
table. Refer to
.
NOTE:
If “NG” is displayed on “CAN COMM” for the diagnosed control unit, replace the control unit.
4.

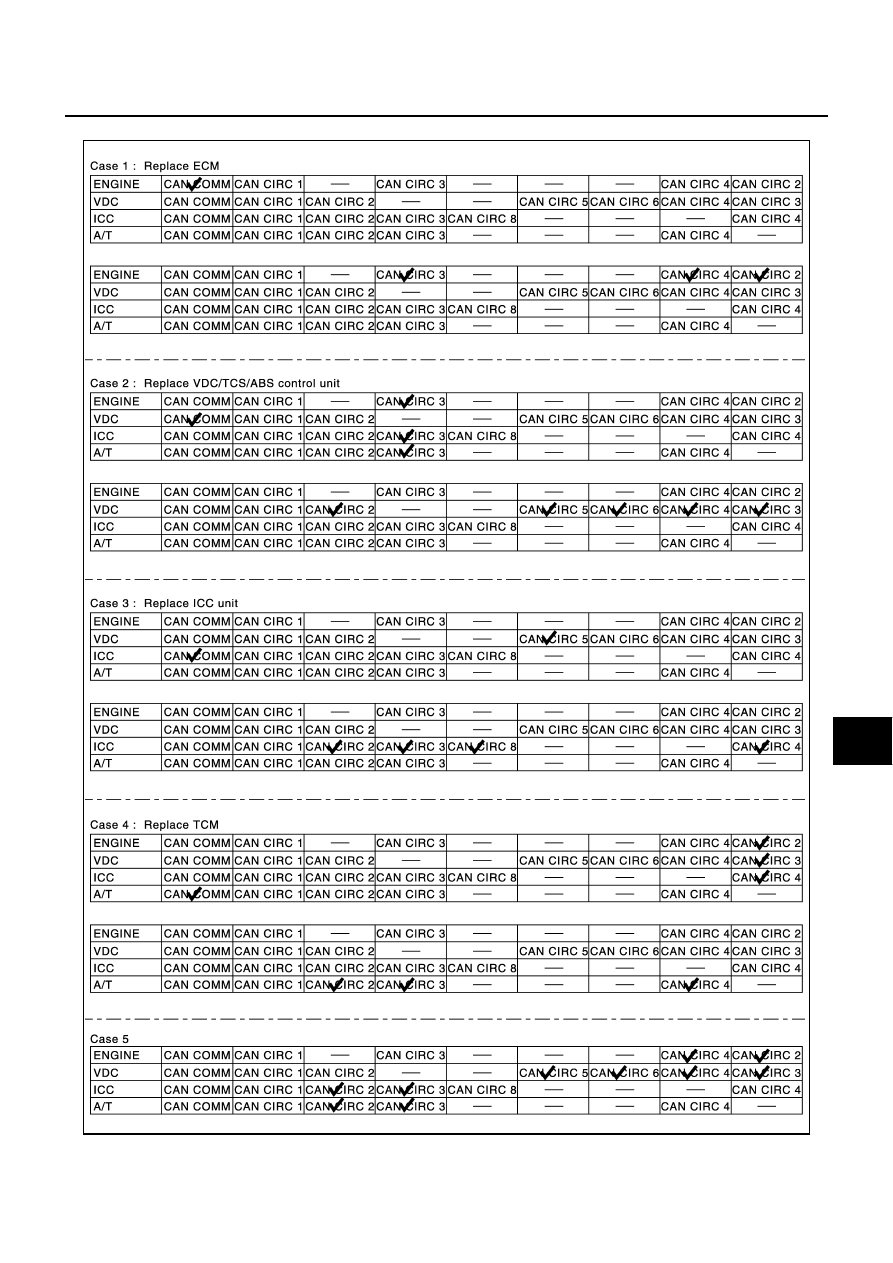

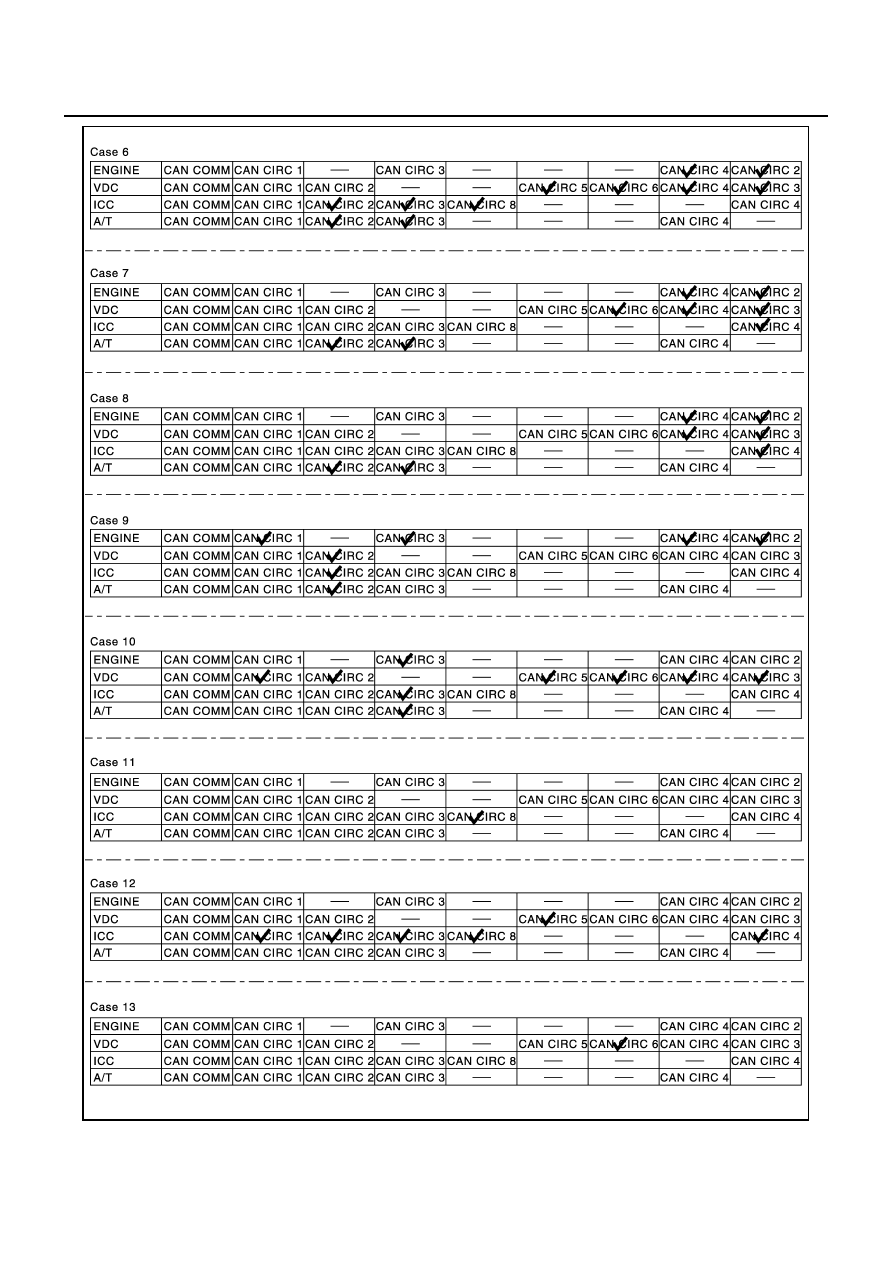

According to the check sheet results (example), start inspection. Refer to
