REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-99

C

D

E

F

G

H

J

K

L

M

A

B

GW

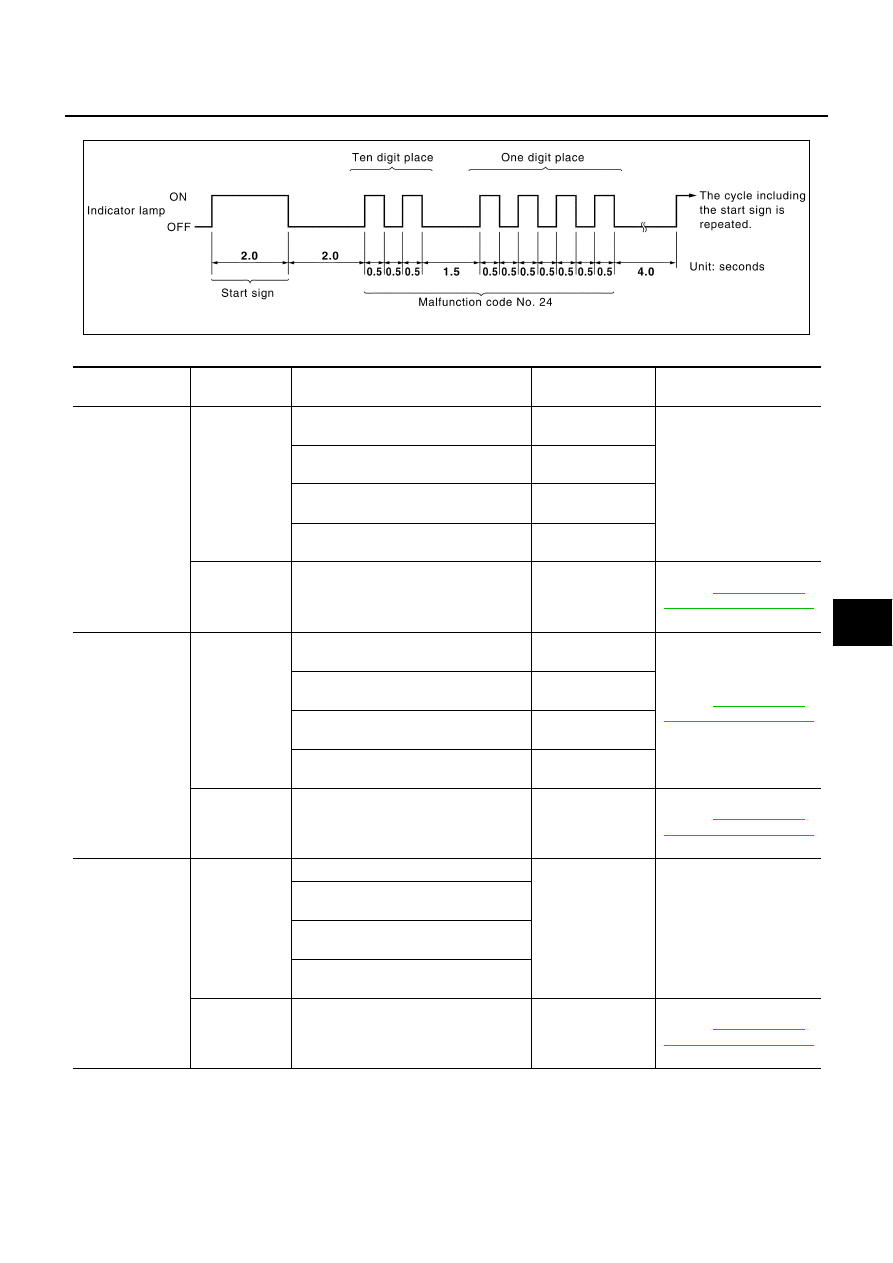

Diagnosis Trouble Code Indication Example

Trouble Diagnosis Chart

NOTE:

●

For a specific local control unit (LCU), either "PAST COMM DATA" or "PAST NO RESPONSE" may be displayed instead of the
above results. This is caused by the data record, so erase the records.
(The display only shows the incident records, they are not malfunctions caused during the diagnosis. One possible cause is that an
irreproducible incident occurred.)

●

Follow the steps below to erase the memory.

SIIA0410E

Malfunctioning

item

Display unit

CONSULT–II IVMS communication

diagnosis content

Self-diagnosis trou-

ble code No.

Malfunctioning system and

reference

COMM DATA

One LCU
is displayed.

POWER WINDOW  C/U–DR
"COMM DATA"

24

Replace the displayed
LCU.

DOOR MIRROR  C/U–RH
"COMM DATA"

27

DOOR MIRROR  C/U–LH
"COMM DATA"

37

POWER SEAT  C/U–DR
"COMM DATA"

47

Multiple LCUs
are displayed

BCM
"COMM FAIL1" ,"COMM FAIL2"

Displays in order of
24

→

27

→

37

→

47

and cycles from 24.

Communication system A:
Refer to

GW-100, "COM-

MUNICATION SYSTEM A"



.

NO
RESPONSE

One LCU
is displayed.

POWER WINDOW C/U–DR
"NO RESPONSE"

25

Communication system B:
Refer to

GW-100, "COM-

MUNICATION SYSTEM B"



.

DOOR MIRROR C/U–RH
"NO RESPONSE"

28

DOOR MIRROR C/U–LH
"NO RESPONSE"

38

POWER SEAT C/U–DR
"NO RESPONSE"

48

Multiple LCUs
are displayed

BCM/HARNESS

Displays in order of
25

→

28

→

38

→

48

and cycles from 25.

Communication system C:
Refer to

GW-101, "COM-

MUNICATION SYSTEM C"



.

SLEEP malfunc-
tion

One LCU
is displayed.

POWER WINDOW C/U–DR "SLEEP"

No self-diagnosis
function

Replace the displayed
LCU.

DOOR MIRROR C/U–RH
"SLEEP"

DOOR MIRROR C/U–LH
"SLEEP"

POWER SEAT C/U–DR
"SLEEP"

Multiple LCUs
are displayed

All the above control units are displayed.

No self-diagnosis
function

Communication system A:
Refer to

GW-100, "COM-

MUNICATION SYSTEM A"



.

GW-100

REVERSE INTERLOCK DOOR MIRROR SYSTEM

Carry out either disconnect BCM battery power supply or erase memory with CONSULT-II.

●

With the battery connected, if the local control unit (LCU) connector is disconnected and left for approximately 1 minute, BCM
stores "NO RESPONSE" record.

Cancel of Communication Diagnosis

If one of the following conditions are satisfied, the communication diagnosis is cancelled.

●

When the ignition switch is turned OFF.

●

The vehicle speed becomes 7 km/h (4 MPH) or higher.

●

Ten minutes have passed since the diagnosis result indication start without no diagnosis cancel operation.

COMMUNICATION SYSTEM A

1.

BCM INSPECTION

Replace BCM with a known-good one, and carry out the communication diagnosis. Refer to

GW-98, "COM-

MUNICATION DIAGNOSIS"

 .

OK or NG?

OK

>> Replace BCM

NG

>> GO TO 2.

2.

LCU INSPECTION

1.

Replace with the previously installed BCM.

2.

Replace LCU with a known-good one, and carry out the communication diagnosis. Refer to

GW-98,

"COMMUNICATION DIAGNOSIS"

 .

OK or NG?

OK

>> Replace LCU

NG

>> Perform the following.

●

Repair the communication harness between LCU and BCM.

●

Replace with the previously installed LCU.

COMMUNICATION SYSTEM B

1.

HARNESS CONNECTOR INSPECTION

Check the terminals (at the control unit and harness) on the malfunctioning LCU for disconnection, bend, poor
connection and other malfunctions.

OK or NG?

OK

>> GO TO 2.

NG

>> Repair the terminals and connectors.

2.

LCU INSPECTION

Replace the malfunctioning LCU with a known-good one, and carry out the communication diagnosis. Refer to

GW-98, "COMMUNICATION DIAGNOSIS"

 .

OK or NG?

OK

>> Replace LCU

NG

>> Perform the following.

●

Repair the communication harness between LCU and BCM.

●

Replace with the previously installed LCU.

REVERSE INTERLOCK DOOR MIRROR SYSTEM

GW-101

C

D

E

F

G

H

J

K

L

M

A

B

GW

COMMUNICATION SYSTEM C

1.

HARNESS CONNECTOR INSPECTION

Check the terminals (at the control unit and harness) on BCM and LCU for disconnection, bend, poor connec-
tion, and other malfunctions.

OK or NG?

OK

>> GO TO 2.

NG

>> Repair the terminals and connectors.

2.

BCM INSPECTION

Replace the malfunctioning BCM with a known-good one, and carry out the communication diagnosis. Refer
to

GW-98, "COMMUNICATION DIAGNOSIS"

 .

OK or NG?

OK

>> Replace BCM

NG

>> Perform the following.

●

Repair the communication harness between LCU and BCM control.

●

Replace with the previously installed BCM.

SWITCH MONITOR

●

Carry out the diagnosis for the switch system input to each control unit.

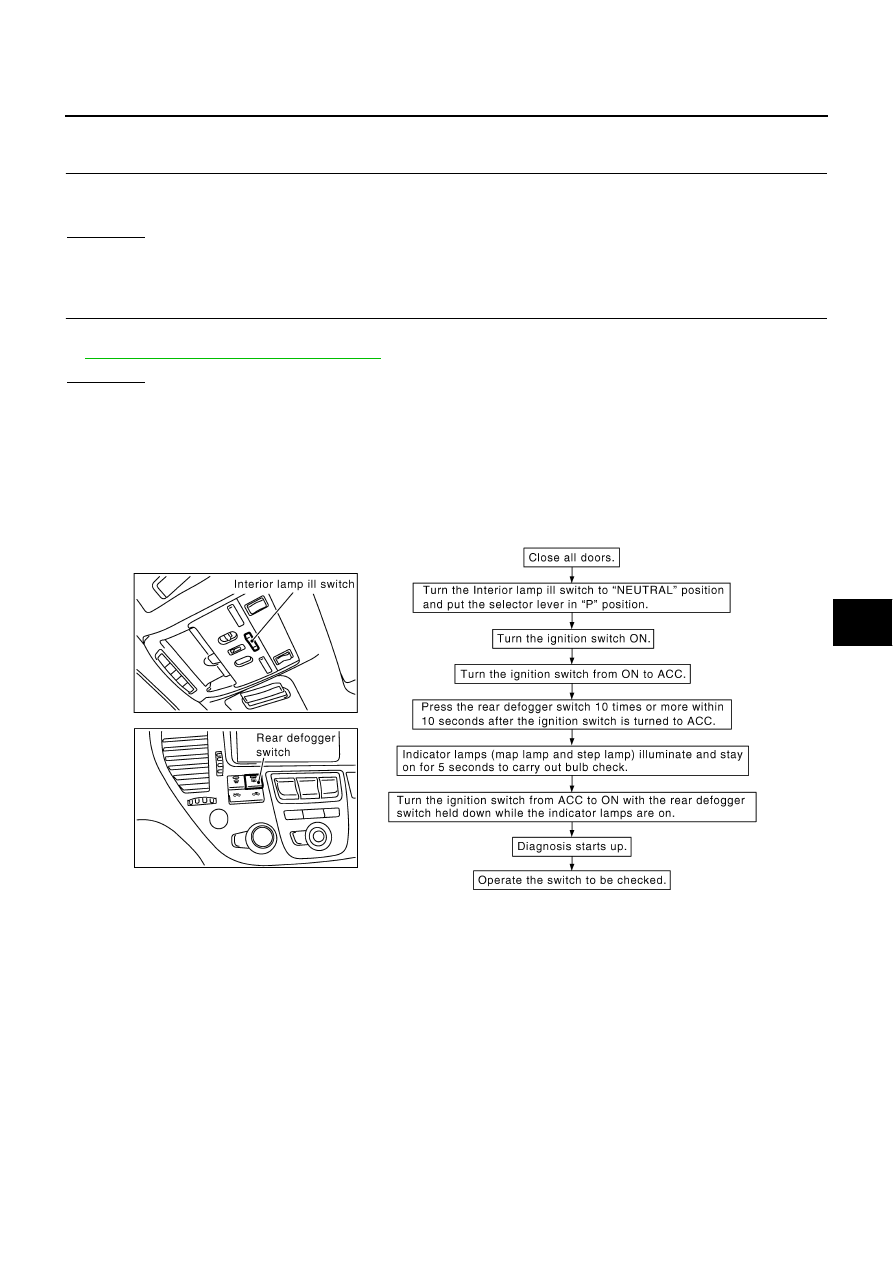

Operation Procedure

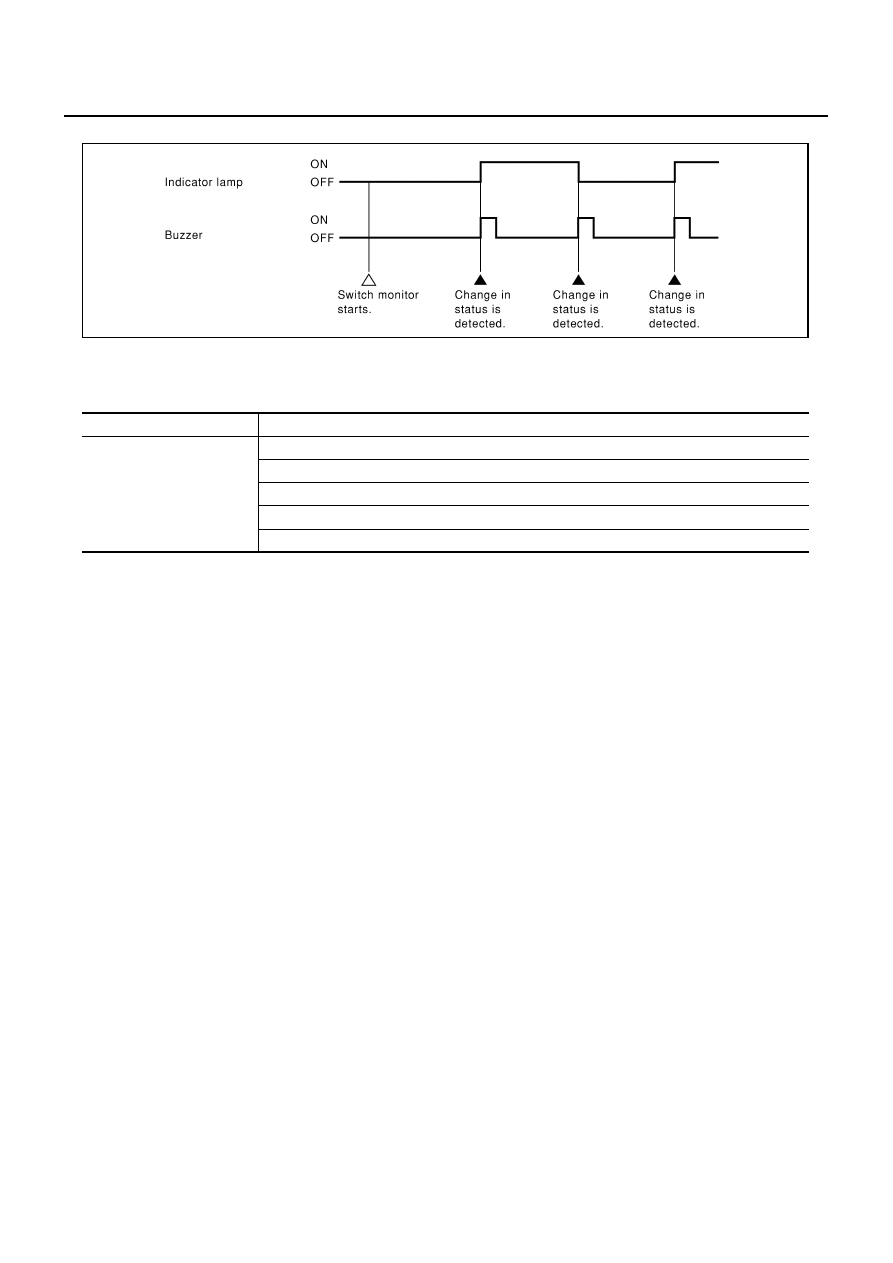

Diagnosis Result Display

●

Detects the status change (switch ON/OFF operation) of the switch to be checked, and turns on/off the
indicator lamps (the map lamp and step lamp). Also sounds the buzzer (the key remainder and light
remainder) for 0.5 seconds.

PIIA3356E

GW-102

REVERSE INTERLOCK DOOR MIRROR SYSTEM

●

If a malfunction is detected, no indicator lamp and buzzer react.

Diagnosis Item

●

The status of the switch (except the ignition switch, interior lamp switch, and map lamp switch) input to
each control unit can be monitored.

Cancel of Switch Monitor

If one of the following conditions are satisfied, the switch monitor is cancelled.

●

When the ignition switch is turned OFF.

●

The vehicle speed becomes 7 km/h (4 MPH) or higher.

PIIA0185E

Control unit

Item

BCM

Detent switch

Steering wheel position switch (telescoping switch and tilt switch)

Seat memory switch (memory switch 1, memory switch 2, and setting switch).

Driver door switch

Door mirror remote control switch
