FRONT DOOR GLASS AND REGULATOR

GW-51

C

D

E

F

G

H

J

K

L

M

A

B

GW

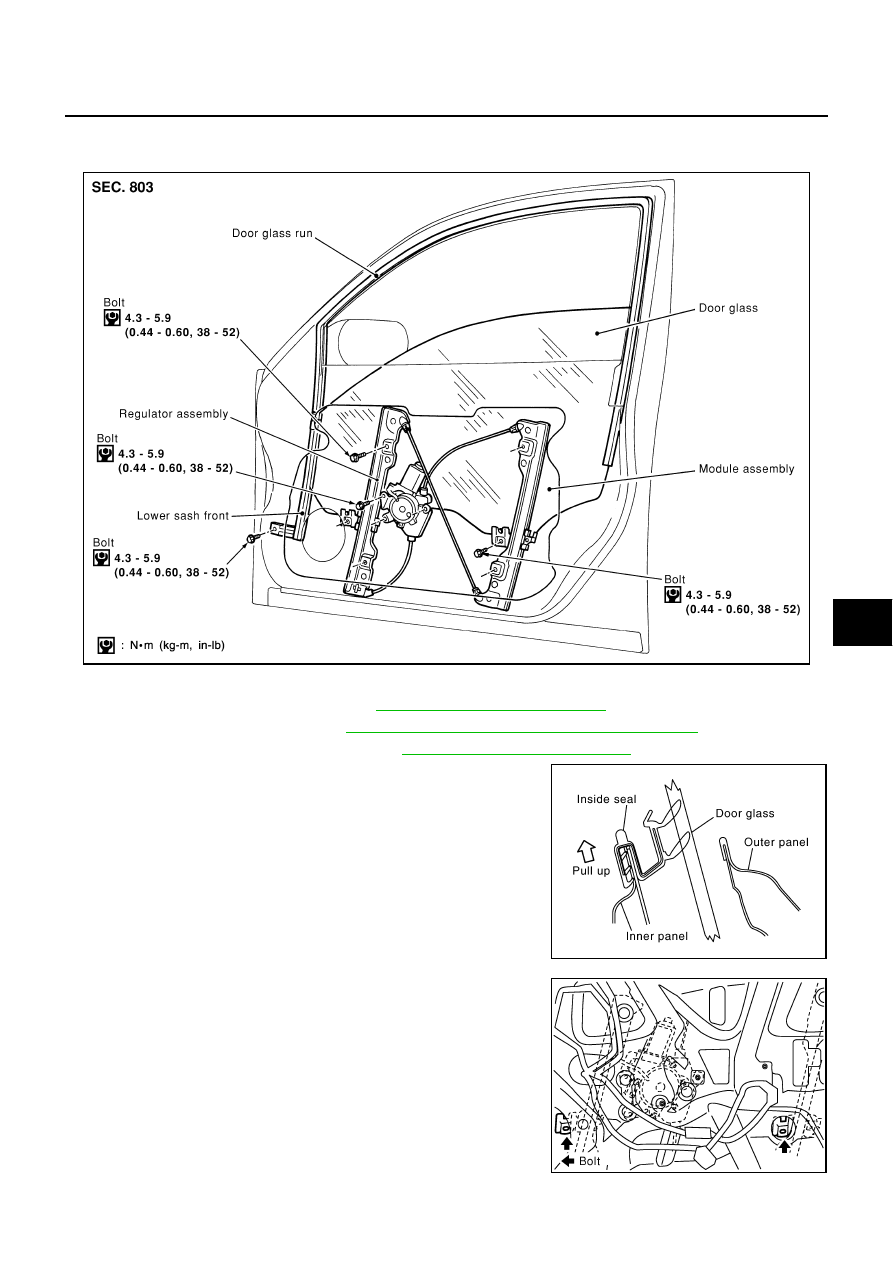

FRONT DOOR GLASS AND REGULATOR

PFP:80300

Removal and Installation

EIS000JH

REMOVAL

1.

Remove the front door finisher. Refer to

EI-30, "Removal and Installation"

 .

2.

Remove the door speaker. Refer to

AV-36, "Removal and Installation of Door Speaker"

 .

3.

Remove the front door sash cover. Refer to

EI-30, "Removal and Installation"

 .

4.

Pull the inside seal out of the inner panel.

5.

Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.

6.

Remove the glass mounting bolts.

SIIA0285E

PIIA9439E

SIIA0264E

GW-52

FRONT DOOR GLASS AND REGULATOR

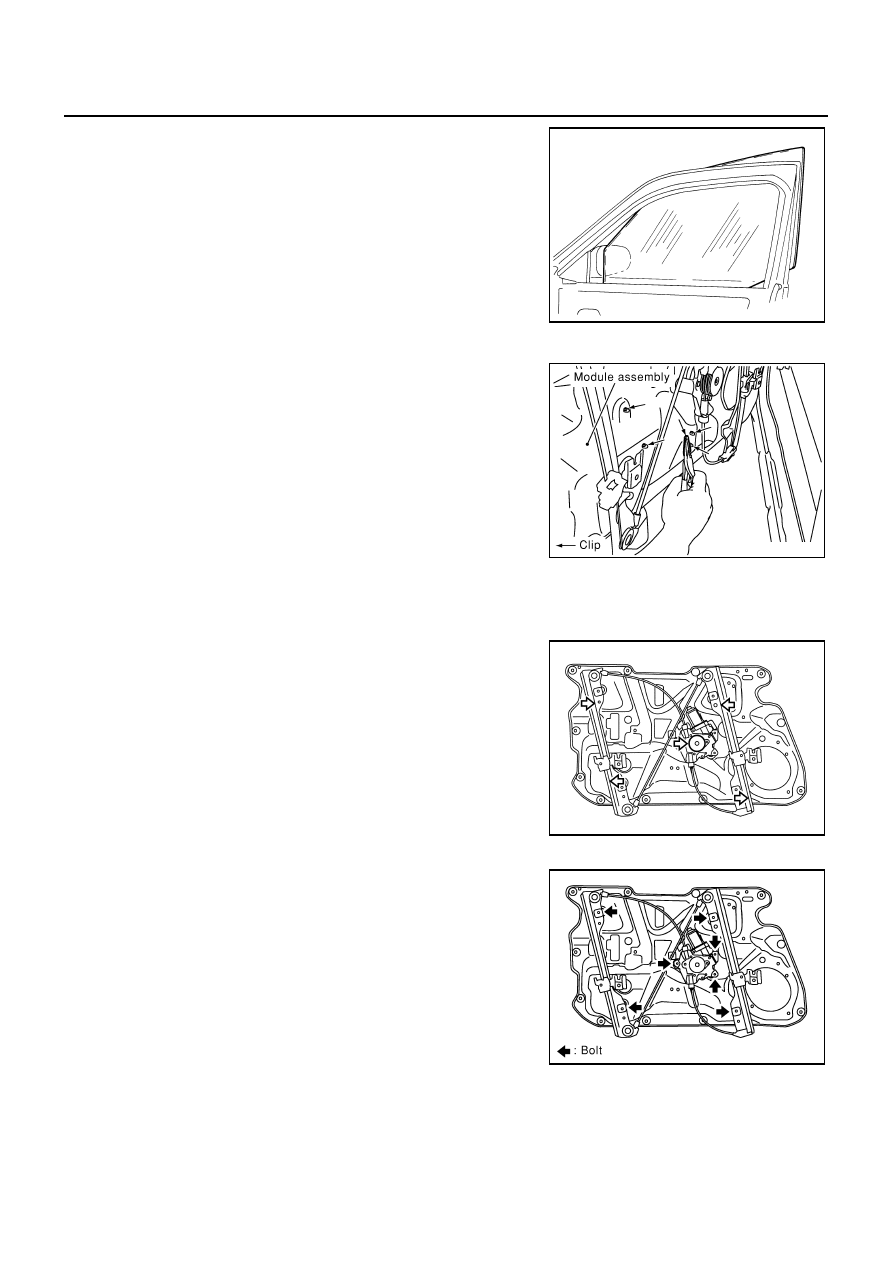

7.

While holding the door window, raise it at the rear end to pull the
glass out of the sash toward the outside of the door.

8.

Remove the mounting bolts, and remove the module assembly.

9.

Disconnect the harness connector for the module assembly, and
remove the harness clip from the back.

INSTALLATION

Install in the reverse order of removal.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunc-
tion is detected, replace or body grease it.

●

Wire wear

●

Regulator deformation

●

Grease condition for each sliding part

The arrows in the figure show the application points of the body
grease.

DISASSEMBLY AND ASSEMBLY

Remove the power window motor and guide rail from the module
assembly.

SIIA0286J

SIIA0287E

SIIA0297J

SIIA0298E

FRONT DOOR GLASS AND REGULATOR

GW-53

C

D

E

F

G

H

J

K

L

M

A

B

GW

SETTING AFTER INSTALLATION
Setting of limit switch

If any of the following work has been done, set the limit switch (integrated in the motor).

●

Removal and installation of the regulator.

●

Removal and installation of the motor from the regulator.

●

Operate the regulators as a unit.

●

Removal and installation of the glass.

●

Removal and installation of the glass run.

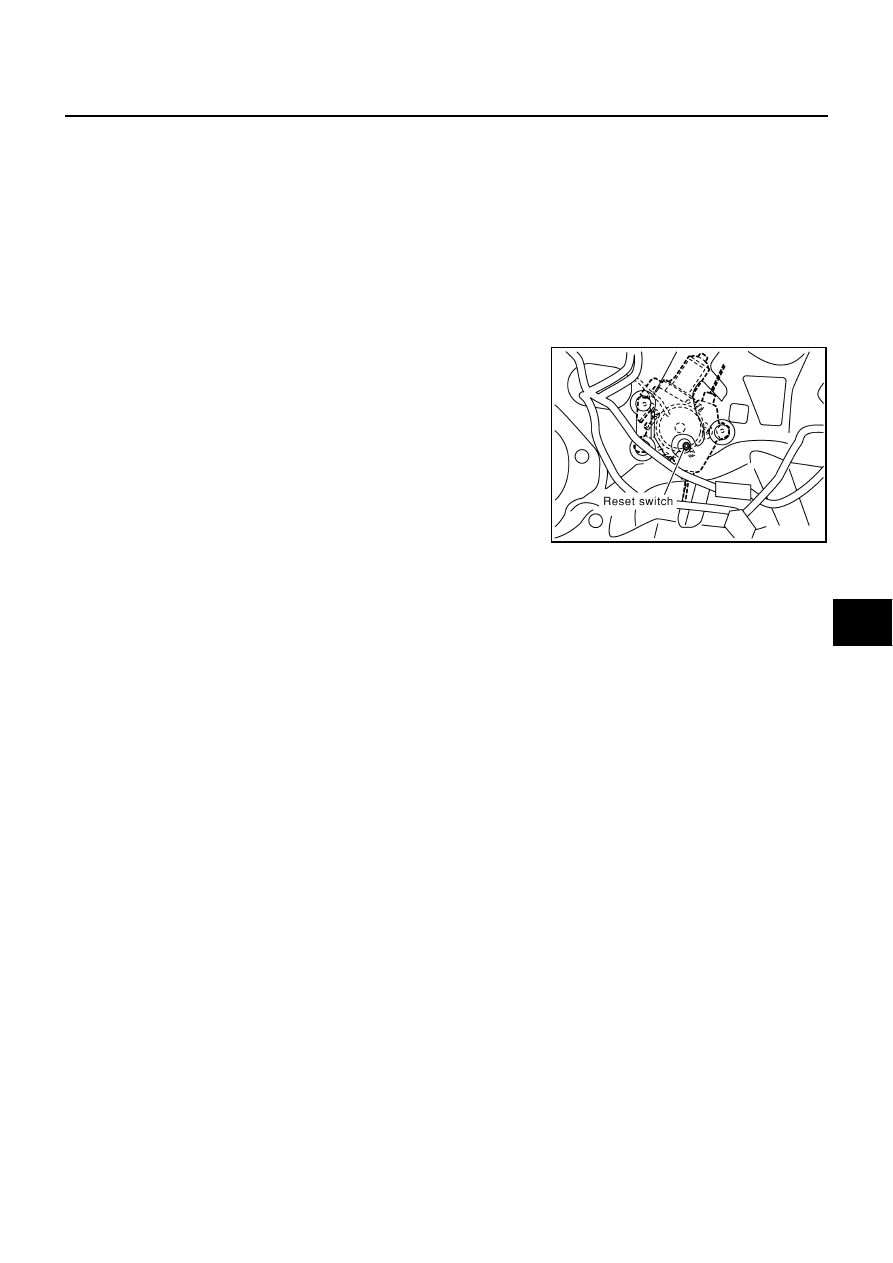

Resetting

After installing each component to the vehicle, follow the steps below.

1.

Raise the glass to the top position.

2.

While pressing and holding the reset switch, lower the glass to
the bottom position.

3.

Release the reset switch, and check that the reset switch returns
to the original position, and then raise the glass to the top posi-
tion.

CAUTION:

Do not operate the glass automatically to raise the glass to
the top position.

FITTING INSPECTION

●

Check that the glass is securely fit into the glass run groove.

●

Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the sash is
parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass & guide rail mounting bolts to correct the glass position.

SIIA0347E

GW-54

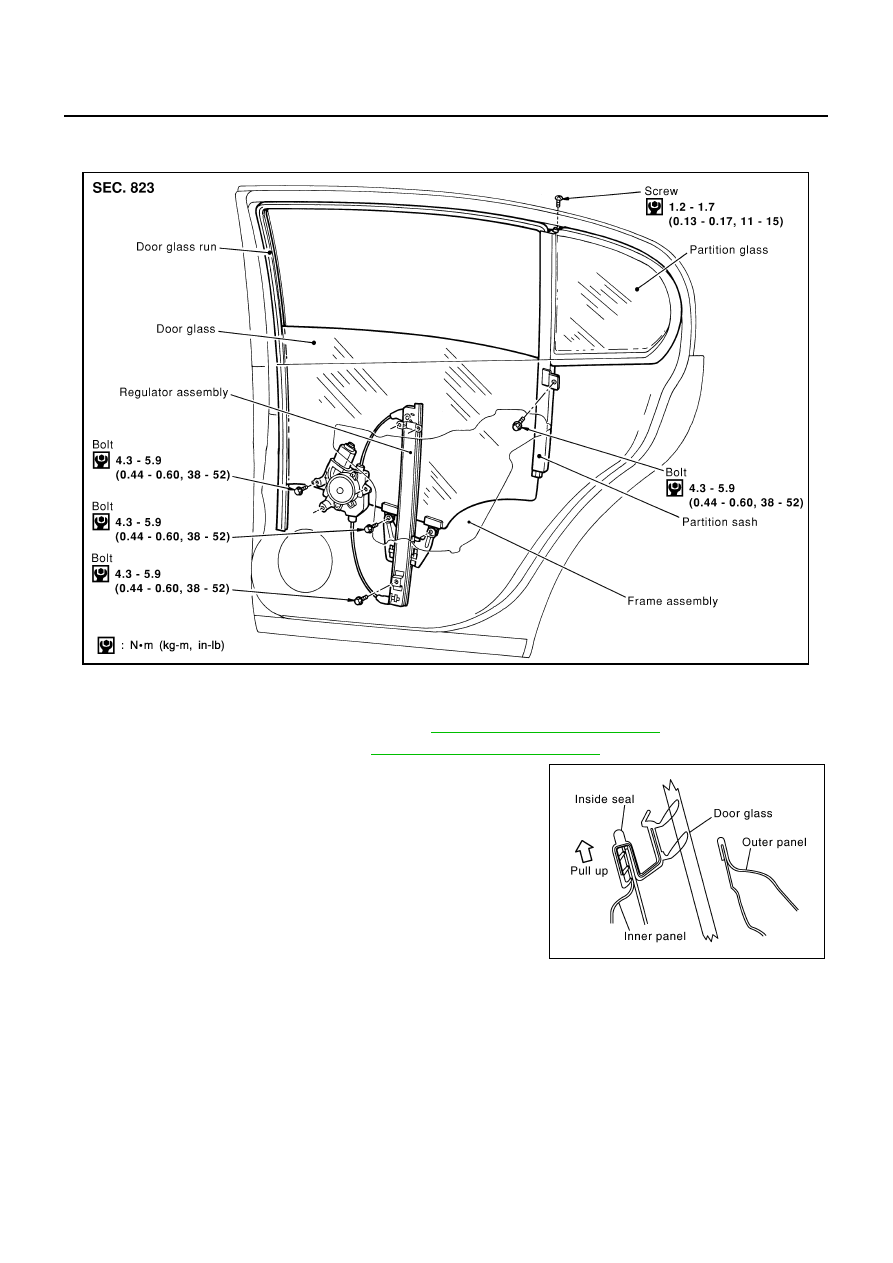

REAR DOOR GLASS AND REGULATOR

REAR DOOR GLASS AND REGULATOR

PFP:82300

Removal and Installation

EIS000JI

REMOVAL

1.

Lower the glass to the bottom position.

2.

Remove the rear door outside molding. Refer to

EI-27, "Removal and Installation"

 .

3.

Remove the rear door finisher. Refer to

EI-30, "Removal and Installation"

 .

4.

Pull the inside seal out of the inner panel.

5.

Remove the mounting bolts, and remove the frame assembly.

SIIA0288E

PIIA9439E
