FRONT SUSPENSION MEMBER

FSU-15

C

D

F

G

H

I

J

K

L

M

A

B

FSU

FRONT SUSPENSION MEMBER

PFP:54401

Removal and Installation

EES000U2

REMOVAL

1.

Remove tire with power tool.

2.

Remove undercover with power tool.

3.

Remove steering hydraulic piping bracket from front suspension member.

4.

Remove steering gear and front suspension member attachment bolts and hang steering gear on vehicle.
Refer to

PS-15, "POWER STEERING GEAR AND LINKAGE"

5.

Remove suspension arm from front suspension member. Refer to

FSU-12, "SUSPENSION ARM"

 .

6.

Remove stabilizer bar mounting bolts and nuts from front suspension member then suspend a stabilizer
on vehicle.

7.

Remove cross bar from member stay.

8.

Set jack under front suspension member and engine.

CAUTION:

When setting jack to engine, use a wooden block or an equivalent for the setting.

9.

Remove fixing bolts and nuts between engine mounting insulator and front suspension member. Refer to

EM-70, "ENGINE ASSEMBLY"

 .

10. Remove member stay from front suspension member and body.

11. Remove mounting nuts front suspension member and body.

12. Slowly lower jack to remove front suspension member from vehicle.

INSPECTION AFTER REMOVAL

Check front suspension member for deformed parts, cracks, or any other damage. Replace if necessary.

INSTALLATION

Refer to

FSU-5, "Components"

  for tightening torque. Tighten in the reverse order of removal.

CAUTION:

Refer to component parts location and do not reuse non-reusable parts.

After installation, perform final tightening of each part under unladen conditions with tires on ground.
Check wheel alignment. Refer to

FSU-16, "SERVICE DATA"

 .

FSU-16

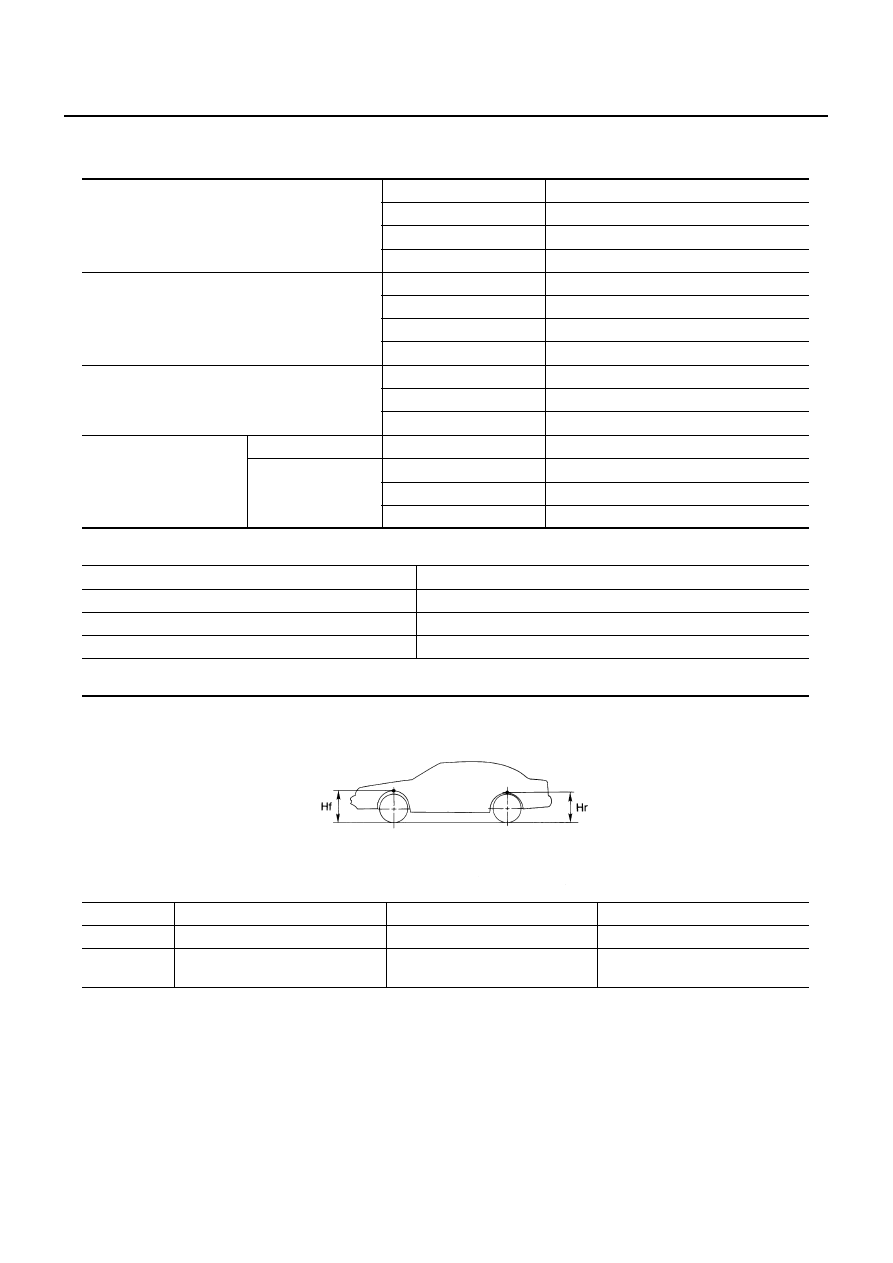

SERVICE DATA

SERVICE DATA

PFP:00030

Wheel Alignment (Unladen)

EES000U3

Ball Joint

EES000U4

Wheelarch Height (Unladen*)

EES000U5

*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Camber
Degree minute (Decimal degree)

Minimum

– 1

°

30

 (– 1.5

°

)

Nominal

– 0

°

45

 (– 0.75

°

)

Maximum

0

°

00

 (0.00

°

)

Left and right difference

45

 (0.75

°

)

Caster
Degree minute (Decimal degree)

Minimum

5

°

25

 (5.42

°

)

Nominal

6

°

10

 (6.17

°

)

Maximum

6

°

55

 (6.92

°

)

Left and right difference

45

 (0.75

°

)

Kingpin inclination
Degree minute (Decimal degree)

Minimum

13

°

15

 (13.25

°

)

Nominal

14

°

00

 (14.00

°

)

Maximum

14

°

45

 (14.75

°

)

Total toe-in

Distance (A – B)

Nominal

1 mm (0.04 in)

Angle (left plus right)
Decimal degree
(Decimal degree)

Minimum

0

°

 (0

°

)

Nominal

3

°

 (0.05

°

)

Maximum

6

°

 (0.10

°

)

Swing torque

0.5 - 3.4 N·m (0.06 - 0.34 kg-m, 5 - 30 in-lb)

Measurement on spring balance (cotter pinhole position)

8.8 - 59.6 N (0.90 - 6.08 kg, 1.98 - 13.41 lb)

Rotating torque

0.5 - 3.4 N·m (0.06 - 0.34 kg, 5 - 30 lb)

Axial end play

0 mm (0 in)

Tire

225/55R17

225/55R17 (Runflat tire)

245/45R18

Front (Hf)

730 mm (28.74 in) [USA model]

734 mm (28.90 in)

726 mm (28.58 in)

Rear (Hr)

704 mm (27.72 in) [USA model]

705 mm (27.76 in) [Canada model]

707 mm (27.83 in) [USA model]

708 mm (27.87 in) [Canada model]

700 mm (27.56 in) [USA model]

701 mm (27.60 in) [Canada model]

SFA818A

A
B
C
D

E

F

G

H

I

J

K

M

L

QUICK REFERENCE INDEX
