Infiniti F50. Manual - part 538





TIMING CHAIN

EM-39

C

D

E

F

G

H

I

J

K

L

M

A

EM

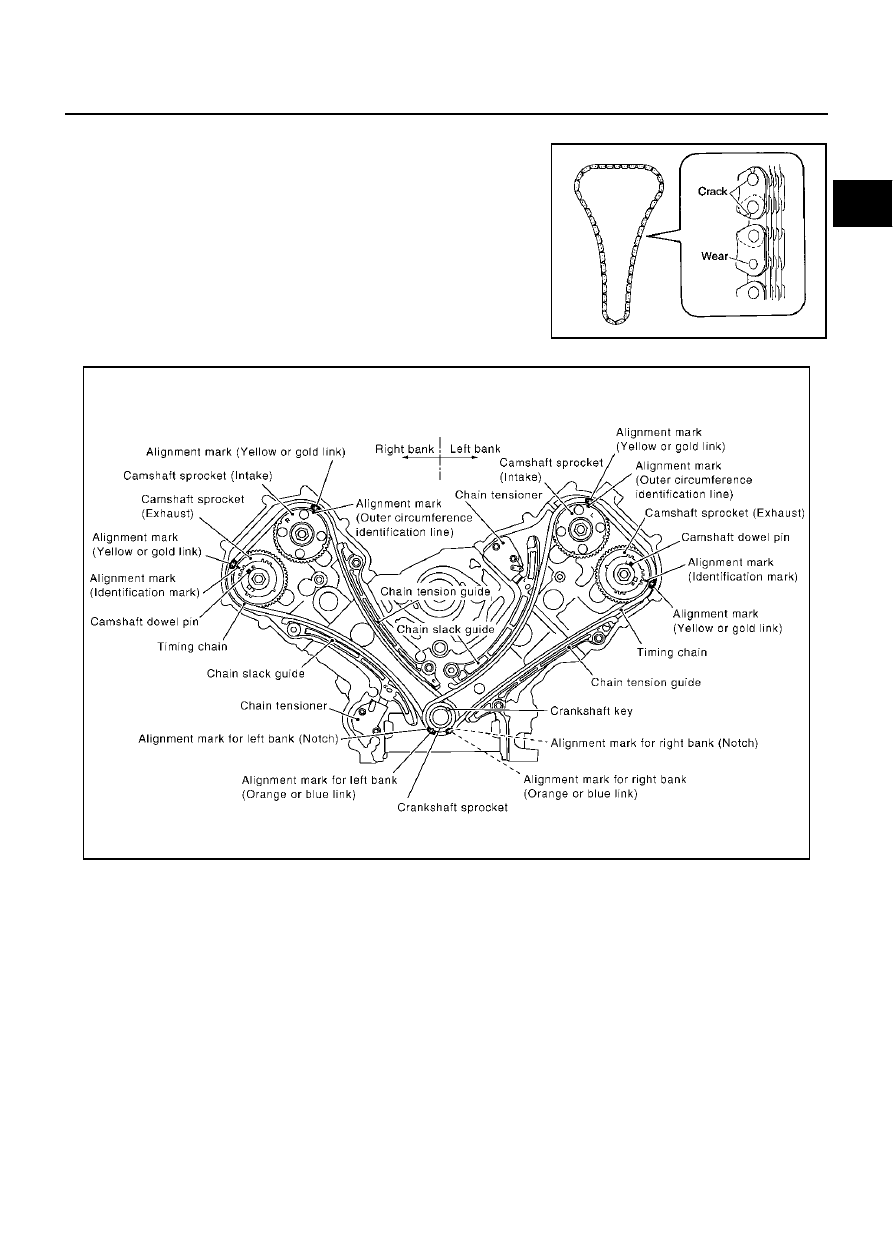

INSPECTION AFTER REMOVAL

Check for cracks and any excessive wear at link plates. Replace
chain if necessary.

INSTALLATION

NOTE:

The above figure shows the relationship between the mating mark on each timing chain and that on the
corresponding sprocket, with the components installed.

Parts with an identification mark (R or L) should be installed on the corresponding bank according to the
mark.

Parts with an identification mark:

Intake camshaft sprocket

Dowel pin groove of exhaust camshaft sprocket (camshaft sprocket is same part both banks)

Chain tension guide

Chain slack guide

Because of parallel manufacture, there are two types of mark (link colors) for timing chain.

To install timing chain and associated parts, start with those on right bank. The procedure for installing
parts on left bank is omitted because it is the same as that for installation on right bank.

PBIC0282E

SBIA0357E

EM-40

TIMING CHAIN

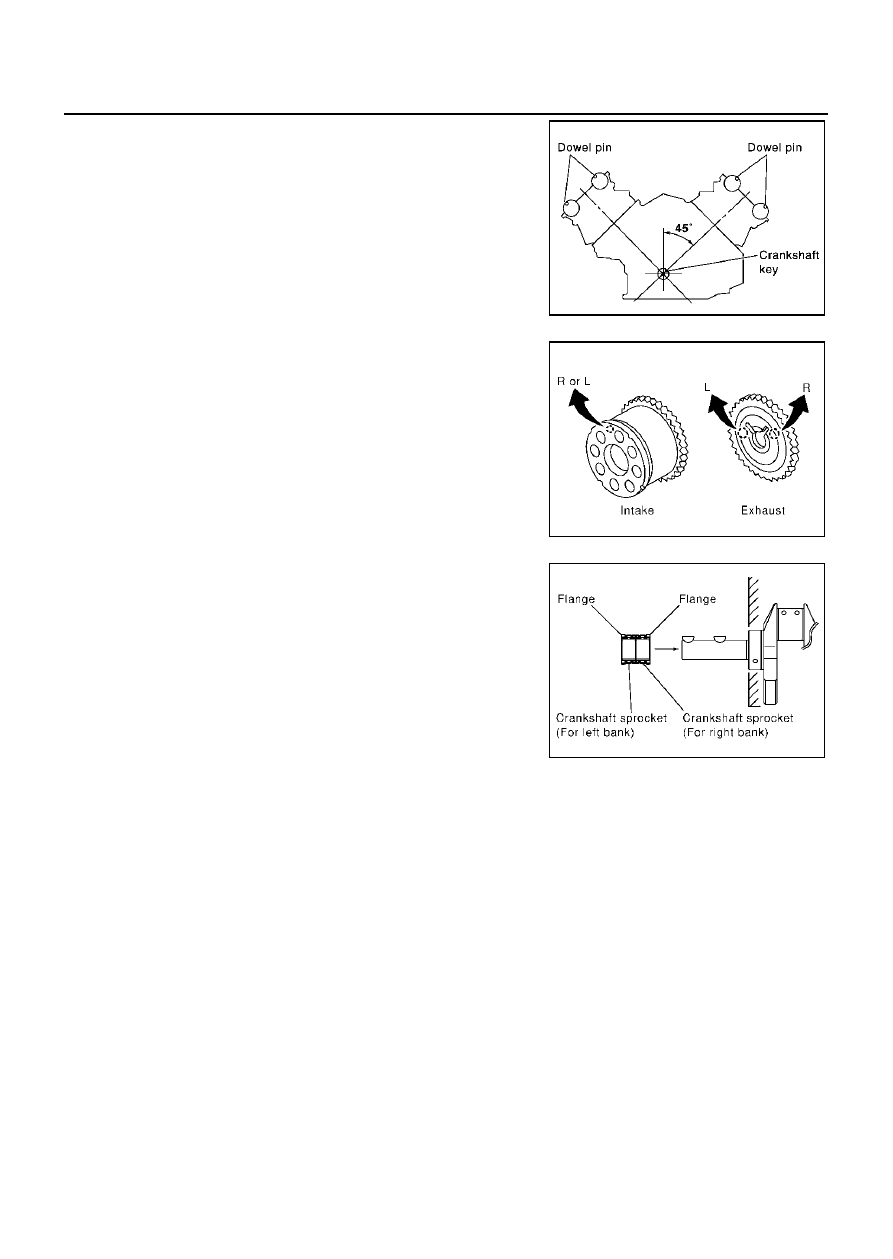

1.

Check that the crankshaft key and dowel pin of each camshaft
are facing in the direction indicated.

2.

Install camshaft sprockets.

Install onto correct side by checking with identification mark
on surface

Install exhaust-side camshaft sprocket by selectively using
the groove of dowel pin according to the bank. (Common part
used for both banks.)

Lock the hexagonal part of camshaft in the same way as for
removal, and tighten fixing bolts.

3.

Install crankshaft sprockets for both banks.

Install each crankshaft sprocket so that its flange side (the
larger diameter side without teeth) faces in the direction
shown in figure.
NOTE:
The same parts are used but facing directions are different.

SBIA0356E

PBIC0037E

PBIC0057E

TIMING CHAIN

EM-41

C

D

E

F

G

H

I

J

K

L

M

A

EM

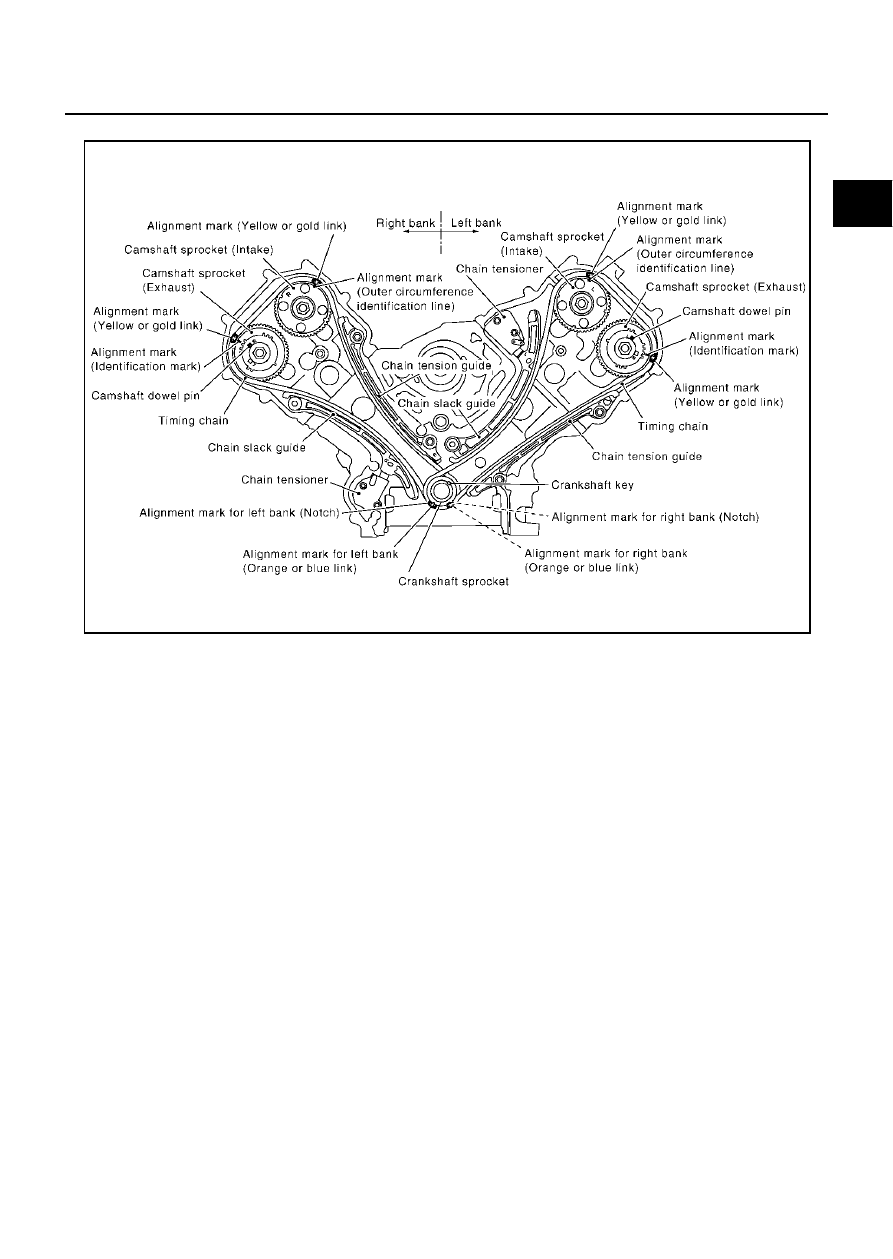

4.

Install timing chains and associated parts.

Align the mating mark on each sprocket and the timing chain for installation.

NOTE:
Before installing chain tensioner, it is possible to change the position of mating mark on timing chain for
that on each sprocket for alignment.

CAUTION:

For the above reason, after the mating marks are aligned, keep them aligned by holding them
with a hand.

Install slack guides and tension guides onto correct side by checking with identification mark on sur-
face.

Install chain tensioner with plunger fixed as described in its removal.

CAUTION:

Before and after the installation of chain tensioner, make sure that the mating mark on timing
chain is not out of alignment.

After installing chain tensioner, remove the stopper pin to release tensioner. Check that ten-
sioner is released.

To avoid chain-link skipping of timing chain, never move crankshaft or camshafts until front
cover is installed.

5.

In the same way as for right bank, install timing chain and associated parts on left side.

6.

Install oil pump.

SBIA0357E

EM-42

TIMING CHAIN

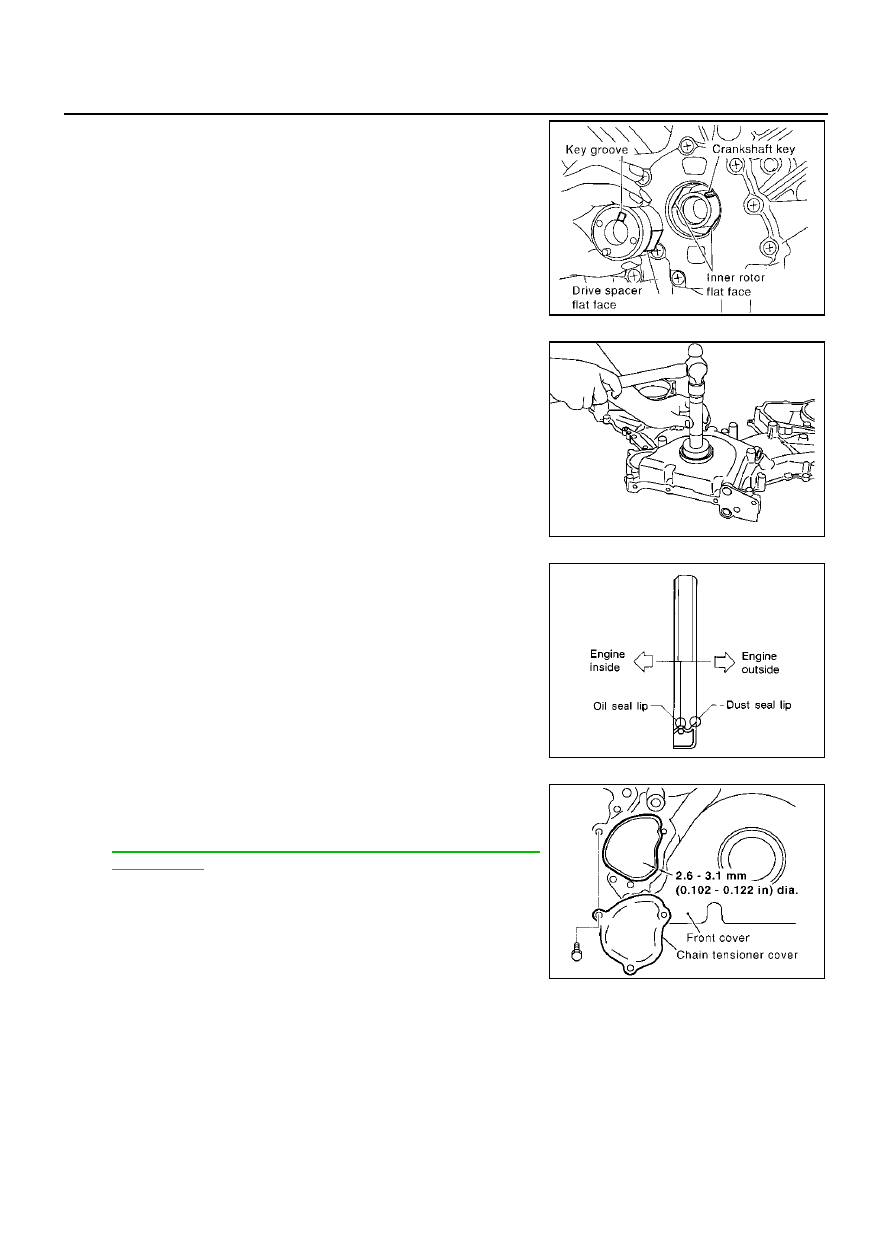

7.

Install oil pump drive spacer as follows:

a.

Insert oil pump drive spacer according to the directions of crank-
shaft key and the two flat surfaces of oil pump inner rotor.

If the positional relationship does not allow the insertion,
rotate oil pump inner rotor with a finger to allow the spacer.

b.

After confirming that the position of each part is in correct condi-
tion to allow for the spacer, force fit the spacer by lightly tapping
with a plastic hammer until it contacts and does not go further.

8.

Install front oil seal onto front cover.

Using oil seal drift or drift with 54 mm (2.13 in) diameter, force
fit the seal until it levels with the front end surface of front
cover.

Install new oil seal in the direction shown in the figure.

CAUTION:

Be careful not to scratch or make burrs on circumference
of oil seal.

9.

Install chain tensioner cover onto front cover.

Apply liquid gasket as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-46, "RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS"

 .

PBIC0058E

PBIC0059E

SEM715A

SBIA0372E
