Infiniti F50. Manual - part 523





DOOR FINISHER

EI-33

C

D

E

F

G

H

J

K

L

M

A

B

EI

7.

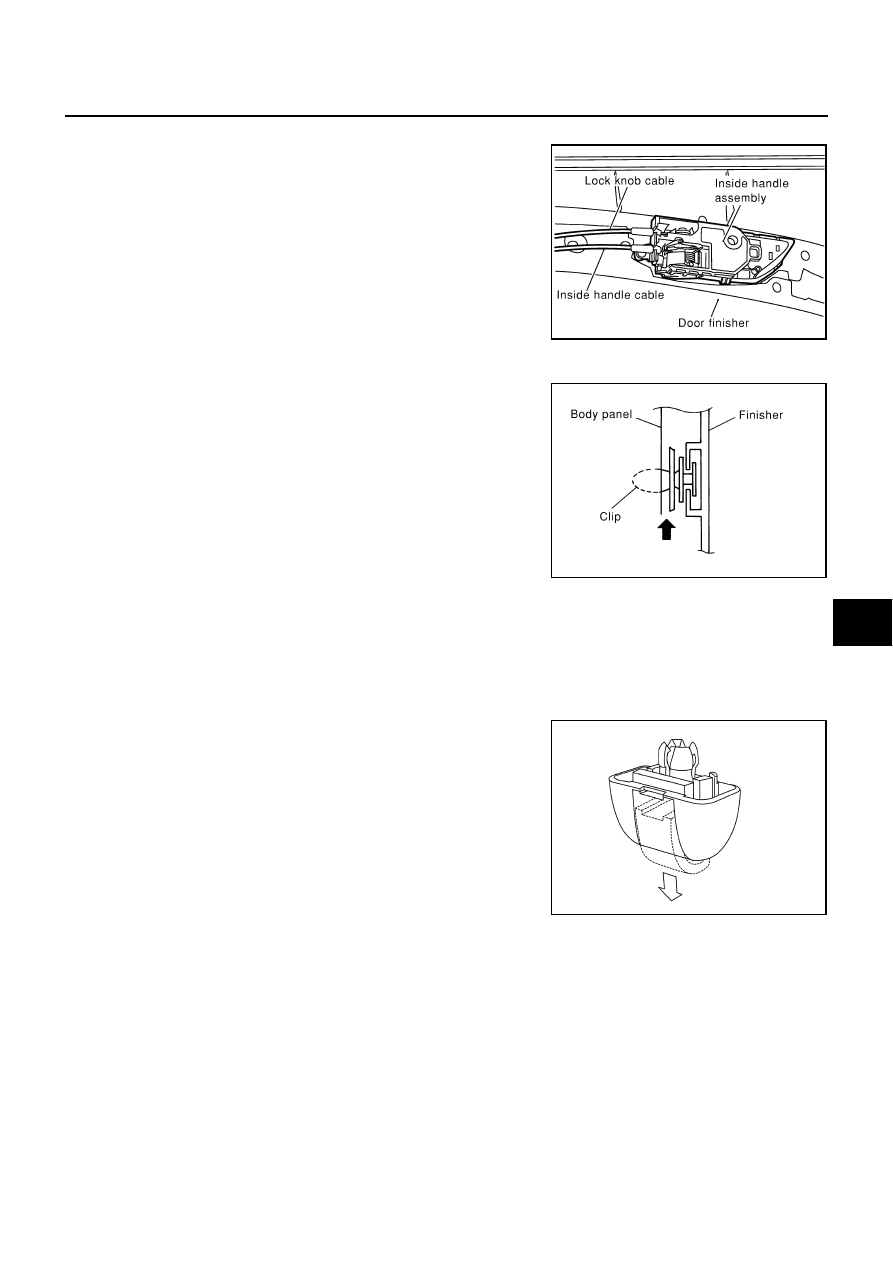

Insert screw driver rolled with was cloth into clips of door finisher, and disconnect clips.

8.

Pull up door finisher, and remove connectors, inside handle
cable and lock knob cable.

NOTE:
Insert screw driver rolled with cloth between panel on vehicle
and clips (as indicated with arrow), and remove finisher.

Installation

Install in the reverse order of removal.

CAUTION:

To install finisher, check if all clips are matched over holes of panel on vehicle, then push in.

DOOR SASH COVER
Removal

1.

Remove hooks (rear).

2.

Remove screws, and remove door sash slowly in order from its
front part to rear part.

Installation

Install in the reverse order of removal.

SIIA0266E

SIIA0810E

SIIA0385J

EI-34

DOOR FINISHER

Disassembly and Assembly

EIS000DK

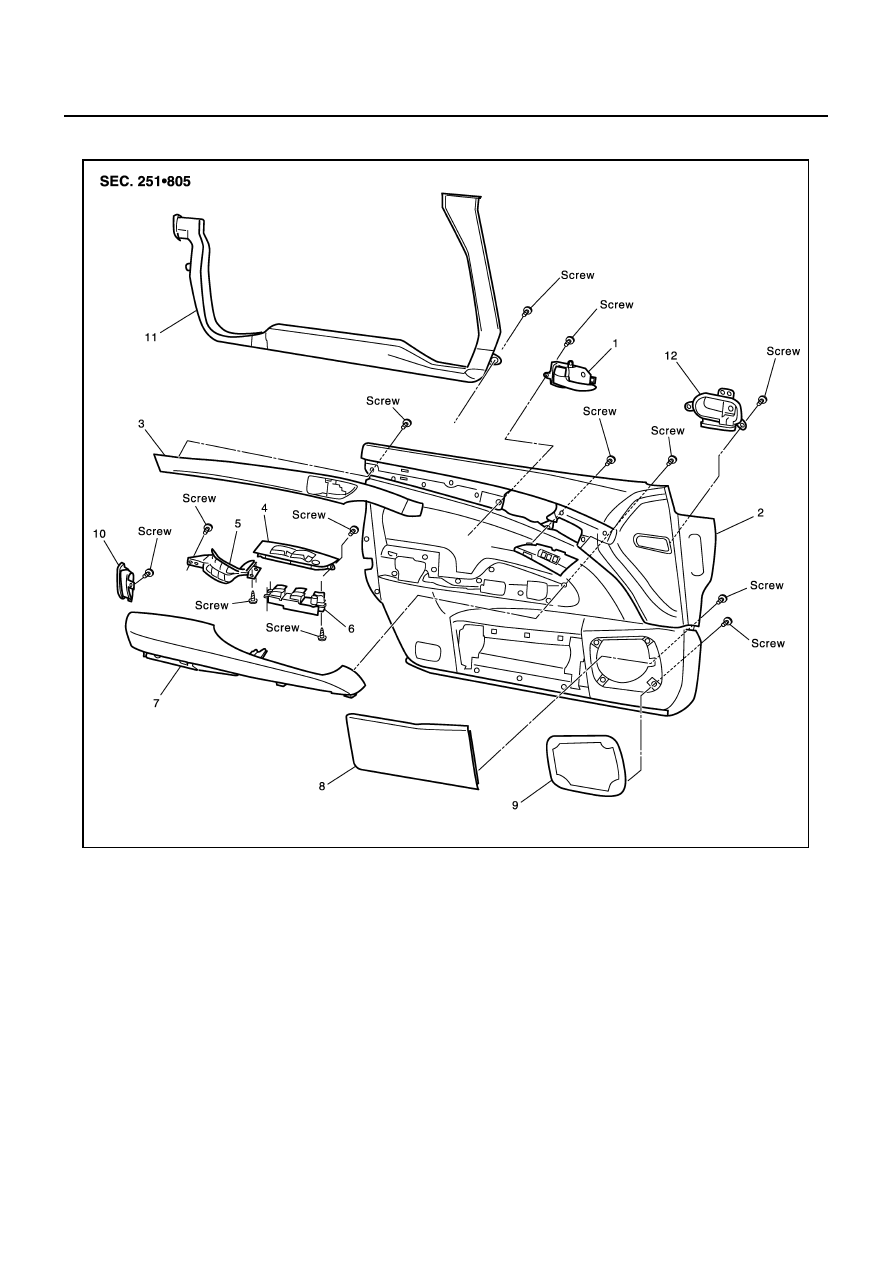

FRONT DOOR TRIM (DRIVER SIDE)

SIIA0811E

1

Inside handle assembly

2

Front door finisher

3

Front door waist finisher

4

Front power window switch finisher

5

Pull handle

6

Front power window switch unit

7

Front door upper arm-rest

8

Front door pocket

9

Front door speaker grille

10

Ventilator B

11 Duct

12  ventilator A

DOOR FINISHER

EI-35

C

D

E

F

G

H

J

K

L

M

A

B

EI

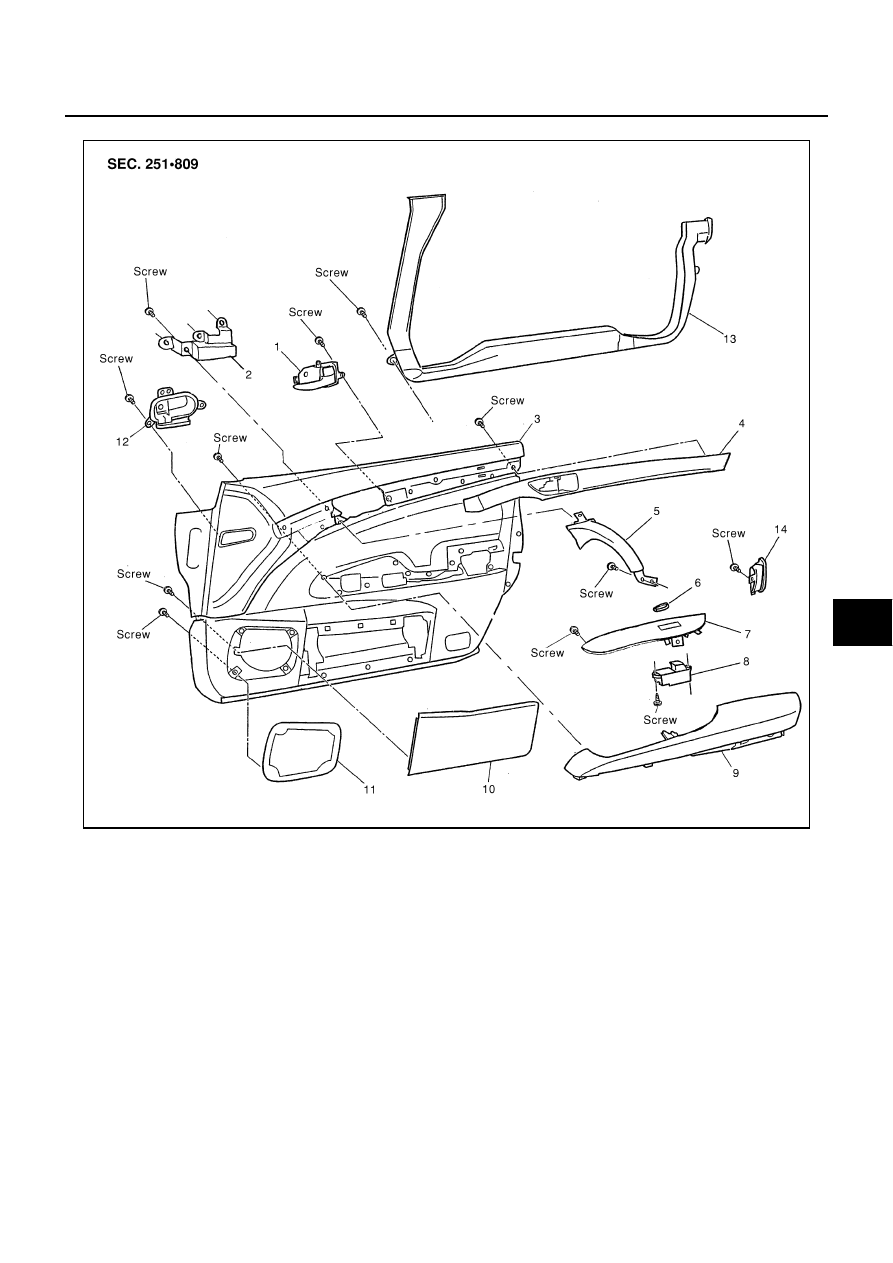

FRONT DOOR TRIM (PASSENGER SIDE)

SIIA0812E

1

Inside handle assembly

2

Front grip bracket

3

Front door finisher

4

Front door waist finisher

5

Front door grip

6

Grip escutcheon

7

Front power window switch finisher

8

Front power window switch unit

9

Front door upper arm-rest

10

Front door pocket

11

Front door speaker grille

12 ventilator A

13

Duct

14

ventilator B

EI-36

DOOR FINISHER

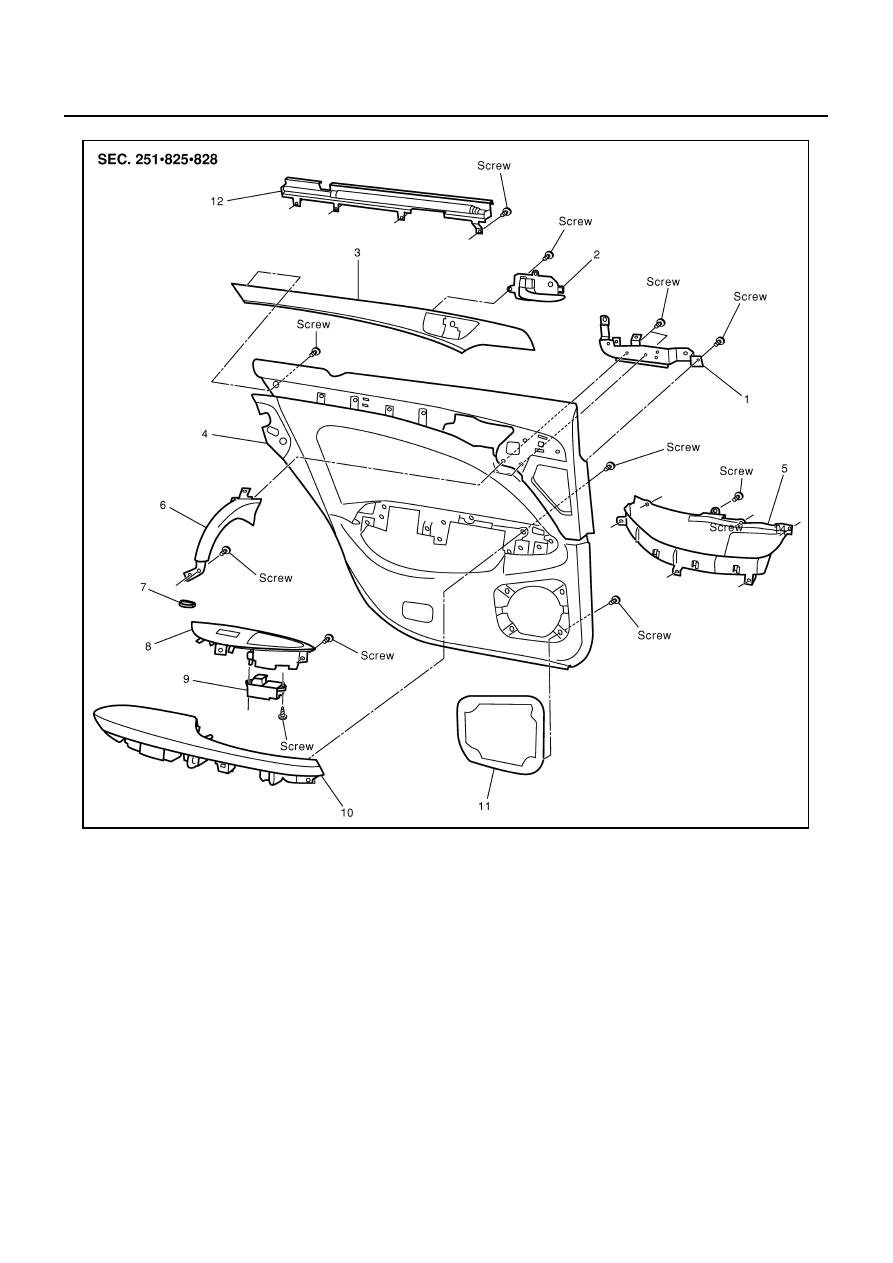

REAR DOOR TRIM

SIIA0813E

1

Rear grip bracket

2

Inside handle assembly

3

Rear door waist finisher

4

Rear door finisher

5

Rear door pocket

6

 Rear door grip

7

Grip escutcheon

8

Rear power window switch finisher

9

Rear power window switch unit

10 Rear door upper arm-rest

11

Rear door speaker grille

12 Rear door sun-shade
