Infiniti F50. Manual - part 520





FENDER PROTECTOR

EI-21

C

D

E

F

G

H

J

K

L

M

A

B

EI

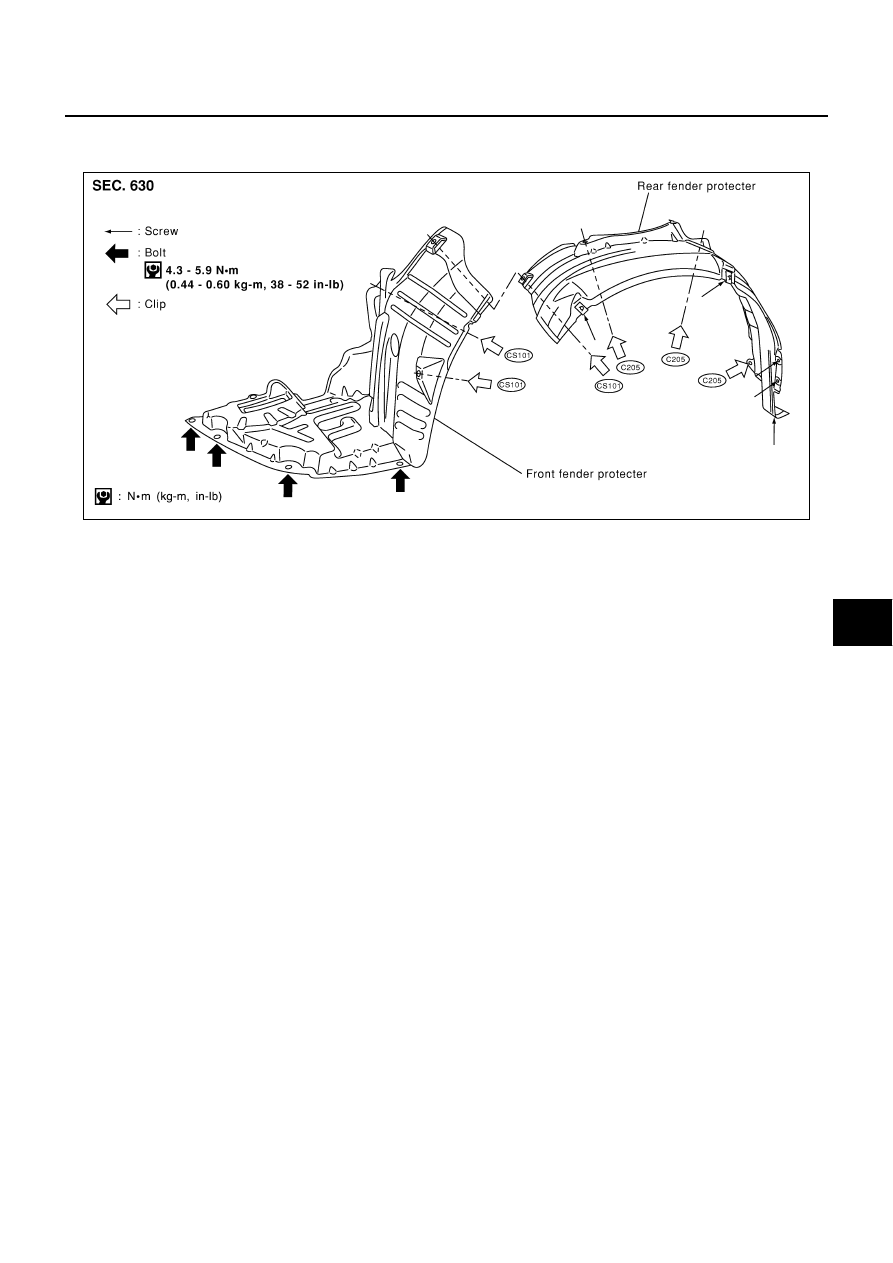

FENDER PROTECTOR

PFP:63840

Removal and Installation

EIS000DA

REMOVAL

1.

Remove bolts and clips of fender protector.

2.

Remove fender protector (front/rear).

INSTALLATION

Install in the reverse order of removal.

PIIA0038E

EI-22

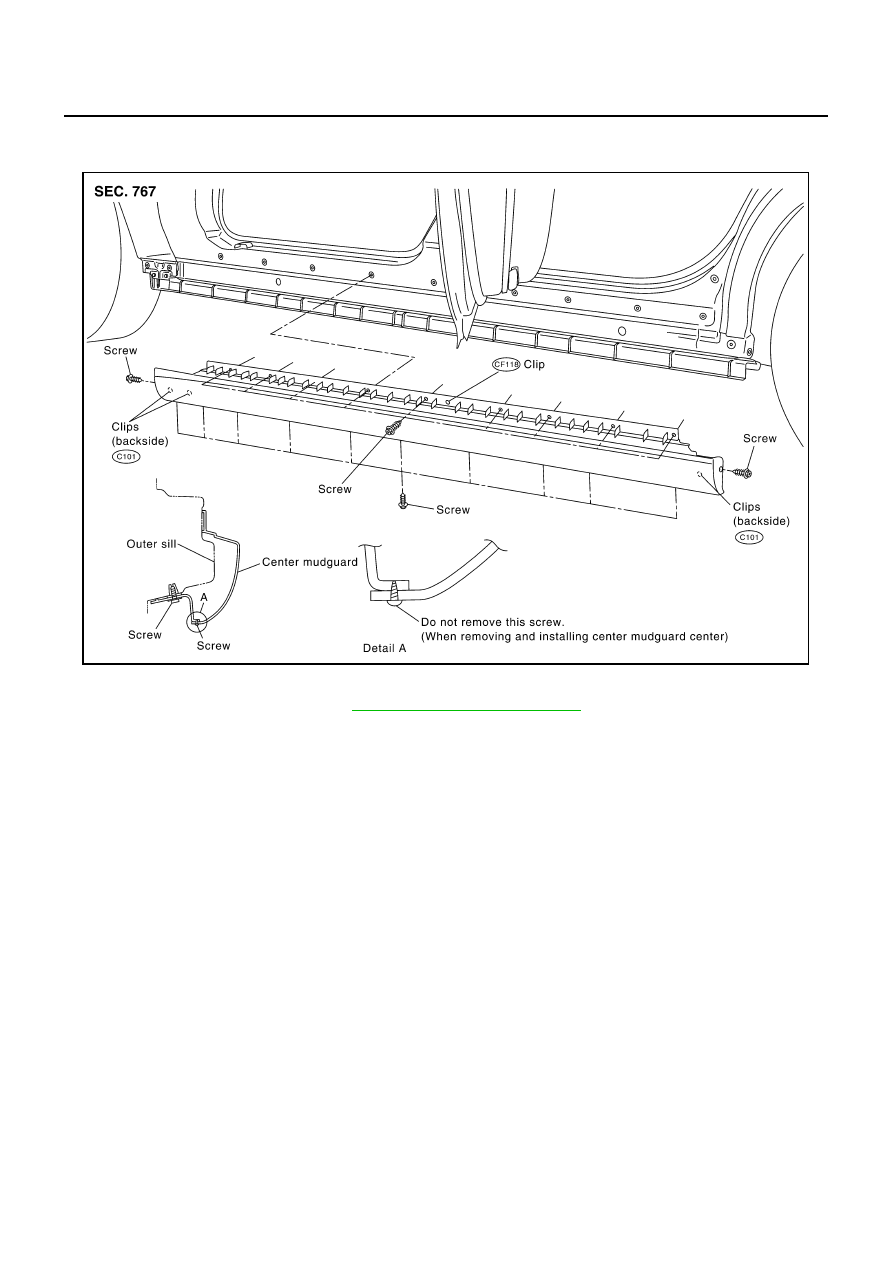

MUDGUARD

MUDGUARD

PFP:63854

Removal and Installation

EIS0013L

REMOVAL

1.

Remove mudguard finisher. Refer to

EI-37, "Removal and Installation"

 .

2.

Remove screws on front and lower side of center mudguard.

3.

Remove clips on front and rear end of center mudguard.

4.

Remove center mudguard.

INSTALLATION

Install in the reverse order of removal.

PIIA0039E

WINDSHIELD MOLDING

EI-23

C

D

E

F

G

H

J

K

L

M

A

B

EI

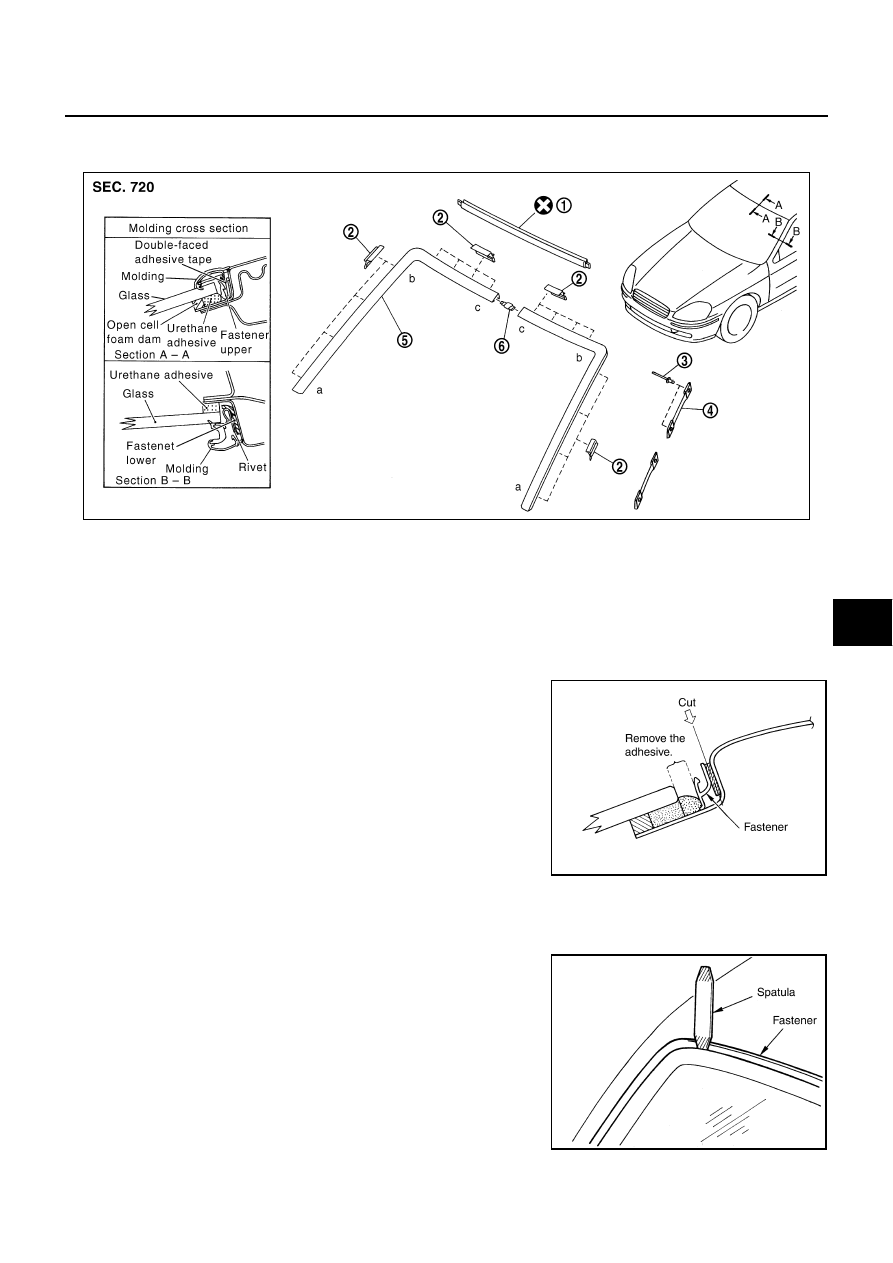

WINDSHIELD MOLDING

PFP:72700

Removal and Installation

EIS0013M

REMOVAL

1.

Apply protective tape around outer circumference of windshield molding.

2.

Remove clips in order of a and b. Pull upper part to outer side of vehicle.

INSTALLATION

1.

Cut double-faced adhesive tape of fastener with cutter knife.
Remove fastener (upper).

2.

Remove any excess glue on windshield or flange with cutter
knife.

3.

Remove remains of double-faced adhesive tape on flange with remover.

CAUTION:

Do not handle remover around fire or flame, or in closed areas.

4.

Fix double-faced adhesive tape on new fastener on flange from
center of vehicle to outer side with spatula.

PIIA0138E

1.

Fastener (upper)

2.

Clip

3.

Rivet

4.

Fastener (lower)

5.

Windshield molding

6.

Joint

SIIA1006E

PIIA0139E

EI-24

WINDSHIELD MOLDING

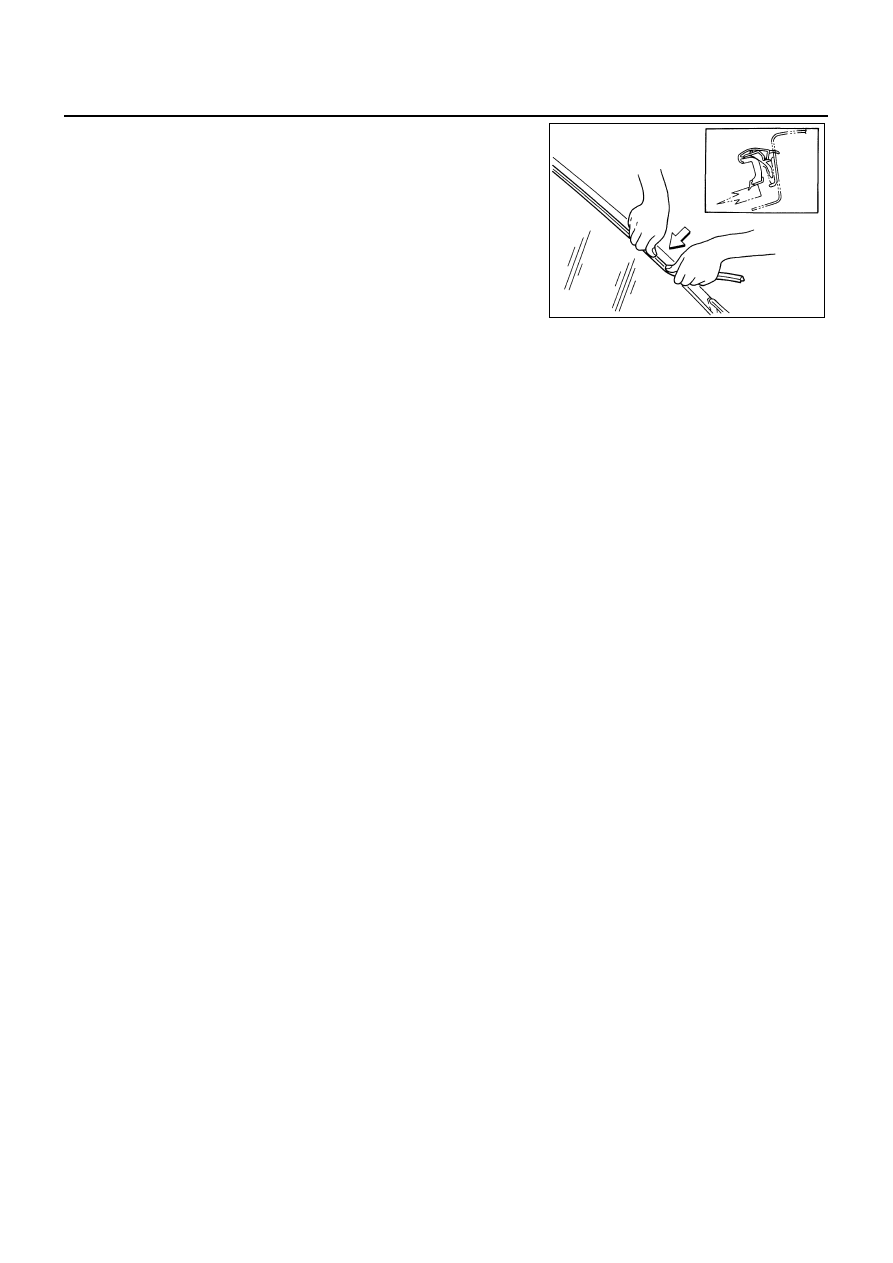

5.

Connect clips in order of a and b.

6.

Connect joint 6, then clips in order of b and c.

PIIA0140J
