Infiniti F50. Manual - part 518

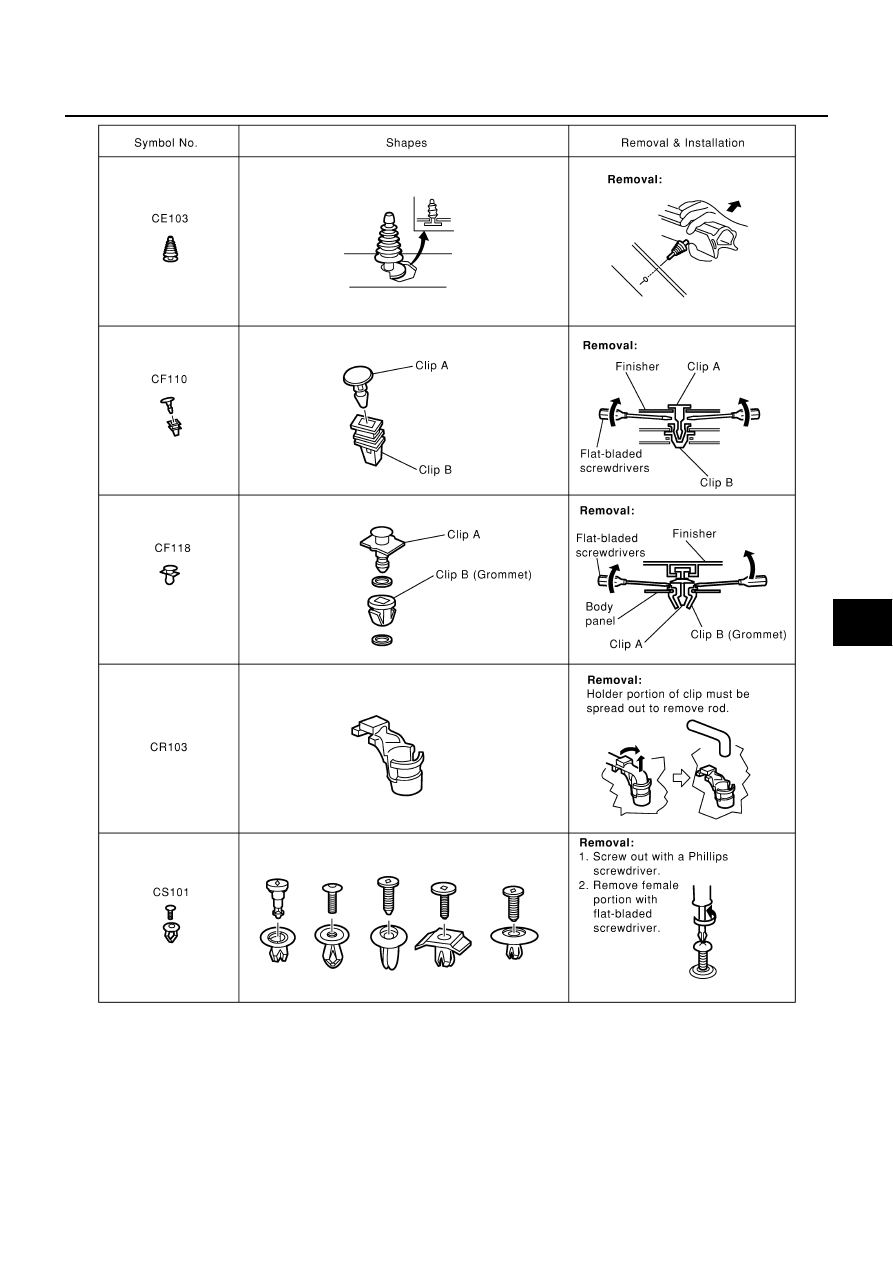

CLIP AND FASTENER

EI-13

C

D

E

F

G

H

J

K

L

M

A

B

EI

SIIA0316E

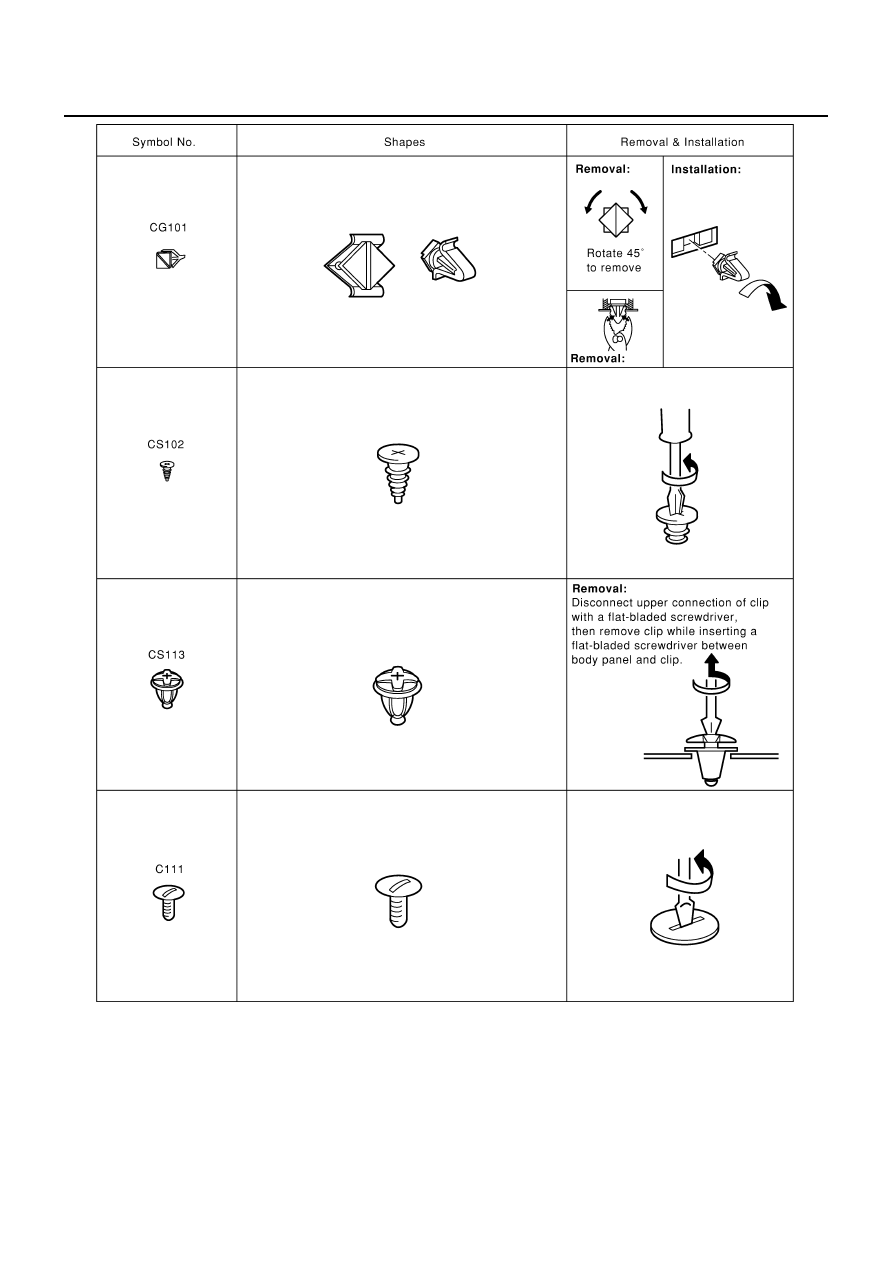

EI-14

CLIP AND FASTENER

SIIA0317E

FRONT BUMPER

EI-15

C

D

E

F

G

H

J

K

L

M

A

B

EI

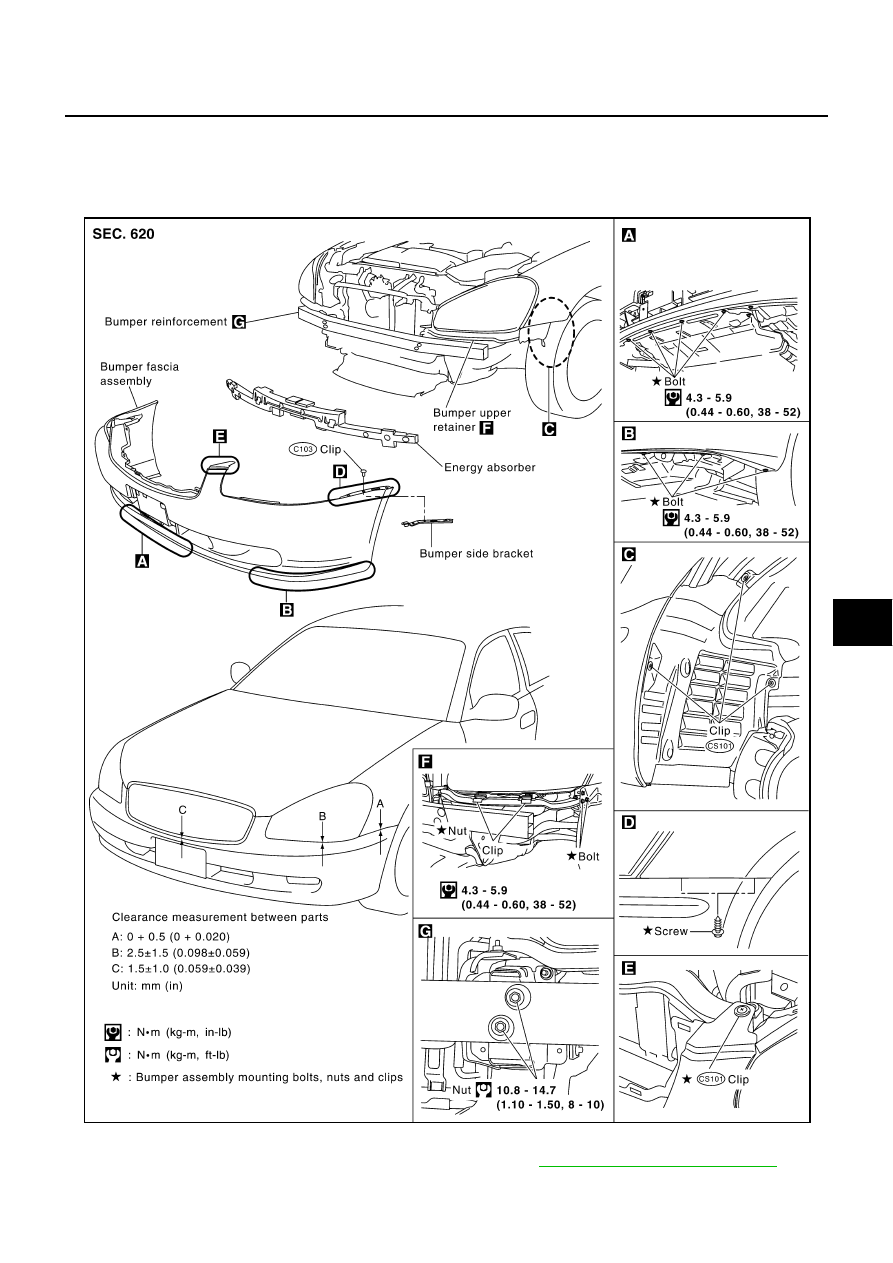

FRONT BUMPER

PFP:F2022

Removal and Installation

EIS0013H

CAUTION:

Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil  away from it.

REMOVAL

1.

Release front air cover clips, and remove front air gide.Refer to

EM-11, "ENGINE ROOM COVER"

 .

PIIA0034E

EI-16

FRONT BUMPER

2.

Remove front grille. Refer to

EI-19, "FRONT GRILLE"

 .

3.

Remove bolts at the edge of engine undercover. (Refer to A shown in the figure)

4.

Remove bolts and clips of both right/left front fender protectors (on front side). (Refer to B and C shown in
the illustration)

5.

Remove bumper fascia screws from both right/left front fenders. (Refer to D shown in the figure)

6.

Remove bumper fascia clips from upper bracket assembly. (Refer to E shown in the figure)

7.

Remove bumper fascia assembly.

8.

Remove bumper reinforcement nuts. (Refer to G shown in the figure)

9.

Remove bumper upper retainer bolts and nuts. (Refer to F shown in the figure)

INSTALLATION

Install in the reverse order of removal.
