Infiniti F50. Manual - part 509





ELECTRICAL LOAD SIGNAL

EC-677

C

D

E

F

G

H

I

J

K

L

M

A

EC

ELECTRICAL LOAD SIGNAL

PFP:25350

Description

EBS00MOL

The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
through the CAN communication line from combination meter to ECM.

CONSULT-II Reference Value in Data Monitor Mode

EBS00MOM

Specification data are reference values.

MONITOR ITEM

CONDITION

SPECIFICATION

LOAD SIGNAL

Ignition switch: ON

Rear window defogger switch is ON
and/or lighting switch is in 2nd.

ON

Rear window defogger switch is OFF
and lighting switch is OFF.

OFF

EC-678

ELECTRICAL LOAD SIGNAL

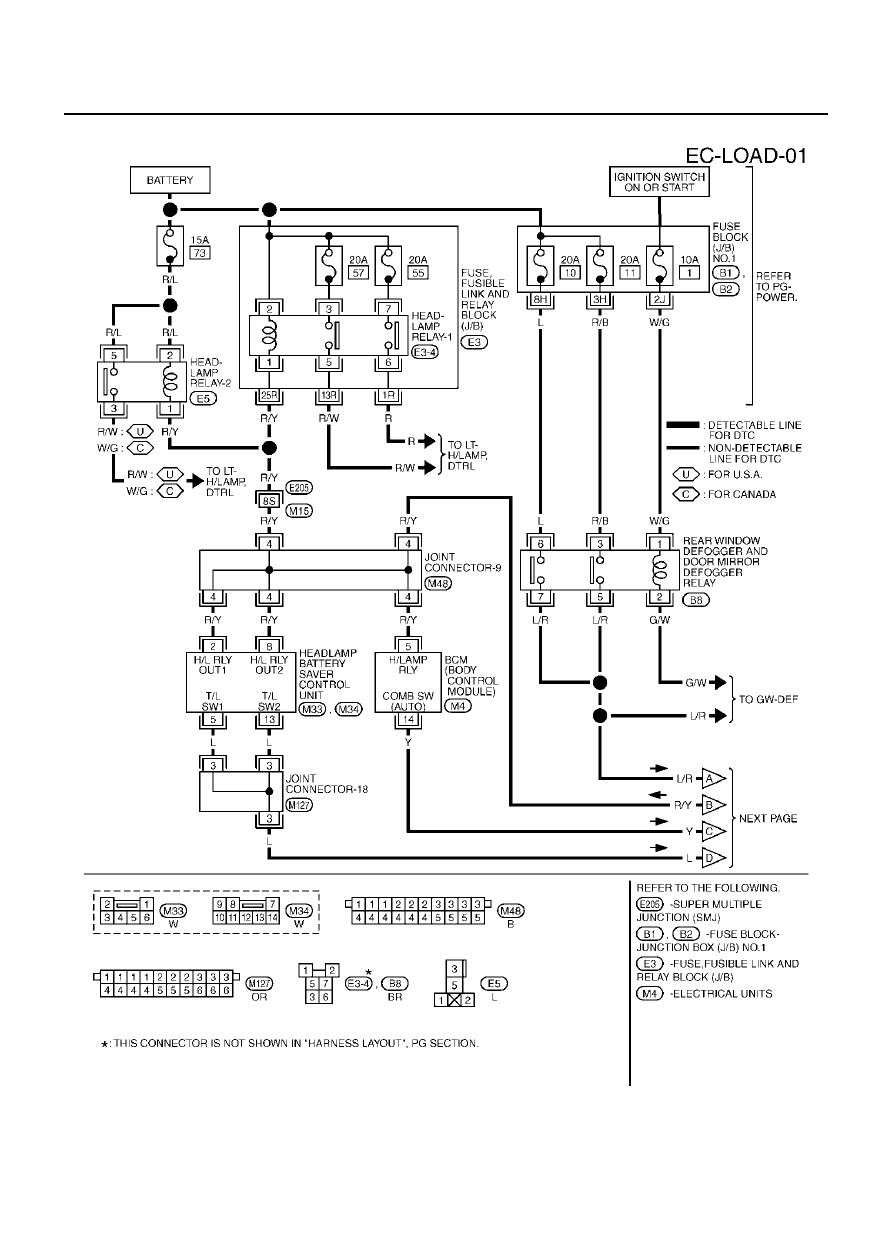

Wiring Diagram

EBS00MON

TBWM0135E

ELECTRICAL LOAD SIGNAL

EC-679

C

D

E

F

G

H

I

J

K

L

M

A

EC

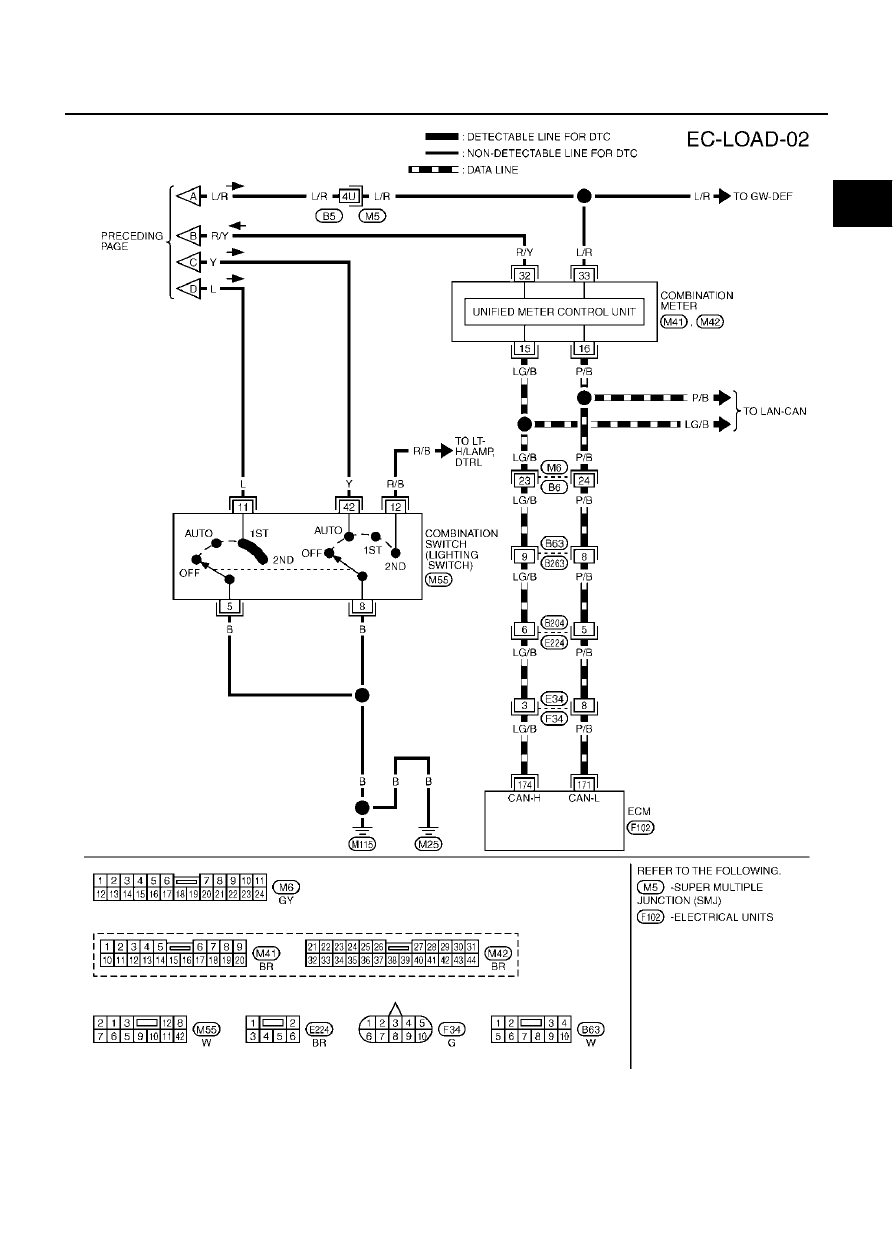

TBWM0136E

EC-680

ELECTRICAL LOAD SIGNAL

Diagnostic Procedure

EBS00MOO

1.

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I

1.

Turn ignition switch “ON”.

2.

Connect CONSULT-II or GST and select “DATA MONITOR” mode.

3.

Select “LOAD SIGNAL” and check indication under the following
conditions.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II

Check “LOAD SIGNAL” indication under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 7.

3.

CHECK REAR WINDOW DEFOGGER FUNCTION

1.

Start engine.

2.

Turn “ON” the rear window defogger switch.

3.

Check the rear windshield. Is the rear windshield heated up?

Yes or No

Yes

>> GO TO 4.

No

>> Check rear window defogger circuit. Refer to

GW-59, "REAR WINDOW DEFOGGER"

 .

4.

CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

1.

Stop engine.

2.

Disconnect rear window defogger and door mirror defogger relay.

3.

Disconnect combination meter harness connector.

4.

Check harness continuity between rear window defogger and door mirror defogger relay terminals 5, 7
and combination meter terminal 33.
Refer to Wiring Diagram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

Condition

Indication

Rear window defogger switch “ON”

ON

Rear window defogger switch “OFF”

OFF

PBIB0103E

Condition

Indication

Lighting switch “ON” at 2nd position

ON

Lighting switch “OFF”

OFF

PBIB0103E

Continuity should exist.
