DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

EC-365

C

D

E

F

G

H

I

J

K

L

M

A

EC

13.

CHECK WATER SEPARATOR

Refer to

EC-338, "Component Inspection"

 .

OK or NG

OK

>> GO TO 14.

NG

>> Replace water separator.

14.

CHECK IF EVAP CANISTER SATURATED WITH WATER

1.

Remove EVAP canister with EVAP canister vent control valve attached.

2.

Check if water will drain from the EVAP canister.

Yes or No

Yes

>> GO TO 15.

No

>> GO TO 17.

15.

CHECK EVAP CANISTER

Weigh the EVAP canister with the EVAP canister vent control valve attached.
The weight should be less than 2.1 kg (4.6 lb).
OK or NG

OK

>> GO TO 17.

NG

>> GO TO 16.

16.

DETECT MALFUNCTIONING PART

Check the following.

●

EVAP canister for damage

●

EVAP hose between EVAP canister and water separator for clogging or poor connection

>> Repair hose or replace EVAP canister.

17.

CHECK INTERMITTENT INCIDENT

Refer to

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

>> INSPECTION END

Component Inspection

EBS00MFA

EVAP CONTROL PRESSURE SENSOR

1.

Remove EVAP control system pressure sensor with its harness connector connected.

CAUTION:

Never apply force to the air hole protector of the sensor if equipped.

2.

Remove hose from EVAP control system pressure sensor.

3.

Install a vacuum pump to EVAP control system pressure sensor.

4.

Turn ignition switch “ON”.

SEF596U

EC-366

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

5.

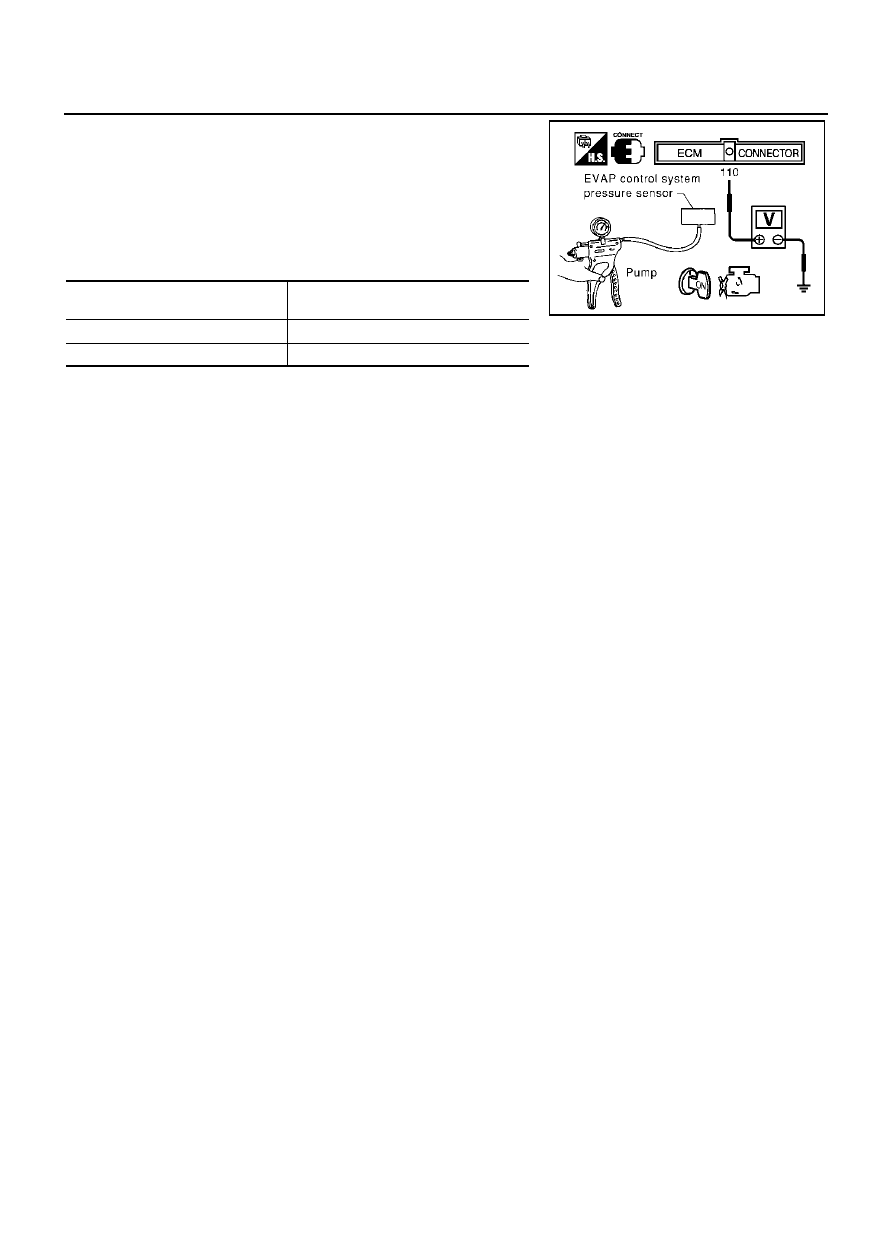

Use pump to apply vacuum and pressure to EVAP control sys-
tem pressure sensor as shown in figure.

CAUTION:

●

Always calibrate the vacuum pump gauge when using it.

●

Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or
pressure over 101.3 kPa (760 mmHg, 29.92 inHg).

6.

Check voltage between ECM terminal 110 and ground with
CONSULT-II or tester.

CAUTION:

Discard any EVAP control system pressure sensor which has dropped from a height of more than
0.5 m (19.7 in) onto a hard surface such a concrete floor; use a new one.

7.

If NG, replace EVAP control system pressure sensor.

Applied vacuum kPa

(mmHg, inHg)

Voltage V

Not applied

1.8 - 4.8

-26.7 (-200 mmHg, -7.87)

2.1 to 2.5V lower than above value

PBIB0156E

DTC P0455 EVAP CONTROL SYSTEM

EC-367

C

D

E

F

G

H

I

J

K

L

M

A

EC

DTC P0455 EVAP CONTROL SYSTEM

PFP:14950

On Board Diagnosis Logic

EBS00MFB

NOTE:
If DTC P0455 is displayed with P1448, first perform trouble diagnosis for DTC P1448. (See

EC-552

 .)

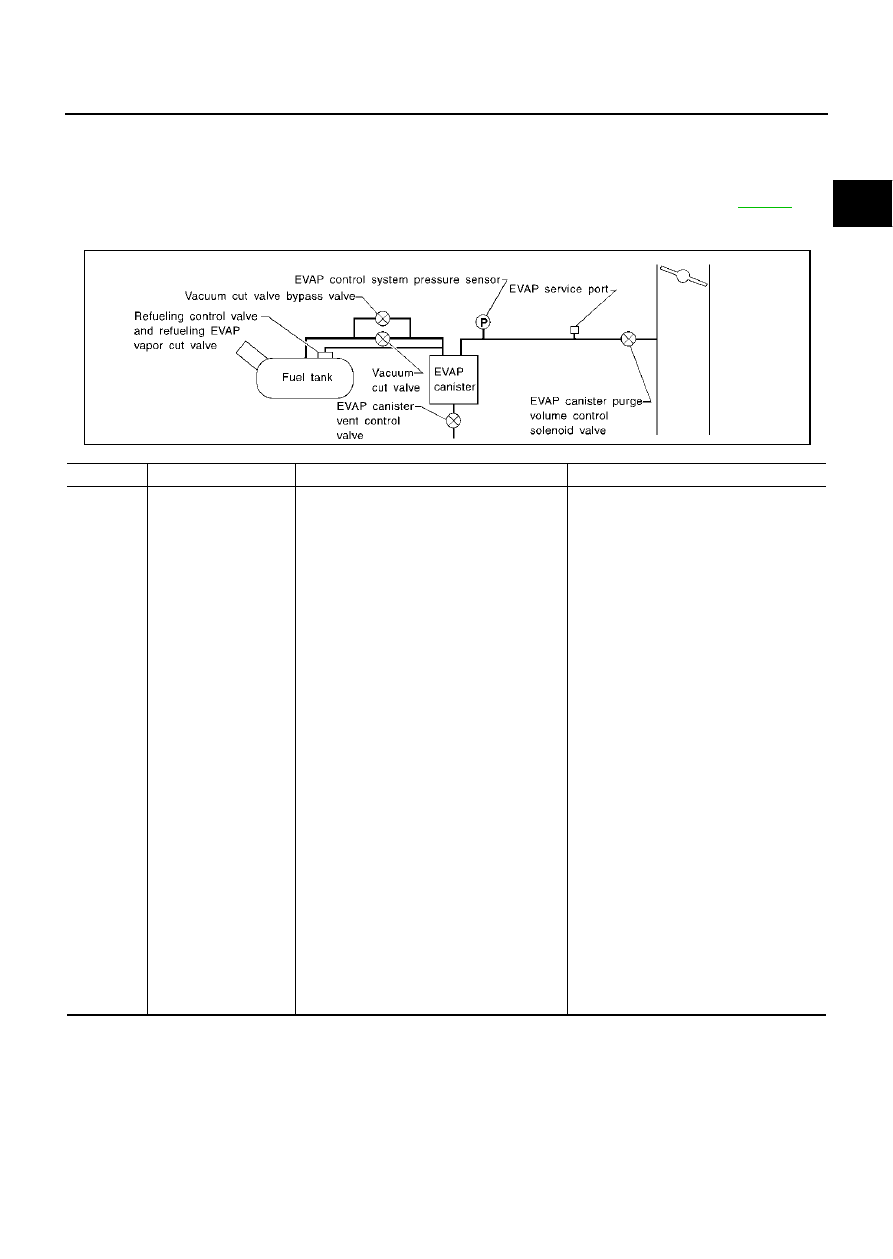

This diagnosis detects a very large leak (fuel filler cap fell off etc.) in EVAP system between the fuel tank and
EVAP canister purge volume control solenoid valve.

CAUTION:

●

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used,
the MIL may come on.

●

If the fuel filler cap is not tightened properly, the MIL may come on.

●

Use only a genuine NISSAN rubber tube as a replacement.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0455
0455

EVAP control system
gross leak detected

EVAP control system has a very large leak
such as fuel filler cap fell off, EVAP control
system does not operate properly.

●

Fuel filler cap remains open or fails to
close.

●

Incorrect fuel tank vacuum relief valve

●

Incorrect fuel filler cap used

●

Foreign matter caught in fuel filler cap.

●

Leak is in line between intake manifold
and EVAP canister purge volume control
solenoid valve.

●

Foreign matter caught in EVAP canister
vent control valve.

●

EVAP canister or fuel tank leaks

●

EVAP purge line (pipe and rubber tube)
leaks

●

EVAP purge line rubber tube bent.

●

Blocked or bent rubber tube to EVAP
control system pressure sensor

●

Loose or disconnected rubber tube

●

EVAP canister vent control valve and the
circuit

●

EVAP canister purge volume control sole-
noid valve and the circuit

●

Fuel tank temperature sensor

●

O-ring of EVAP canister vent control
valve is missing or damaged.

●

EVAP control system pressure sensor

●

Refueling control valve

●

ORVR system leaks

SEF323U

EC-368

DTC P0455 EVAP CONTROL SYSTEM

DTC Confirmation Procedure

EBS00MFC

CAUTION:

Never remove fuel filler cap during the DTC Confirmation Procedure.
NOTE:

●

If DTC P0455 is displayed with P1448, first perform trouble diagnosis for DTC P1448. (See

EC-552

.)

●

Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve
properly.

●

If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and
wait at least 10 seconds before conducting the next test.

TESTING CONDITION:

●

Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is
placed on flat level surface.

●

Open engine hood before conducting the following procedures.

 WITH CONSULT-II

1.

Tighten fuel filler cap securely until ratcheting sound is heard.

2.

Turn ignition switch “ON”.

3.

Turn ignition switch “OFF” and wait at least 10 seconds.

4.

Turn ignition switch “ON” and select “DATA MONITOR” mode with CONSULT-II.

5.

Make sure that the following conditions are met.
COOLAN TEMP/S: 0 - 70

°

C (32 - 158

°

F)

INT/A TEMP SE: 0 - 60

°

C (32 - 140

°

F)

6.

Select “EVAP SML LEAK P0442/P1442” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-II.
Follow the instruction displayed.

NOTE:
If the engine speed cannot be maintained within the range displayed on the CONSULT-II screen, go to

EC-82, "Basic Inspection"

 .

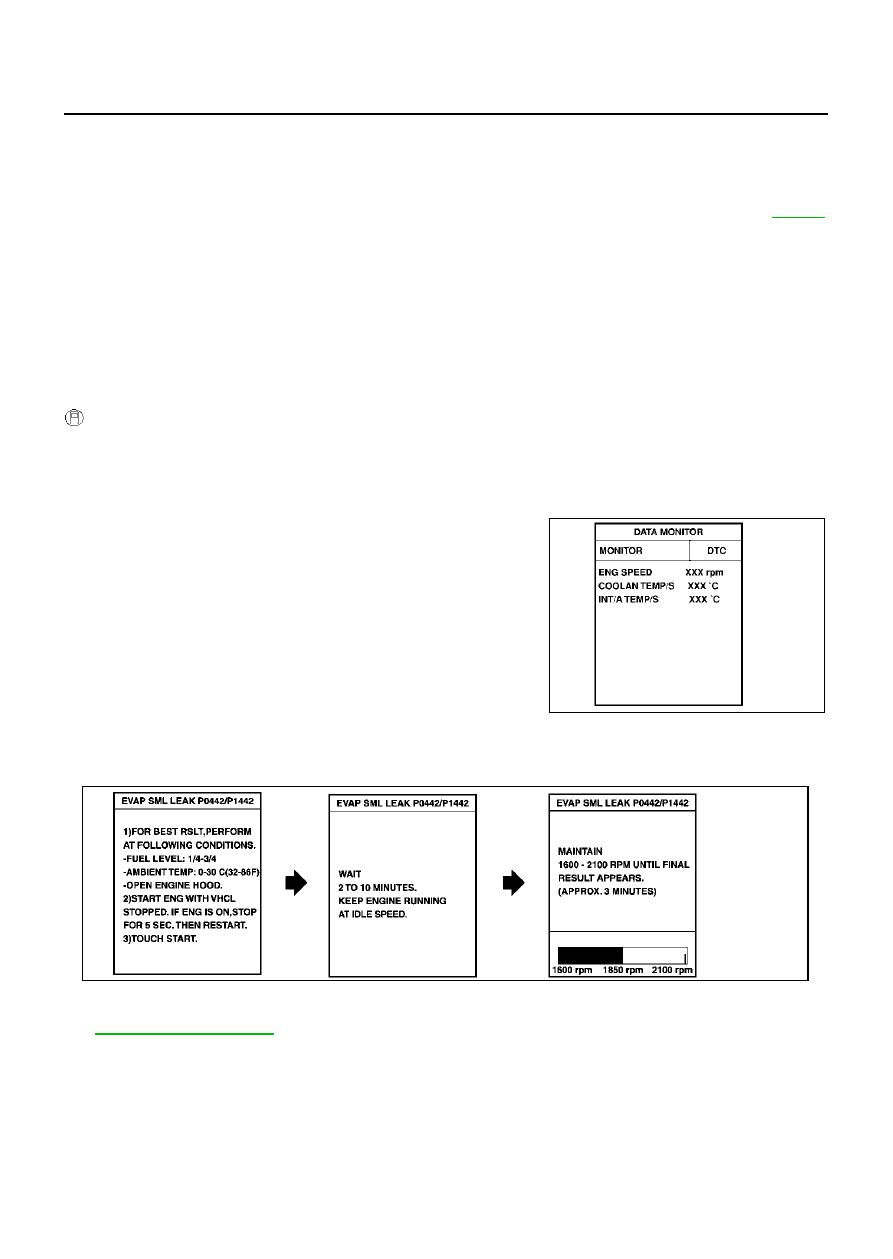

SEF475Y

PBIB0829E
