TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-129

C

D

E

F

G

H

I

J

K

L

M

A

EC

Diagnostic Procedure

EBS00LWD

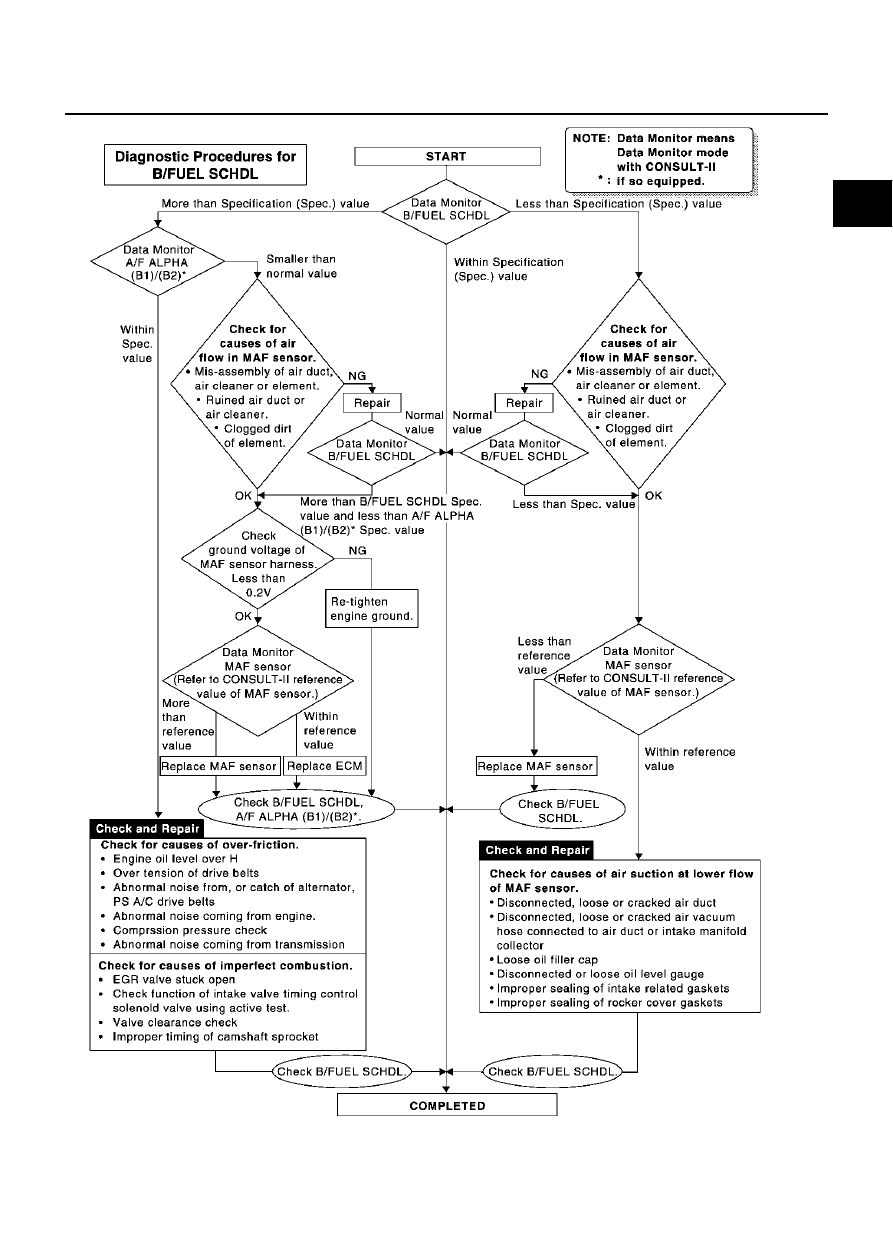

SEF613ZD

EC-130

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

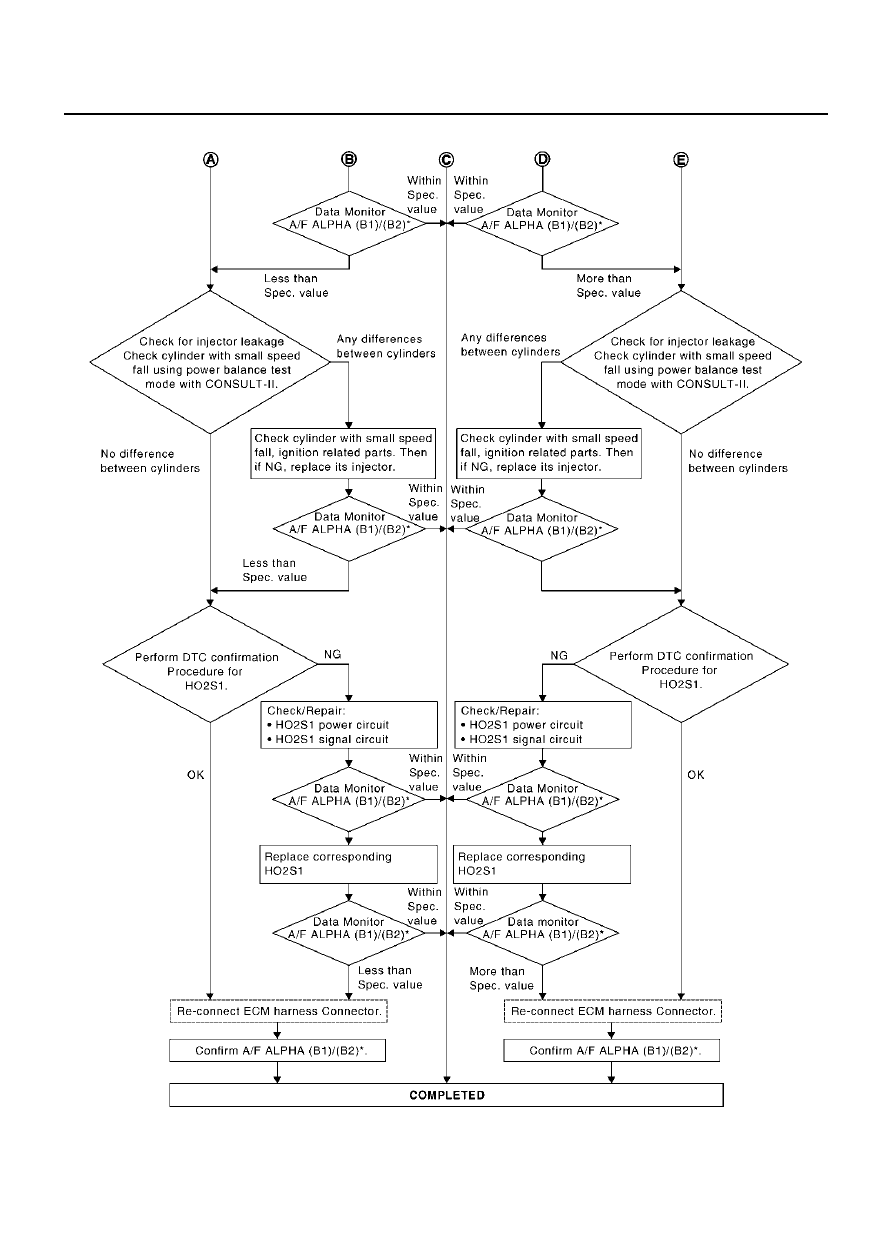

SEF768Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-131

C

D

E

F

G

H

I

J

K

L

M

A

EC

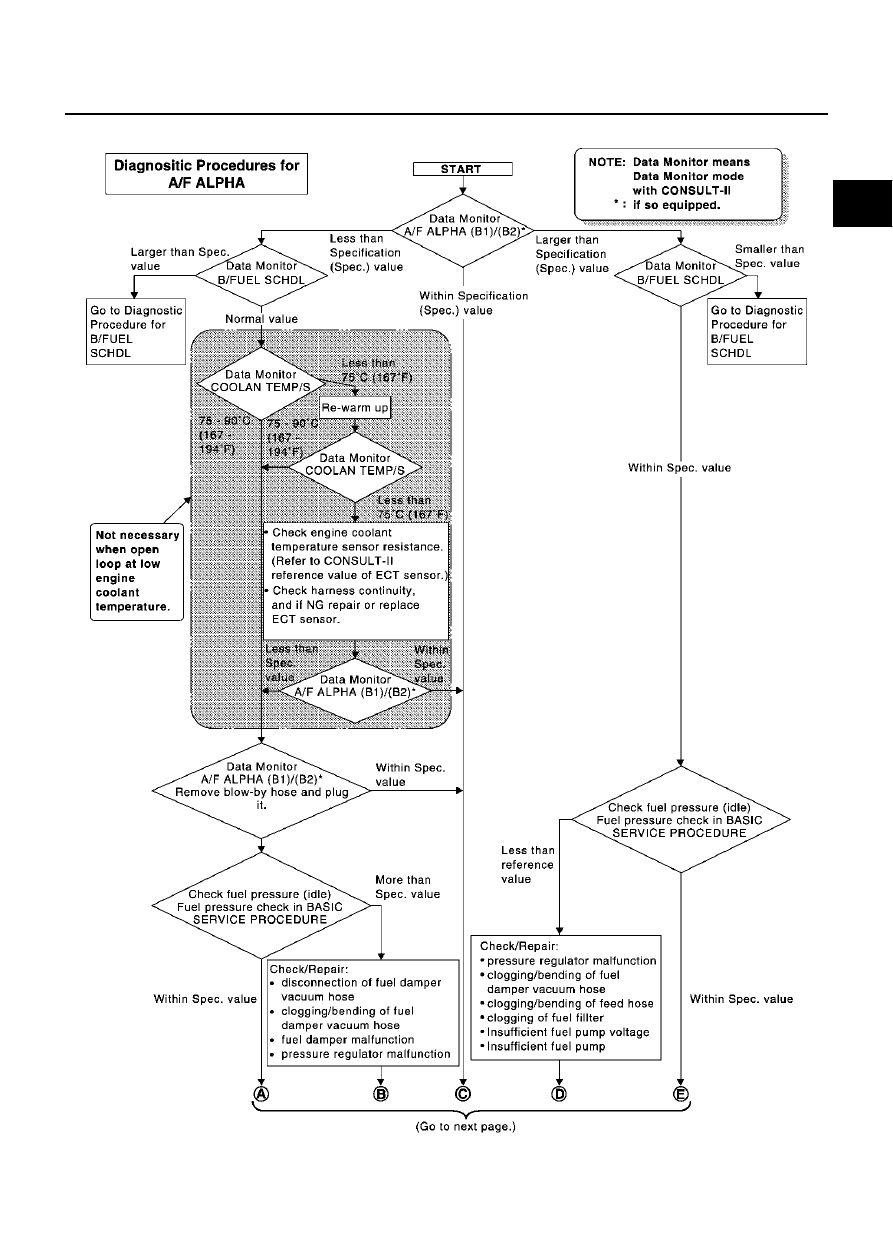

SEF615ZA

EC-132

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

PFP:00006

Description

EBS00LWE

Intermittent incidents (I/I) may occur. In many cases, the malfunction resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent cause of I/I occur-
rences is poor electrical connections. Because of this, the conditions under which the incident occurred may
not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indicate the
specific malfunctioning area.

Common I/I Report Situations

Diagnostic Procedure

EBS00LWF

1.

INSPECTION START

Erase (1st trip) DTCs. Refer to

EC-63, "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMA-

TION"

 .

>> GO TO 2.

2.

CHECK GROUND TERMINALS

Check ground terminals for corroding or loose connection.
Refer to

GI-26, "How to Perform Efficient Diagnosis for an Electrical Incident"

 , “CIRCUIT INSPECTION”,

“Ground Inspection”.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

SEARCH FOR ELECTRICAL INCIDENT

Perform

GI-26, "How to Perform Efficient Diagnosis for an Electrical Incident"

 , “INCIDENT SIMULATION

TESTS”.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace.

4.

CHECK CONNECTOR TERMINALS

Refer to

GI-23, "How to Check Terminal"

 , “HOW TO PROBE CONNECTORS”, “How to Check Enlarged Con-

tact Spring of Terminal”.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace connector.

STEP in Work Flow

Situation

II

The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than “0” or “[1t]”.

III

The symptom described by the customer does not recur.

IV

(1st trip) DTC does not appear during the DTC Confirmation Procedure.

VI

The Diagnostic Procedure for PXXXX does not indicate the malfunctioning area.
