ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-73

C

D

E

F

G

H

I

J

K

L

M

A

EC

EXPLANATION FOR DRIVING PATTERNS EXCEPT  FOR “MISFIRE <EXHAUST QUALITY
DETERIORATION>”, “FUEL INJECTION SYSTEM”

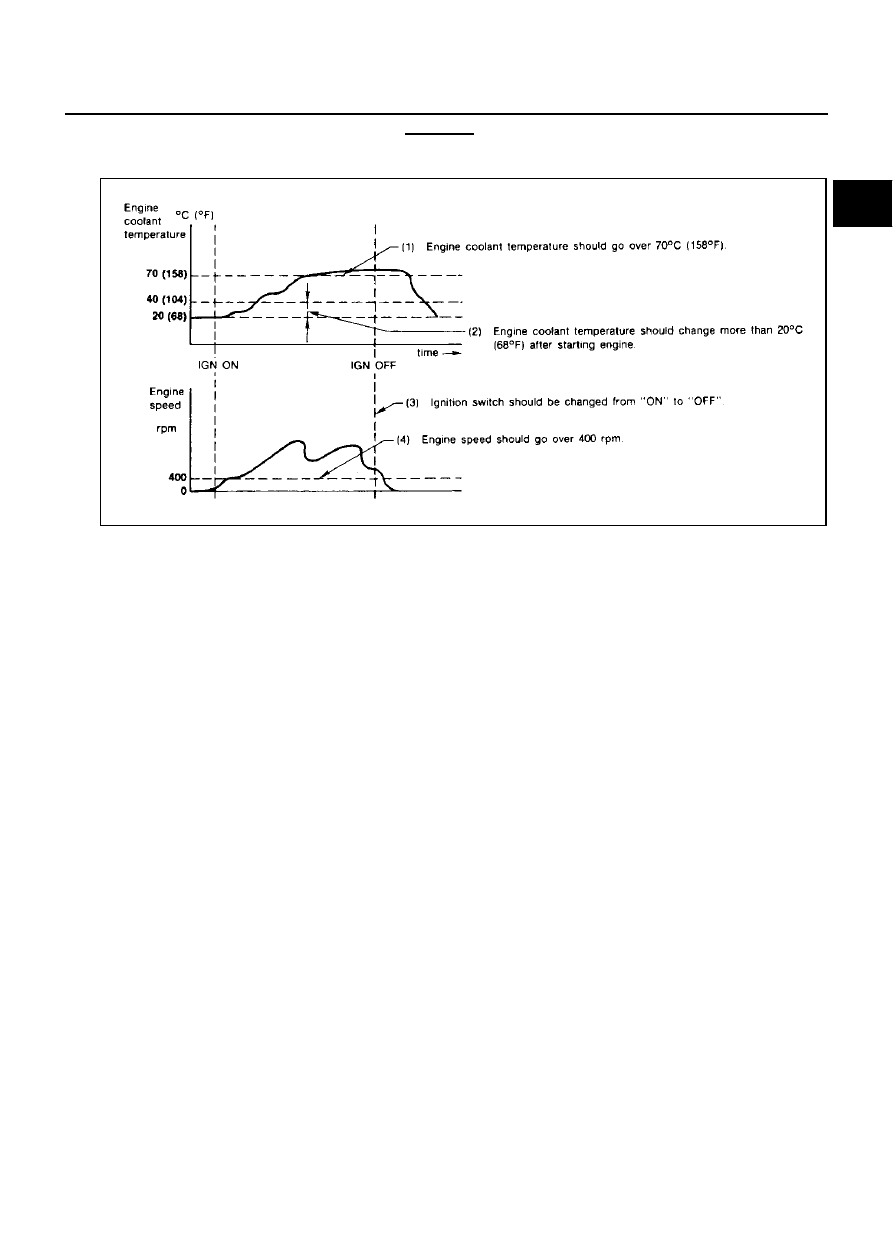

<Driving Pattern A>

The A counter will be cleared when the malfunction is detected regardless of (1) - (4).

The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.

The DTC will not be displayed after the A counter reaches 40.

<Driving Pattern B>

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.

The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.

The B counter will be counted up when driving pattern B is satisfied without any malfunctions.

The MIL will go off when the B counter reaches 3 (*2 in “OBD SYSTEM OPERATION CHART”).

AEC574

EC-74

TROUBLE DIAGNOSIS

TROUBLE DIAGNOSIS

PFP:00004

Trouble Diagnosis Introduction

EBS00LVV

INTRODUCTION

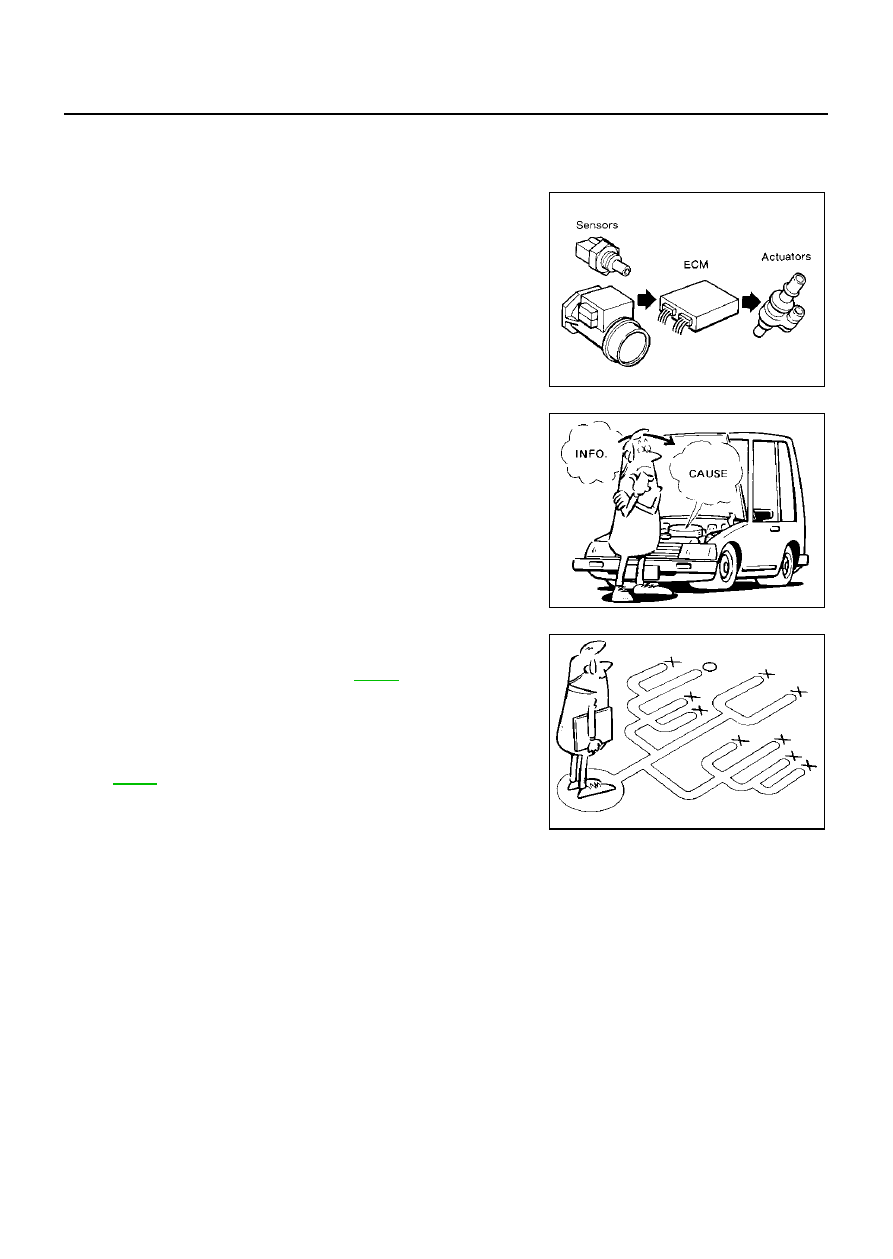

The engine has an ECM to control major systems such as fuel con-
trol, ignition control, idle air control system, etc. The ECM accepts
input signals from sensors and instantly drives actuators. It is essen-
tial that both input and output signals are proper and stable. At the
same time, it is important that there are no incidents such as vacuum
leaks, fouled spark plugs, or other incidents with the engine.

It is much more difficult to diagnose an incident that occurs intermit-
tently rather than continuously. Most intermittent incidents are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.

A visual check only may not find the cause of the incidents. A road
test with CONSULT-II (or GST) or a circuit tester connected should
be performed. Follow the “Work Flow” on

EC-75

 .

Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such incidents, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A “Diagnostic Worksheet” like the exam-
ple on

EC-77

  should be used.

Start your diagnosis by looking for “conventional” malfunctions first.
This will help troubleshoot driveability malfunctions on an electroni-
cally controlled engine vehicle.

MEF036D

SEF233G

SEF234G

TROUBLE DIAGNOSIS

EC-75

C

D

E

F

G

H

I

J

K

L

M

A

EC

WORK FLOW

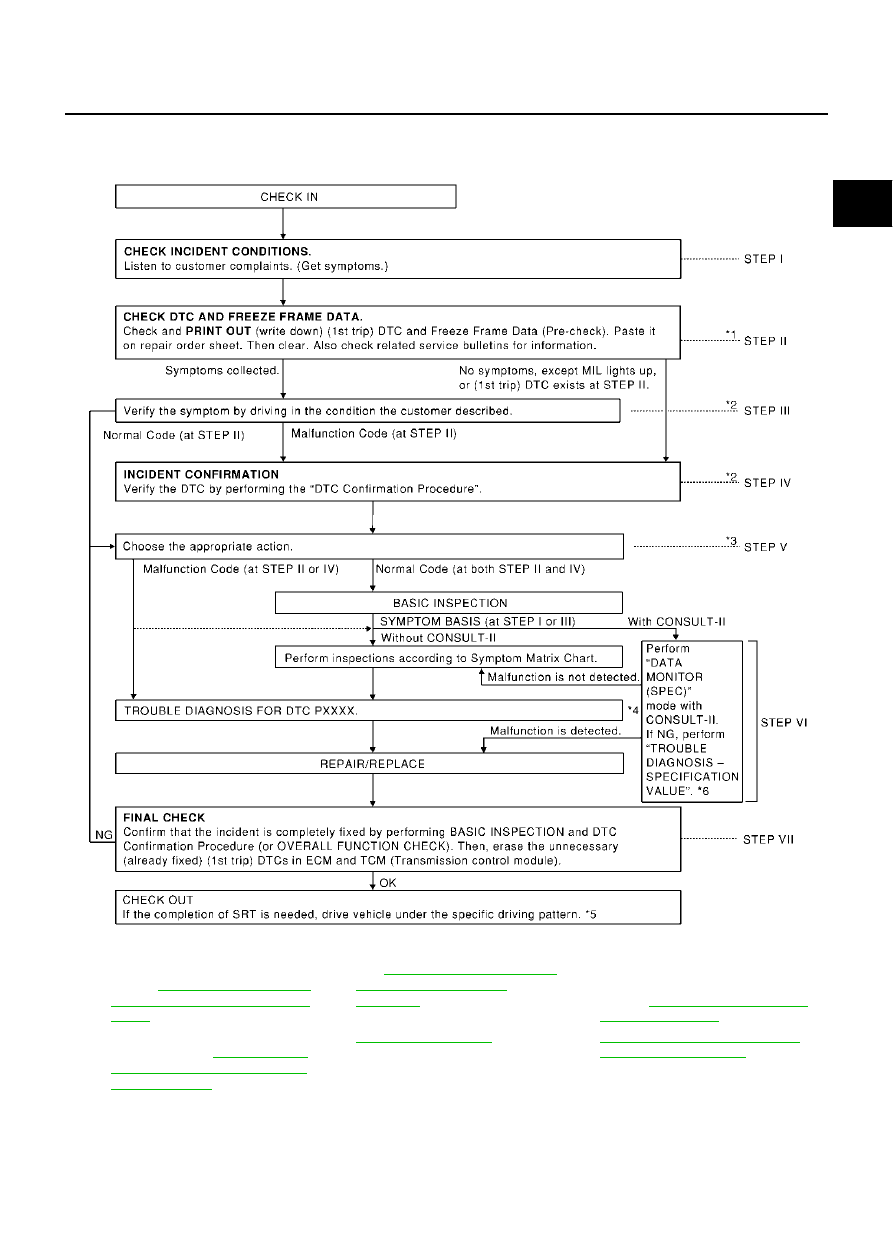

Flow Chart

*1

If time data of “SELF-DIAG
RESULTS” is other than “0” or “[1t]”,
perform

EC-132, "TROUBLE DIAG-

NOSIS FOR INTERMITTENT INCI-
DENT"

 .

*2

If the incident cannot be verified, per-
form

EC-132, "TROUBLE DIAGNO-

SIS FOR INTERMITTENT
INCIDENT"

 .

*3

If the on board diagnostic system
cannot be performed, check main
power supply and ground circuit.
Refer to

EC-133, "POWER SUPPLY

CIRCUIT FOR ECM"

 .

*4

If malfunctioning part cannot be
detected, perform

EC-132, "TROU-

BLE DIAGNOSIS FOR INTERMIT-
TENT INCIDENT"

 .

*5

EC-61, "Driving Pattern"

*6

EC-128, "TROUBLE DIAGNOSIS -
SPECIFICATION VALUE"

PBIB1043E

EC-76

TROUBLE DIAGNOSIS

Description for Work Flow

STEP

DESCRIPTION

STEP I

Get detailed information about the conditions and the environment when the incident/symptom occurred using the
“DIAGNOSTIC WORK SHEET”,

EC-77

 .

STEP II

Before confirming the concern, check and write down (print out using CONSULT-II or GST) the (1st trip) DTC and the
(1st trip) freeze frame data, then erase the DTC and the data. (Refer to

EC-63, "HOW TO ERASE EMISSION-

RELATED DIAGNOSTIC INFORMATION"

 .) The (1st trip) DTC and the (1st trip) freeze frame data can be used when

duplicating the incident at STEP III & IV.
If the incident cannot be verified, perform

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

Study the relationship between the cause, specified by (1st trip) DTC, and the symptom described by the customer.
(The “Symptom Matrix Chart” will be useful. See

EC-87, "Symptom Matrix Chart"

 .)

Also check related service bulletins for information.

STEP III

Try to confirm the symptom and under what conditions the incident occurs.
The “DIAGNOSTIC WORK SHEET” and the freeze frame data are useful to verify the incident. Connect CONSULT-II
to the vehicle in DATA MONITOR (AUTO TRIG) mode and check real time diagnosis results.
If the incident cannot be verified, perform

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

If the malfunction code is detected, skip STEP IV and perform STEP V.

STEP IV

Try to detect the (1st trip) DTC by driving in (or performing) the “DTC Confirmation Procedure”. Check and read the
(1st trip) DTC and (1st trip) freeze frame data by using CONSULT-II or GST.
During the (1st trip) DTC verification, be sure to connect CONSULT-II to the vehicle in DATA MONITOR (AUTO TRIG)
mode and check real time diagnosis results.
If the incident cannot be verified, perform

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

 .

In case the “DTC Confirmation Procedure” is not available, perform the “Overall Function Check” instead. The (1st
trip) DTC cannot be displayed by this check, however, this simplified “check” is an effective alternative.
The “NG” result of the “Overall Function Check” is the same as the (1st trip) DTC detection.

STEP V

Take the appropriate action based on the results of STEP I through IV.
If the malfunction code is indicated, proceed to TROUBLE DIAGNOSIS FOR DTC PXXXX.
If the normal code is indicated, proceed to the BASIC INSPECTION. (Refer to

EC-82, "Basic Inspection"

 .) Then per-

form inspections according to the Symptom Matrix Chart. (Refer to

EC-87, "Symptom Matrix Chart"

 .)

STEP VI

Identify where to begin diagnosis based on the relationship study between symptom and possible causes. Inspect the
system for mechanical binding, loose connectors or wiring damage using (tracing) “Harness Layouts”.
Gently shake the related connectors, components or wiring harness with CONSULT-II set in “DATA MONITOR
(AUTO TRIG)” mode.
Check the voltage of the related ECM terminals or monitor the output data from the related sensors with CONSULT-II.
Refer to

EC-99, "ECM Terminals and Reference Value"

 ,

EC-123, "CONSULT-II Reference Value in Data Monitor

Mode"

 .

The “Diagnostic Procedure” in EC section contains a description based on open circuit inspection. A short circuit
inspection is also required for the circuit check in the Diagnostic Procedure. For details, refer to “Circuit Inspection” in

GI-26, "How to Perform Efficient Diagnosis for an Electrical Incident"

 .

Repair or replace the malfunction parts.
If malfunctioning part cannot be detected, perform

EC-132, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-

DENT"

 .

STEP VII

Once you have repaired the circuit or replaced a component, you need to run the engine in the same conditions and
circumstances which resulted in the customer's initial complaint.
Perform the “DTC Confirmation Procedure” and confirm the normal code [DTC No. P0000] is detected. If the incident
is still detected in the final check, perform STEP VI by using a method different from the previous one.
Before returning the vehicle to the customer, be sure to erase the unnecessary (already fixed) (1st trip) DTC in ECM
and TCM (Transmission control module). (Refer to

EC-63, "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC

INFORMATION"

  and

AT-39, "HOW TO ERASE DTC"

  .)
