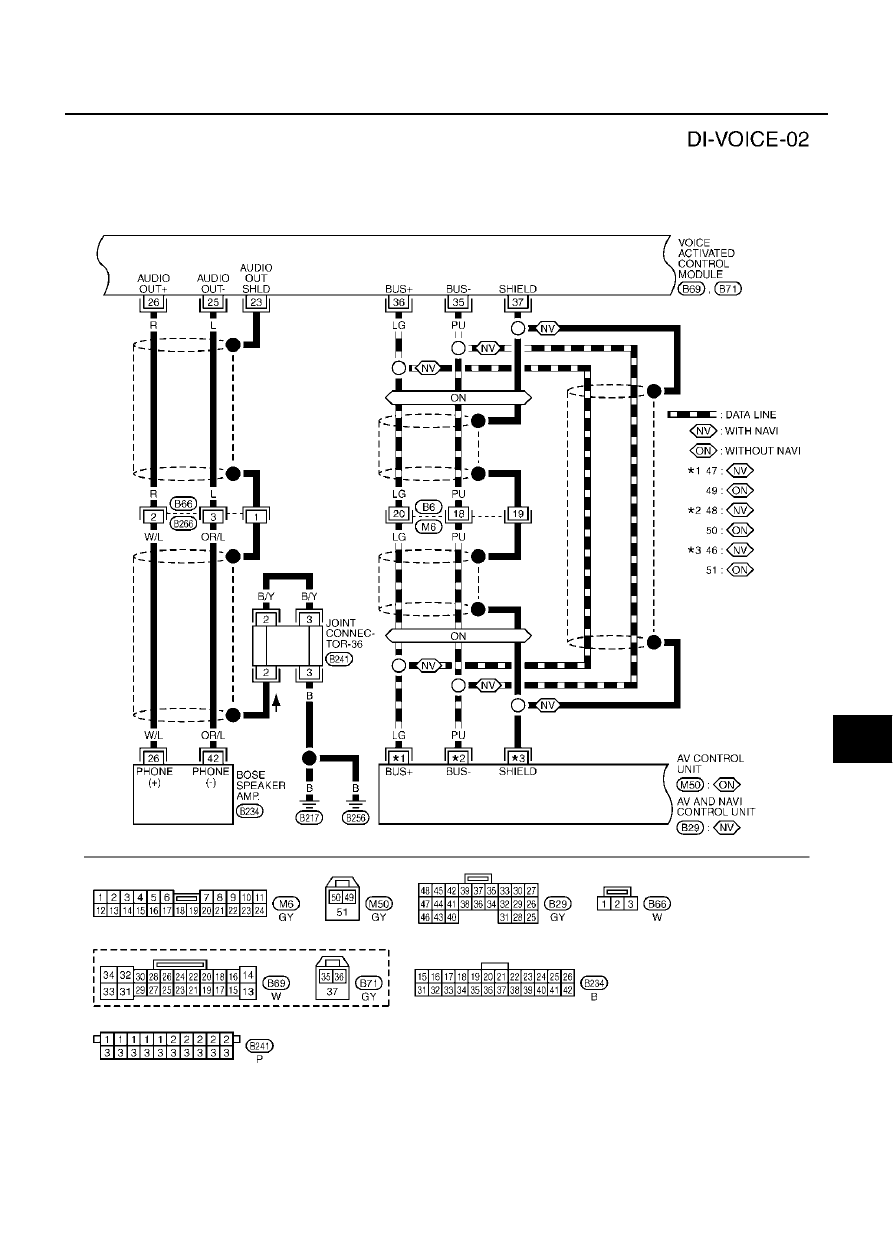

VOICE ACTIVATED CONTROL SYSTEM

DI-187

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM0289E

DI-188

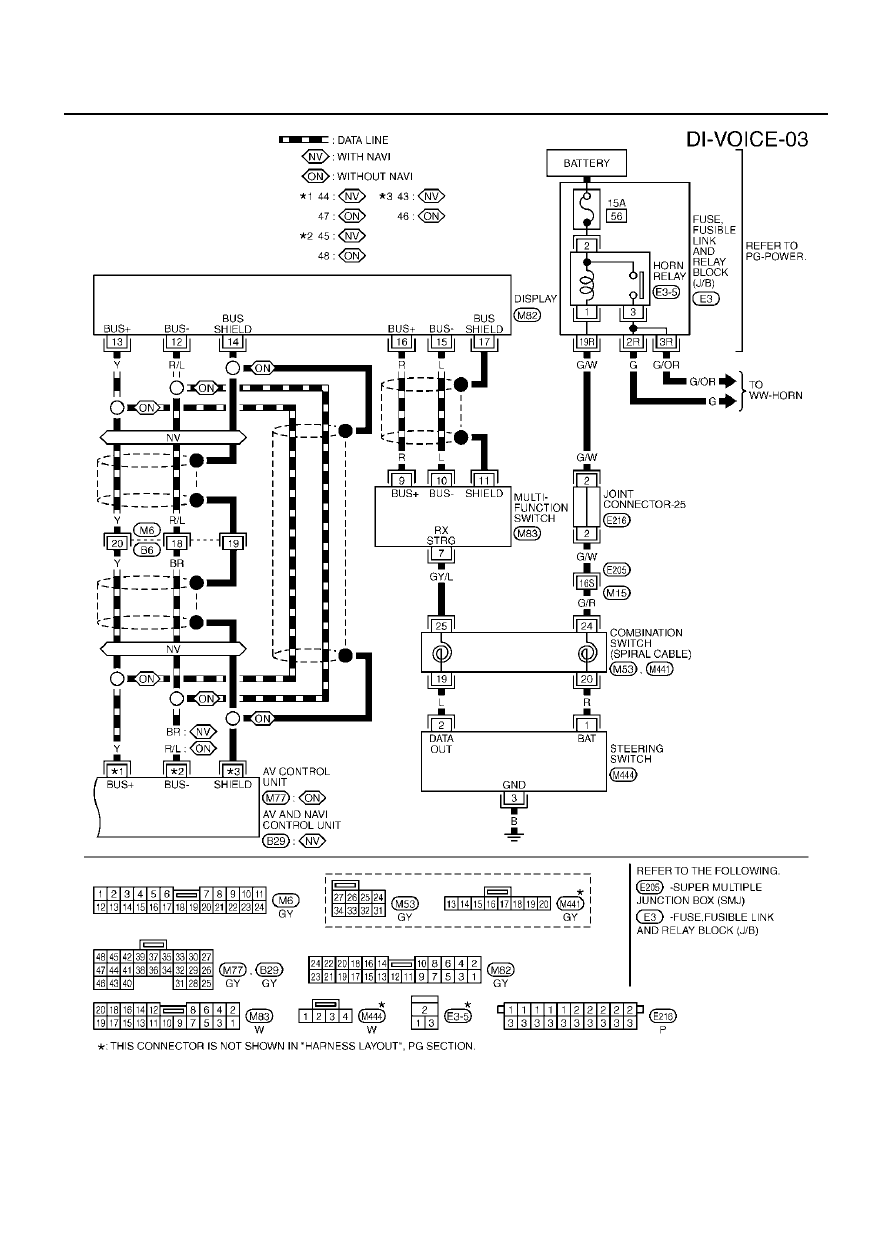

VOICE ACTIVATED CONTROL SYSTEM

TKWM0290E

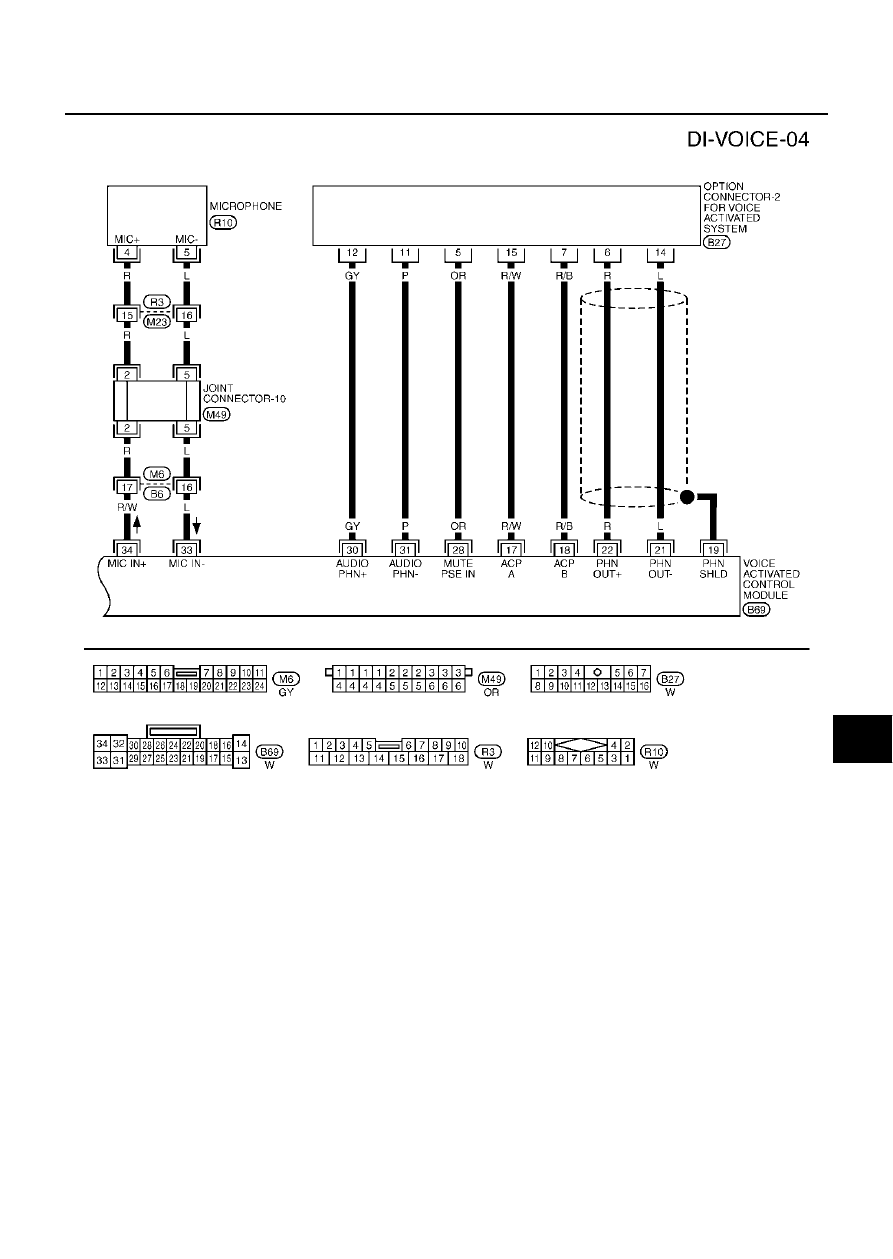

VOICE ACTIVATED CONTROL SYSTEM

DI-189

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM0291E

DI-190

VOICE ACTIVATED CONTROL SYSTEM

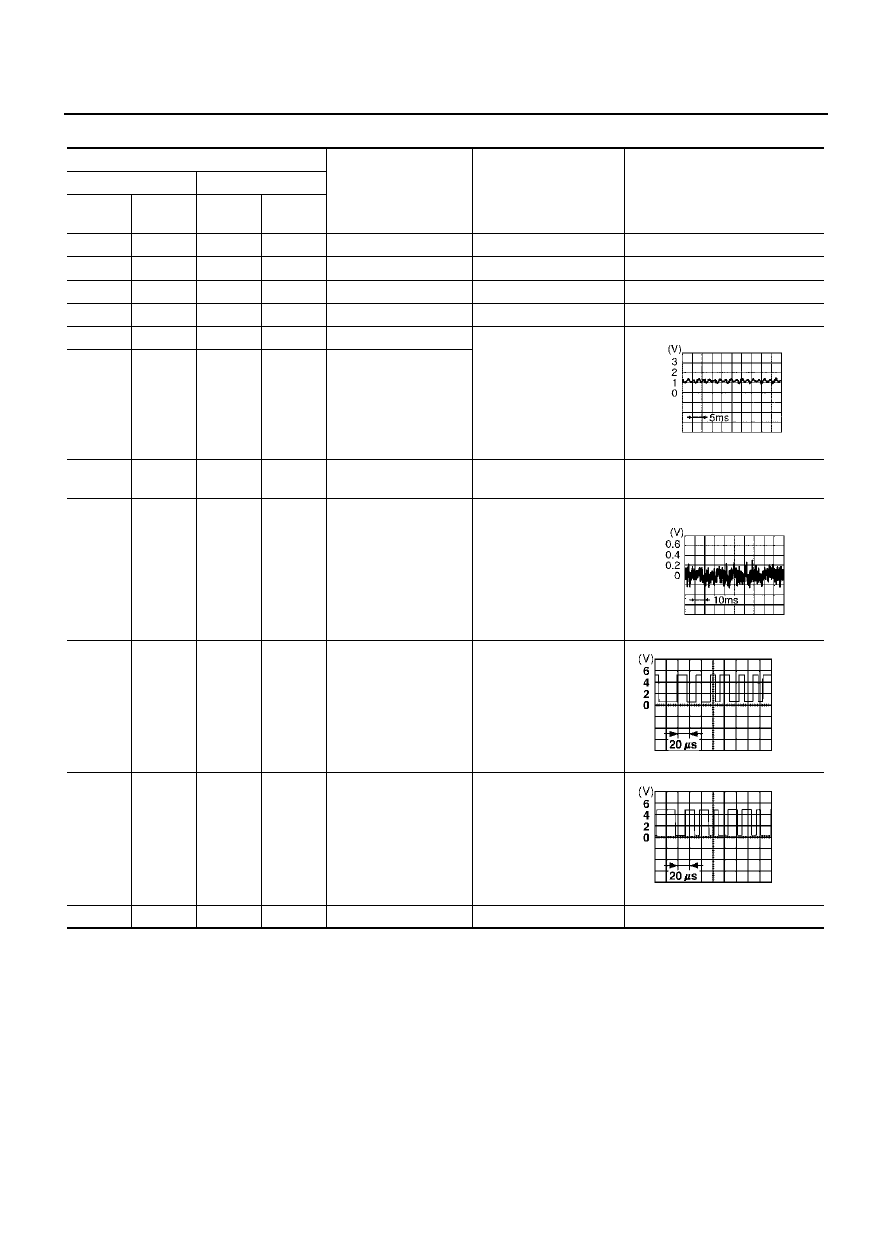

Terminals and Reference Values for Voice Activated Control Module

EKS0017E

Terminals

Item

Condition

Reference value (V)

(+)

(–)

Terminal

No.

Wire

color

Terminal

No.

Wire

color

13

SB

Ground

–

Power source (BAT)

–

Battery voltage

14

B

Ground

–

Ground

–

Approx. 0

20

L/OR

Ground

–

Ignition switch (ACC)

ACC

Battery voltage

23

–

–

–

Audio shield ground

–

–

25

L

23

–

Audio output (–)

Voice guide operates.

26

R

23

–

Audio output (+)

27

Y/R

Ground

–

Mute

PTT switch (not operate

→

 operate)

Approx. 5

→

 Approx. 0

34

R/W

33

L

Mic input

Voice mic test operates.

35

PU

37

–

Communication signal
(–)

–

36

LG

37

–

Communication signal
(+)

–

37

–

–

–

Shield ground

–

–
