Infiniti F50. Manual - part 323

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

DI-135

C

D

E

F

G

H

I

J

L

M

A

B

DI

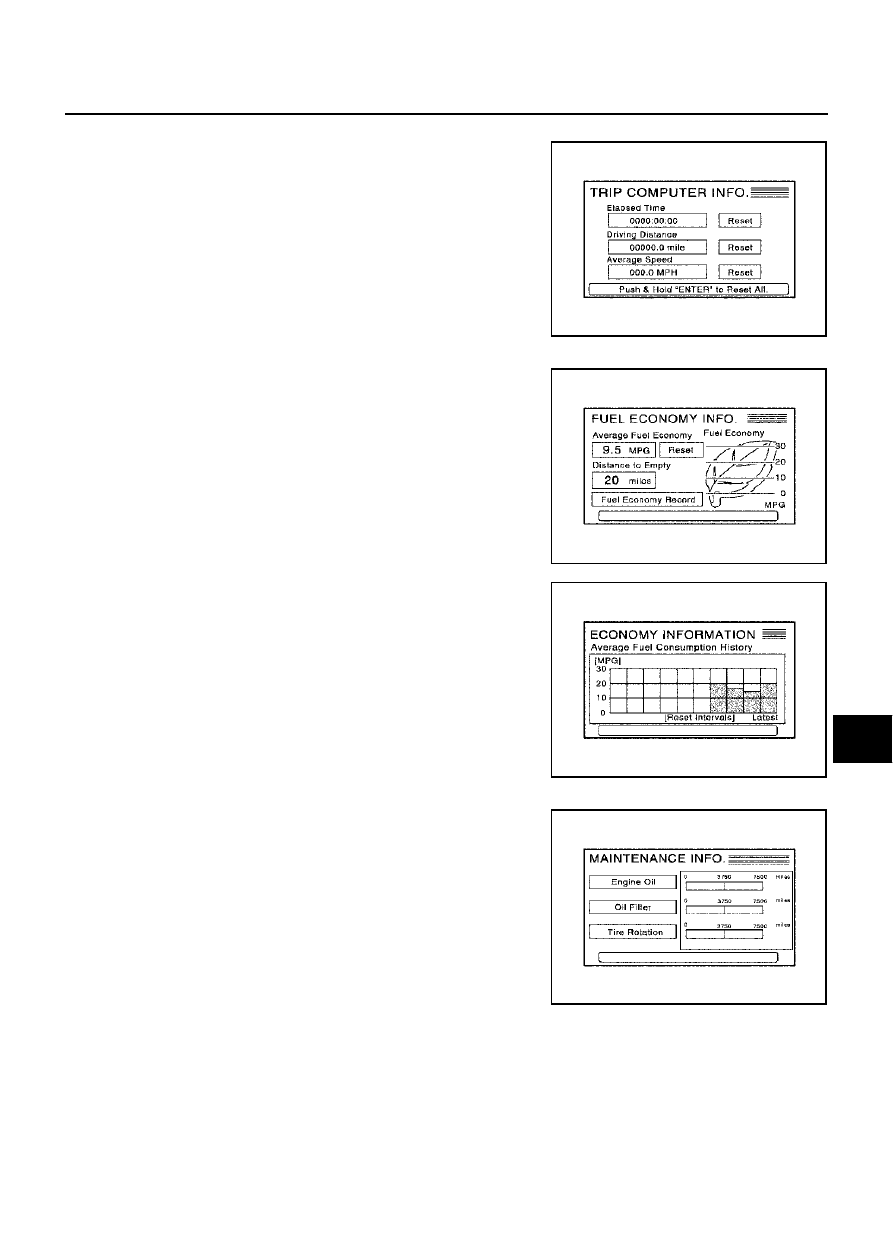

Trip Computer Information

1.

Select “Trip Computer”

2.

Elapsed time, Driving distance and Average speed are dis-
played as Trip Computer information.

Fuel Economy Information

1.

Select “Fuel Economy”

2.

Average Fuel Economy, Distance to Empty, Fuel Economy are
displayed as Fuel Economy information.

3.

Select “Fuel Economy Record”. The average fuel consumption
history will be displayed in graph along with the average for the
previous Reset – to – Reset period.

Maintenance Information

1.

Select “Maintenance”

2.

Engine Oil, Oil Filter and Tire Rotation are displayed as Mainte-
nance information.

SKIA0601E

SKIA0602E

SKIA0603E

SKIA0604E

DI-136

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

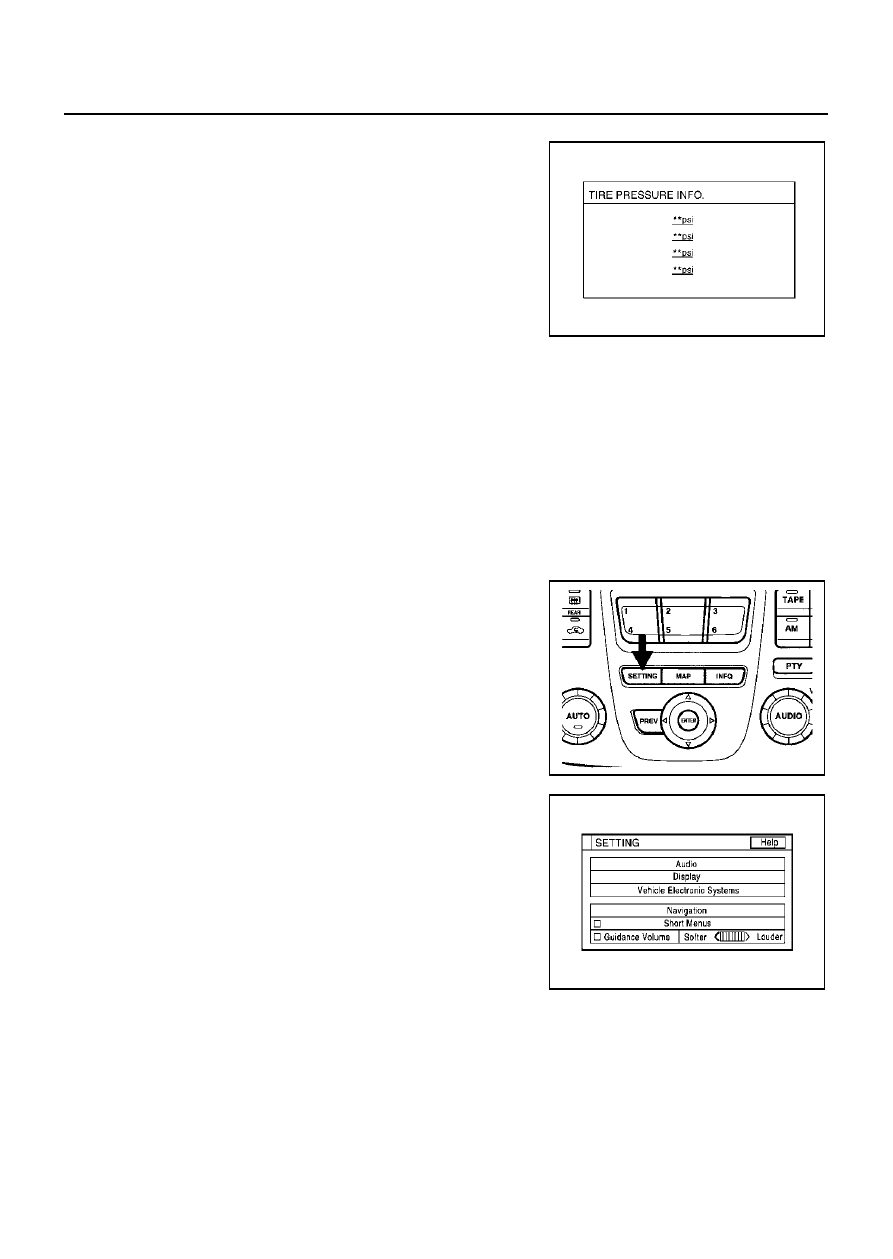

Tire Pressure Information

1.

Select “Tire Pressure”

2.

Tire pressure displayed as Tire pressure information

NOTE:

●

When air pressure becomes 180 kPa (1.8 kg/cm

2

 , 26 psi) or less, “LOW PRESSURE” warning is indi-

cated.

●

When air pressure becomes 70 kPa (0.7 kg/cm

2

 , 10 psi) or less, “FLAT TIRE” warning is indicated.

●

When pressure is not detected or tire pressure system has malfunction “** psi” is indicated.

●

Indication with yellow frame for the malfunctioning tire.

SETTING OF VEHICLE STATUS

●

Setting of electric status can be changed by multifunction switch.The signal is sent to BCM through AV
and NAVI control unit to change vehicle electric system setting.

●

AV and NAVI control unit is communicating with BCM and combination meter.

1.

Press “SETTING” switch to display vehicle information display.

2.

Select “Vehicle Electronic System”.

3.

Select a vehicle status shown on the display.

SKIA3737E

SKIA0606E

SKIA0607E

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

DI-137

C

D

E

F

G

H

I

J

L

M

A

B

DI

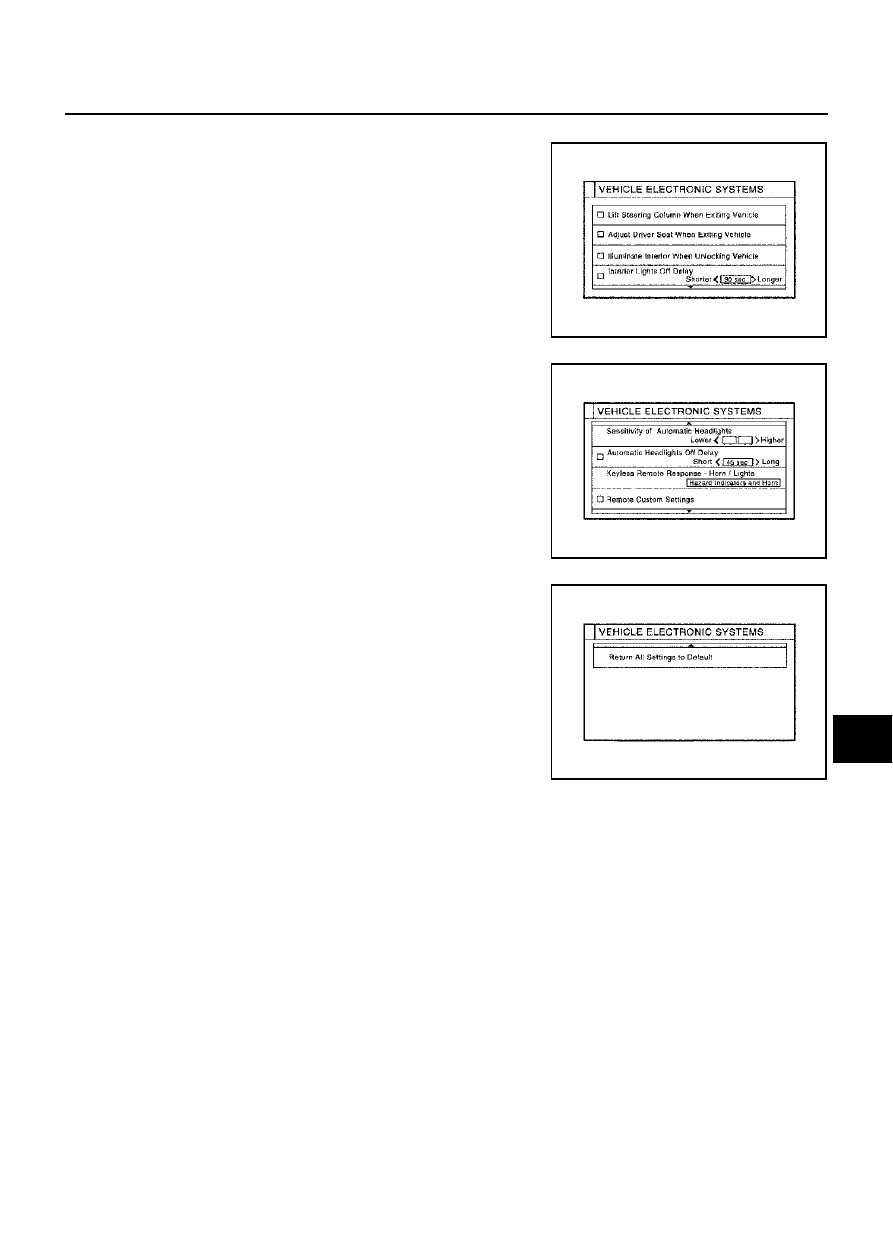

Adjustable vehicle status

●

Lift Steering Column When Exiting Vehicle.

●

Adjust Driver Seat When Exiting Vehicle

●

Illuminate Interior When Unlocking Vehicle

●

Interior Lights Off Delay

●

Sensitivity of Automatic Headlights

●

Automatic Headlights Off Delay

●

Key Remote Response-Horn/Lights

●

Remote Custom Settings

●

Return All Setting to Default

SKIA0610E

SKIA0611E

SKIA0612E

DI-138

VEHICLE INFORMATION AND INTEGRATED SWITCH SYSTEM /WITH NAVIGA-

TION SYSTEM

Adjustable Vehicle Status

Setting items

Setting variations

Initial setting

Operation

Lift Steering Column When Exiting Vehicle

ON/OFF

ON

The steering column automatically tilts up when
the driver gets out, and returns to the original
position when the driver gets on.

●

When driver door is closed and key removed
from ignition key cylinder, the steering column
tilts up.

●

When driver door is open and key is turned to
OFF, the steering column tilts up.

Adjust Driver Seat When Exiting Vehicle

ON/OFF

ON

The driver’s seat automatically slides backward
when the driver gets out, and returns to the origi-
nal position when the driver gets on.

Illuminate Interior When Unlocking Vehicle

ON/OFF

ON

The interior room lamps are illuminate automati-
cally when the door unlocked with key or key fob.

Interior Lights Off Delay

OFF/15/30/45 sec.

30 sec.

Interior room lamp timer period can be changed
in this mode. Selects interior room lamp timer.

Sensitivity of Automatic Headlights

1/2/3/4

3

Sensitivity of auto light sensor can be adjusted.

Automatic Headlights Off Delay

OFF/20/45/90/120/

150/180 sec.

45 sec.

Auto light delay off timer period can be changed
in this mode. Selects auto light delay off timer.

Key Remote Response - Horn/Lights

Hazard indicators
only
/Hazard indicators
and horn

Hazard indi-

cators only

Hazard indicators Only:

●

Lock operation: The hazard warning lamp flash
twice when lock the doors with key fob.

●

Unlock operation: No response.

Hazard indicators and horn:

●

Lock operation: The hazard warning lamp flash
twice and horn sounds once when lock the
doors with key fob.

●

Unlock operation; The hazard warning lamp
flash once when unlock the doors with key fob.

Remote Custom Settings

ON/OFF

ON

The driving position -seat and steering column-
and the audio setting -current source and radio
station presets- are set to the same condition you
made last time by identifying the key fob ID.

This function operates when unlock the doors by
using the key fob.

NOTE:
It is necessary to memorize the driving position
before using this function.

Return All Settings to Default

None

None

If this key is selected, all vehicle electronic sys-
tems setting are return to default.
