Infiniti F50. Manual - part 300

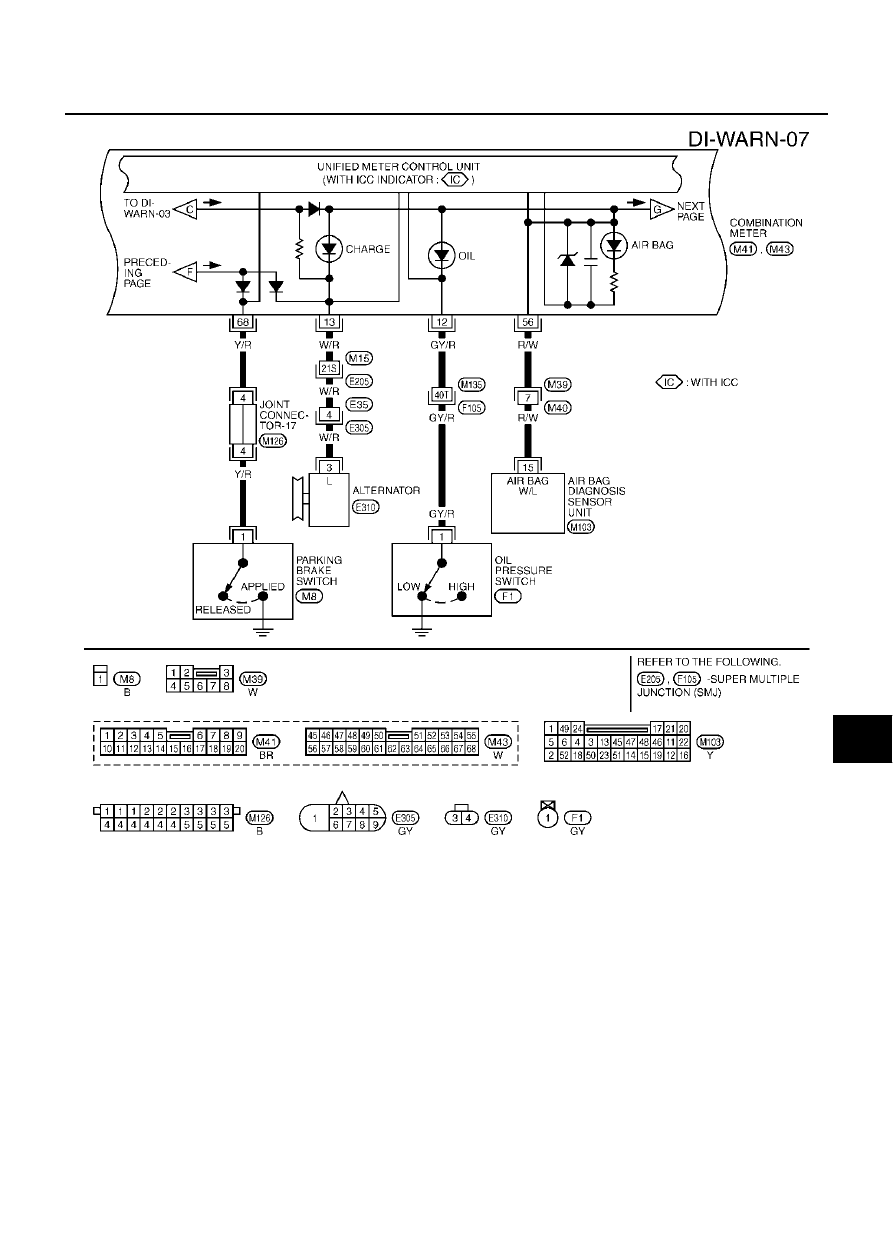

WARNING LAMPS

DI-43

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM0265E

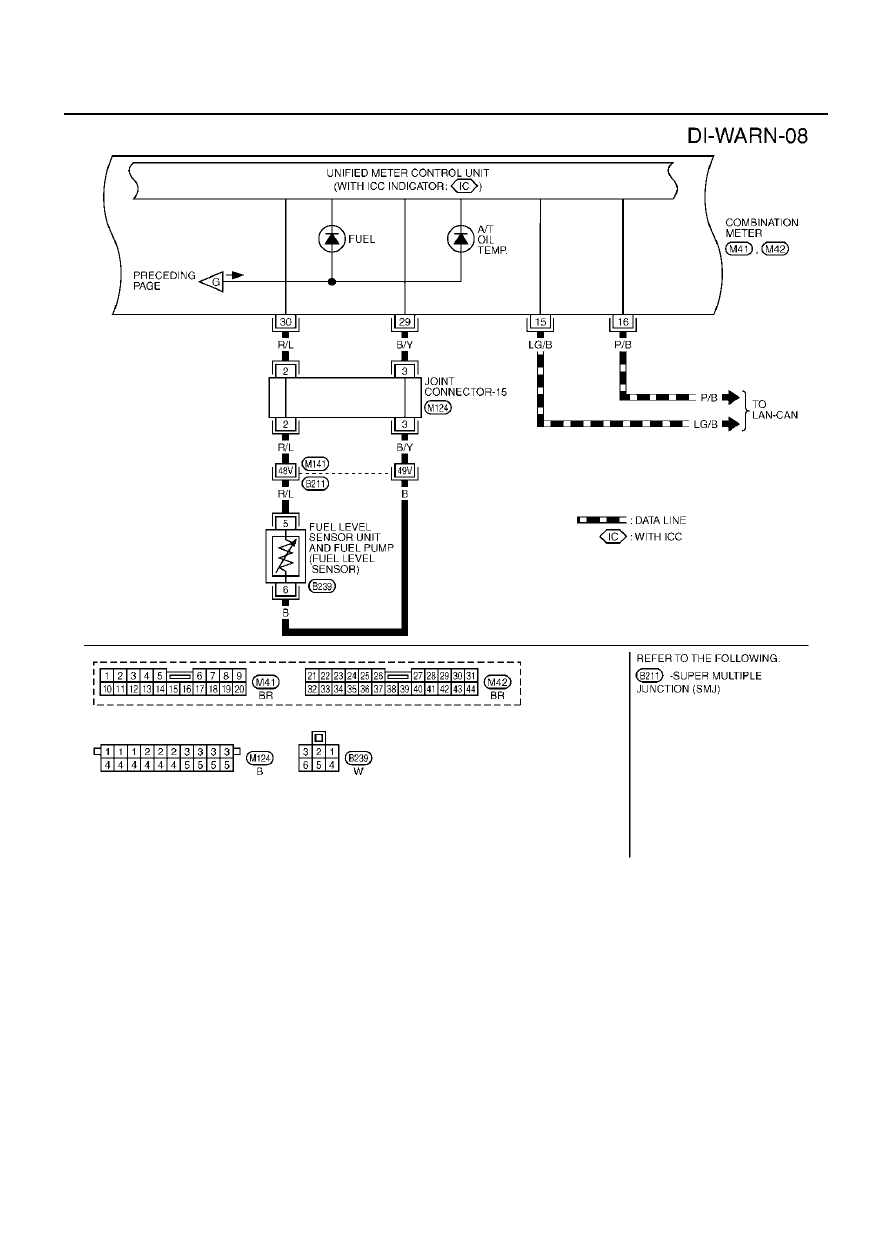

DI-44

WARNING LAMPS

TKWM0213E

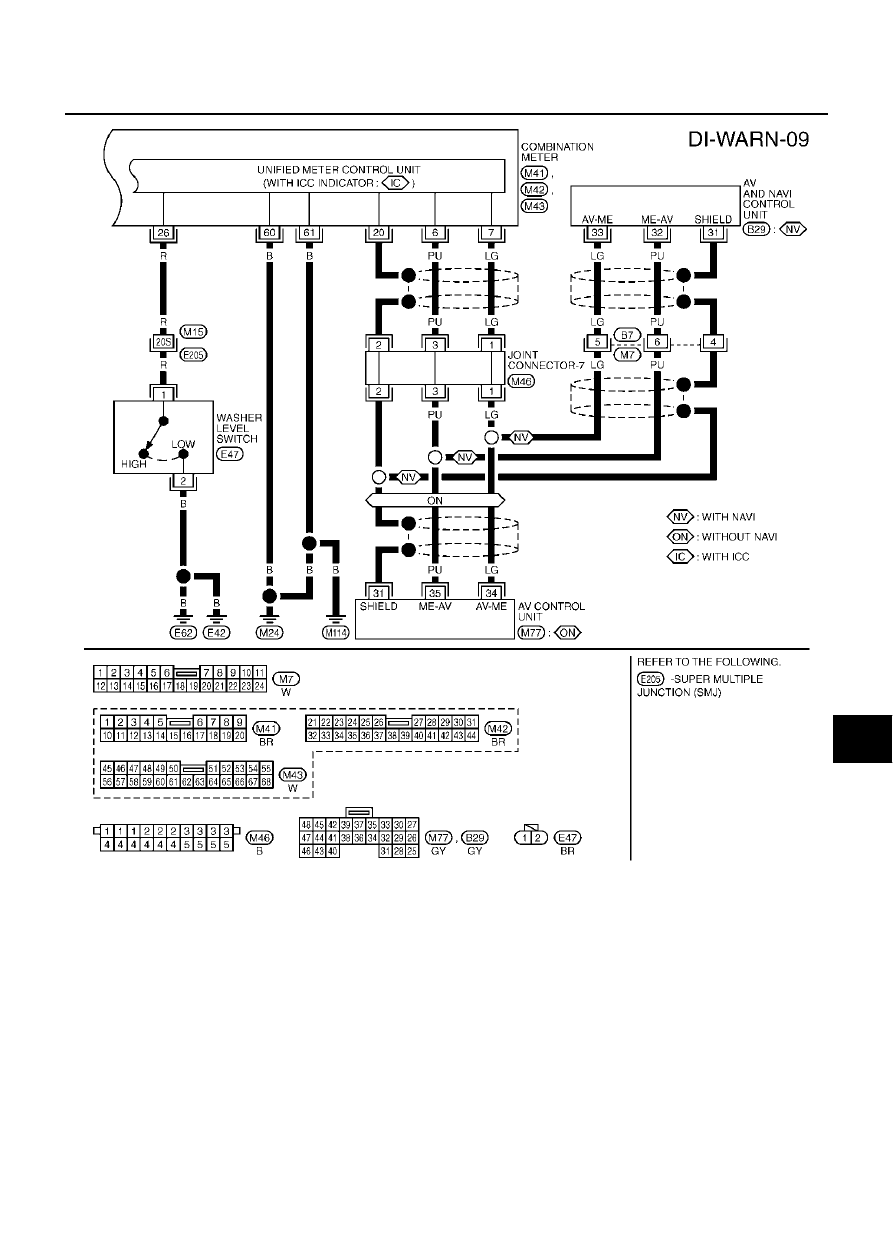

WARNING LAMPS

DI-45

C

D

E

F

G

H

I

J

L

M

A

B

DI

TKWM0266E

DI-46

WARNING LAMPS

Terminals and Reference Value for BCM

EKS0010L

Work Flow

EKS001R1

1.

Check the symptom and customer's requests.

2.

Understand the outline of system. Refer to

DI-33, "System Description"

 .

3.

Perform the preliminary inspection. Refer to

DI-64, "Preliminary Inspection"

4.

Referring to trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to

DI-50, "Trou-

ble Diagnosis for Door Warning Lamp"

5.

Does warning chime system operate normally? If it operates normally, GO TO step 6. If not, GO TO step
4.

6.

Inspection END.

Preliminary Inspection

EKS001AO

Perform preliminary check, refer to

DI-64, "Preliminary Inspection"

Terminal

No.

Wire

color

Item

Condition

Reference value (V)

Ignition

switch

Operation

2

L/W

Shift lock sol. signal

OFF

Depress brake pedal

Approx. 0

Release brake pedal

Battery voltage

33

W

Rear door switch (LH)

OFF

Rear door switch LH

ON (open)

Approx. 0

OFF (closed)

Battery voltage

37

W/G

Passenger door switch

OFF

Passenger door
switch

ON (open)

Approx. 0

OFF (closed)

Battery voltage

111

P/B

Door warning lamp

OFF

Door switch warning

ON (open)

Approx. 0

OFF (closed)

Battery voltage

142

W/R

Driver door switch

OFF

Driver door switch

ON (open)

Approx. 0

OFF (closed)

Battery voltage

143

W/L

Rear door switch (RH)

OFF

Rear door switch RH

ON (open)

Approx. 0

OFF (closed)

Battery voltage
