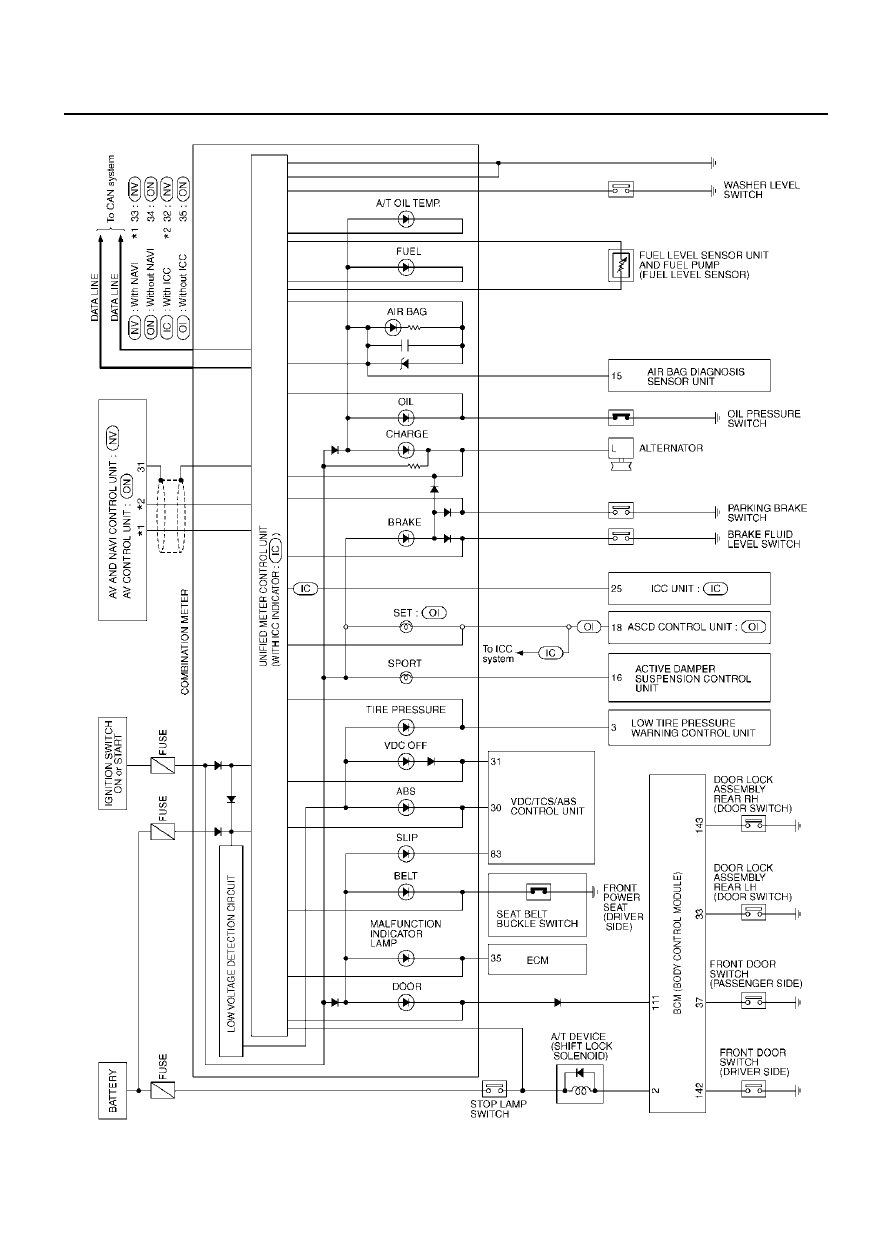

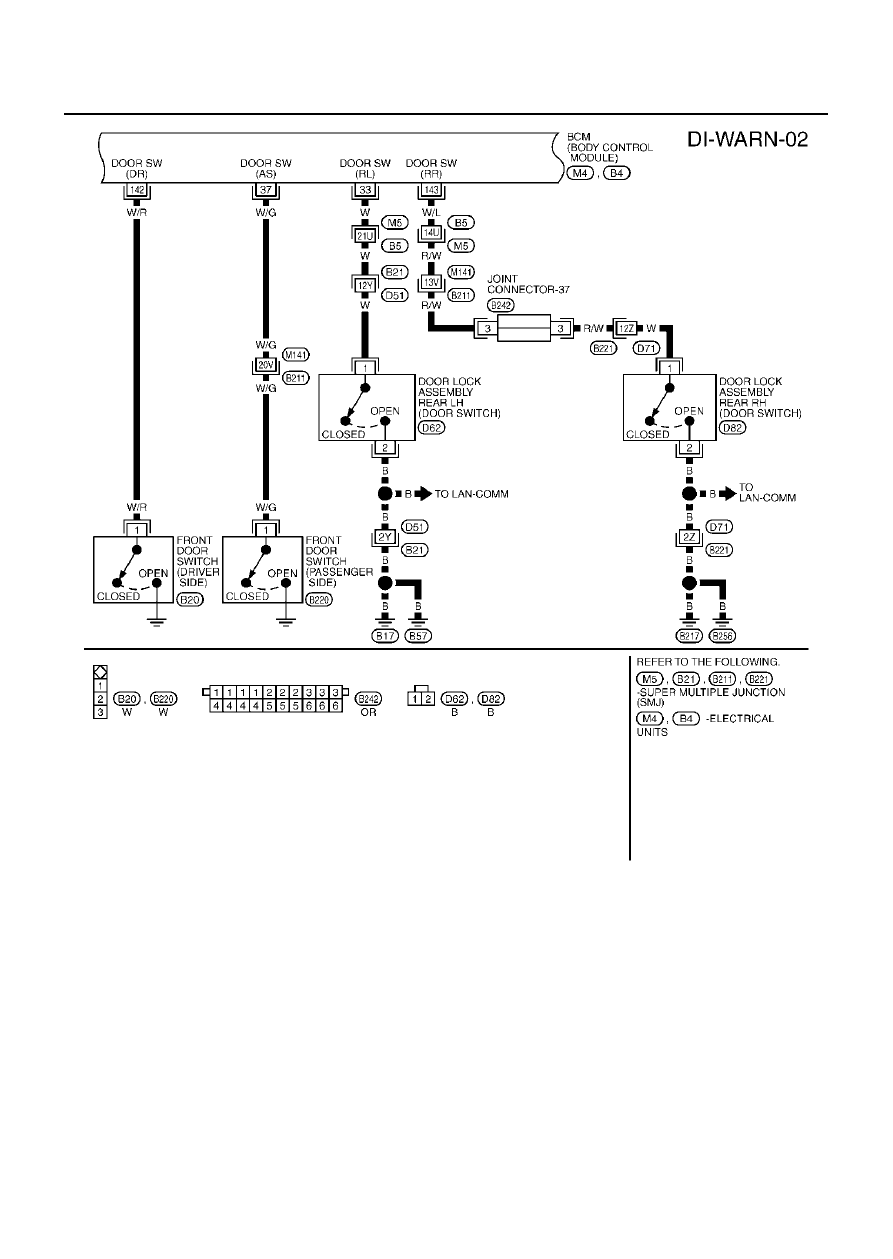

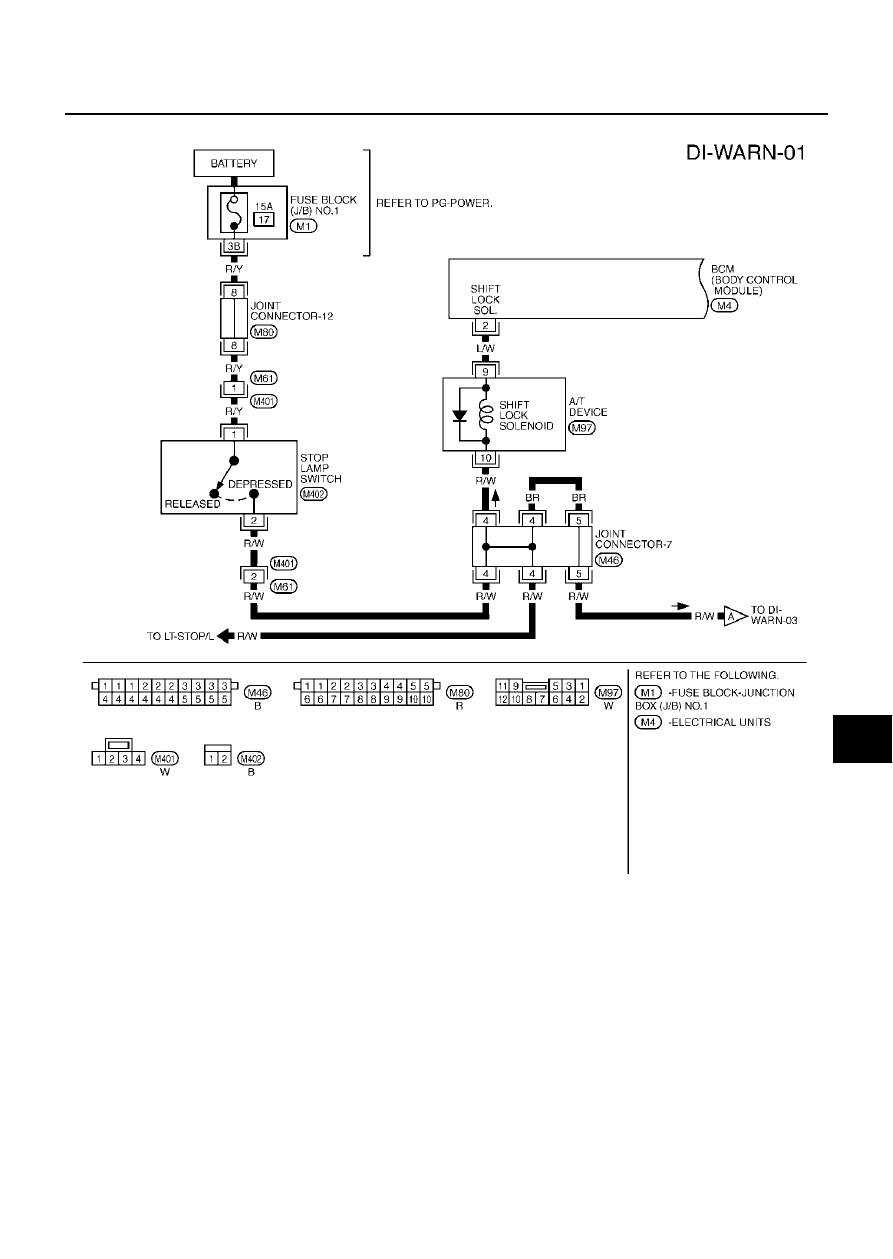

WARNING LAMPS DI-35 C D E F G H I J L M A B DI BRAKE WARNING LAMP When the parking brake is applied, or the brake fluid level is low, ground is supplied ● to combination meter terminal 68 ● from parking brake switch terminal 1,or ● to combination meter terminal 51 ● brake fluid level switch terminal 1. When power and ground are supplied, the brake warning lamp illuminates. MALFUNCTION INDICATOR LAMP During prove out or when an engine control malfunction occurs, ground is supplied ● to combination meter terminal 65 ● from ECM terminal 35. When power and ground are supplied, the malfunction indicator lamp illuminates. . LOW TIRE PRESSURE WARNING LAMP When a low tire pressure warning control malfunction occurs, ground is supplied ● to combination meter terminal 54 ● from low tire pressure warning control unit terminal 3 When power and ground are supplied, the tire pressure warning lamp illuminates. WT-22, "TROUBLE DIAGNOSIS FOR SYMPTOMS" . ASCD WARNING LAMP When an ASCD malfunction occurs, ground is supplied ● to combination meter terminal 64 ● from ASCD control unit terminal 18 When power and ground are supplied, the ASCD warning lamp illuminates. ICC SYSTEM WARNING LAMP When an ICC system malfunction occurs, ground is supplied ● to combination meter terminal 21 ● from ICC unit terminal 25. When power and ground are supplied, the ICC system warning lamp illuminates. WARNING MESSAGE ON DISPLAY When a warning lamp illuminates or flushes, signal is sent ● from combination meter terminals 6 and 7 ● through AV and NAVI control unit terminals 32 and 33 or AV control unit terminals 35 and 34. ● to display. Then warning message appears on display. |
