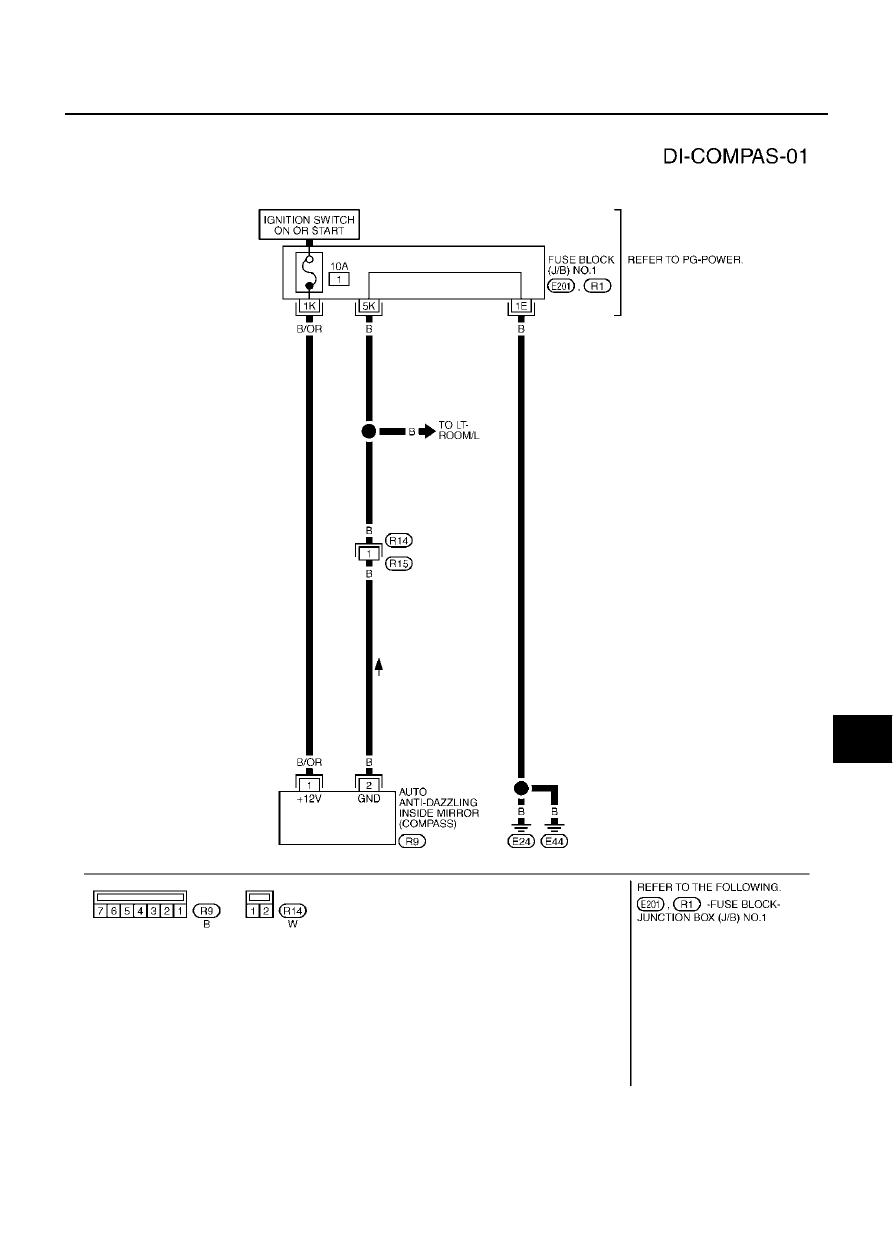

Wiring Diagram – COMPAS –

EKS006D5

TKWM0293E

DI-32

COMPASS

Removal and Installation of Compass

EKS006TN

Refer to

GW-58, "Removal and Installation"

 .

WARNING LAMPS

DI-33

C

D

E

F

G

H

I

J

L

M

A

B

DI

WARNING LAMPS

PFP:24814

System Description

EKS0010H

OUTLINE

Power is supplied at all times

through 10A fuse [No. 6, located in the fuse block (J/B) No. 1]

to combination meter terminal 57.

With ignition switch in the ON or START position, power is supplied

 through 10A fuse [No. 9, located in the fuse block (J/B) No. 1]

to combination meter terminal 59.

Ground is supplied

to combination meter terminal 60

through grounds M24 and M114, and

to seat belt buckle switch terminal 15A

through grounds B17 and B57, and

to brake fluid level switch terminal 2

through grounds E24 and E44, and

to washer level switch terminal 2

through grounds E42 and E62.

AIR BAG WARNING LAMP

During probe out or when an air bag malfunction occurs, the ground path is interrupted

from the air bag diagnosis sensor unit terminal 15

to combination meter terminal 56.

Ground is supplied

through combination meter terminal 61

When power and ground are supplied, the air bag warning lamp (LEDs) illuminates.
For further information, refer to

SRS-8, "TROUBLE DIAGNOSIS"

 .

DOOR WARNING LAMP

Door waning lamp is controlled by BCM.
When one of the doors is opened, ground is supplied to the BCM terminals 33, 37,142 and 143.
And then ground is supplied

to combination meter terminal 49

from BCM terminal 111

When power and ground are supplied, the door warning lamp illuminates.

ACTIVE DAMPER INDICATOR LAMP (SPORT)

When an active damper suspension system malfunction occurs, or “SPORT” mode is selected by active
damper suspension select switch, ground is supplied

to combination meter terminal 53

from active damper suspension control unit terminal 16

When power and ground are supplied, the active damper indicator lamp (SPORT) blinks or illuminates.
For further information.

LOW OIL PRESSURE WARNING LAMP

Low oil pressure causes oil pressure switch terminal 1 to provide ground to combination meter terminal 12.
When power and ground are supplied, the low oil pressure warning lamp illuminates.

CHARGE WARNING LAMP

During prove out or when an alternator malfunction occurs, ground is supplied

to combination meter terminal 13

from alternator terminal 3

When power and ground are supplied, the charge warning lamp and brake lamp illuminate.

DI-34

WARNING LAMPS

LOW WASHER LEVEL WARNING LAMP

When the washer fluid level is low, ground is supplied

to combination meter terminal 26

from washer level switch terminal 1.

When power and ground are supplied, the signal is sent

from combination meter terminal 6 and 7

through AV and NAVI control unit terminal 32 and 33 or AV control unit terminals 35 and 34

to display.

Then warning lamp message appears display.

A/T OIL TEMPERATURE WARNING LAMP

When an A/T system malfunction occurs, signal sent

to combination meter terminals 15 and 16

from TCM (transmission control module) with CAN communication line.

When signal is received, the AT oil temperature warning lamp blinks or illuminates.
For further information, refer to

AT-238, "A/T CHECK Indicator Lamp does not come on"

 .

LOW-FUEL LEVEL WARNING LAMP

The amount of fuel in the fuel tank is determined by the fuel level sensor in the fuel tank. Fuel level signal is
sent

from fuel level sensor unit terminal 5

to combination meter terminal 30

through fuel level sensor unit terminal 6

to combination meter terminal 29.

The fuel level sensor will illuminate the low-fuel level warning lamp when the fuel level is low.
When power and ground are supplied, the low-fuel level warning lamp illuminates.

ABS WARNING LAMP

When an ABS malfunction occurs, ground is supplied

to combination meter terminal 52

from VDC/TCS/ABS control unit terminal 30.

When power and ground is supplied, the ABS warning lamp illuminates.
For further information, refer to

BRC-64, "Symptom 5 Pedal Vibration and Noise"

 .

VDC OFF INDICATOR LAMP

When VDC off switch is in OFF position, or an VDC/TCS/ABS malfunction occurs, ground is supplied

to combination meter terminal 67

from VDC/TCS/ABS control unit terminal 31.

When power and ground are supplied, the VDC off warning lamp illuminates.
For further information, refer to

BRC-66, "Symptom 6 VDC OFF Indicator Lamp Does Not Illuminate."

 .

SLIP INDICATOR LAMP

When VDC is in operation, or a VDC malfunction occurs, ground is supplied

to combination meter terminal 66

from VDC/TCS/ABS control unit terminal 83.

When power and ground are supplied, the slip warning lamp illuminates.
For further information, refer to

BRC-66, "Symptom 7 SLIP Indicator Lamp Does Not Illuminate."

 .

SEAT BELT WARNING LAMP

When the driver's seat belt is unfastened, ground is supplied

to combination meter terminal 50

from seat belt buckle switch terminal 41.

When power and ground are supplied, the seat belt warning lamp illuminates.
