COMBINATION METERS
DI-7
C
D
E
F
G
H
I
J
L
M
A
B
DI
COMBINATION METERS
PFP:24814
System Description
EKS000ZT
UNIFIED CONTROL METER
●
Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled totally
by control unit built in combination meter.
●
Digital meter is adopted for odo/trip meter.*
*The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.
●
Odo/trip meter, A/T indicator and ICC system display segments can be checked in self-diagnosis mode.
●
Meter/gauge can be checked in self-diagnosis mode.
HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER
●
The CAN communication signals (vehicle speed signal) from VDC/TCS/ABS control unit, and the memory
signals from the meter memory circuit are processed by the combination meter, and the mileage is dis-
played.
●

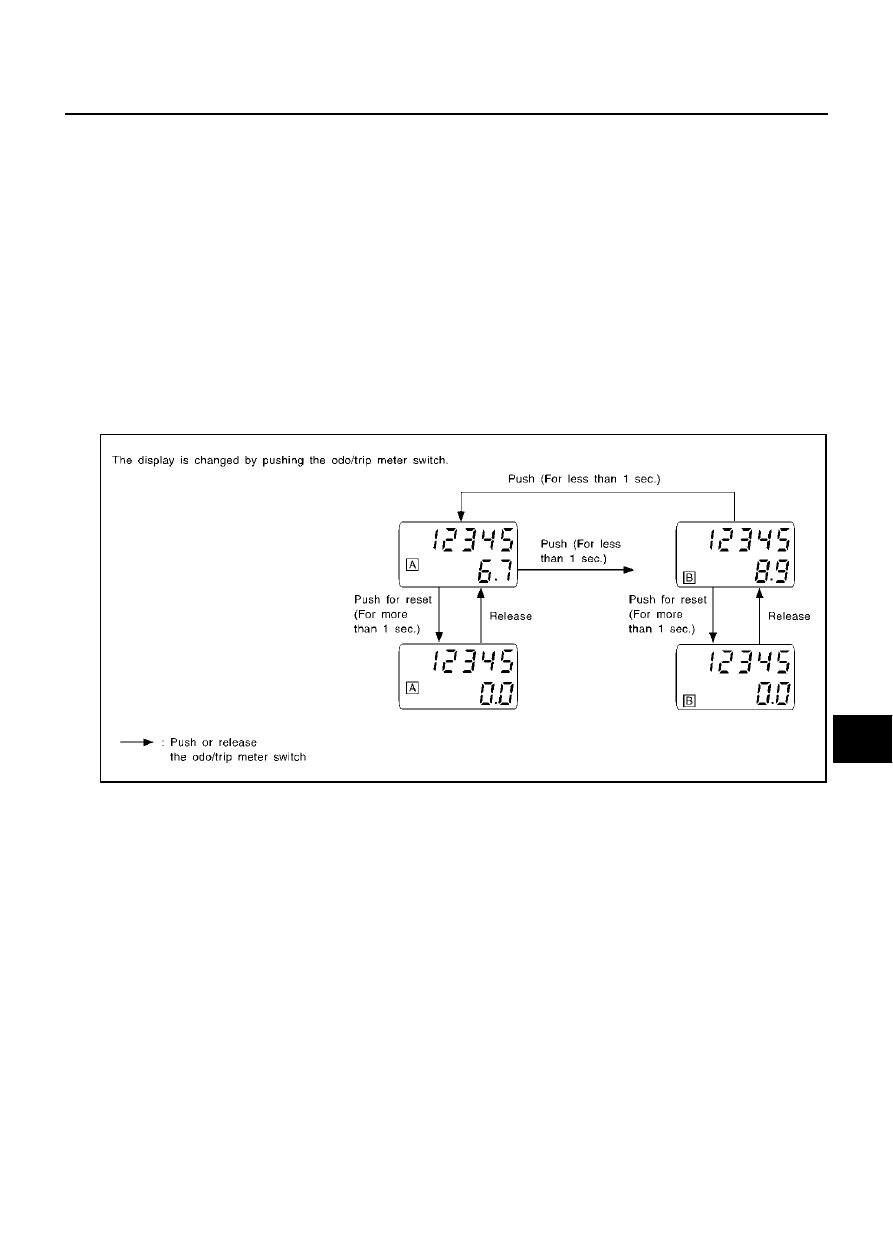

Operating the odometer/trip switch allows switching the mode in the following order.
●
The odo/trip meter display switching and trip display resetting can be identified by the time from pressing
the odo/trip meter switch to releasing it.
●
When resetting with trip A displayed, only trip A display is reset (same as trip B).
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times
●
through 10A fuse [No. 6, located in the fuse block (J/B) No. 1]
●
to combination meter terminal 57.
With the ignition switch in the ON or START position, power is supplied
●
through 10A fuse [No. 9, located in the fuse block (J/B) No. 1]
●
to combination meter terminal 59.
With the ignition switch in the ACC or ON position, power is supplied
●
through 10A fuse [No. 21, located in the fuse block (J/B) No. 1]
●
to combination meter terminal 1.
Ground is supplied
●
to combination meter terminal 60 and 61
●
through grounds M24 and M114.
SEL175W
