CO-1

ENGINE COOLING SYSTEM

B  ENGINE

CONTENTS

C

D

E

F

G

H

I

J

K

L

M

SECTION

A

CO

ENGINE COOLING SYSTEM

PRECAUTIONS .......................................................... 2

Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions for Liquid Gasket  .................................. 2

REMOVAL OF LIQUID GASKET SEALING .......... 2
LIQUID GASKET APPLICATION PROCEDURE

..... 2

PREPARATION ........................................................... 4

Special Service Tools  ............................................... 4
Commercial Service Tools ........................................ 4

OVERHEATING CAUSE ANALYSIS .......................... 5

Troubleshooting Chart .............................................. 5

COOLING SYSTEM .................................................... 7

Cooling Circuit .......................................................... 7
System Drawing  ....................................................... 8

ENGINE COOLANT .................................................... 9

Inspection ................................................................. 9

LEVEL CHECK  ..................................................... 9
LEAK CHECK  ....................................................... 9

Changing Engine Coolant  ........................................ 9

DRAINING ENGINE COOLANT  ........................... 9
REFILLING ENGINE COOLANT  ........................ 10
FLUSHING COOLING SYSTEM ..........................11

RADIATOR ................................................................ 12

Removal and Installation  ........................................ 12

REMOVAL ........................................................... 12
INSTALLATION ................................................... 13
CHECKING RADIATOR CAP .............................. 13
CHECKING RADIATOR  ...................................... 13

RADIATOR (ALUMINUM TYPE) ............................... 14

Disassembly and Assembly .................................... 14

PREPARATION ................................................... 14
DISASSEMBLY ................................................... 14
ASSEMBLY ......................................................... 15
INSPECTION ...................................................... 17

COOLING FAN .......................................................... 18

Removal and Installation  ........................................ 18

REMOVAL ........................................................... 18
INSPECTION AFTER REMOVAL  ....................... 19
INSTALLATION ................................................... 19
INSPECTION AFTER INSTALLATION ................ 20

Disassembly and Assembly .................................... 20

DISASSEMBLY ................................................... 20
ASSEMBLY ......................................................... 21

WATER PUMP  .......................................................... 22

Removal and Installation  ........................................ 22

REMOVAL ........................................................... 22
INSPECTION AFTER REMOVAL  ....................... 23
INSTALLATION ................................................... 23
INSPECTION AFTER INSTALLATION ................ 23

THERMOSTAT AND WATER CONTROL VALVE  .... 24

Removal and Installation  ........................................ 24

REMOVAL ........................................................... 24
INSPECTION AFTER REMOVAL  ....................... 25
INSTALLATION ................................................... 25

SERVICE DATA AND SPECIFICATIONS (SDS)  ...... 26

Standard and Limit .................................................. 26

CAPACITY ........................................................... 26
THERMOSTAT .................................................... 26
WATER CONTROL VALVE  ................................. 26
RADIATOR .......................................................... 26

Tightening Torque  ................................................... 26

CO-2

PRECAUTIONS

PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

EBS00LUD

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Liquid Gasket

EBS0024Y

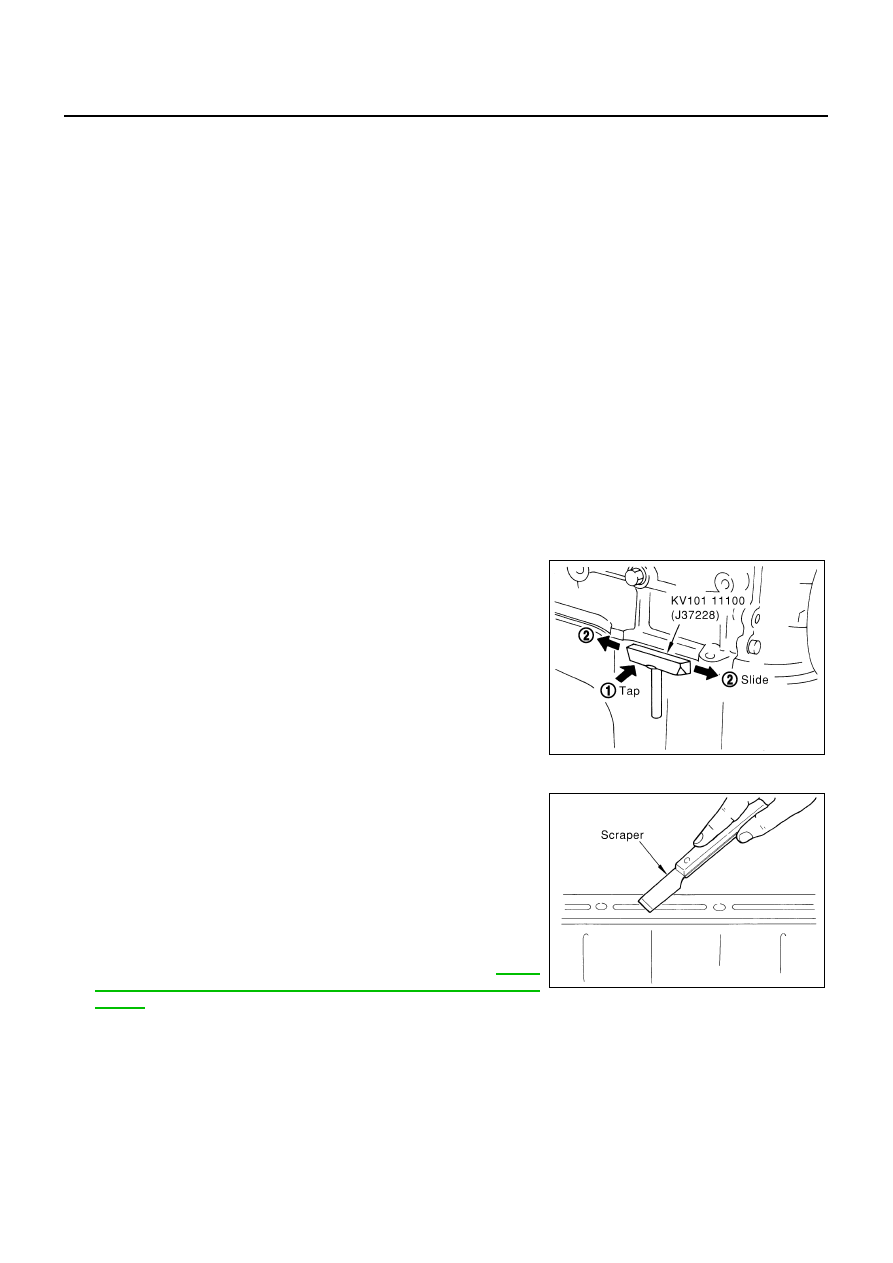

REMOVAL OF LIQUID GASKET SEALING

After removing the mounting bolts and nuts, separate the mating
surface using a seal cutter and remove the old liquid gasket
sealing.

CAUTION:

Be careful not to damage the mating surfaces.

In areas where the cutter is difficult to use, use a plastic hammer
to lightly tap the area where the liquid gasket is applied.

CAUTION:

If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating
surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper, remove the old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.

Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts, and bolt
holes.

2.

Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.

3.

Attach the liquid gasket tube to the tube presser.
Use Genuine Thread Sealant or equivalent. Refer to

GI-46,

"RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS"

 .

PBIC0002E

PBIC0003E

PRECAUTIONS

CO-3

C

D

E

F

G

H

I

J

K

L

M

A

CO

4.

Apply the liquid gasket without breaks to the specified location
with the specified dimensions.

If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.

As for the bolt holes, normally apply the liquid gasket inside
the holes. Occasionally, it should be applied outside the
holes. Make sure to read the text of service manual.

Within five minutes of liquid gasket application, install the mat-
ing component.

If the liquid gasket protrudes, wipe it off immediately.

Do not retighten after the installation.

After 30 minutes or more have passed from the installation, fill
the engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe
them.

EMA0622D

SEM159F

CO-4

PREPARATION

PREPARATION

PFP:00002

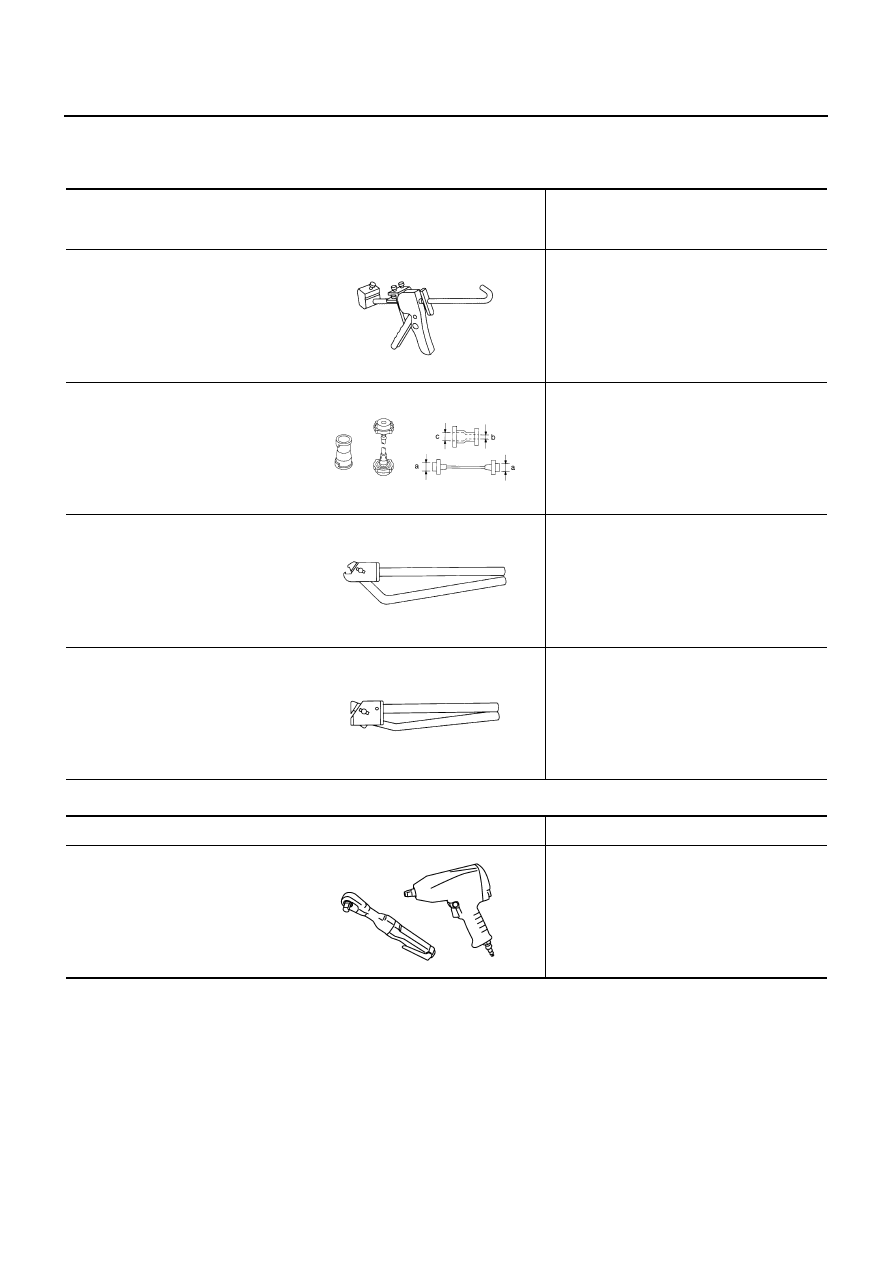

Special Service Tools

EBS00256

The actual shapes of Kent-Moore tools may from those of special service tools illustrated here.

Commercial Service Tools

EBS003G1

Tool number
(Kent-Moore No.)
Tool name

Description

WS39930000
(          –         )
Tube pressure

Pressing the tube of liquid gasket

EG17650301
(J33984-A)
Radiator cap tester adapter

Adapting radiator cap tester to radiator cap
and radiator filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)

KV99103510
(          –         )
Radiator plate pliers A

Installing radiator upper and lower tanks

KV99103520
(          –         )
Radiator plate pliers B

Removing radiator upper and lower tanks

S-NT052

S-NT564

S-NT224

S-NT225

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E
