VDC/TCS/ABS ACTUATOR

PFP:47660

Removal and Installation

EFS0020P

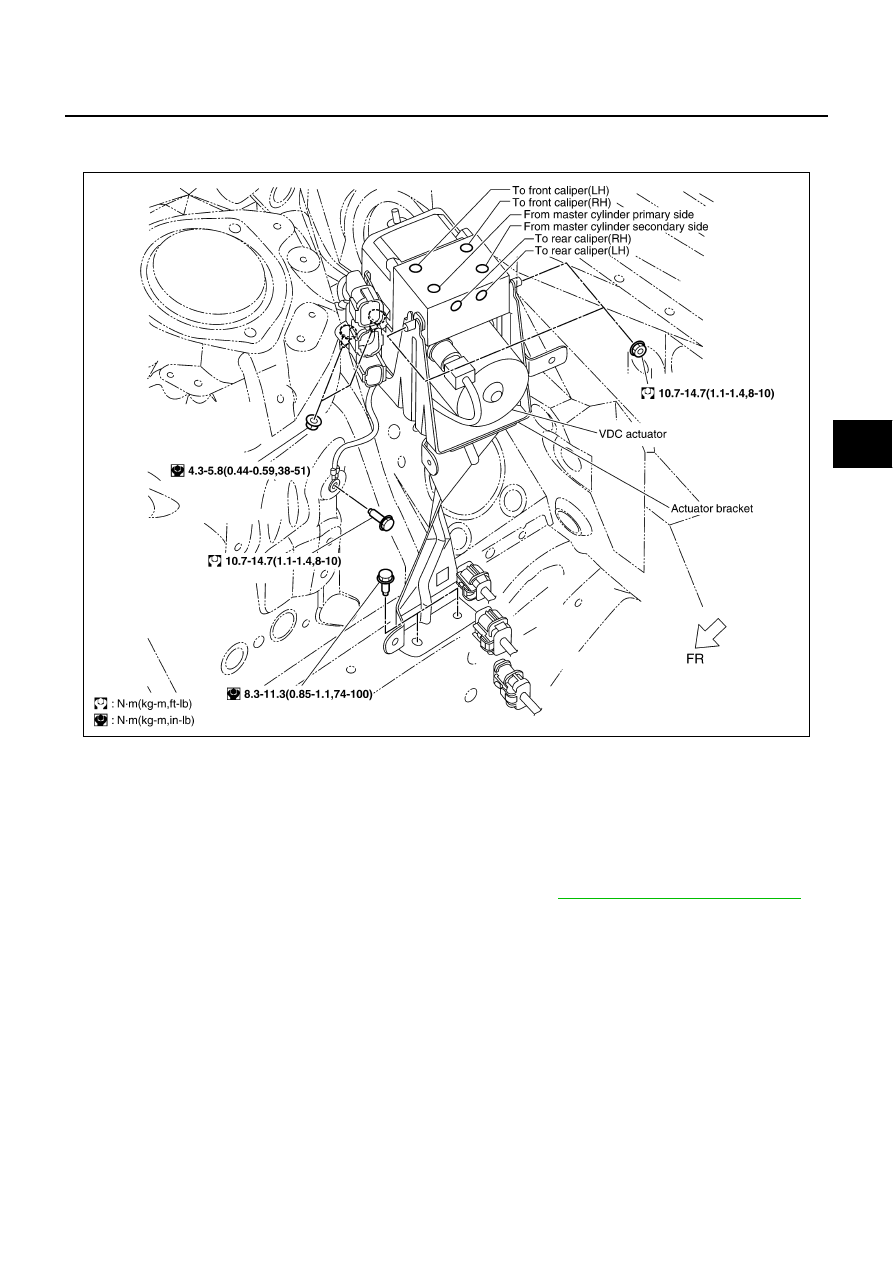

Pay attention to the following when removing actuator.

CAUTION:

●

Before servicing, disconnect battery cables.

●

To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-
aged. To install, use flare nut wrench (commercial service tool).

●

Do not remove and install actuator by holding harness.

●

After work is completed, bleed air from brake piping. Refer to

BR-10, "Bleeding Brake System"

 .

●

Be sure to securely connect the ground cable.

SFIA0817E

BRC-72

G SENSOR

G SENSOR

PFP:47930

Removal and Installation

EFS0020Q

REMOVAL

1.

Install center console. Refer to

IP-10, "INSTRUMENT PANEL

ASSEMBLY"

 .

2.

Remove harness connector.

3.

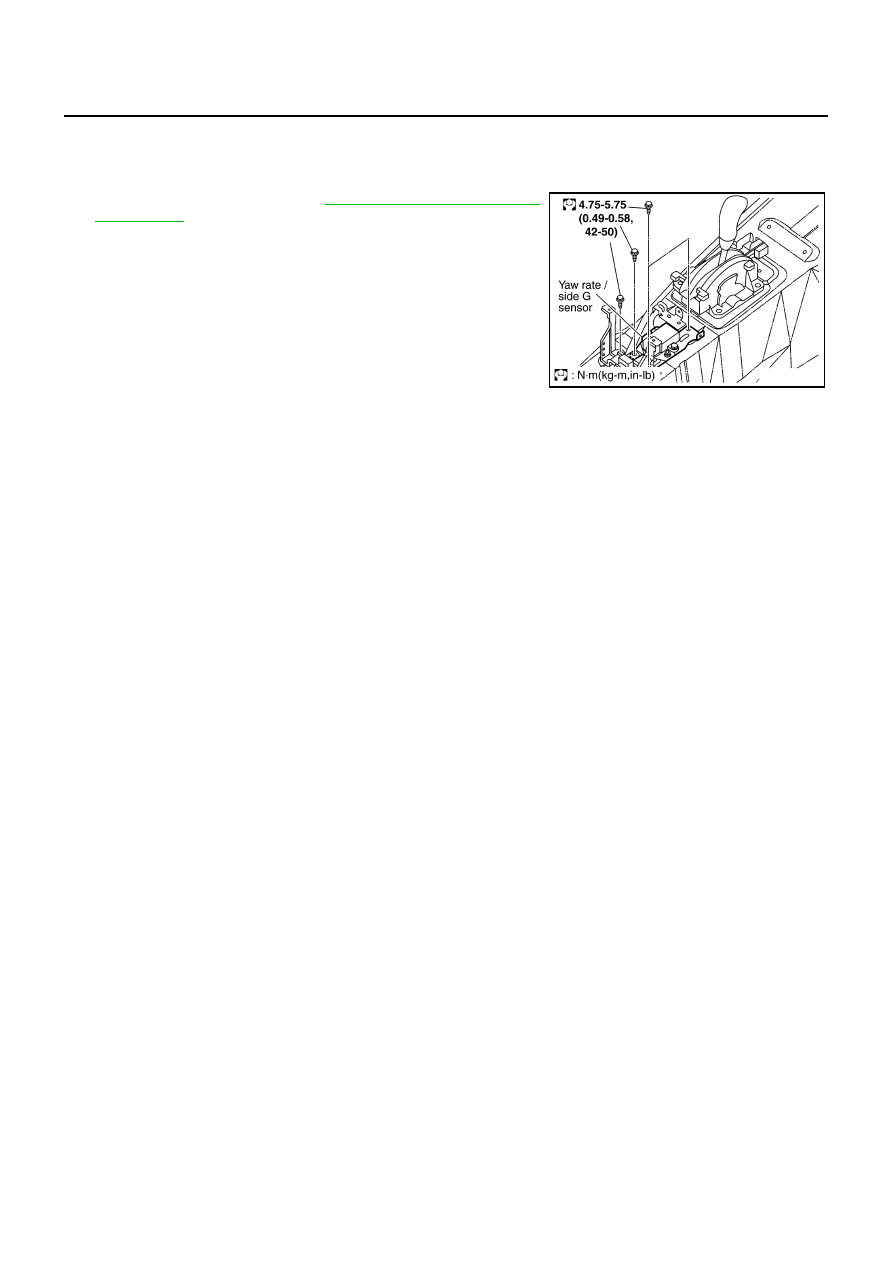

Remove installation bolts. Remove yaw rate/side G-sensor.

CAUTION:

Do not drop or strike the yaw rate/side G-sensor, because it has
little endurance to impact.

INSTALLATION

To install, follow procedure for removal in reverse order.

CAUTION:

Do not drop or strike the yaw rate/side G-sensor, because it has little endurance to impact.

SFIA0818E

STEERING ANGLE SENSOR

BRC-73

C

D

E

G

H

I

J

K

L

M

A

B

BRC

STEERING ANGLE SENSOR

PFP:25554

Removal and Installation

EFS003XJ

REMOVAL

1.

Remove spiral cable assembly. Refer to

SRS-42, "SPIRAL CABLE"

 .

2.

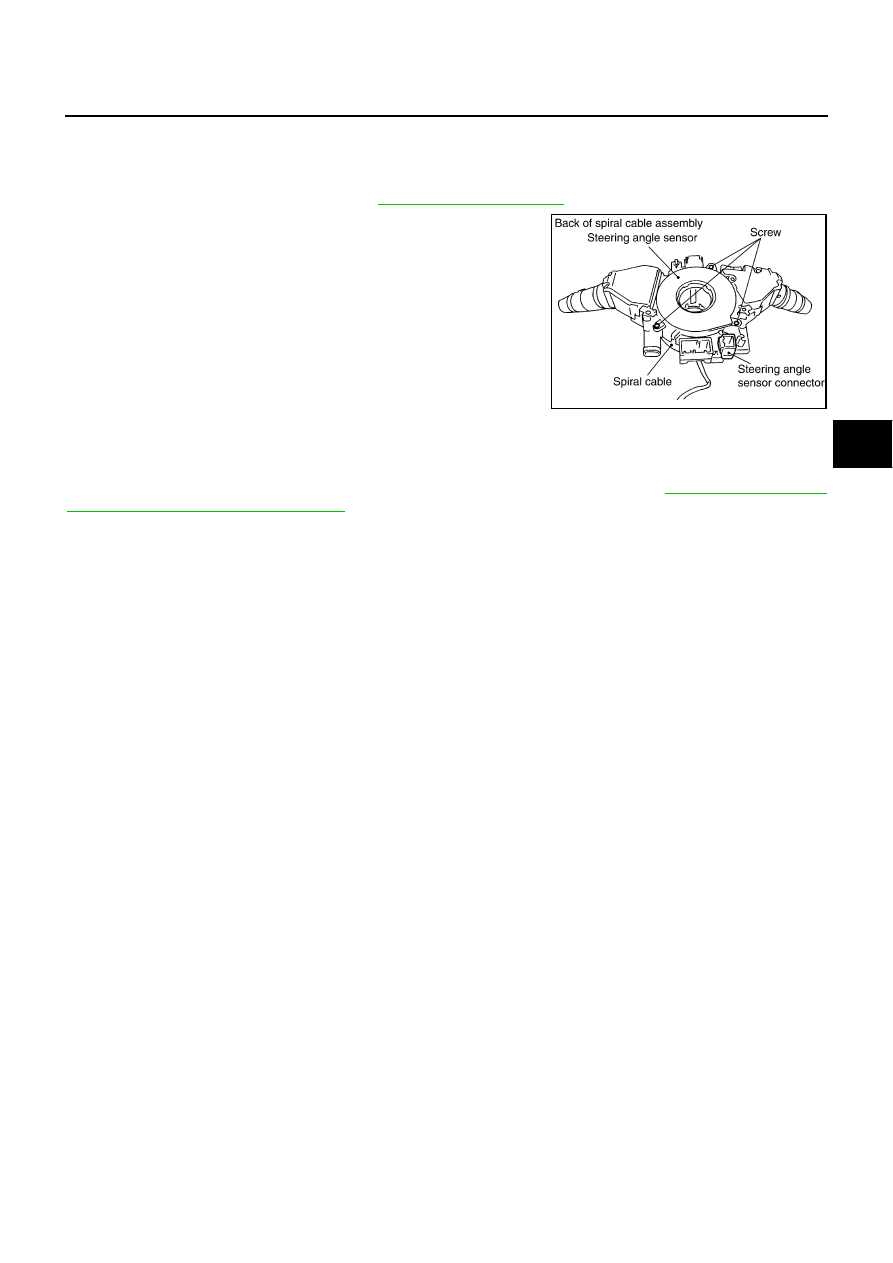

Remove steering angle sensor from spiral cable assembly.

INSTALLATION

Install in the reverse order of removal.

NOTE:
After work, make sure to adjust neutral position of steering angle sensor. Refer to

BRC-6, "Adjustment of

Steering Angle Sensor Neutral Position"

 .

SFIA1404E
