Infiniti F50. Manual - part 246





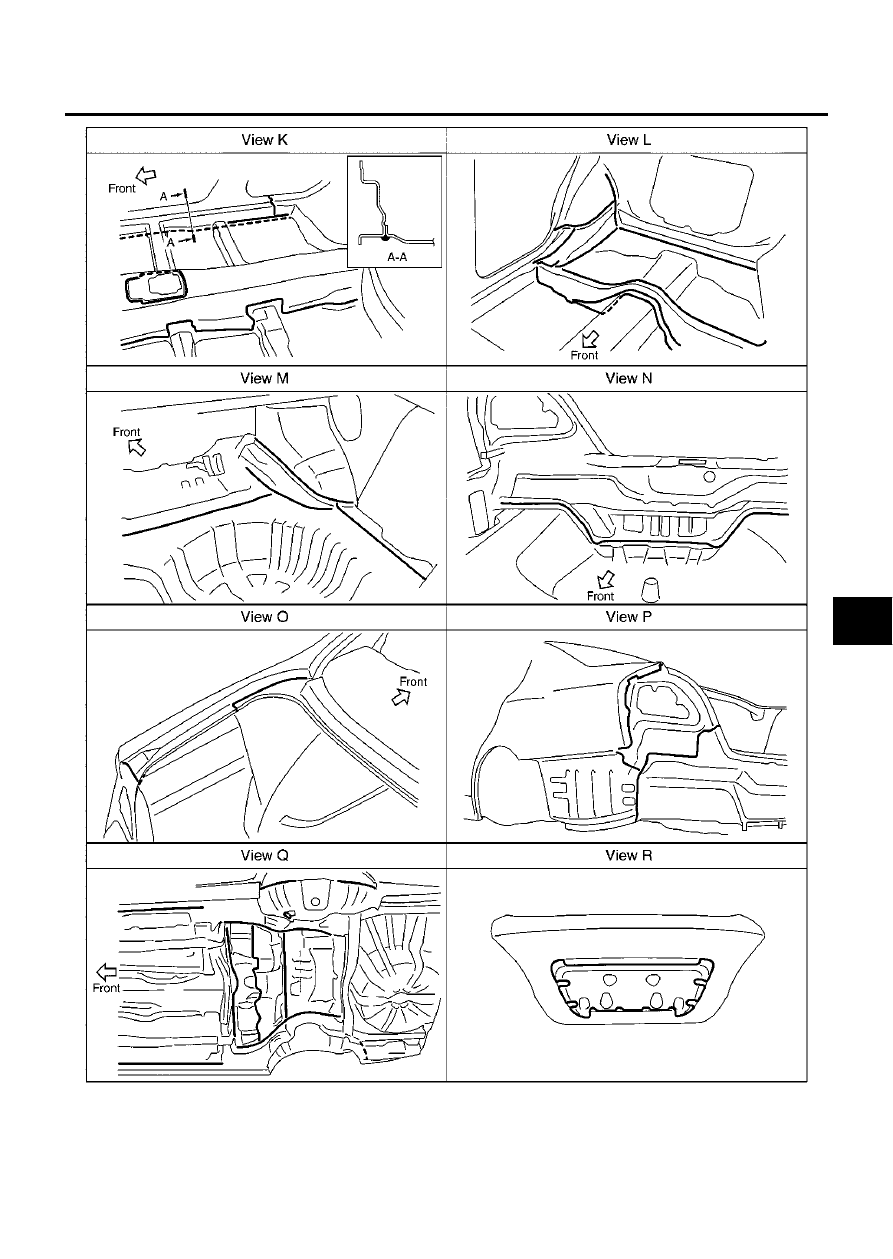

BODY REPAIR

BL-231

C

D

E

F

G

H

J

K

L

M

A

B

BL

PIIA0100E

BL-232

BODY REPAIR

Body Construction

EIS000K6

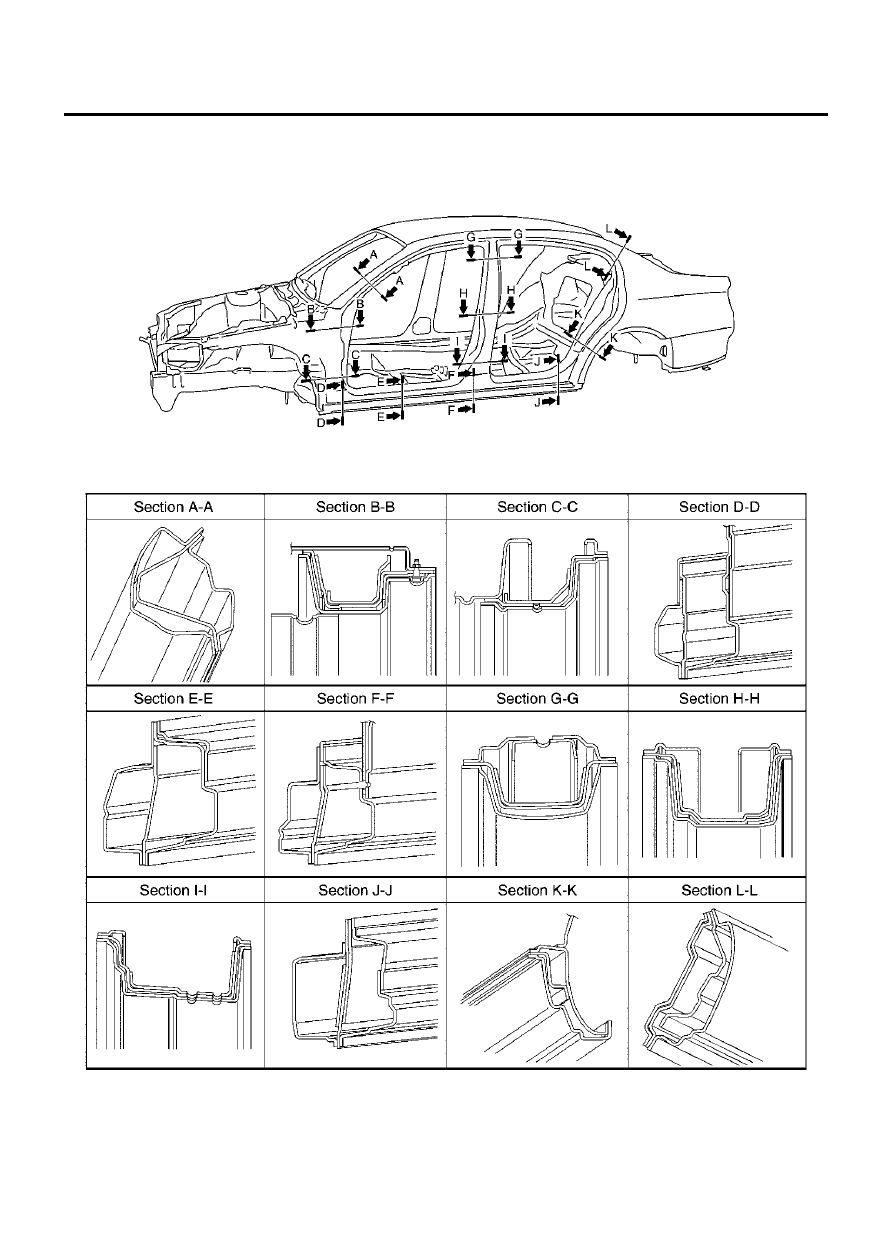

BODY CONSTRUCTION

PIIA0101E

BODY REPAIR

BL-233

C

D

E

F

G

H

J

K

L

M

A

B

BL

Body Alignment

EIS000K7

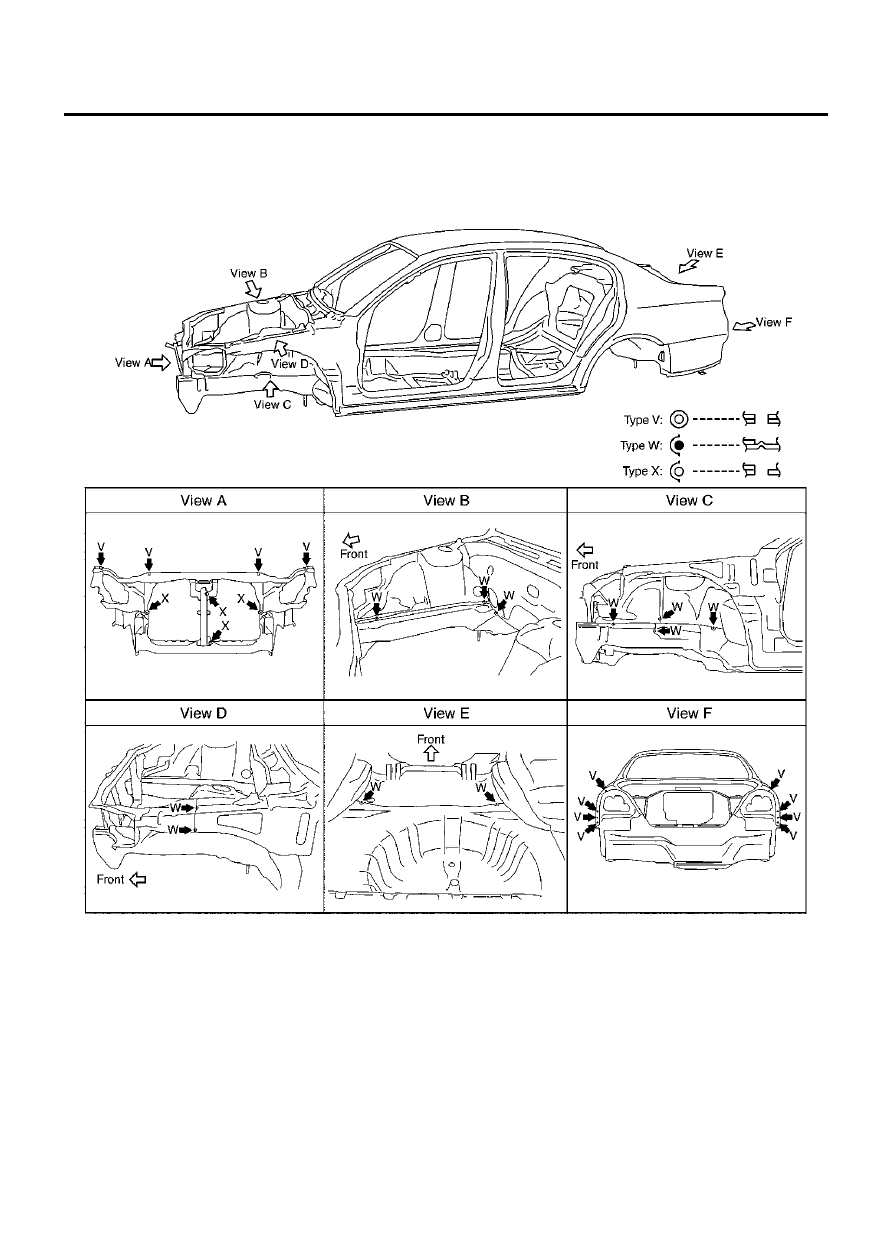

BODY CENTER MARKS

A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.

PIIA0102E

BL-234

BODY REPAIR

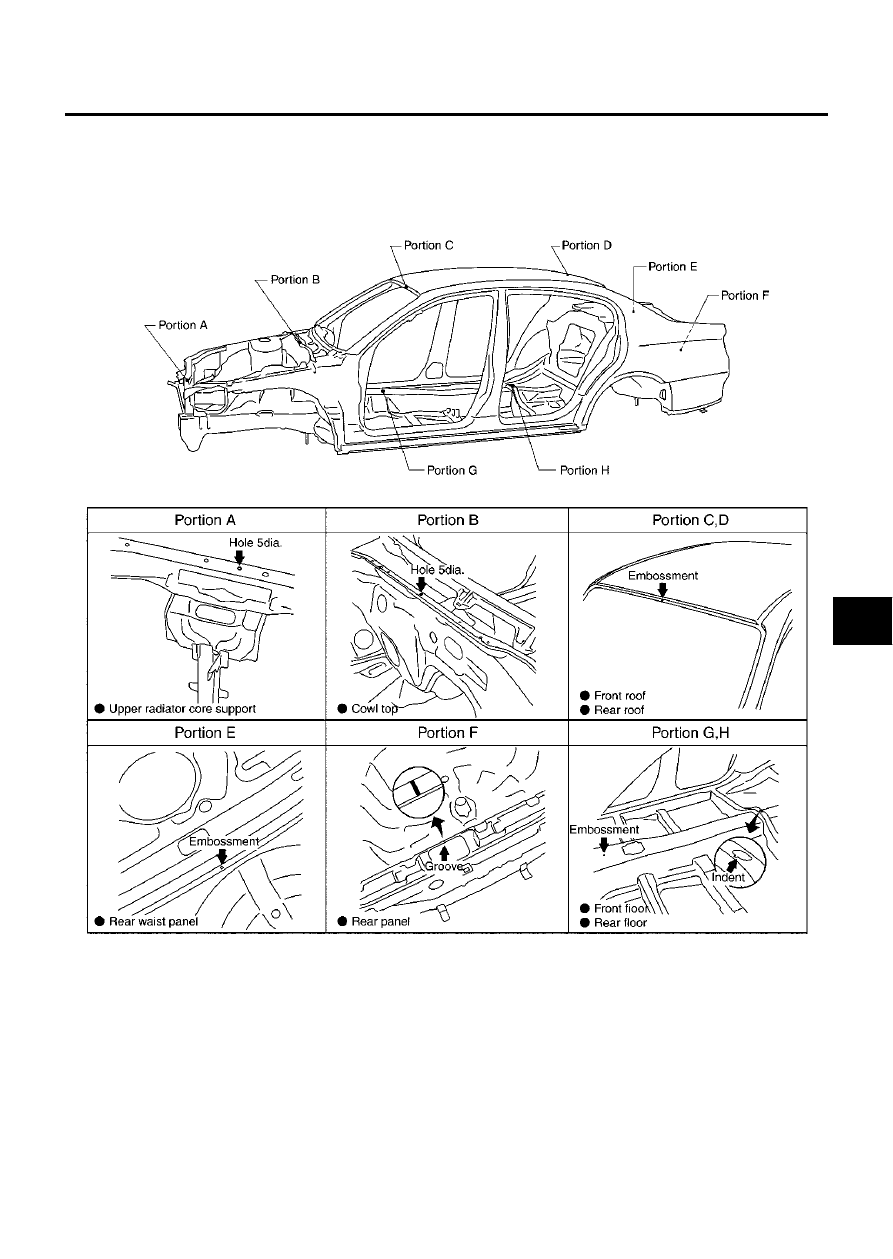

PANEL PARTS MATCHING MARKS

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.

PIIA0103E
