Infiniti F50. Manual - part 243





HOMELINK UNIVERSAL TRANSCEIVER

BL-219

C

D

E

F

G

H

J

K

L

M

A

B

BL

Trouble Diagnoses

EIS00297

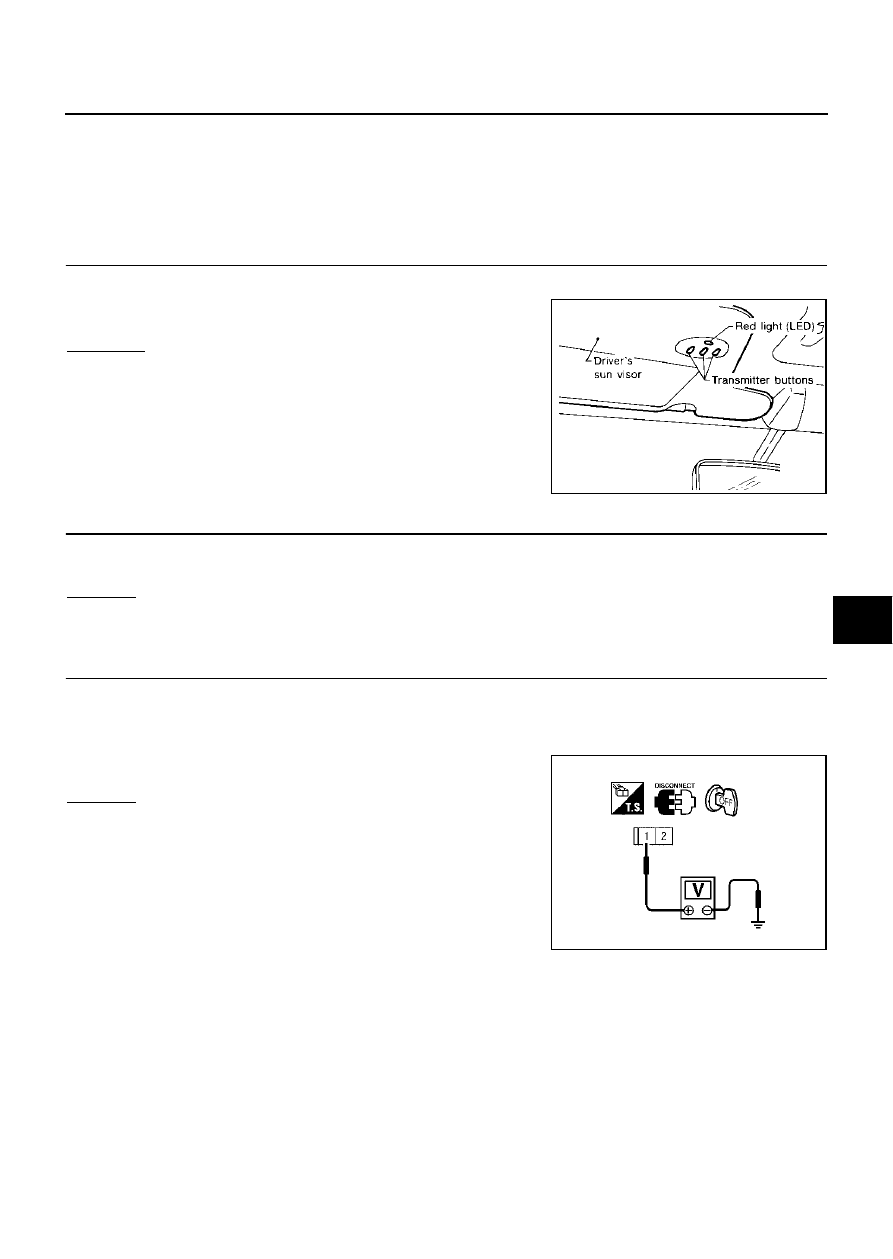

DIAGNOSTIC PROCEDURE
SYMPTOM: Transmitter does not activate receiver.

Before conducting the procedure given below, make sure that system receiver (garage door opener, etc.)
operates with original, hand-held transmitter. If NG, receiver or hand-held transmitter is malfunctioning, not
vehicle related.

1.

CHECK ILLUMINATION

Turn ignition switch “OFF”.

Does red light (LED) of transmitter illuminate when any button is
pressed?

YES or NO

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

TRANSMITTER CHECK

Check transmitter with Tool*.
*: For details, refer to Technical Service Bulletin.

OK or NG

OK

>> Receiver or handheld transmitter malfunction, not vehicle related.

NG

>> Replace transmitter with sun visor assembly.

3.

CHECK BATTERY POWER SUPPLY

1.

Disconnect transmitter connector.

2.

Turn ignition switch “OFF”.

3.

Check voltage between transmitter harness connector R5 terminal 1 (R/W) and ground.

OK or NG

OK

>> GO TO 4.

NG

>>

Check 10A fuse [No. 8 located in the fuse block (J/B)
No.1]

Harness for open or short between fuse and transmit-
ter

SEL442U

Battery voltage should exist.

PIIA0338E

BL-220

HOMELINK UNIVERSAL TRANSCEIVER

4.

CHECK GROUND CIRCUIT

Check continuity between transmitter harness connector R5 terminal 2 (B) and ground.

OK or NG

OK

>> Replace transmitter with sun visor assembly.

NG

>> Repair harness.

Continuity should exist.

PIIA0339E

BODY REPAIR

BL-221

C

D

E

F

G

H

J

K

L

M

A

B

BL

BODY REPAIR

PFP:60100

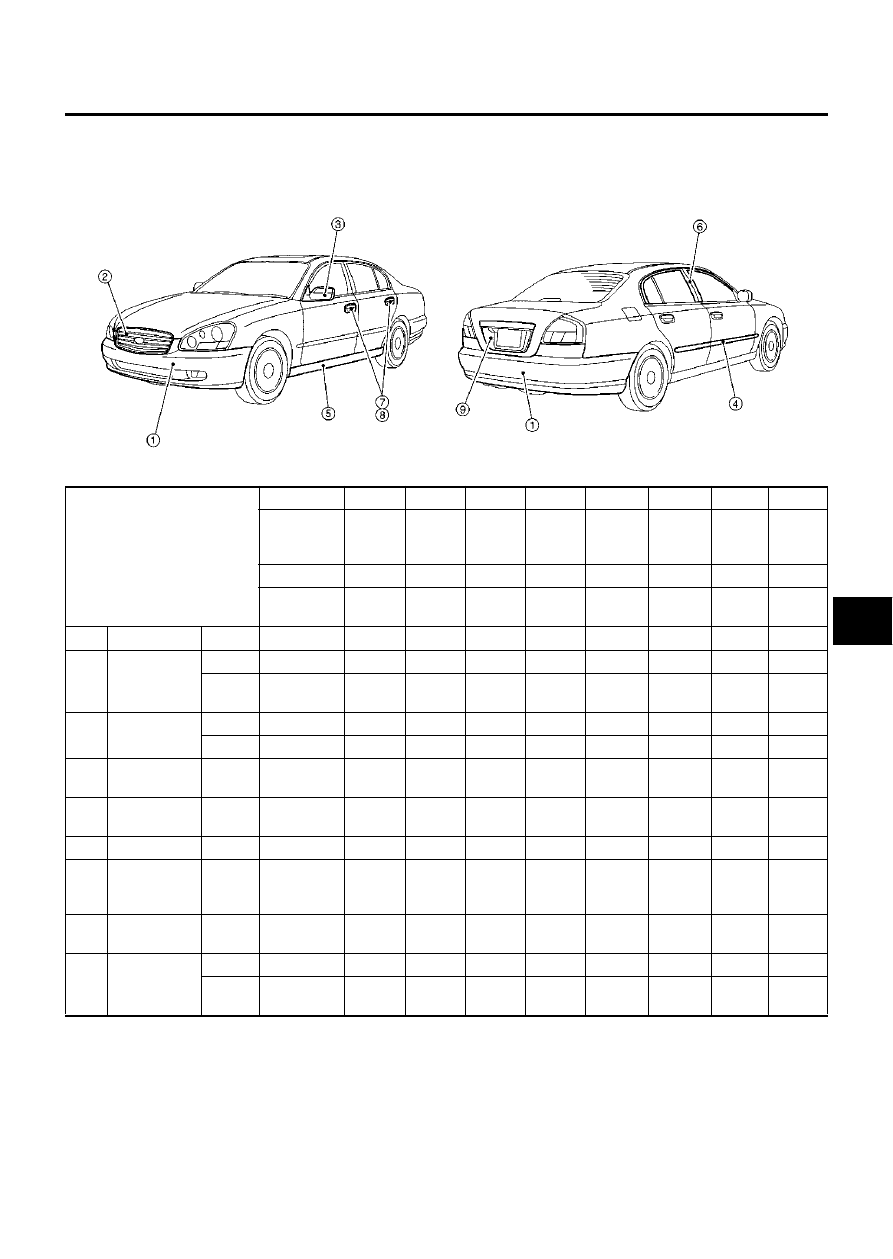

Body Exterior Paint Color

EIS000K2

2S:2-Coat solid,

M:Metallic,

P:Pearl, 3P:3-Coat pearl,

TM:Micro titanium metallic

PIIA0090E

Component

Color code

BAX8

BBW5

BDT2

BJW0

BKH3

BKR4

BKX6

BQX1

Description

Red

Dark

Blue

Dark

Green

Yellow-

ish

Green

Black

Green

Silver

White

Paint type

P

P

P

M

2S

M

TM

3P

Hard clear
coat

X

X

X

X

X

X

X

X

1

Bumper fascia

Body

Body color

BAX8

BBW5

BDT2

BJW0

BKH3

BKR4

BKX6

BQX1

2

Front grille

Body

Black

AG01

AG01

AG01

AG01

AG01

AG01

AG01

AG01

Molding

Chromium-
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

3

Door outside
mirror

Case

Body color

BAX8

BBW5

BDT2

BJW0

BKH3

BKR4

BKX6

BQX1

Base

Body color

BAX8

BBW5

BDT2

BJW0

BKH3

BKR4

BKX6

BQX1

4

Side guard
molding

Body color

BAX8

BBW5

BDT2

BJW0

BKH3

BKR4

BKX6

BQX1

5

Center
mudguard

Body color

BAX8

BBW5

BDT2

BJW0

BKH3

BKR4

BKX6

BQX1

6

Door sash

Black

701G-1

701G-1

701G-1

701G-1

701G-1

701G-1

701G-1

701G-1

7

Door outside
handle
escutcheon

Body color

BAX8

BBW5

BDT2

BJW0

BKH3

BKR4

BKX 6

BQX1

8

Door outside
handle

Chromium-
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

9

Back door
finisher

Body

Body color

BAX8

BBW5

BDT2

BJW0

BKH3

BKR4

BKX6

BQX1

Molding

Chromium-
plate

Cr

Cr

Cr

Cr

Cr

Cr

Cr

Cr

BL-222

BODY REPAIR

Body Component Parts

EIS000K3

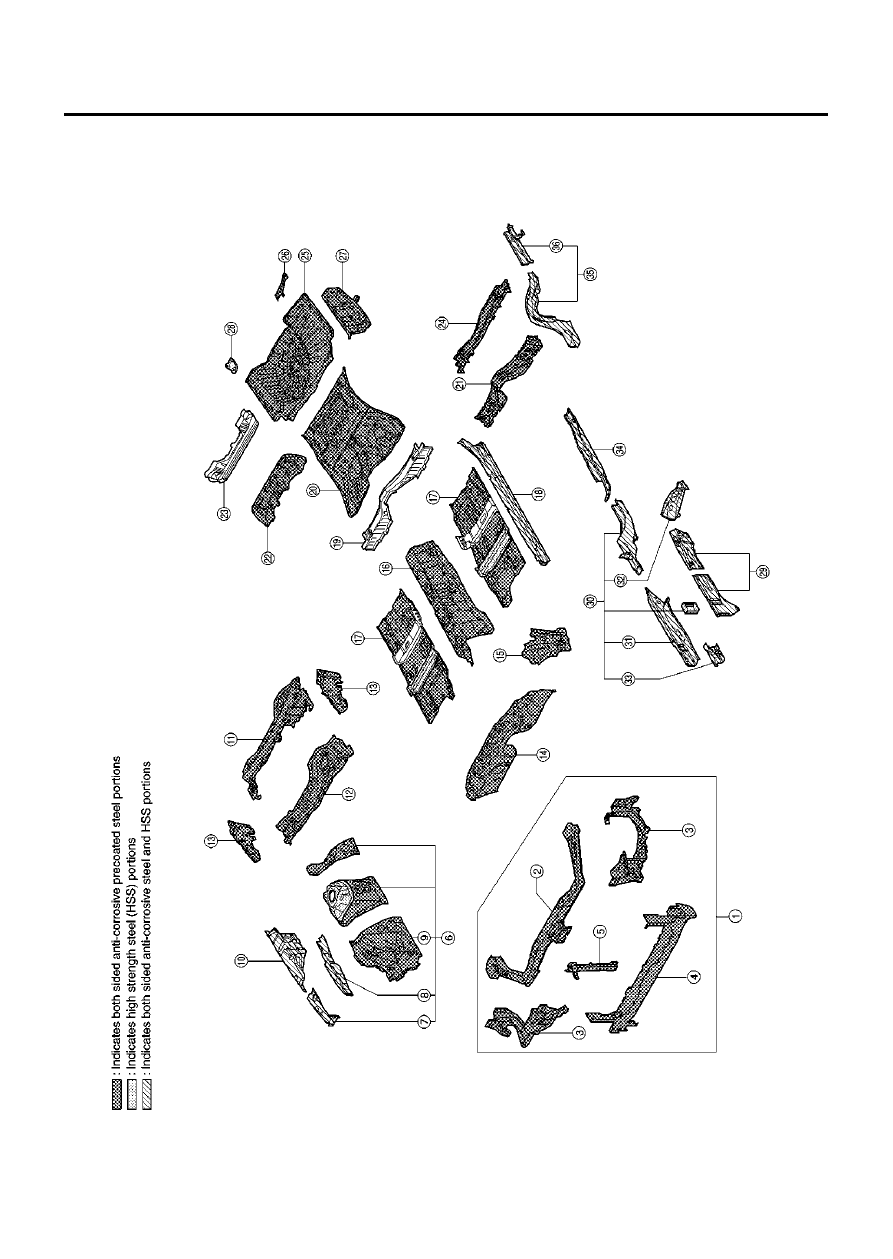

UNDERBODY COMPONENT PARTS

SIIA2374E
