Infiniti F50. Manual - part 229





VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-163

C

D

E

F

G

H

J

K

L

M

A

B

BL

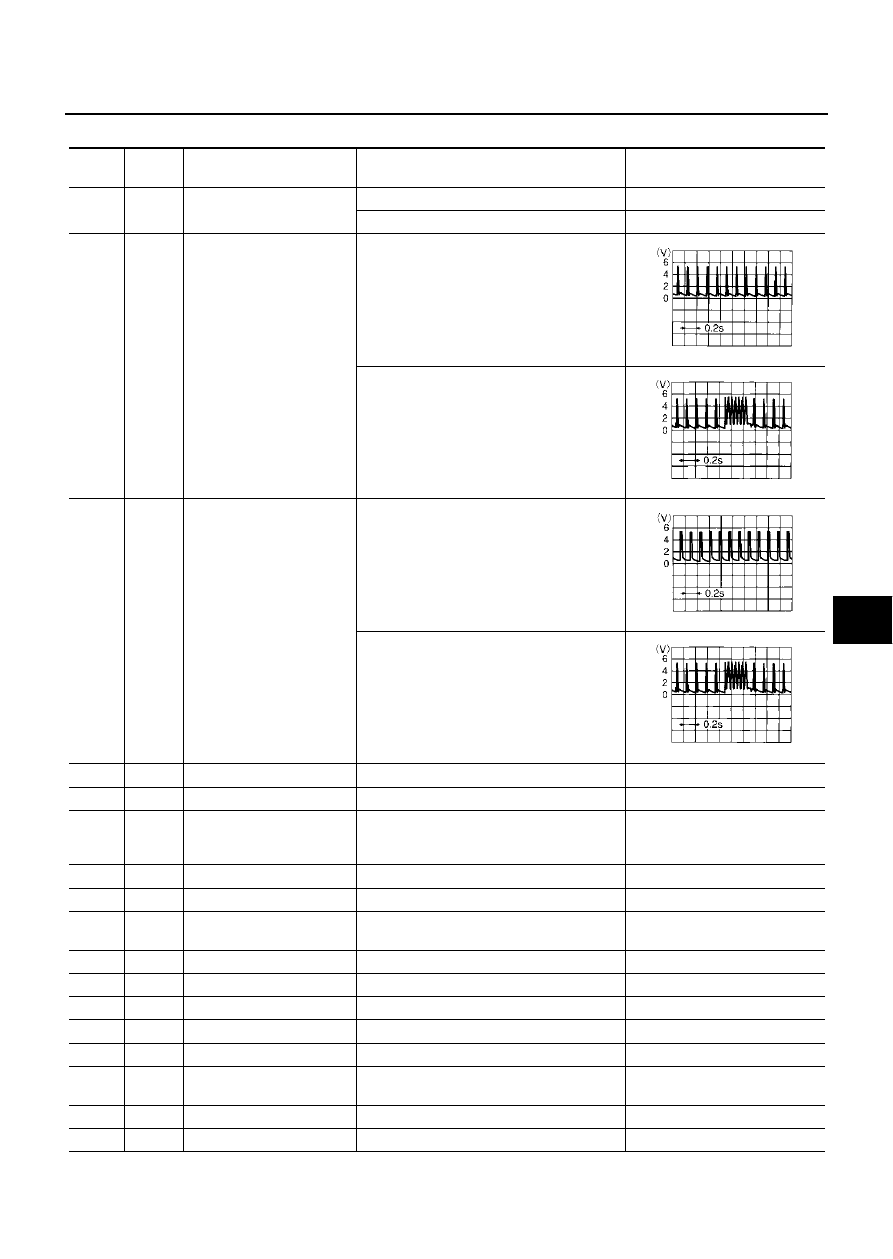

Terminal and Reference Value for BCM

EIS003QX

TER-

MINAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE

5

R/Y

Headlamp relay

Lighting switch is turned OFF position

Battery voltage

Lighting switch is turned ON position

0V

27

BR/W

Remote keyless entry
receiver
(Pulse)

Stand-by

Press any of the electronic key switches

28

L

Remote keyless entry
receiver
(Power supply)

Stand-by

Press any of the electronic key switches

33

W

Rear LH door switch

Door open (ON)

 close (OFF)

0V

 Battery voltage

37

W/G

Passenger door switch

Door open (ON)

 close (OFF)

0V

 Battery voltage

44

Y

Remote keyless entry
receiver
(Ground)

0V

56

B

Ground

0V

60

L/OR

Ignition switch

Ignition switch ACC or ON position

Battery voltage

65

G

Multifunction switch (secu-
rity indicator lamp)

Goes OFF

 Illuminates (every 2.4 seconds)

Battery voltage

 0V

67

G/W

Data line A-3

68

W/B

Ignition switch

Ignition switch ON or START position

Battery voltage

105

Y/L

BAT power supply

Battery voltage

113

B

Ground

0V

122

LG/B

Hood switch

Hood open (ON)

 close (OFF)

0V

 Battery voltage

127

G/W

Horn relay

When panic alarm is operated using elec-
tronic key. (ON

 OFF)

0V

 Battery voltage

142

W/R

Driver door switch

Door open (ON)

 close (OFF)

0V

 Battery voltage

143

W/L

Rear RH door switch

Door open (ON)

 close (OFF)

0V

 Battery voltage

OCC3879D

OCC3880D

OCC3881D

OCC3880D

BL-164

VEHICLE SECURITY (THEFT WARNING) SYSTEM

Terminal and Reference Value for Driver Door Control Unit (LCU01)

EIS003QY

Terminal and Reference Value Passenger And Rear LH, RH Door Control Unit

EIS003QZ

( ): Wire color for rear LH, RH door control unit.

145

LG

Trunk lid key cylinder switch
(unlock switch)

Trunk lid switch “N” position

 between full

stroke and “N” position

Approx. 5V

 0V

146

P

Trunk lid lock switch

Trunk lid open (ON)

 close (OFF)

0V

 Battery voltage

TER-

MINAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE

TERMI-

NAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE

5

G/OR

Local communication line

6

G/Y

Door unlock sensor

OFF (Locked)

 ON (unlocked)

5V

 0V

8

G/W

Data line A-3

9

PU/W

Door key cylinder switch

OFF (Neutral)

 ON (Unlocked)

5V

 0V

10

GY

Door key cylinder lock switch

OFF (Neutral)

 ON (Locked)

5V

 0V

14

Y/G

Power source (PTC)

Battery voltage

15

B

Ground

0V

SIIA0591J

TERMI-

NAL

WIRE

COLOR

ITEM

CONDITION

VOLTAGE (V)

6

W/R

(Y/B)

Power source (PTC)

Battery voltage

7

B

Ground

0V

11

G/OR

Local communication line

13

G/Y

Door unlock sensor

OFF (Locked)

 ON (Unlocked)

5V

 0V

SIIA0591J

VEHICLE SECURITY (THEFT WARNING) SYSTEM

BL-165

C

D

E

F

G

H

J

K

L

M

A

B

BL

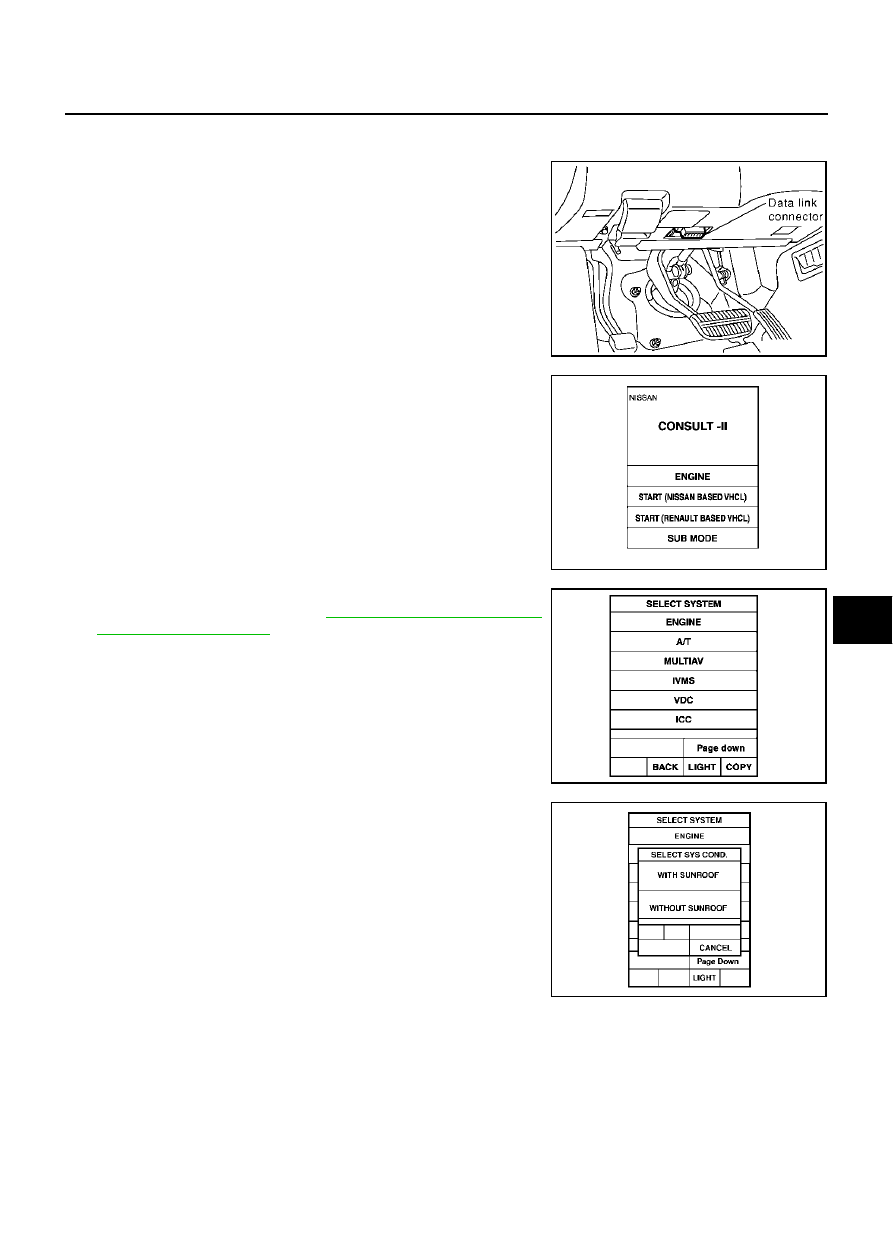

CONSULT-II Function

EIS003Q7

CONSULT-II INSPECTION PROCEDURE

1.

Turn ignition switch “OFF”.

2.

Connect CONSULT-II and CONSULT-II CONVERTER to data
link connector.

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

5.

Touch “IVMS” on the “SELECT SYSTEM” screen.
If “IVMS” is not indicated, go to

GI-38, "CONSULT-II Data Link

Connector (DLC) Circuit"

 .

6.

Check the model specification, touch either “WITH SUNROOF”
or “WITHOUT SUNROOF”.

7.

Touch “OK”. If the selection is wrong, touch “CANCEL”.

PBIB0196E

MBIB0233E

PIIA2796E

PIIA0184E

BL-166

VEHICLE SECURITY (THEFT WARNING) SYSTEM

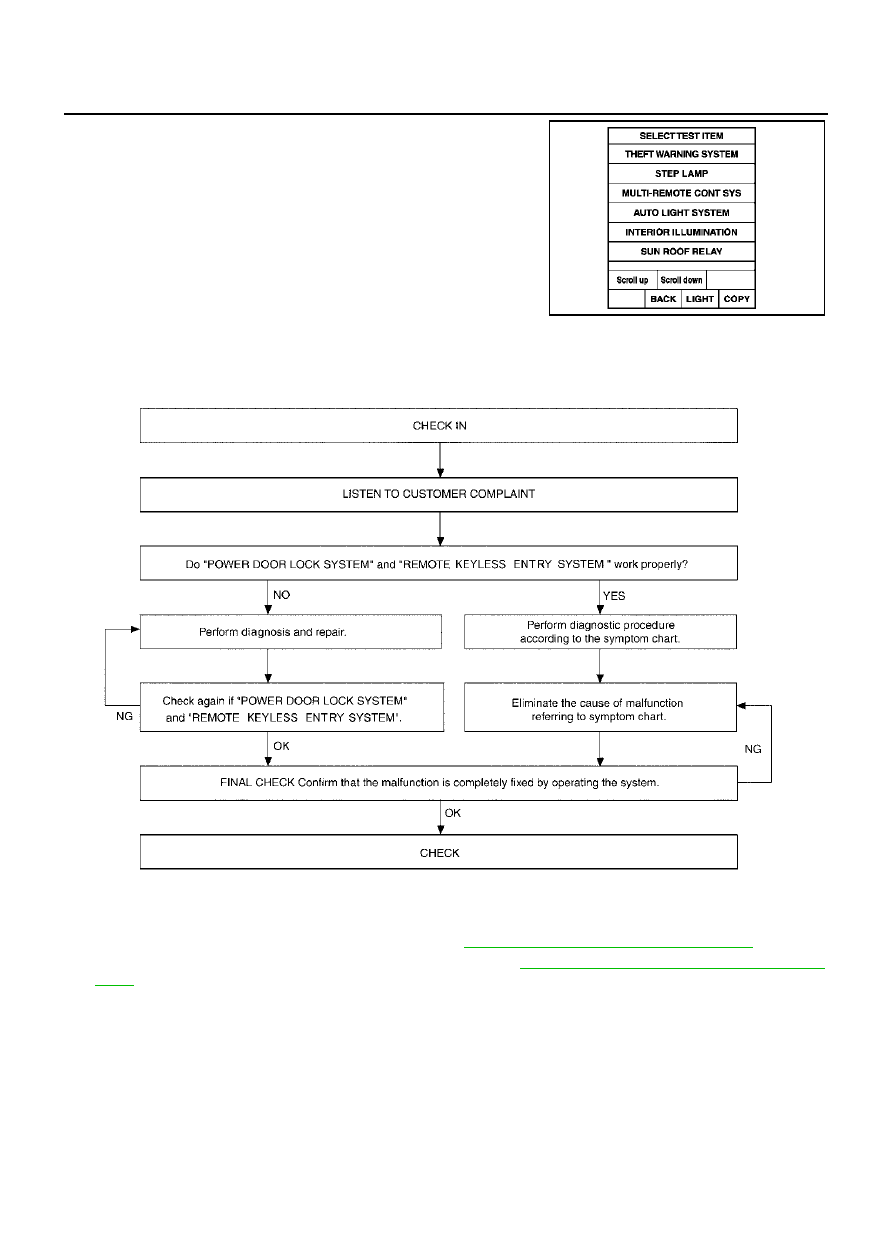

8.

Touch “THEFT WARNING SYSTEM” on the “SELECT TEST
ITEM” screen.

WORK SUPPORT, DATA MONITOR and ACTIVE TEST are
available for the vehicle security system.

Trouble Diagnoses

EIS003Q8

WORK FLOW

“POWER DOOR LOCK SYSTEM” Diagnosis refer to

BL-19, "POWER DOOR LOCK SYSTEM"

 .

“REMOTE KEYLESS ENTRY SYSTEM” Diagnosis refer to

BL-52, "REMOTE KEYLESS ENTRY SYS-

TEM"

 .

PIIA2797E

LIIA0123E
