Infiniti F50. Manual - part 217





TRUNK LID

BL-115

C

D

E

F

G

H

J

K

L

M

A

B

BL

INSTALLTION

Install in the reverse order of removal.

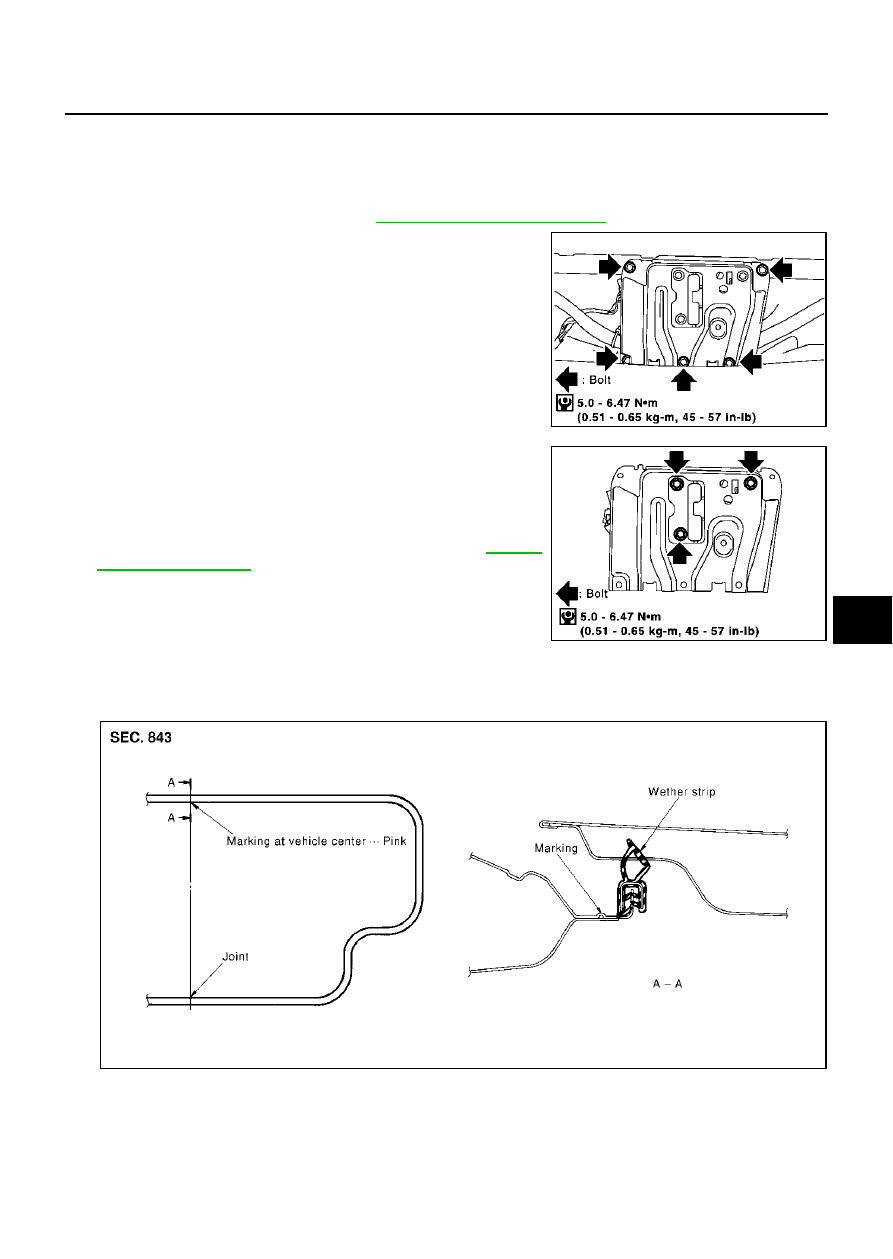

Removal and Installation of Trunk Closure Control Unit

EIS003SQ

REMOVAL

1.

Remove the trunk rear finisher. Refer to

EI-52, "Removal and Installation"

 .

2.

Remove the mounting bolts, and trunk closure control unit
bracket.

3.

After removing trunk closure control unit bracket together,
remove the harness connector, remove the mounting bolts, and
remove the trunk closure control unit.

CAUTION:

After installing, check operation.

After installing, perform fitting adjustment. Refer to

BL-112,

"Fitting Adjustment"

 .

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Trunk Lid Weatherstrip

EIS000HZ

1.

Install the weatherstrip from the front with the vehicle center mark aligned to the weatherstrip mark.

2.

At rear side, align the weatherstrip seam to the center of the striker.

3.

After installing, pull the weatherstrip lightly to check for looseness.

CAUTION:

The weatherstrip shall be fit tightly onto the corners and trunk lid rear plate.

PIIA3369E

PIIA3370E

SIIA0180E

BL-116

TRUNK LID AND FUEL FILLER LID OPENER

TRUNK LID AND FUEL FILLER LID OPENER

PFP:84640

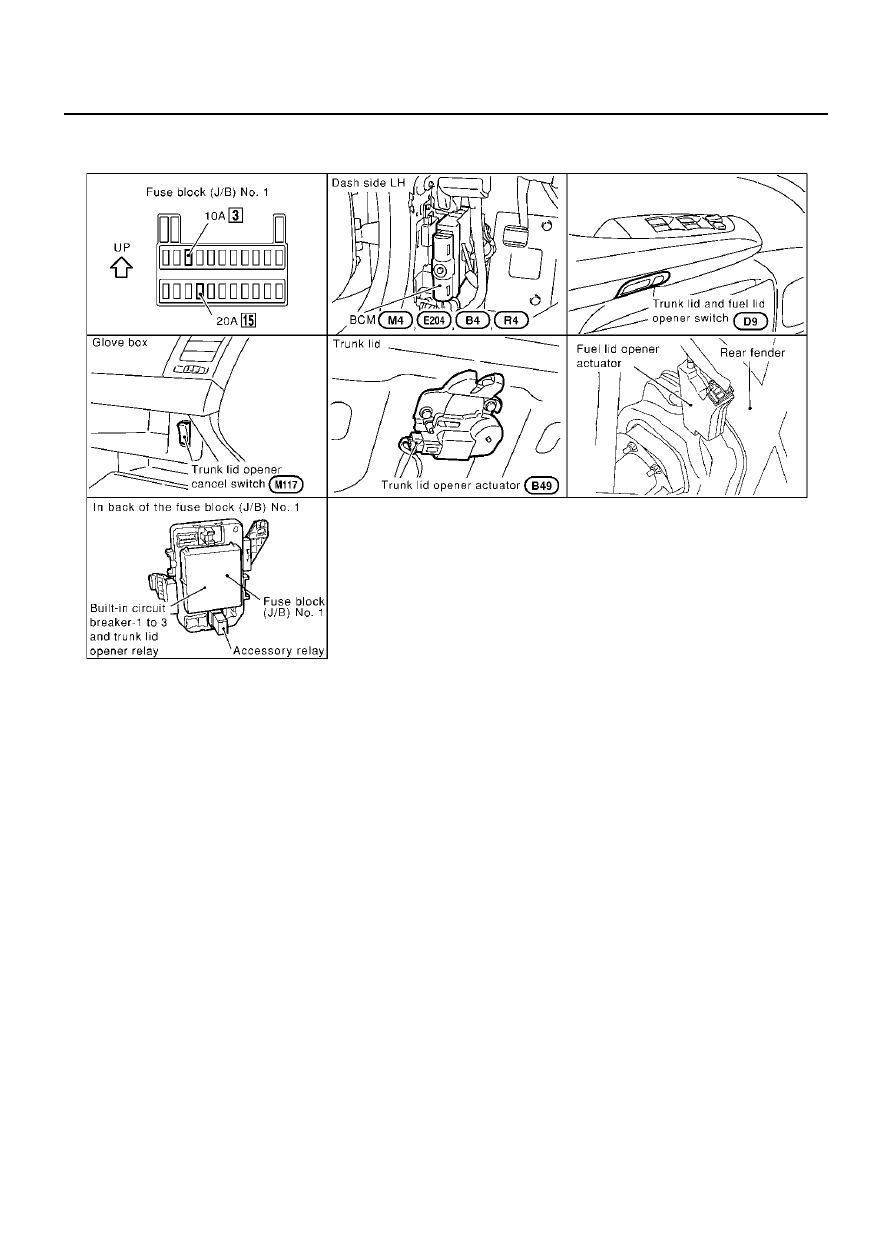

Component Part and Harness Connector Location

EIS000IV

CIIM0001E

TRUNK LID AND FUEL FILLER LID OPENER

BL-117

C

D

E

F

G

H

J

K

L

M

A

B

BL

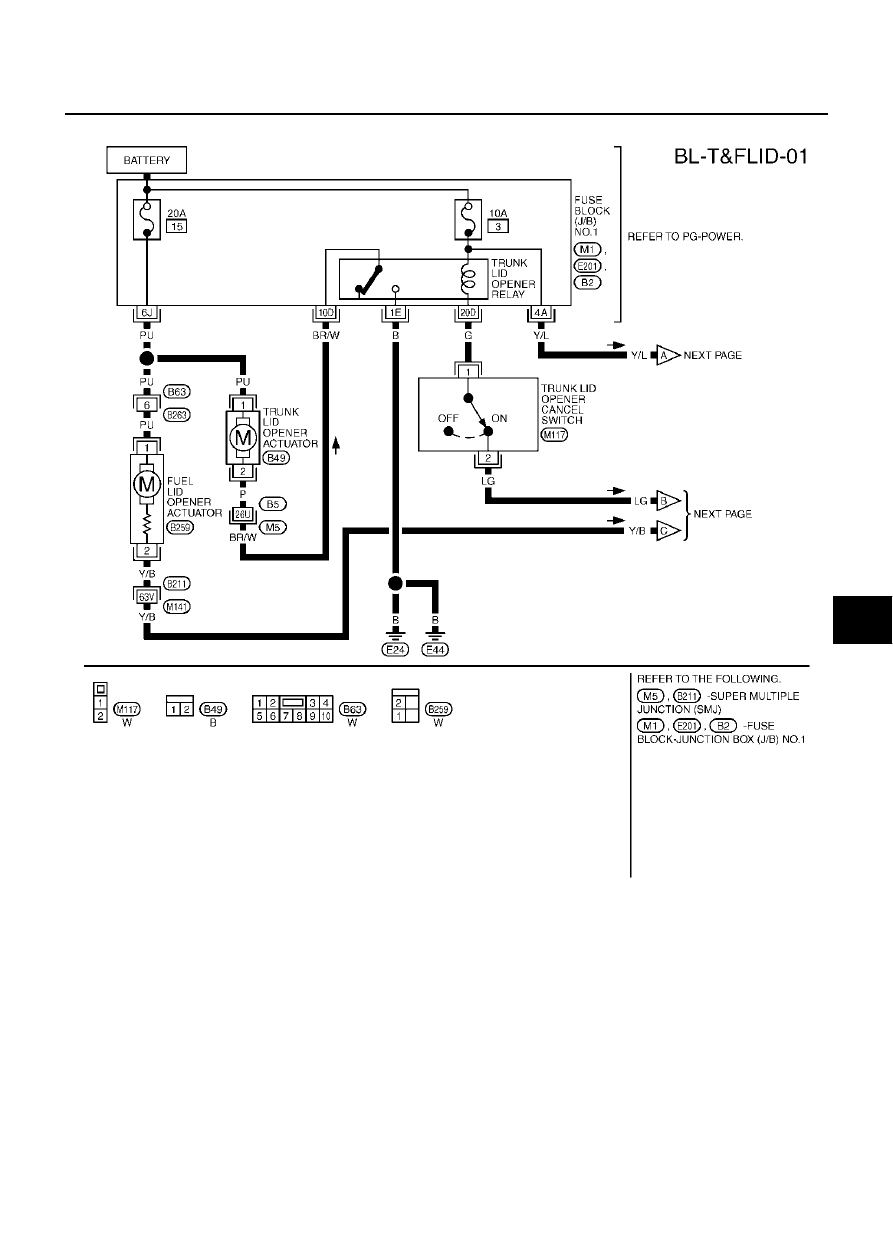

Wiring Diagram — T&FLID —

EIS000IW

TIWM0194E

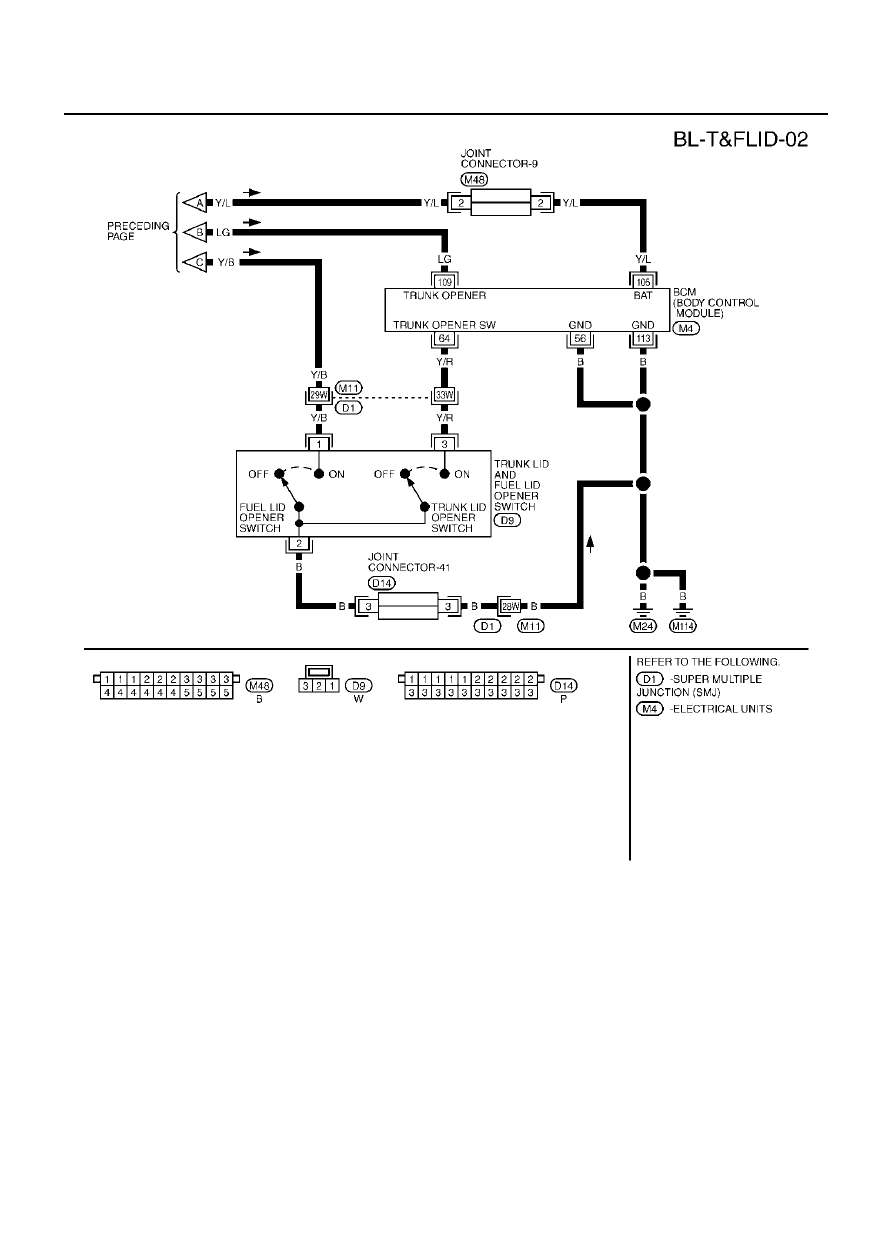

BL-118

TRUNK LID AND FUEL FILLER LID OPENER

TIWM0195E
