POWER DOOR LOCK SYSTEM

BL-19

C

D

E

F

G

H

J

K

L

M

A

B

BL

POWER DOOR LOCK SYSTEM

PFP:24814

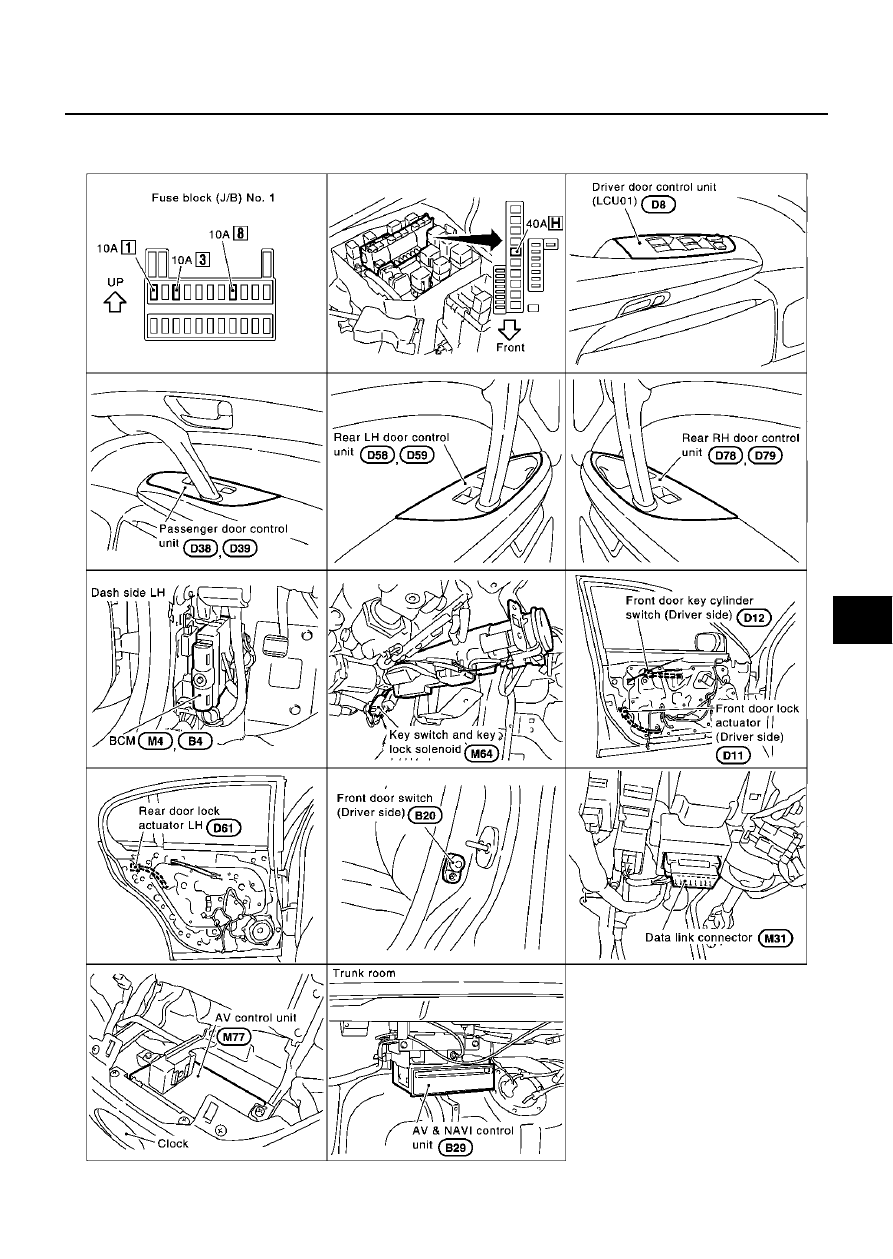

Component Parts and Harness Connector Location

EIS000QL

PIIA3360E

BL-20

POWER DOOR LOCK SYSTEM

System Description

EIS003P5

POWER SUPPLY AND GROUND

Power is supplied at all times

to BCM terminal 105

through 10A fuse [No. 3, located in the fuse block (J/B) No. 1].

to key switch terminal 3

through 10A fuse [No. 8, located in the fuse block (J/B) No. 1].

When the key switch is ON position (key is inserted in ignition key cylinder), power is supplied

to BCM terminal 69

through key switch terminal 4.

When the ignition switch is ON position, power is supplied

to BCM terminal 68

through 10A fuse [No.1, located in the fuse block (J/B) No. 1].

When front door switch is ON (front door is opened), ground is supplied

to front door switch case ground

through door switch terminal 1

through BCM terminal 142 (driver side), 37 (passenger side).

When rear door switch is ON (rear door is opened), ground is supplied

to body grounds B17 and B57 (rear LH), B217 and B256 (rear RH)

through door switch terminals 1 and 2

through BCM terminal 33 (rear LH), 143 (rear RH).

When door is unlocked, ground is supplied

to each door unlock sensor terminal 4

through each door unlock sensor terminal 2

through driver door control unit (LCU01) terminal 6 or passenger, rear LH, RH door control unit terminal
13.

When the door is locked with the emergency key, ground is supplied

to LCU01 terminal 10

through front door key cylinder switch terminals 2 and 3

through grounds M24 and M114.

When the door is unlocked with the emergency key, ground is supplied

to LCU01 terminal 9

through front door key cylinder switch terminals 1 and 2

through grounds M24 and M114.

BCM is connected to LCU01 via DATA LINE A-3.

OPERATION

The lock & unlock switch on driver’s door trim and passenger's door trim can lock and unlock all doors.

With the door key inserted in the key cylinder on front LH door, turning it to “LOCK”, will lock all doors;
turning it to “UNLOCK” once unlocks the corresponding door; turning it to “UNLOCK” again within 5 sec-
onds after the first unlock operation unlocks all of the other doors. (Signals from front door key cylinder
switch)

Key Reminder Door System

However, if the electronic key is in the electronic key cylinder and one or more of the front doors are open, set-
ting the lock & unlock switch to “LOCK” locks the doors once but then immediately unlocks them. (Combina-
tion signals from key switch, door switch)

POWER DOOR LOCK SYSTEM

BL-21

C

D

E

F

G

H

J

K

L

M

A

B

BL

Schematic

EIS0010J

TIWM0141E

BL-22

POWER DOOR LOCK SYSTEM

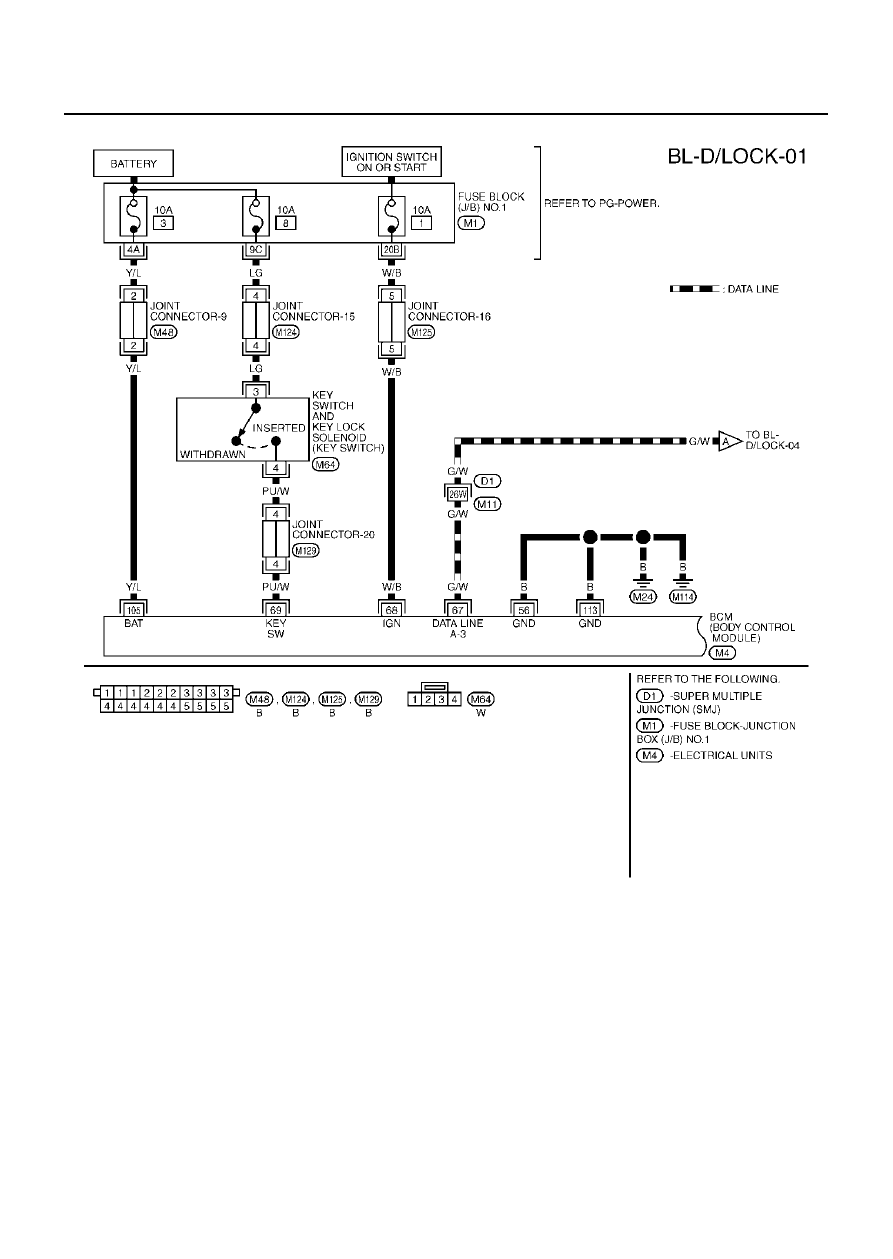

Wiring Diagram – D/LOCK –

EIS000QN

TIWM0182E
