2.

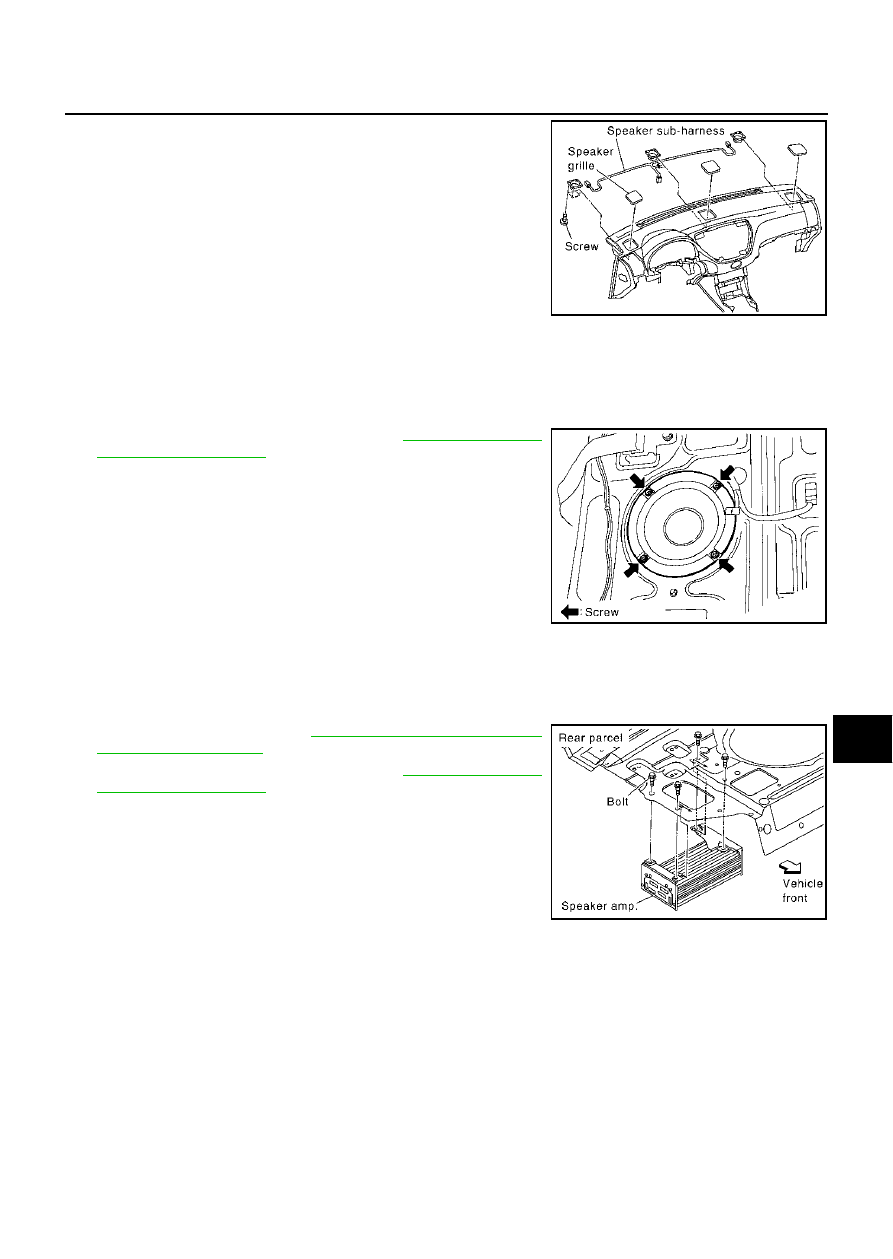

Remove screws (4) and remove instrument panel speaker.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Woofer

EKS000Y7

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

EI-39, "REAR PAR-

CEL SHELF FINISHER"

 .

2.

Remove screws (4) and remove woofer.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of BOSE Speaker  Amplifier

EKS000Y8

REMOVAL

1.

Remove trunk trim. Refer to

EI-52, "TRUNK ROOM TRIM &

TRUNK LID FINISHER"

 .

2.

Remove rear parcel shelf finisher. Refer to

EI-39, "REAR PAR-

CEL SHELF FINISHER"

 .

3.

Remove screws (4) and remove BOSE speaker amplifier from
the trunk room side.

INSTALLATION

Install in the reverse order of removal.

SKIA0353E

SKIA0356E

SKIA0357E

AV-38

AUDIO

Removal and Installation of  AudioPilot™  Microphone

EKS006CH

REMOVAL

1.

Remove cluster lid C. Refer to

IP-13, "CLUSTER LID C"

 .

2.

Remove clock. Refer to

DI-164, "Removal and Installation"

 .

3.

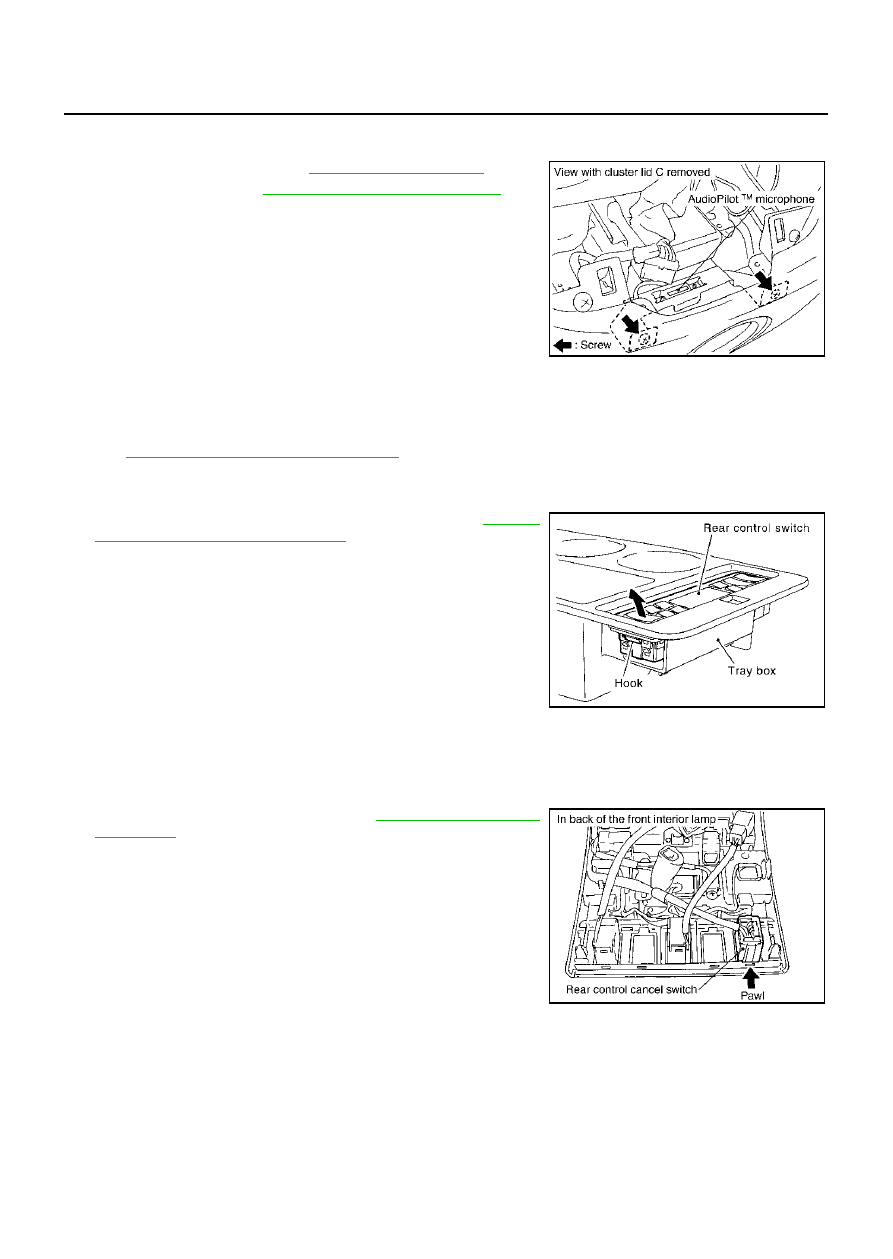

Disconnect AudioPilot

TM

  microphone connector.

4.

Remove screws (2) and remove AudioPilot

TM

  microphone.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Steering Wheel Switch

EKS001HQ

Refer to

SRS-39, "DRIVER AIR BAG MODULE"

 .

Removal and Installation of Rear Control Switch

EKS001HR

REMOVAL

1.

Remove the tray box from the center armrest. Refer to

SE-202,

"CENTER SEATBACK ASSEMBLY"

 .

2.

Remove the rear control switch from the tray box.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Rear Control Cancel Switch

EKS006CI

REMOVAL

1.

Remove front interior lamp. Refer to

LT-107, "Removal and

Installation"

 .

2.

Remove rear control cancel switch from front interior lamp.

INSTALLATION

Install in the reverse order of removal.

SKIA3550E

SKIA0390E

SKIA3551E

AUDIO ANTENNA

AV-39

C

D

E

F

G

H

I

J

L

M

A

B

AV

AUDIO ANTENNA

PFP:28200

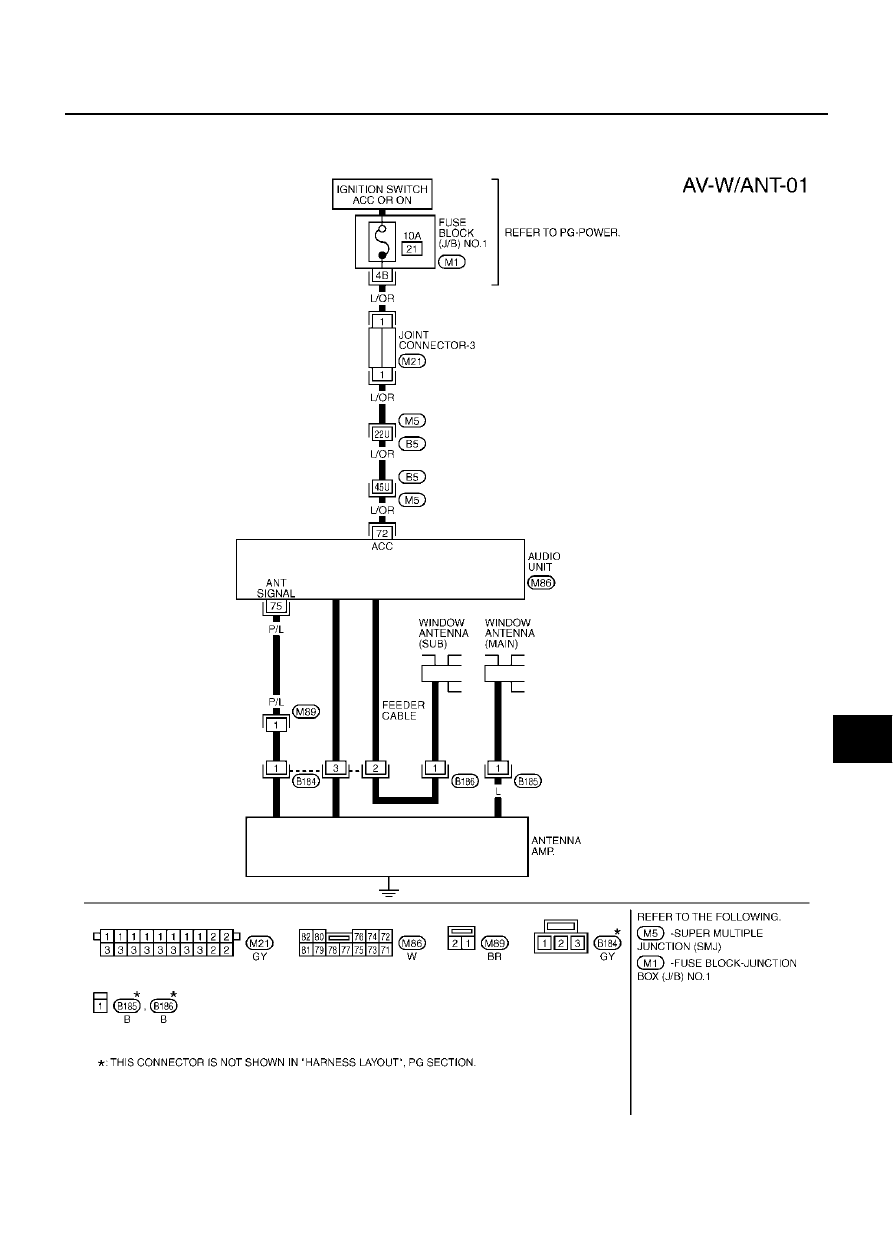

Wiring Diagram —W/ANT—

EKS001FC

TKWM0320E

AV-40

AUDIO ANTENNA

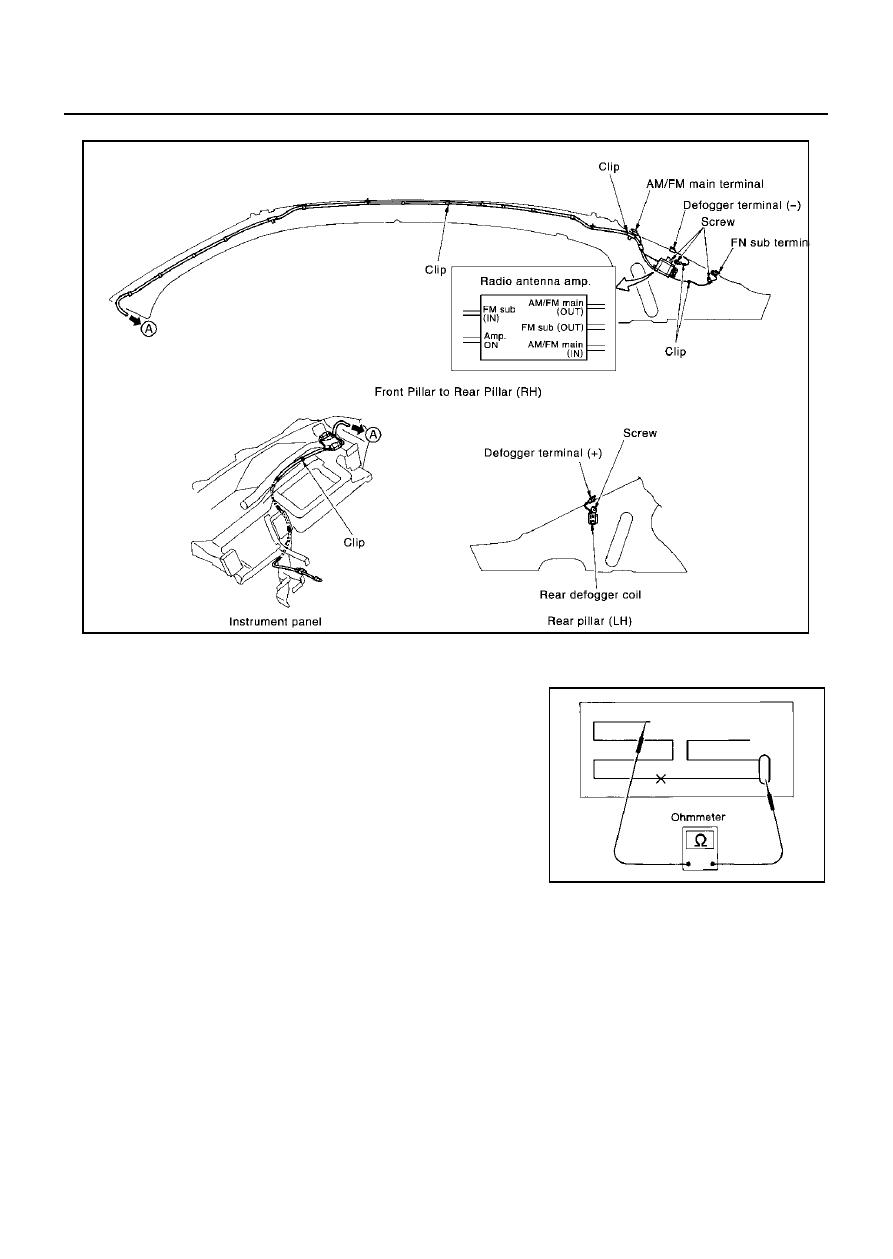

Location of Antenna

EKS000YO

Window Antenna Repair

EKS001FD

ELEMENT CHECK

1.

Attach probe circuit tester (in ohm range) to antenna terminal on
each side. If an element is OK, continuity should exist. If an ele-
ment is broken, no continuity should exist.

PKIA0241E

SEL250I
