TROUBLE DIAGNOSIS

ATC-37

C

D

E

F

G

H

I

K

L

M

A

B

ATC

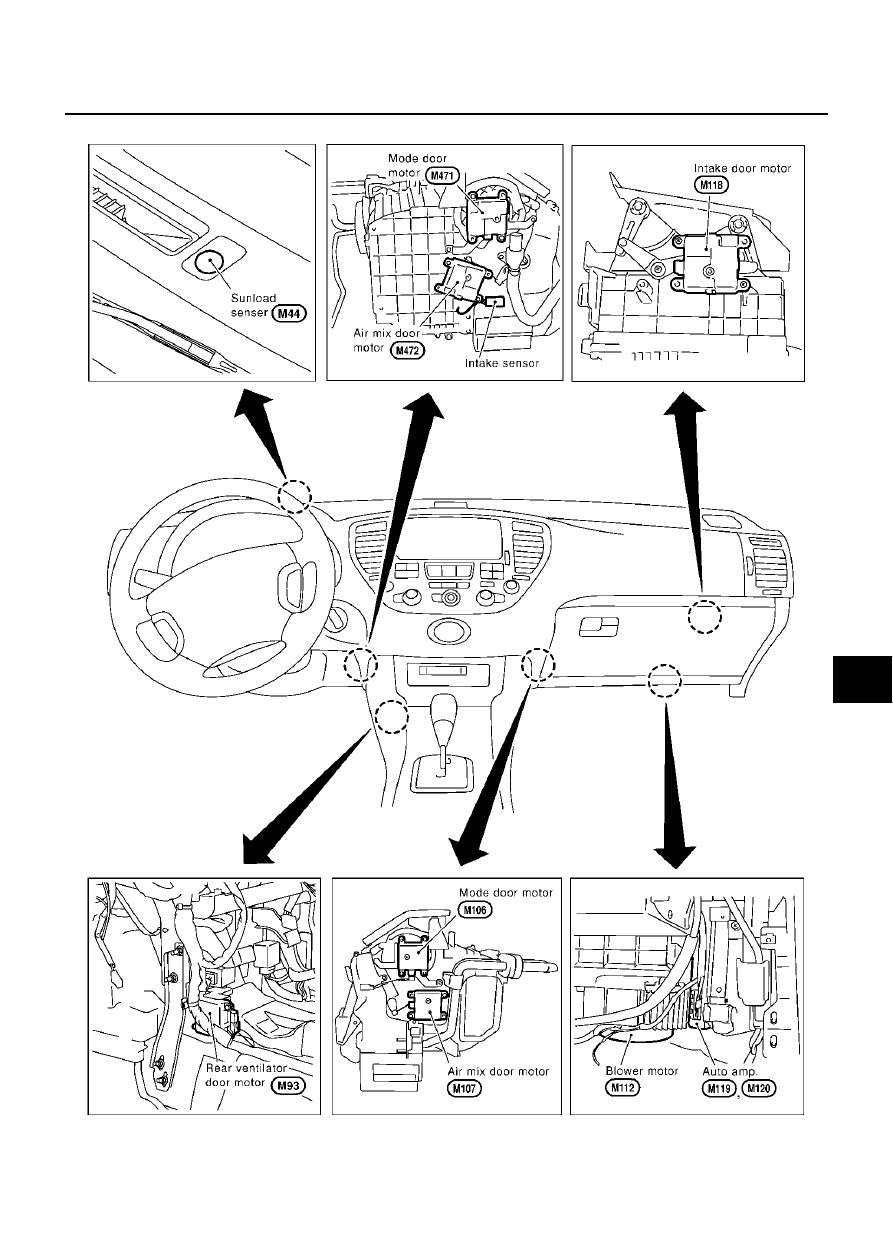

PASSENGER COMPARTMENT

RJIA0209E

ATC-38

TROUBLE DIAGNOSIS

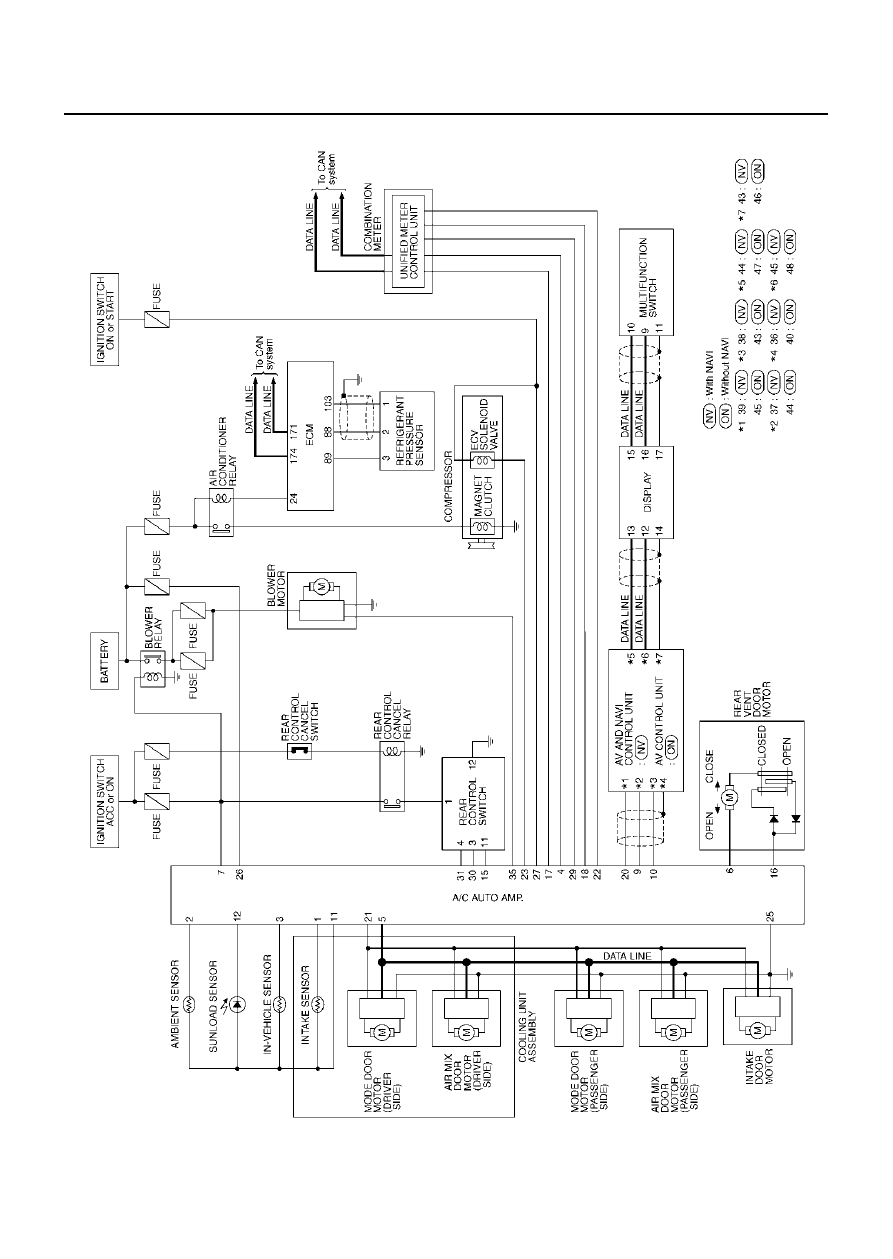

Schematic

EJS000JH

TJWM0023E

TROUBLE DIAGNOSIS

ATC-39

C

D

E

F

G

H

I

K

L

M

A

B

ATC

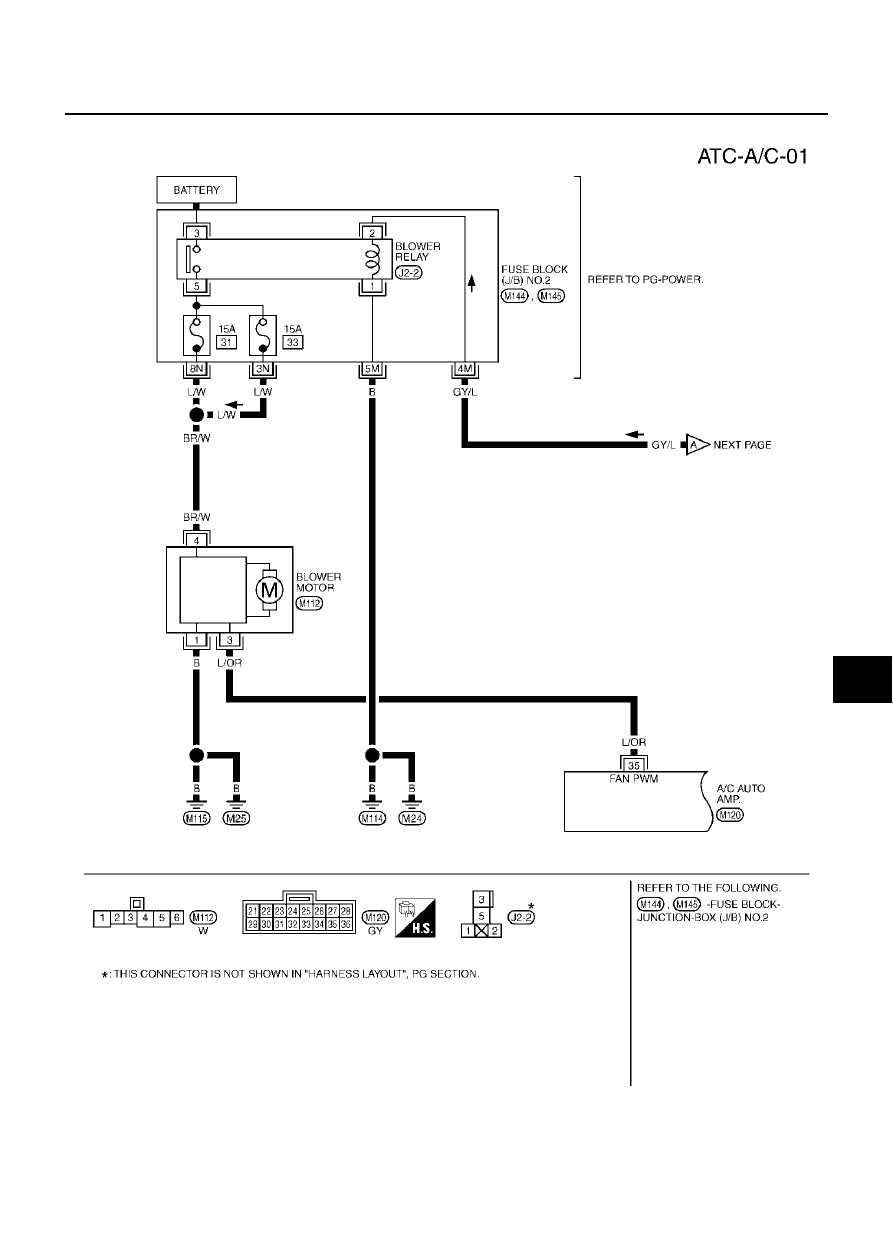

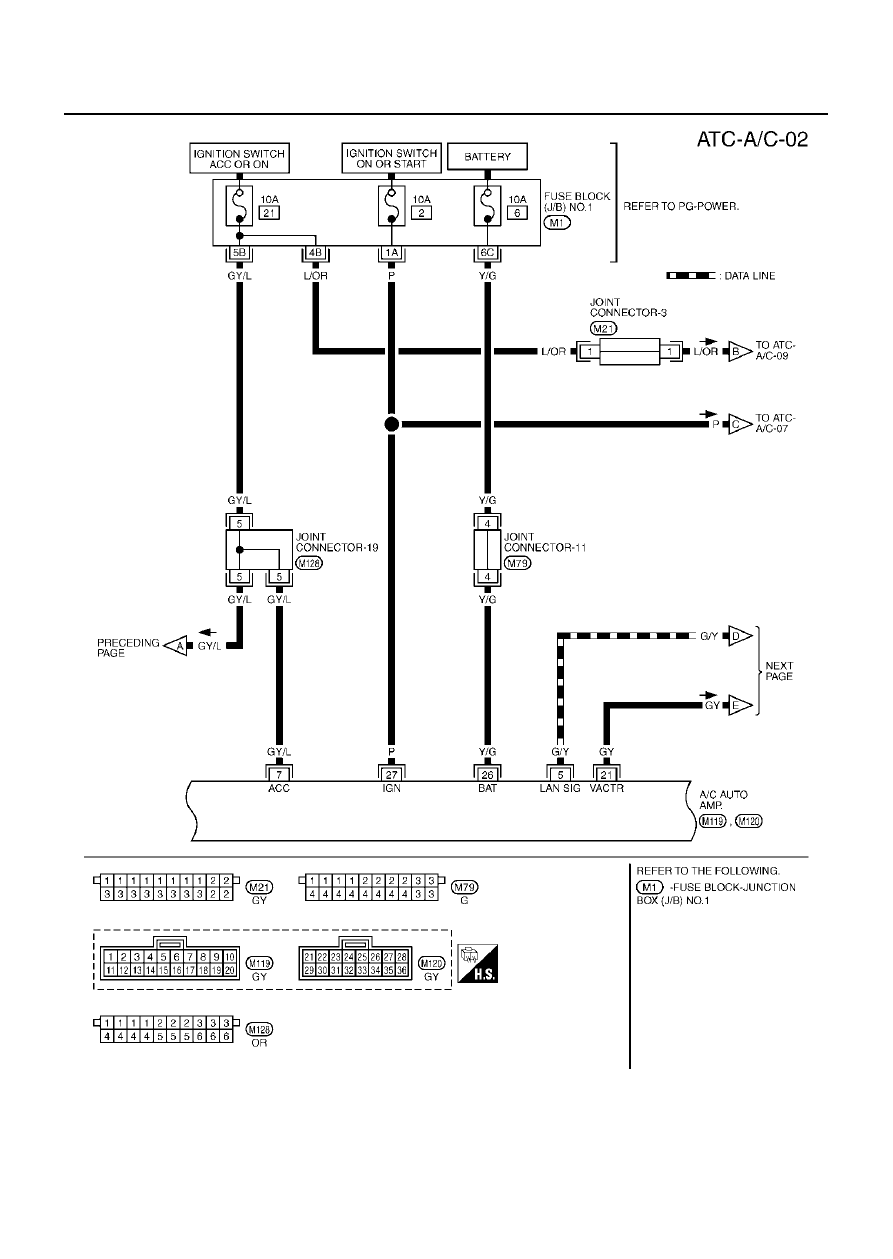

Wiring Diagram —A/C—

EJS000JI

TJWM0024E

ATC-40

TROUBLE DIAGNOSIS

TJWM0025E
