AIR CONDITIONER CONTROL

ATC-29

C

D

E

F

G

H

I

K

L

M

A

B

ATC

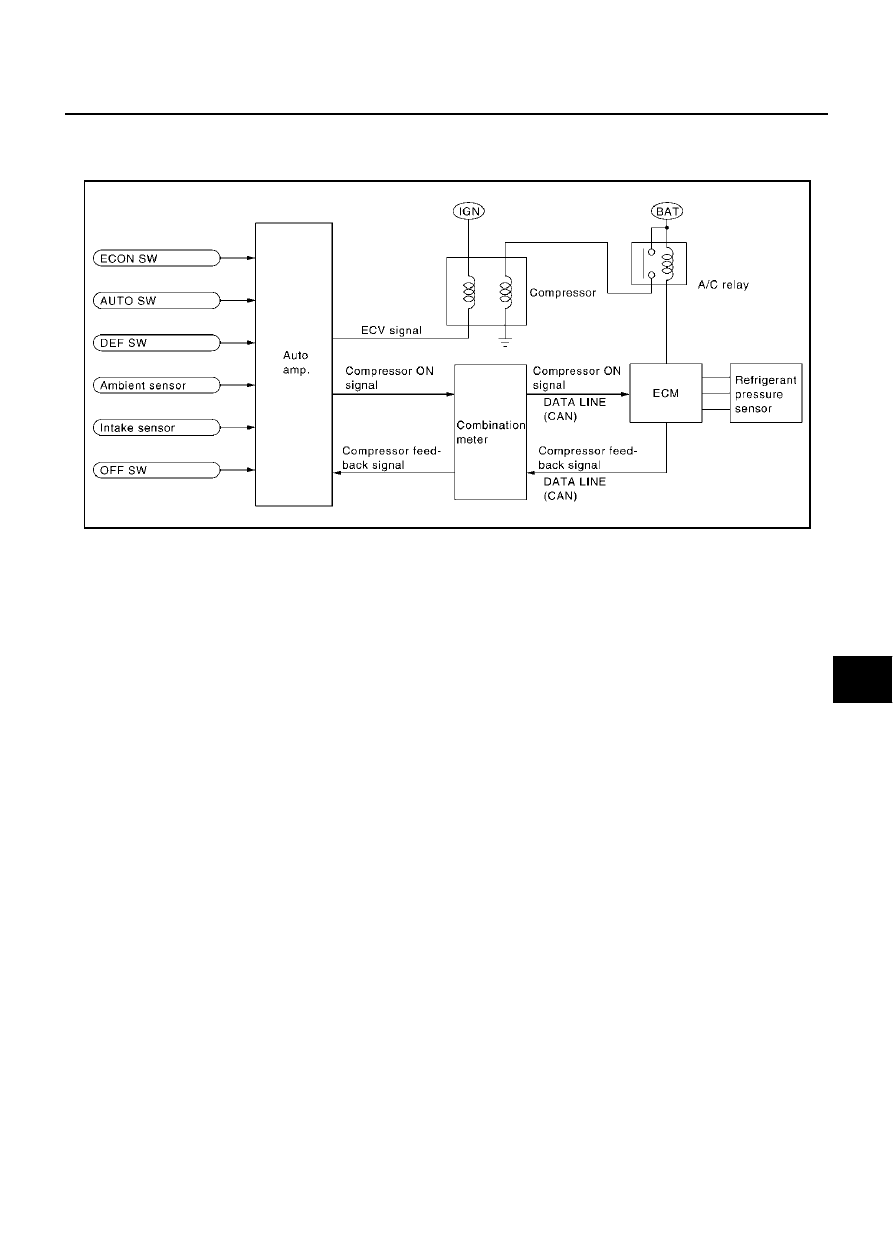

MAGNET CLUTCH CONTROL

The ECM controls compressor operation using input signals from the refrigerant pressure sensor, throttle posi-
tion sensor and auto amplifier.

SELF-DIAGNOSTIC SYSTEM

The self-diagnostic system is built into the auto amplifier to quickly locate the cause of problems.

RJIA1262E

ATC-30

AIR CONDITIONER CONTROL

Description of Control System

EJS000JB

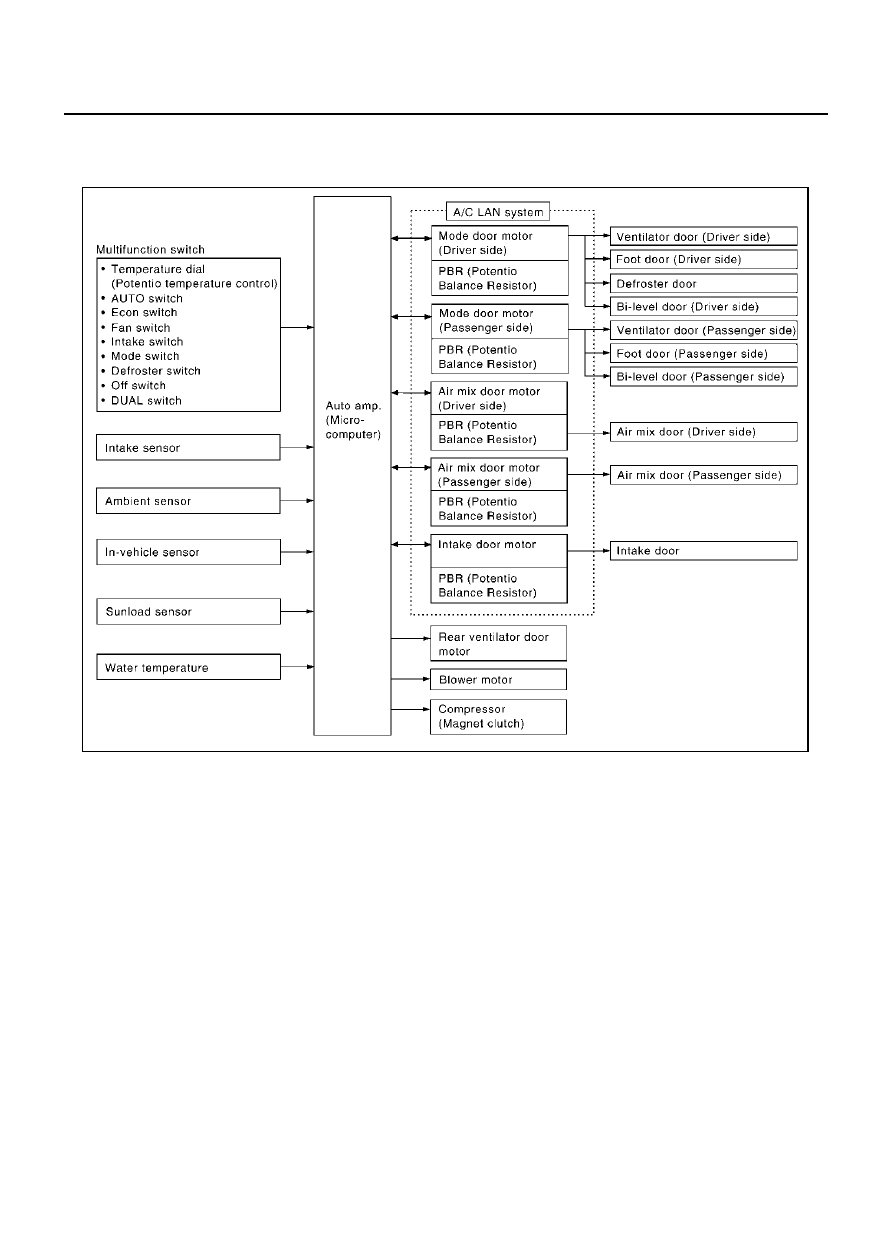

The control system consists of input sensors, switches, the automatic amplifier (microcomputer) and outputs.
The relationship of these components is shown in the diagram below:

RJIA1584E

AIR CONDITIONER CONTROL

ATC-31

C

D

E

F

G

H

I

K

L

M

A

B

ATC

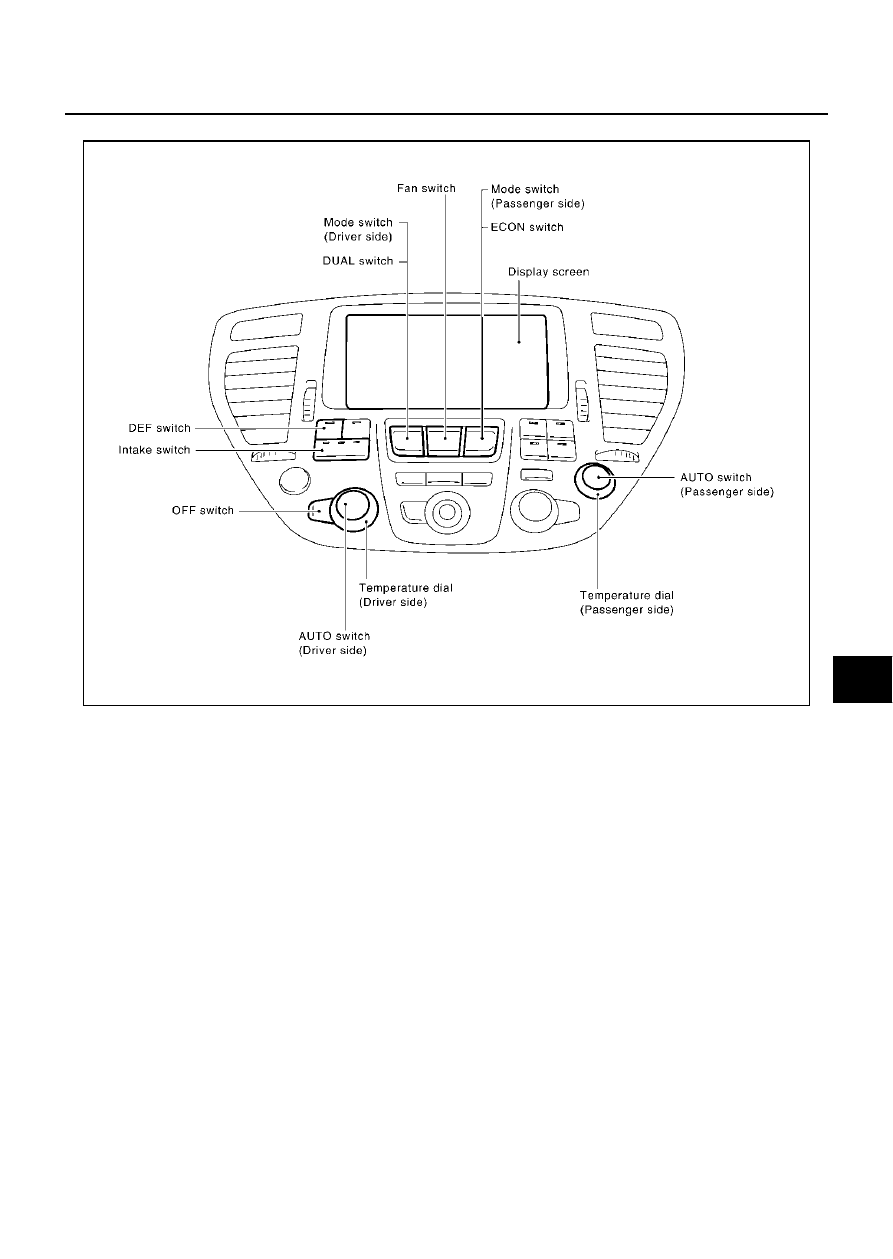

Control Operation

EJS000JC

DISPLAY SCREEN

Displays the operational status of the system.

AUTO SWITCH (DRIVER SIDE)

The compressor, intake doors, air mix doors, outlet doors and blower speed are automatically controlled
so that the in-vehicle temperature will reach, and be maintained at the set temperature selected by the
operator.

When the A/C system is operating, if the screen is not displayed, press the AUTO switch once to display the A/
C screen. (The display time is determined by the navigation system settings.) or, when the A/C system is in
manual control, and the DUAL switch is depressed, pressing the AUTO switch changes to auto-control for the
driver side only.

AUTO SWITCH (PASSENGER SIDE)

The compressor, intake doors, air mix doors, outlet doors and blower speed are automatically controlled so
that the in-vehicle temperature will reach, and be maintained at the set temperature selected by the operator.

When the A/C system is operating, if the screen is not displayed, press the AUTO switch once to display
the A/C screen. (The display time is determined by the navigation system settings.) Or, when the A/C sys-
tem is in manual control, and the DUAL switch is depressed, pressing the AUTO switch changes to auto-
control for the passenger side only.

TEMPERATURE DIAL (POTENTIO TEMPERATURE CONTROL) (DRIVER SIDE)

Increase or decrease the set temperature.

TEMPERATURE DIAL (POTENTIO TEMPERATURE CONTROL) (PASSENGER SIDE)

Increase or decrease the set temperature.

When the temperature dial is turned, the DUAL switch indicator will automatically illuminate.

RJIA1585E

ATC-32

AIR CONDITIONER CONTROL

INTAKE SWITCH

Set the inlet to automatic control or to REC-fixed. However, REC-fixed cannot be selected in DEF mode.
When the FRE switch is ON, the air inlet will be automatically controlled.

DEFROSTER (DEF) SWITCH

Positions the air outlet doors to the defrost position. Also positions the intake doors to the outside air position.

OFF SWITCH

The compressor and blower are OFF, the intake doors are set to the outside air position, and the air outlet
doors are set to the foot (80% foot and 20% defrost) position.

MODE SWITCH (DRIVER SIDE)

When the DUAL switch indicator is illuminated, the left and right outlets are switched together.

When the DUAL switch indicator is not illuminated, only the driver-side outlet is switched.

MODE SWITCH (PASSENGER SIDE)

When the MODE switch is pressed, the DUAL switch indicator illuminates, and only the passenger-side outlet
is switched.

ECON (ECONOMY) SWITCH

When pressing ECON switch,

ECON

 appears on display and control is switched to economy control.

Press ECON switch again. The compressor always turns OFF. (ECON disappears on display)

FAN SWITCH

Manually controls the blower speed. Five speeds are available for manual control (as shown on the display
screen).

DUAL SWITCH

 When the DUAL switch indicator is not illuminated and the DUAL switch is pressed, the driver-side outlet
and passenger-side outlet, as well as the setting temperature, can each be set independently.

 When the DUAL switch indicator is illuminated and the DUAL switch is pressed, the driver-side outlet and
setting temperature is applied to both sides.

FAIL-SAFE FUNCTION

EJS0022U

If a communication error exists between auto amplifier and AV control unit or AV and NAVI control unit for
30 seconds or longer, air conditioner is controlled under following conditions:

Compressor: ON

Air outlet: AUTO

Blower fan speed: AUTO

Set temperature: Setting before communication error occurs.
